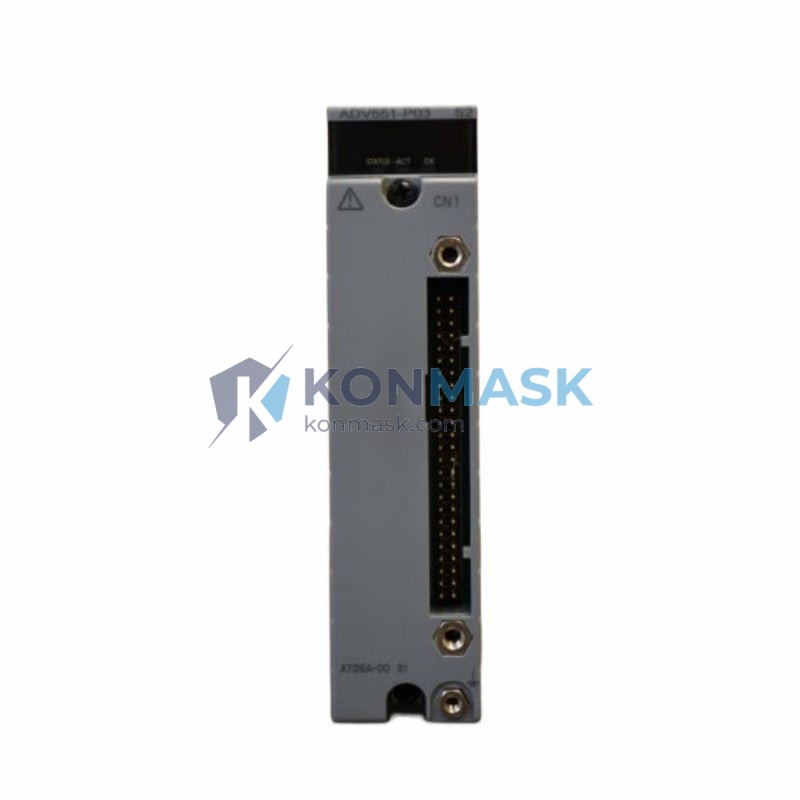

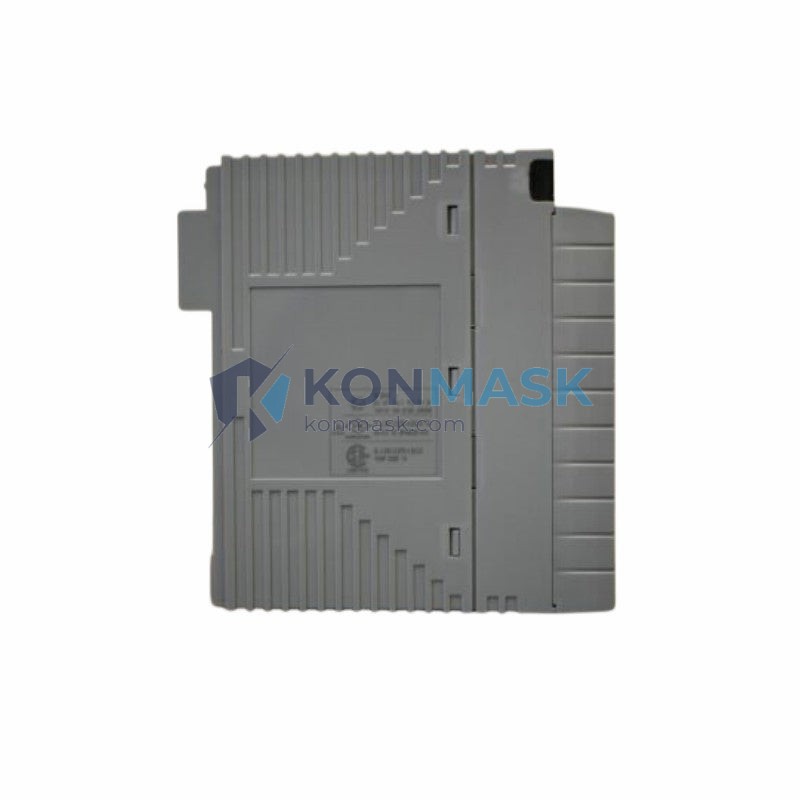

YOKOGAWA ADV551-P03 S2 — 32-Channel Digital Output Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The ADV551-P03 S2 is a field-proven digital output module designed for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems — the industry benchmark for large-scale process automation in refining, petrochemical, power generation, and pharmaceutical manufacturing. This module provides reliable, high-density discrete output capability within the CENTUM I/O subsystem, enabling precise on/off control of field actuators, solenoid valves, motor starters, and indicator lamps.
Product Positioning
Engineered for mission-critical process environments where output signal integrity and system uptime are non-negotiable. The ADV551-P03 S2 integrates directly into the CENTUM VP I/O nest without additional adapters, maintaining full compatibility with existing FCS (Field Control Station) configurations. Ideal for brownfield expansions, spare-parts replenishment, and system redundancy upgrades.
Complete Technical Specifications
| Model | ADV551-P03 S2 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Digital Output (DO) Module |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Output Channels | 32 channels |
| Output Type | Transistor sourcing (PNP) |
| Rated Output Voltage | 24 VDC |
| Output Current per Channel | 0.1 A (max) |
| Total Load Current | 3.2 A (max, all channels ON) |
| Isolation | Photocoupler isolation between field and system bus |
| Surge Protection | Built-in transient suppression per channel |
| Diagnostic Functions | Open-load detection, short-circuit protection, watchdog |
| Communication Bus | CENTUM internal ESB (Enhanced Signal Bus) |
| Module Form Factor | Single-slot I/O module for CENTUM VP nest |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 300 g |
| Certifications | CE, UL (per CENTUM VP system certification) |
| Part Number / Suffix | ADV551-P03, Suffix S2 |
Proven Application Environments
- Oil & Gas Refining: Solenoid valve control for process isolation and emergency shutdown (ESD) interfaces
- Petrochemical Plants: Motor starter and contactor switching in batch and continuous process units
- Power Generation: Turbine auxiliary control, breaker status output, and annunciator panel driving
- Pharmaceutical Manufacturing: Clean-room actuator control under FDA 21 CFR Part 11 compliant DCS environments
- Pulp & Paper / Chemical: High-density discrete output for multi-zone process control
- Water & Wastewater Treatment: Pump and valve sequencing in SCADA-integrated CENTUM VP systems
Engineering Advantages
- High Channel Density: 32 DO channels per single slot — maximizes I/O nest utilization and reduces cabinet footprint
- Photocoupler Isolation: Full galvanic isolation protects the DCS backplane from field-side transients and ground loops
- Per-Channel Diagnostics: Open-load and short-circuit detection reported to FCS in real time — eliminates blind fault conditions
- Hot-Swap Compatible: Supports online module replacement within CENTUM VP redundant I/O configurations (verify with system integrator)
- Watchdog Supervision: Hardware watchdog forces outputs to safe state on communication loss — critical for SIL-rated applications
- Direct Nest Mounting: No marshalling panel or intermediate terminal required — plug-in installation reduces commissioning time
System Architecture & Signal Flow
The ADV551-P03 S2 resides in the CENTUM VP I/O nest and communicates with the Field Control Station (FCS) via the Enhanced Signal Bus (ESB). The FCS executes control logic and writes output values to the module’s internal register map. Each channel’s transistor driver then switches the corresponding field device load referenced to the 24 VDC field power supply. Photocoupler isolation at each channel boundary prevents field-side faults from propagating to the ESB or FCS processor.
Signal path: FCS Control Logic → ESB → ADV551-P03 S2 Register → Photocoupler → Transistor Driver → Field Device (solenoid / relay / indicator)
Sourcing & Quality Verification
- Stock Condition: Genuine YOKOGAWA surplus / refurbished units — each module inspected prior to listing
- Functional Testing: Power-on verification and channel continuity check performed before shipment

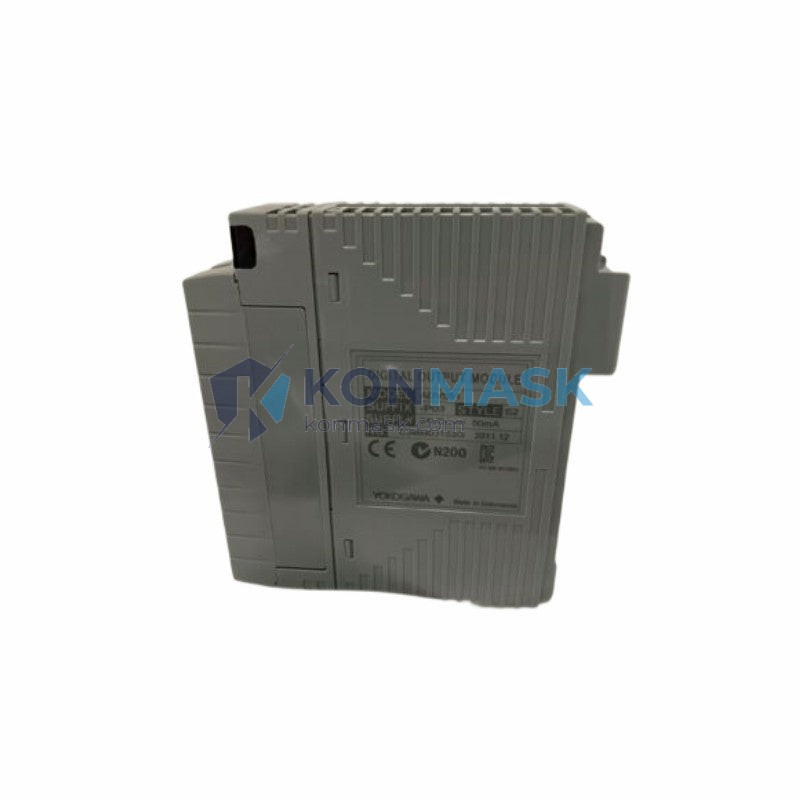

- Authenticity: Original YOKOGAWA labeling, part number, and suffix code verified against manufacturer documentation
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for long-haul shipments
- Warranty: 90-day Konmask operational warranty — DOA replacement or full refund
- Traceability: Serial number recorded at dispatch; available on request for maintenance records
Procurement Process
- Confirm Compatibility: Verify your CENTUM VP / CS 3000 FCS model and I/O nest type before ordering — contact our engineers if unsure
- Request Quote: Add to cart or email support@konmask.com for volume pricing and lead time confirmation
- Order Confirmation: Pro-forma invoice issued within 1 business day; T/T, PayPal, and trade-term orders accepted
- Inspection & Dispatch: Module tested, photographed, and shipped within 2–3 business days of payment clearance
- Logistics: DHL / FedEx express worldwide; EXW Xiamen or CIF destination available; export documentation provided
- After-Sales: Technical support via email or WhatsApp throughout installation and commissioning
Technical FAQ
Q: Is the ADV551-P03 S2 compatible with CENTUM VP R6.x?
A: Yes. The ADV551 series is supported across CENTUM VP R4 through R6. Confirm your FCS firmware revision with YOKOGAWA or your system integrator for the latest compatibility matrix.
Q: Can this module be used in a redundant I/O configuration?
A: The ADV551-P03 supports dual-redundant nest configurations when paired with the appropriate CENTUM VP redundant I/O controller. Consult your system architecture drawings.
Q: What is the difference between suffix S1 and S2?
A: The suffix typically denotes a hardware revision or regional specification variant. S2 is the current production revision. Contact us to confirm interchangeability with your existing S1 units.
Q: Do you provide the module’s configuration file or FCS tag database?
A: Hardware modules ship without software configuration. Tag database setup is performed via YOKOGAWA’s Engineering Environment (ENG). We can advise on standard I/O builder procedures.
Q: What is the lead time for bulk orders (10+ units)?
A: Typically 5–10 business days depending on stock availability. Contact us for a dedicated quote and allocation confirmation.
