Safety Shutdown & Process Control Solution — Triconex DO3201 | Tricon TMR System
Where This Product Is Used

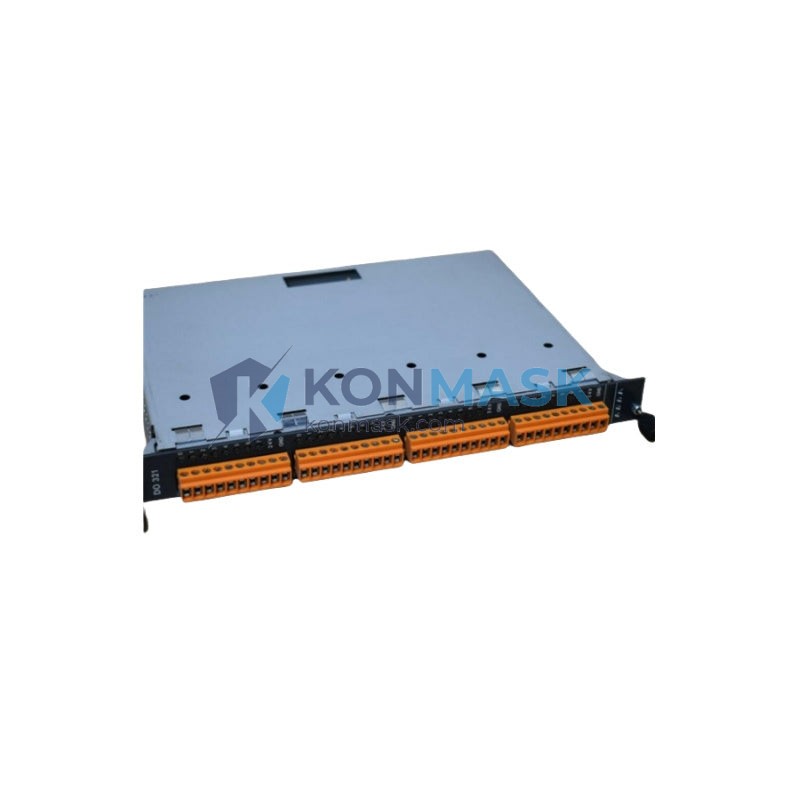

The Triconex DO3201 is a 32-channel digital output module designed for the Tricon Triple Modular Redundant (TMR) Safety System. It is deployed in safety-critical environments where high-integrity discrete output control is mandatory. Typical installation sites include:
- Oil & Gas Upstream: Wellhead control panels, Christmas tree valve actuation, and subsea control systems requiring SIL 2/3 rated output integrity.
- LNG & Refinery Plants: Emergency Shutdown (ESD) systems controlling blowdown valves, isolation valves, and depressurization sequences.
- Petrochemical & Chemical Plants: Burner Management Systems (BMS) and High-Integrity Pressure Protection Systems (HIPPS) where DO modules drive solenoid valves and motor starters.
- Power Generation: Turbine trip systems and boiler protection logic requiring fast, deterministic output response.
- Fire & Gas (F&G) Systems: Activation of deluge valves, suppression systems, and audible/visual alarms via discrete output channels.
- Offshore Platforms: Integrated Control and Safety Systems (ICSS) where the DO3201 interfaces with final control elements under IEC 61511 compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DO3201 |
| Manufacturer | Triconex (Schneider Electric) |
| Module Type | Digital Output (DO) |
| System Compatibility | Tricon TMR Safety System |
| Number of Channels | 32 Channels |
| Output Voltage | 24 VDC |
| Output Current (per channel) | Up to 0.5 A |
| Output Type | Solid-state (transistor) sourcing |
| Isolation | Optical isolation per channel group |
| Redundancy Architecture | Triple Modular Redundant (TMR) — 3 independent output legs voted 2-out-of-3 |
| Diagnostics | Continuous self-test; fault detection per channel |
| Communication | Tricon backplane bus |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 200 g |
| Form Factor | Single-slot Tricon chassis module |
| Safety Integrity Level | SIL 2 / SIL 3 capable (per IEC 61508) |
Why Engineers Specify This Model
- TMR Architecture: Three independent output legs with 2oo3 voting ensure no single-point failure can cause a spurious trip or a dangerous undetected failure — critical for SIL 3 loop integrity.
- Hot-Swap Capability: The DO3201 supports online replacement without system shutdown, minimizing plant downtime during maintenance windows.
- Per-Channel Diagnostics: Continuous self-diagnostics detect open-load, short-circuit, and over-current conditions, reporting faults to the Tricon controller in real time.
- Proven Field Record: Deployed globally in thousands of ESD and F&G systems since the Tricon platform’s introduction — a benchmark for safety system reliability.
- Deterministic Response: Fixed scan-cycle output update ensures predictable response times for time-critical safety functions.
- Seamless Integration: Native compatibility with Triconex TriStation 1131 programming environment and existing Tricon chassis infrastructure.
Complete System Bill of Materials
The DO3201 operates within the broader Tricon TMR ecosystem. A typical ESD or F&G panel BOM includes:
- Tricon Main Chassis (e.g., 8310, 8312)
- Tricon Power Supply Module (e.g., 8110)
- Tricon Main Processor Module (e.g., 4351A, 4352A)
- Tricon Communication Module (e.g., 4119A, 4329)
- Tricon Digital Input Module (e.g., DI3201, DI3301)
- Tricon Digital Output Module — DO3201 (this item)
- Tricon Analog Input Module (e.g., AI3351)
- Tricon Termination Panel / Field Termination Assembly (FTA)
- TriStation 1131 Engineering Workstation License
Contact support@konmask.com for complete panel BOM sourcing and cross-reference assistance.
Compliance & Industry Standards
- IEC 61508 — Functional Safety of E/E/PE Safety-Related Systems (SIL 2 / SIL 3)
- IEC 61511 — Functional Safety for the Process Industry Sector
- NFPA 72 — National Fire Alarm and Signaling Code (F&G applications)
- API 670 — Machinery Protection Systems (turbine/compressor applications)
- CE Marking — European conformity for industrial control equipment
- UL Listed — Underwriters Laboratories industrial control equipment certification
- ATEX / IECEx — Consult factory for hazardous area installation requirements
Quality Assurance & Sourcing
All Triconex modules supplied by Konmask.com undergo a rigorous multi-stage quality process:
- Visual Inspection: Board-level inspection for physical damage, corrosion, and counterfeit indicators.
- Functional Power-On Test: Module is energized and self-diagnostics are verified to pass with no fault codes.
- Firmware Version Verification: Firmware revision is documented and disclosed prior to shipment.
- Serialization & Traceability: Serial number, test date, and inspector ID recorded for each unit.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning and moisture barrier packaging.
- Warranty: 12-month replacement warranty against manufacturing defects and functional failure.
We source from decommissioned plant inventories, authorized distributors, and verified surplus channels — never from unverified grey-market sources.
How to Source This Part
- Confirm Compatibility: Verify your Tricon chassis model and firmware revision. Contact us with your existing system configuration for cross-reference validation.
- Request a Quote: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Test Report: We provide a pre-shipment functional test report for every unit upon request.
- Fast Dispatch: In-stock units ship within 1–3 business days. Express international freight available via DHL / FedEx / UPS.
- After-Sales Support: Our engineering team provides installation guidance, firmware compatibility advice, and warranty claim processing.
Application-Specific FAQ
Q: Is the DO3201 compatible with the Tricon v9 and v10 chassis?
A: Yes. The DO3201 is compatible with Tricon v9.x and v10.x chassis platforms. Always verify firmware revision alignment with your Main Processor Module before installation.
Q: Can the DO3201 be used in SIL 3 safety loops?
A: Yes, when installed in a properly configured Tricon TMR system with appropriate FTA wiring and validated TriStation application logic, the DO3201 supports SIL 3 rated safety functions per IEC 61508.
Q: What is the maximum load current per output channel?
A: Each channel supports up to 0.5 A continuous load current at 24 VDC. Consult the Triconex DO3201 hardware manual for derating curves at elevated temperatures.
Q: Do you supply the matching Field Termination Assembly (FTA)?
A: Yes. We stock compatible FTAs for the DO3201. Please specify your wiring configuration (sourcing/sinking, terminal block type) when requesting a quote.
Q: Can I replace a DO3201 while the Tricon system is online?
A: Yes. The Tricon TMR architecture supports hot-swap module replacement. The system continues to operate on the remaining two legs during the swap. Follow Triconex hot-swap procedures in the hardware reference manual.
Q: What documentation do you provide with the module?
A: Each shipment includes a functional test report, firmware revision record, and packing list. Triconex OEM hardware manuals are available upon request.
