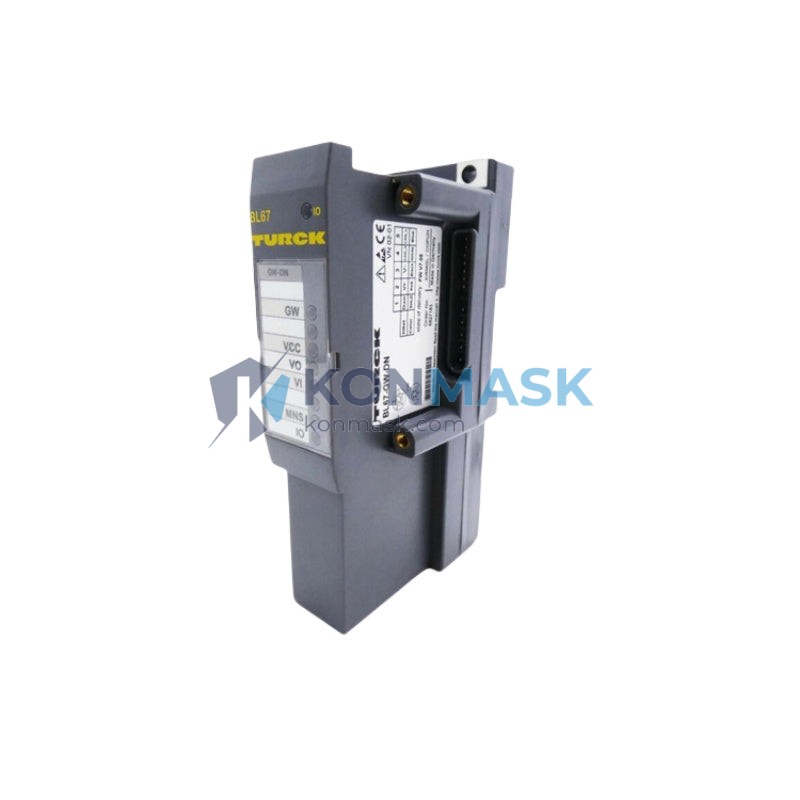

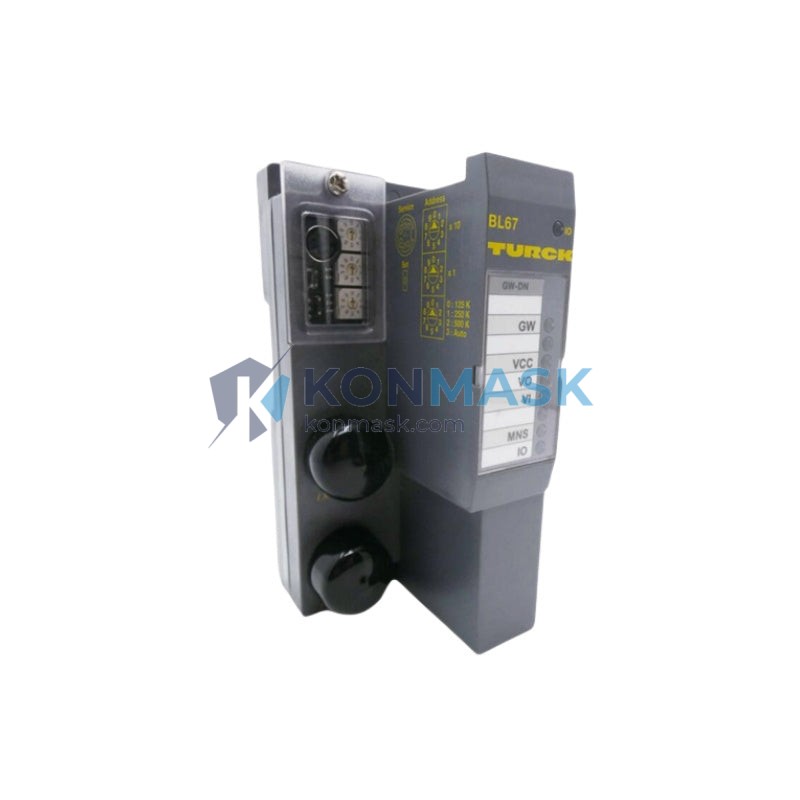

DeviceNet Gateway Solution – TURCK BL67-GW-DN | BL67 Series
The TURCK BL67-GW-DN is a high-performance DeviceNet gateway interface module designed for the BL67 modular I/O platform. It bridges field-level I/O nodes to DeviceNet master controllers, enabling deterministic, real-time data exchange in demanding industrial environments. Sourced and verified by Konmask.com — your trusted partner for industrial automation components.
Where This Product Is Used
The BL67-GW-DN is specified by automation engineers across a wide range of industries and applications:
- Automotive Assembly Lines — Integrates distributed I/O nodes on body-in-white, paint shop, and final assembly conveyors where DeviceNet is the plant-standard fieldbus.
- Packaging & Material Handling — Connects sensors, actuators, and pneumatic valves on high-speed packaging lines and palletizing cells to Allen-Bradley or Omron DeviceNet PLCs.
- Food & Beverage Processing — Deployed in washdown-rated enclosures for filling, capping, and labeling machines requiring IP67-rated distributed I/O.
- Intralogistics & Conveyor Systems — Used in sortation systems and AGV charging stations where compact, rail-mounted I/O gateways save panel space.
- Machine Tool & Press Control — Provides remote I/O expansion for CNC machining centers and stamping presses with existing DeviceNet infrastructure.
- Water & Wastewater Treatment — Installed in pump stations and filtration skids for remote monitoring of valve positions and flow signals over DeviceNet.
Technical Specifications
- Part Number: BL67-GW-DN
- Manufacturer: TURCK
- Series: BL67 Modular I/O
- Fieldbus Protocol: DeviceNet (CAN-based, IEC 62026-3)
- DeviceNet Data Rate: 125 kbps / 250 kbps / 500 kbps (auto-detect or DIP-switch selectable)
- Node Address: 0–63, configurable via DIP switch
- Max I/O Capacity: Up to 64 bytes input / 64 bytes output (configuration dependent)
- Supply Voltage: 24 V DC (via BL67 power module)
- Protection Rating: IP20 (module); system supports IP67 field modules
- Mounting: DIN rail (35 mm), BL67 base rail system
- Operating Temperature: -25 °C to +60 °C
- Dimensions (W × H × D): Refer to TURCK datasheet for exact dimensions
- Certifications: CE, UL, cUL
- Weight: Approx. 100 g
Why Engineers Specify This Model
- Proven BL67 Ecosystem Compatibility — Seamlessly integrates with the full BL67 I/O module library (digital, analog, counter, serial), allowing engineers to build application-specific I/O stations without custom wiring.
- Deterministic DeviceNet Communication — Supports polled, change-of-state (COS), and cyclic I/O messaging modes for predictable scan-cycle performance in safety-critical lines.
- Compact DIN-Rail Form Factor — Saves valuable panel space compared to rack-based remote I/O solutions, critical in machine-mounted control enclosures.
- Simple Node Addressing — DIP-switch MAC ID and baud rate selection eliminates the need for software tools during commissioning, reducing startup time.
- Robust Industrial Design — Rated for wide temperature range and vibration-resistant construction, suitable for harsh factory floor environments.
- Broad PLC Compatibility — Works with Allen-Bradley (Rockwell), Omron, Bosch Rexroth, and any DeviceNet-compliant master controller.
Complete System Bill of Materials
A typical BL67 DeviceNet I/O station requires the following components:
- BL67-GW-DN — DeviceNet Gateway Module (this item)
- BL67-PF-24VDC — Power Feed Module, 24 V DC
- BL67-8DI-24VDC — 8-Channel Digital Input Module (as required)
- BL67-8DO-24VDC-0.5A — 8-Channel Digital Output Module (as required)
- BL67-2AI-U/I — 2-Channel Analog Input Module (optional, for process signals)
- BL67-END — End Plate / Bus Terminator
- DeviceNet Drop Cable — Micro (M12) or Mini (7/8″) connector, application-dependent length
- DeviceNet Termination Resistors — 121 Ω, 1% tolerance (required at both ends of trunk)
Contact support@konmask.com for complete BOM assistance and compatible module availability.
Compliance & Industry Standards
- DeviceNet: Compliant with ODVA DeviceNet specification and IEC 62026-3
- CE Marking: EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL / cUL Listed: UL 508 (Industrial Control Equipment)
- RoHS: Compliant with EU Directive 2011/65/EU (Restriction of Hazardous Substances)
- REACH: Compliant per ECHA SVHC candidate list
Quality Assurance & Sourcing
Konmask.com specializes in sourcing genuine industrial automation components from authorized distribution channels and verified secondary-market suppliers. Every TURCK BL67-GW-DN unit we supply undergoes the following process:
- Visual inspection for label authenticity, housing integrity, and connector condition
- Cross-reference of date codes and lot numbers against known genuine TURCK production batches
- Functional power-on verification where test fixtures are available
- Anti-static packaging with humidity indicator cards for long-term storage integrity
- Full traceability documentation provided upon request
We stand behind every part we ship. If a unit does not perform to TURCK factory specifications, we will replace or refund — no questions asked.
How to Source This Part
- Add to Cart — Click “Add to Cart” above to purchase at the listed price. Bulk pricing available for orders of 5+ units.
- Request a Quote — For project quantities, OEM orders, or urgent requirements, email support@konmask.com with your required quantity and delivery timeline.
- Confirm Compatibility — Share your existing BL67 station configuration or PLC model and we will verify compatibility before shipment.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock units: contact us for sourcing lead time estimate.
- Export & Cross-Border Orders — We support international shipping with full commercial invoice and HS code documentation (HS: 8537.10).
Application-Specific FAQ
Q: Is the BL67-GW-DN compatible with Allen-Bradley CompactLogix / ControlLogix DeviceNet scanners?
A: Yes. The BL67-GW-DN is fully ODVA-compliant and works with any DeviceNet master, including Rockwell Automation 1769-SDN, 1756-DNB, and 1788-DN2DN scanner modules. An EDS file is available from TURCK for seamless RSNetWorx configuration.
Q: How many I/O modules can be connected to one BL67-GW-DN gateway?
A: The BL67 system supports up to 64 bytes of input data and 64 bytes of output data per gateway node, accommodating a mix of digital and analog modules. The exact number of physical modules depends on the data width of each module selected.
Q: Can I use the BL67-GW-DN in a food-grade or washdown environment?
A: The gateway module itself is rated IP20 and must be installed in a sealed enclosure. However, the BL67 system supports IP67-rated field modules (BL67 IP67 variants) that can be mounted directly on the machine without an enclosure, making it suitable for washdown zones when properly configured.
Q: What is the maximum DeviceNet cable length supported?
A: Maximum trunk length depends on baud rate — 500 m at 125 kbps, 250 m at 250 kbps, and 100 m at 500 kbps. Drop cable length per node is limited to 6 m. Always terminate both ends of the trunk with 121 Ω resistors.
Q: Do you provide the TURCK EDS file for this module?
A: Yes. Contact support@konmask.com and we will provide the official TURCK EDS file along with the product datasheet at no charge.
Q: Is this a new or refurbished unit?
A: Please check the product listing or contact us directly. We clearly label all units as new, surplus-new (unused open box), or tested-used. All conditions are priced accordingly and backed by our quality guarantee.
