SMC VV5Q11-08 8-Slot Pneumatic Manifold – DeviceNet Integrated Control System | VQ Series Platform
Engineering Background
The SMC VQ Series valve manifold platform has been a cornerstone of industrial pneumatic automation for decades, trusted by process engineers across automotive, semiconductor, food & beverage, and general manufacturing. The VV5Q11-08 manifold body, paired with the EX160-SDN2 DeviceNet serial transmission unit, represents SMC’s mature approach to fieldbus-integrated pneumatic control — eliminating discrete wiring runs while maintaining the reliability expected in 24/7 production environments.
Product Positioning

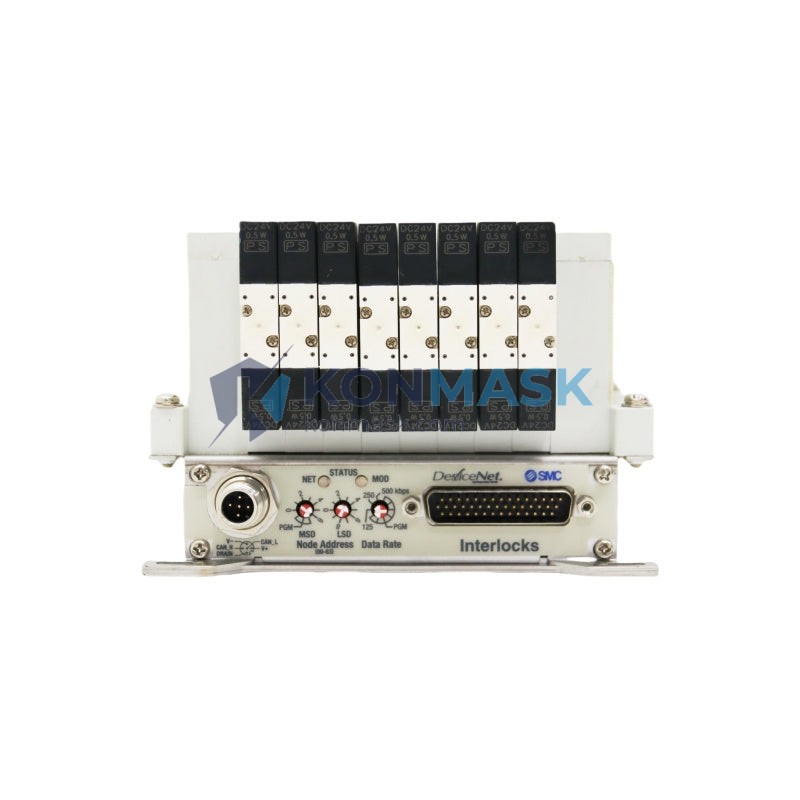

This assembly (SKU: 0190-39554) is a complete, pre-configured 8-station pneumatic valve manifold system sourced from SMC Corporation of Japan. It integrates the VV5Q11-08 manifold body, EX160-SDN2 DeviceNet gateway, X1619 end plate assembly, E5AR temperature controller interface, and associated sub-components into a single procurement unit — ideal for engineers specifying a drop-in fieldbus pneumatic node for new or retrofit automation cells.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| SKU / Part Number | 0190-39554 | VV5Q11-08-X1619-EX160-SDN2 |
| Manifold Series | SMC VQ / VV5Q11 Series |
| Number of Stations | 8 Slots |
| Fieldbus Protocol | DeviceNet (EX160-SDN2) |
| Serial Transmission Unit | SMC EX160-SDN2 |
| End Plate Assembly | X1619 |
| Temperature Controller | OMRON E5AR / E5AR-Q4B-323 |
| Auxiliary Reference | TLC534-F, SAM, 0063453490018 |
| Country of Origin | Japan |
| Approximate Weight | 150 g (manifold body; total assembly weight varies) |
| Condition | Surplus / Tested Functional |
Proven Application Environments
- Automotive Assembly Lines – High-cycle pneumatic actuation with DeviceNet PLC integration (Allen-Bradley, Omron)
- Semiconductor Fab Equipment – Clean-room compatible SMC valves with centralized bus control
- Packaging Machinery – Multi-axis pneumatic sequencing via single DeviceNet node
- Food & Beverage Processing – Hygienic manifold configurations with fieldbus diagnostics
- General Industrial Automation – Retrofit of legacy discrete-wired pneumatic panels to DeviceNet architecture
Engineering Advantages
- Reduced Wiring Complexity – EX160-SDN2 replaces individual solenoid wiring with a single DeviceNet trunk cable, cutting panel build time significantly
- Centralized Diagnostics – DeviceNet node-level fault reporting enables predictive maintenance without physical inspection
- Modular Expansion – VV5Q11 platform supports station-by-station valve replacement without manifold disassembly
- SMC Global Support Ecosystem – Full datasheet, CAD, and replacement parts availability through SMC’s worldwide network
- Pre-Assembled Unit – Reduces procurement lead time; single SKU covers manifold, gateway, end plates, and ancillary components
System Architecture & Signal Flow
The EX160-SDN2 serial transmission unit mounts directly to the VV5Q11-08 manifold and communicates upstream to a DeviceNet master (e.g., Allen-Bradley 1756-DNB, Omron CJ1W-DRM21) via standard DeviceNet trunk/drop topology. Each of the 8 valve stations is individually addressable. The E5AR-Q4B-323 temperature controller interfaces with the system for thermal process monitoring where required. The X1619 end plate provides port termination and optional pressure/exhaust configuration.
Signal path: DeviceNet Master PLC → EX160-SDN2 Gateway → VV5Q11-08 Manifold (8 stations) → Pneumatic Actuators
Sourcing & Quality Verification
- Sourced from decommissioned OEM production equipment or authorized surplus channels
- Each unit inspected for physical integrity, connector condition, and label legibility prior to listing
- Functional testing performed where test fixtures are available; condition noted in listing
- Original SMC part markings and serial references preserved and cross-referenced against published SMC catalogs
- Konmask.com specializes in industrial automation surplus — all listings are accurately described with no substitution
Procurement Process
- Stock: Single-unit surplus stock; order promptly to secure availability
- Lead Time: Ships within 1–3 business days of payment confirmation
- Packaging: Anti-static bagged, foam-padded, double-boxed for international freight
- Export: Ships worldwide from China; HS code documentation provided on request
- Payment: T/T, PayPal, credit card via Shopify Payments accepted
- Contact for bulk or project quantities: support@konmask.com | +0086 19859288691
Technical FAQ
Q: Is the EX160-SDN2 compatible with Allen-Bradley DeviceNet scanners?
A: Yes. The EX160-SDN2 is a standard DeviceNet slave device and is compatible with any DeviceNet master including Allen-Bradley 1756-DNB, 1747-SDN, and Omron CJ1W-DRM21.
Q: Can individual valve stations be replaced without replacing the full manifold?
A: Yes. The VV5Q11 series is designed for modular valve replacement. Individual VQ solenoid valves can be swapped station-by-station.
Q: What is the role of the E5AR-Q4B-323 in this assembly?
A: The OMRON E5AR is a multi-loop temperature controller. In this assembly it was used for thermal process monitoring in the original OEM application. It may be used independently or integrated into the pneumatic control system depending on your application.
Q: Is a DeviceNet EDS file available?
A: Yes. SMC publishes EDS files for the EX160-SDN2 through their official technical documentation portal. Konmask can assist in locating the correct file upon request.
Q: What warranty applies?
A: Surplus industrial components are sold as-is with a 30-day DOA (Dead on Arrival) guarantee. Contact support@konmask.com within 30 days of receipt for any functional issues.
