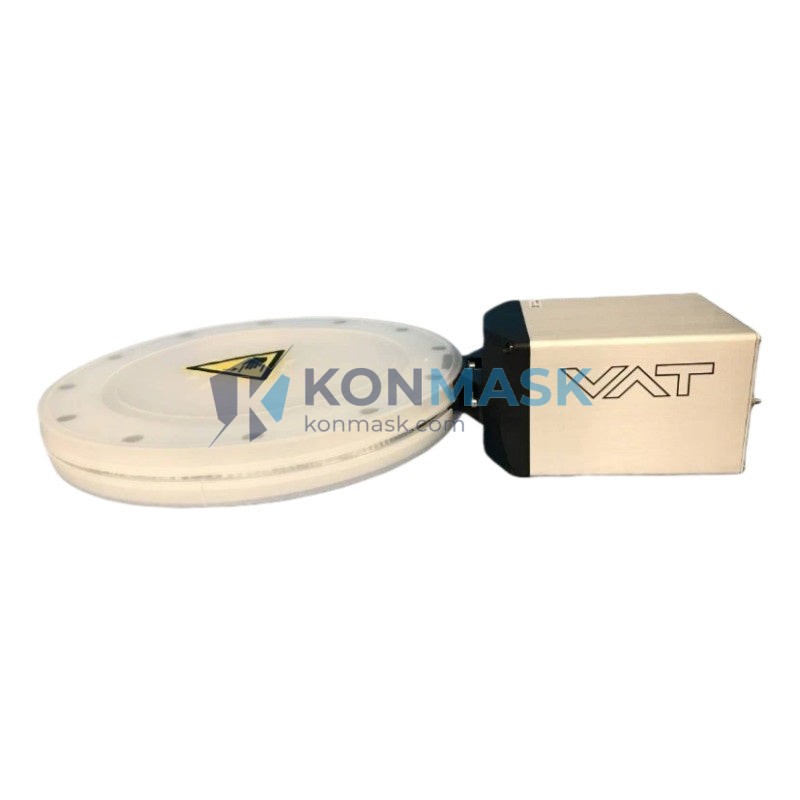

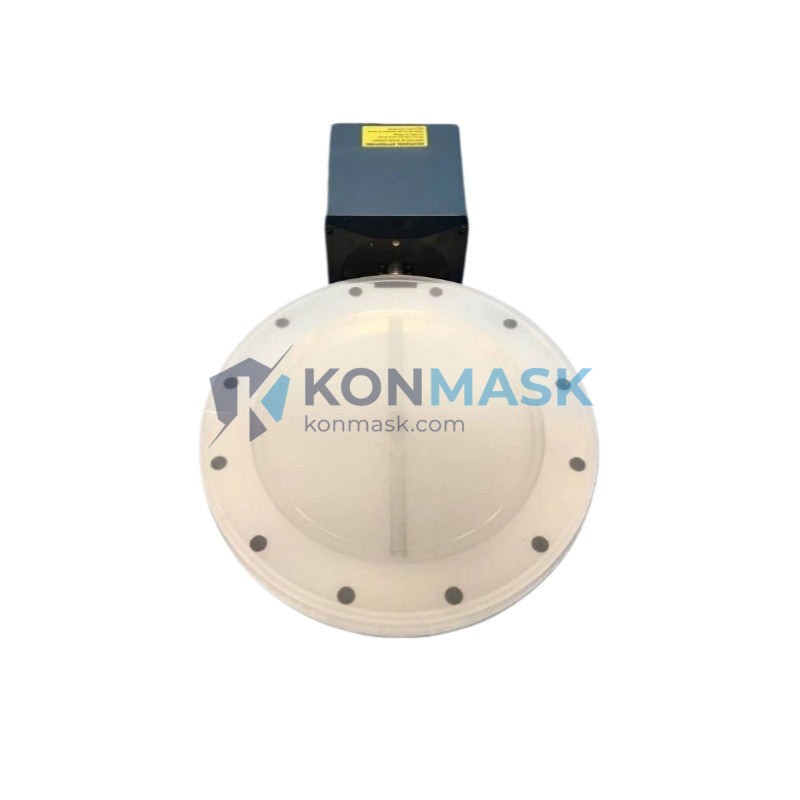

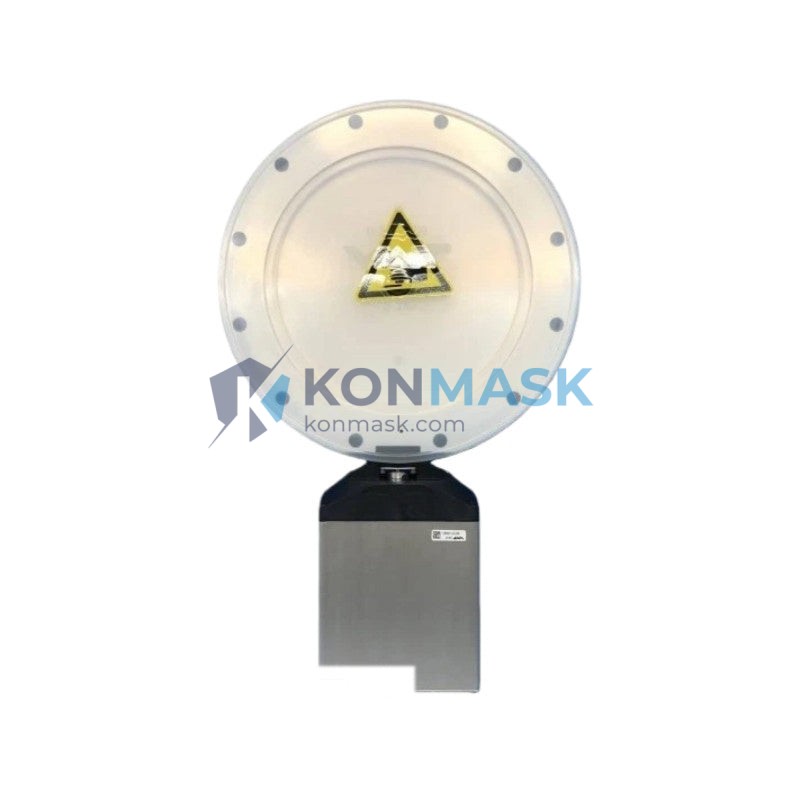

VAT 61246-PAGI-0001/0103 A-1174333 – Butterfly Pressure Control Valve | VAT Series 61246
Engineering Background: VAT Group AG is the world’s leading manufacturer of high-performance vacuum valves and vacuum systems, headquartered in Haag, Switzerland. The Series 61246 Butterfly Pressure Control Valve is engineered for precision throttling and isolation in demanding vacuum process environments, including semiconductor fabrication, flat-panel display manufacturing, solar cell production, and advanced industrial automation systems.
Product Positioning: The VAT 61246-PAGI-0001/0103 A-1174333 is a pneumatically actuated butterfly-type pressure control valve designed for high-cycle, ultra-clean vacuum applications. It delivers repeatable, proportional flow control with minimal particle generation, making it the preferred choice for OEM equipment integrators and process engineers who require zero-compromise performance in critical vacuum circuits.
Complete Technical Specifications
- Manufacturer: VAT Group AG
- Part Number / SKU: 61246-PAGI-0001/0103 A-1174333
- Series: VAT 61246 Butterfly Pressure Control Valve
- Valve Type: Butterfly / Throttle Pressure Control Valve
- Actuation: Pneumatic (PAGI actuator)
- Function: Proportional pressure/flow control and isolation in vacuum systems
- Sealing Technology: Metal-sealed or elastomer-sealed (per configuration)
- Leak Rate: ≤ 1 × 10⁻⁸ mbar·l/s (He) – OEM specification
- Operating Pressure Range: High vacuum to atmospheric (application-dependent)
- Body Material: Anodized aluminum alloy / stainless steel internals
- Actuator Type: Pneumatic rotary actuator (PAGI series)
- Control Signal: Pneumatic pilot signal
- Cycle Life: ≥ 1,000,000 cycles (per VAT standard)
- Weight: Approx. 60 g (valve assembly)
- Compliance: CE, RoHS-compatible; manufactured under ISO 9001 QMS
- Country of Origin: Switzerland
Proven Application Environments
- Semiconductor wafer processing (CVD, PVD, ALD, Etch chambers)
- Flat-panel display (FPD) and OLED manufacturing lines
- Solar photovoltaic cell deposition systems
- Analytical instrumentation (mass spectrometers, electron microscopes)
- R&D vacuum systems and university research facilities
- Industrial vacuum furnaces and heat treatment equipment
- Leak detection and vacuum integrity testing rigs
Engineering Advantages
- Precision Throttling: Butterfly disc geometry enables smooth, proportional conductance control across the full operating range, minimizing pressure overshoot in sensitive process chambers.
- Ultra-Low Outgassing: Electropolished internal surfaces and clean-room assembly ensure minimal contamination contribution to process gas purity.
- High Cycle Durability: Pneumatic actuation with hardened pivot bearings supports >1 million maintenance-free cycles, reducing total cost of ownership in high-throughput fabs.
- Compact Footprint: Slim-profile butterfly design integrates directly into tight vacuum manifold assemblies without additional adapters.
- Drop-In OEM Replacement: Dimensional and functional equivalence to original VAT specification ensures zero re-engineering for retrofit installations.
System Architecture & Signal Flow
The 61246-PAGI-0001/0103 operates within a closed-loop vacuum pressure control architecture:
- Process Chamber → pressure sensor feedback signal
- Pressure Controller / PLC → generates pneumatic pilot command
- PAGI Pneumatic Actuator → rotates butterfly disc to target angle
- Butterfly Disc → modulates conductance between chamber and pump
- Vacuum Pump → maintains base pressure setpoint
This architecture delivers closed-loop pressure stability typically within ±0.5% of setpoint under steady-state conditions.
Sourcing & Quality Verification
- All VAT components sourced through authorized distribution channels or directly from OEM decommissioned equipment with full traceability.
- Each unit undergoes incoming inspection: visual examination, dimensional verification, and functional leak-check prior to listing.
- Part number A-1174333 cross-referenced against VAT internal BOM database for authenticity confirmation.
- Certificates of conformance (CoC) and test reports available upon request for qualified procurement orders.
Procurement Process
- Confirm Part Number: Verify 61246-PAGI-0001/0103 A-1174333 matches your equipment BOM or OEM service manual.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation.
- Order Placement: Purchase directly via this product page or submit a formal PO to our sales team.
- Shipping: Secure anti-static packaging; DHL / FedEx international express available. Export compliance documentation provided for cross-border shipments.
- After-Sales Support: Technical consultation available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is this an OEM new or refurbished part?
A: Stock condition is specified at time of inquiry. Both new surplus and inspected used units may be available. Please confirm with our team before ordering.
Q: Can this valve be used with corrosive process gases?
A: The standard PAGI configuration uses aluminum body with elastomer seals. For corrosive gas compatibility (e.g., Cl₂, HF), please specify — alternative seal materials or stainless body variants may be required.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock items are sourced within 2–6 weeks depending on global availability.
Q: Do you provide a warranty?
A: Yes. All parts carry a 90-day functional warranty against defects in materials and workmanship under normal operating conditions.
Q: Can I get a datasheet or dimensional drawing?
A: Yes. Contact support@konmask.com with your part number and we will provide available VAT technical documentation.
