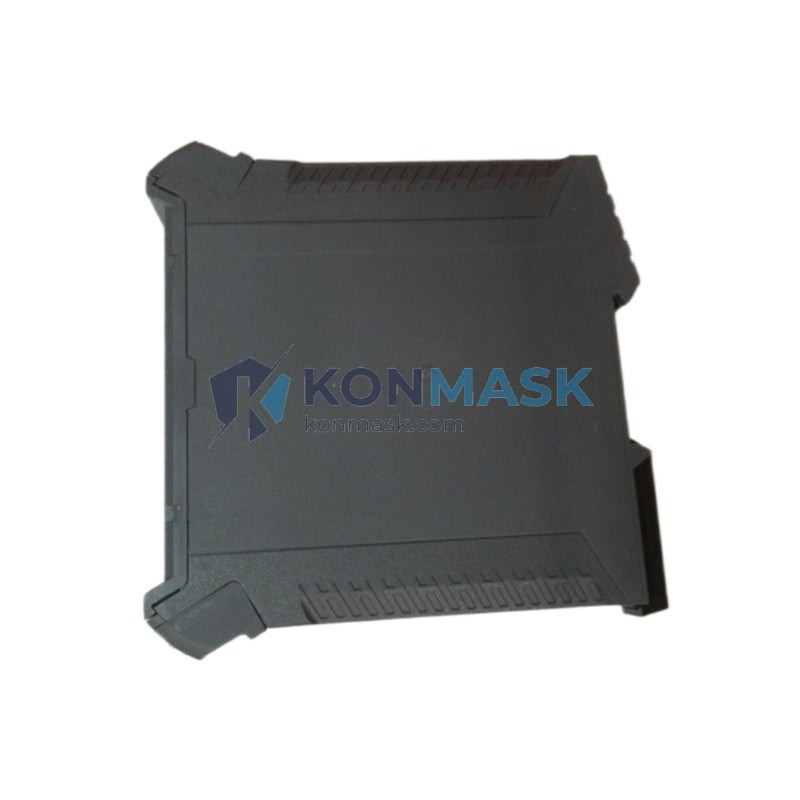

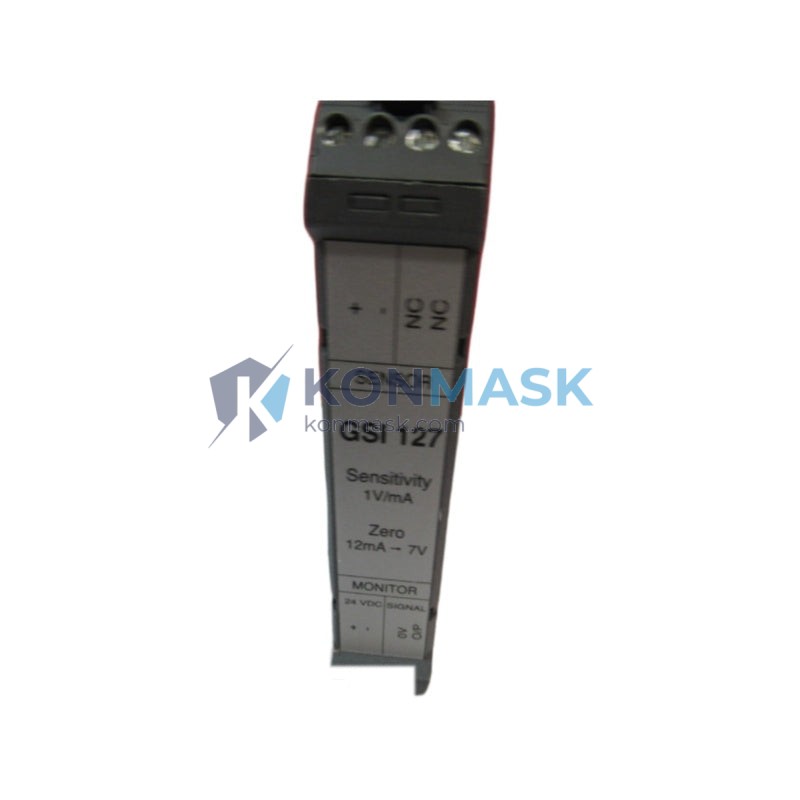

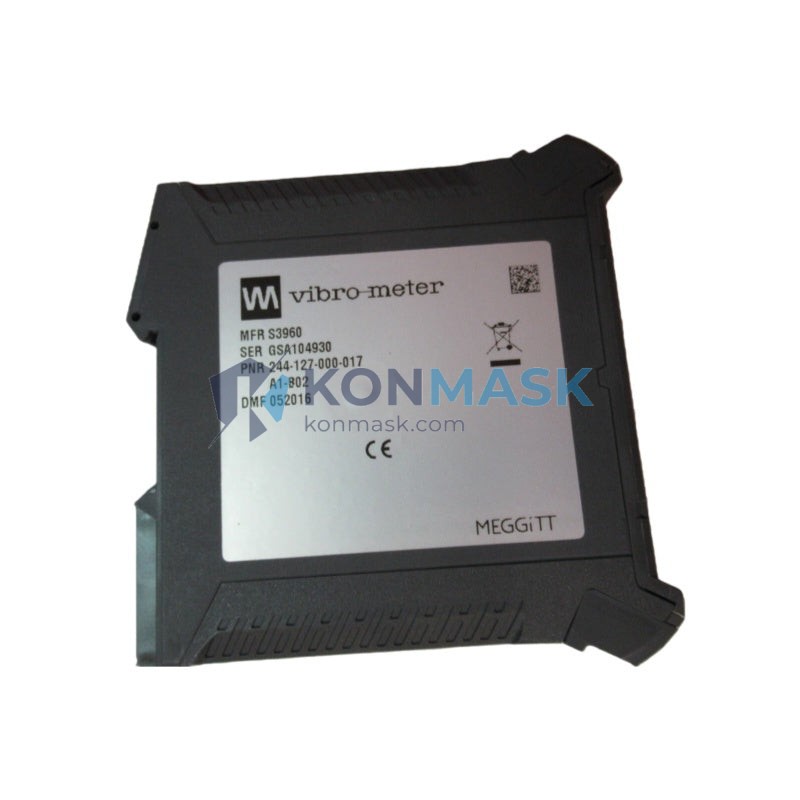

Vibro Meter GSI127-244-127-000-017-A1-B02 – Galvanic Separation Unit | GSI127 Series Signal Conditioning Platform
Engineering Background: The Vibro Meter GSI127 series represents a purpose-built galvanic isolation platform developed for continuous machinery protection and condition monitoring systems. Designed to meet the stringent demands of rotating equipment surveillance in power generation, oil & gas, and heavy industry, the GSI127 series provides reliable electrical isolation between field sensors and control/monitoring infrastructure — eliminating ground loops, protecting instrumentation, and ensuring signal integrity across long cable runs.
Product Positioning: The GSI127-244-127-000-017-A1-B02 is a fully configured galvanic separation module within the GSI127 platform. It is engineered for integration into rack-mounted vibration monitoring systems, providing channel-by-channel isolation for proximity probe, velocity, or accelerometer signal chains. This unit is the OEM-specified component for Vibro Meter monitoring racks and is directly compatible with the VM600 and equivalent legacy architectures.
Complete Technical Specifications
| Manufacturer | Vibro Meter (Meggitt) |
| Part Number / SKU | GSI127-244-127-000-017-A1-B02 |
| Product Series | GSI127 |
| Function | Galvanic Separation / Signal Isolation Unit |
| Signal Type | Vibration / Proximity / Velocity / Accelerometer |
| Isolation Type | Galvanic (transformer-based or optocoupler) |
| Mounting | Rack-mount / DIN-rail compatible (per system configuration) |
| Operating Temperature | -20°C to +70°C (typical industrial range) |
| Power Supply | Per rack backplane specification |
| Weight | 650 g |
| Compliance | CE, designed to IEC/EN industrial standards |
| Condition Available | New OEM / Refurbished / Tested Surplus |
Proven Application Environments
- Power Generation: Steam turbine and gas turbine shaft vibration monitoring racks
- Oil & Gas: Compressor and pump train condition monitoring systems
- Petrochemical: Rotating machinery protection panels in hazardous areas
- Marine & Offshore: Propulsion shaft and auxiliary machinery monitoring
- Heavy Industry: Rolling mill, paper machine, and large motor drive monitoring
- Water & Utilities: Pump station vibration surveillance systems
Engineering Advantages
- Ground Loop Elimination: Full galvanic isolation breaks ground potential differences between sensor field and control room, preventing measurement errors and equipment damage.
- Signal Fidelity: Transparent signal conditioning preserves waveform integrity for accurate vibration analysis — critical for FFT and time-waveform diagnostics.
- OEM Compatibility: Drop-in replacement for existing Vibro Meter GSI127 slots — no firmware changes, no recalibration of downstream monitors required.
- Rack Integration: Designed for seamless insertion into Vibro Meter monitoring racks with standard backplane connectors.
- Long Cable Run Support: Isolation enables reliable signal transmission over extended cable distances without signal degradation.
- Reduced EMI Susceptibility: Galvanic barrier attenuates common-mode noise from VFDs, switchgear, and high-power equipment in the vicinity.
System Architecture & Signal Flow
In a typical Vibro Meter monitoring rack, the GSI127-244-127-000-017-A1-B02 is positioned in the signal conditioning layer between the field wiring termination and the measurement/protection modules:
- Field Input: Raw sensor signal (proximity probe, velocity transducer, or accelerometer) enters via terminal block or backplane connector.
- Galvanic Isolation Stage: The GSI127 module provides complete electrical isolation — no conductive path exists between input and output circuits.
- Conditioned Output: Isolated, noise-attenuated signal is passed to the downstream vibration monitor or protection relay card.
- System Bus: Module communicates status and health data via the rack backplane to the system controller.
This architecture ensures that field-side faults, ground faults, or transient events cannot propagate into the monitoring and control infrastructure.
Sourcing & Quality Verification
- Source Traceability: All units sourced through verified industrial surplus channels, authorized distributors, or direct OEM supply chains.
- Incoming Inspection: Each unit undergoes visual inspection, label verification, and functional bench testing prior to listing.
- Serialization Check: Serial numbers and date codes are verified against known authentic Vibro Meter production ranges.
- Packaging: Shipped in anti-static packaging with foam protection; original OEM packaging preserved where available.
- Warranty: 90-day operational warranty on all tested units; extended warranty available on request.
- Counterfeit Prevention: Konmask.com maintains a zero-tolerance policy on counterfeit components — all units are subject to authentication protocols.
Procurement Process
- Inquiry: Submit your part number and required quantity via email or the website contact form.
- Availability Confirmation: Our team confirms stock status, condition, and lead time within 24 hours.
- Quotation: Formal quotation issued with unit price, shipping terms (EXW/CIF/DDP), and payment options.
- Order Confirmation: Purchase order accepted; proforma invoice issued for payment processing.
- Quality Check & Dispatch: Final inspection completed; unit shipped with test report and packing list.
- After-Sales Support: Technical support available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the GSI127-244-127-000-017-A1-B02 a direct drop-in replacement for other GSI127 variants?
A: The GSI127 series uses a modular architecture. Compatibility depends on the specific channel configuration and backplane slot assignment. Please confirm your rack model and slot designation before ordering.
Q: Can this unit be used outside of a Vibro Meter rack?
A: The GSI127 is designed for rack-integrated operation. Standalone use requires appropriate power supply and connector adaptation — contact our technical team for guidance.
Q: What is the difference between the A1-B02 and other suffix variants?
A: Suffix codes in Vibro Meter part numbers typically denote hardware revision, channel count, or output configuration. The A1-B02 suffix specifies a particular hardware and firmware revision. Contact us to cross-reference with your existing system documentation.
Q: Do you provide calibration certificates?
A: Calibration certificates are available for new OEM units. For surplus/refurbished units, functional test reports are provided. Third-party calibration can be arranged on request.
Q: What is the lead time for this part?
A: In-stock units ship within 3–5 business days. For out-of-stock items, lead time is typically 2–6 weeks depending on sourcing. Contact us for current availability.
