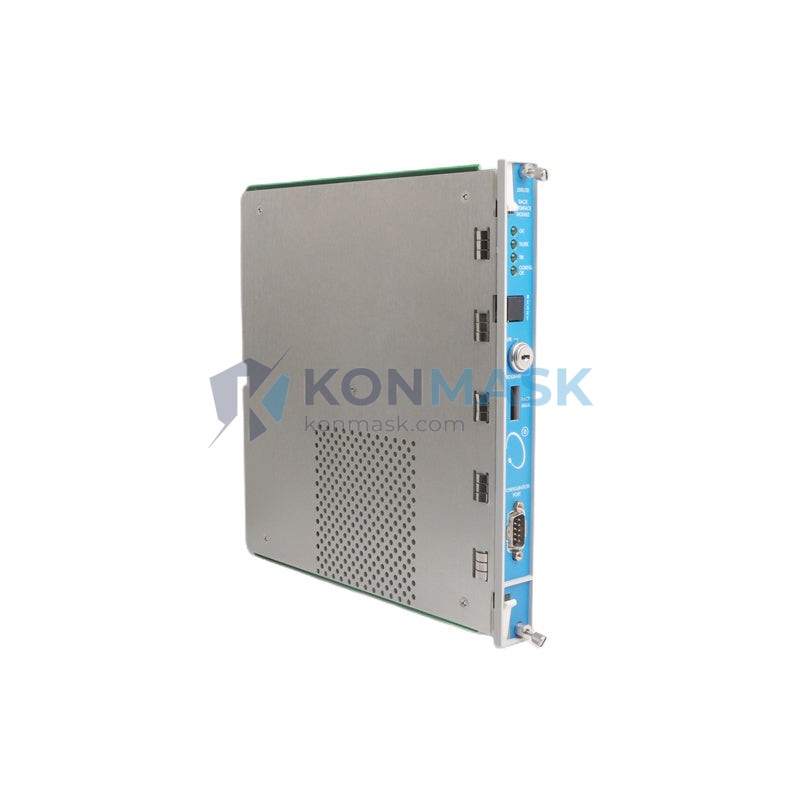

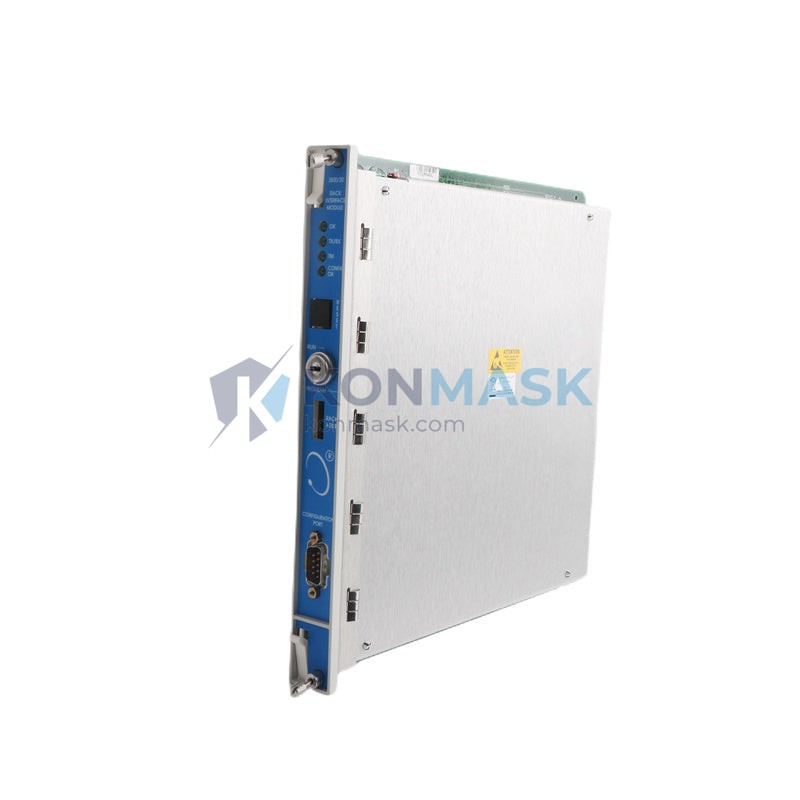

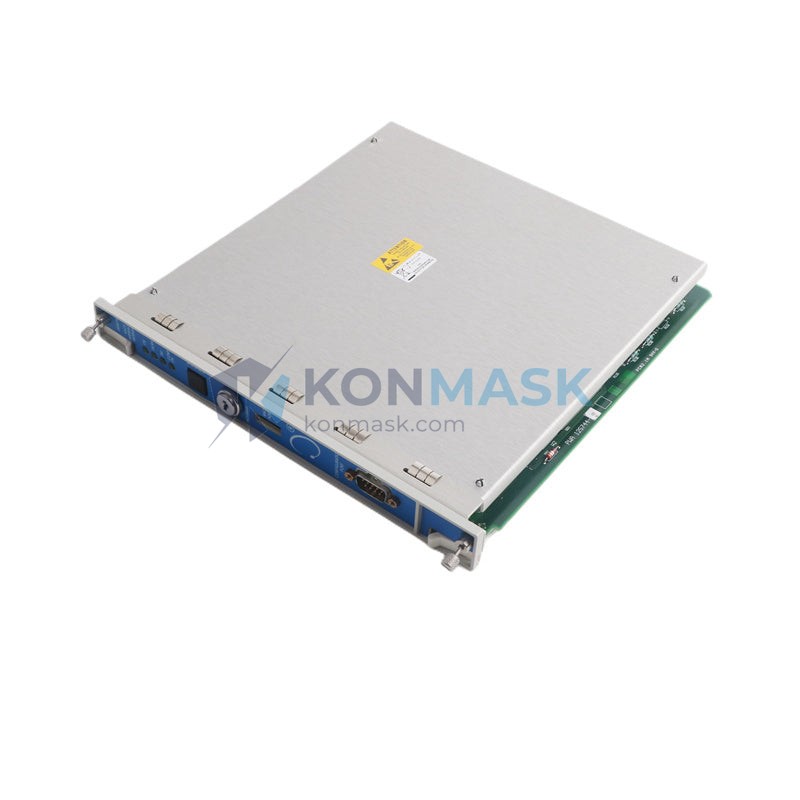

BENTLY NEVADA 3500/20 125744-02 – Keyphasor® / Proximity I/O Module | 3500 Series Machinery Protection System
工程背景：Bently Nevada 3500 系列是全球石油、天然气、电力及重型工业领域最广泛部署的机械保护平台之一。3500/20 模块作为系统的核心 I/O 接口，承担 Keyphasor® 信号采集与近接探头信号路由任务，是旋转机械状态监测系统的关键节点。
产品定位：本品 SKU 125744-02 为 3500/20 Keyphasor® 及近接探头 I/O 模块，适用于需要高精度相位参考与径向/轴向振动测量的涡轮机、压缩机、泵及发电机组保护系统。Konmask.com 提供经验证的原厂备件，支持工程采购直接对接。
Complete Technical Specifications
- Part Number: 125744-02
- Module Type: 3500/20 Keyphasor® & Proximity I/O Module
- Platform: Bently Nevada 3500 Series Machinery Protection System
- Manufacturer: Bently Nevada (Baker Hughes)
- Input Channels: Up to 2 Keyphasor® inputs + proximity probe signal routing
- Signal Type: Eddy-current proximity probe (non-contacting displacement)
- Output: Buffered transducer output (BTO) for external monitoring
- Power Supply: Supplied via 3500 rack backplane (–24 VDC nominal)
- Operating Temperature: 0°C to +65°C (32°F to 149°F)
- Storage Temperature: –40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Enclosure / Form Factor: Single-slot 3500 rack module
- Weight: 840 g (module + standard connectors)
- Compliance: CE, SIL, API 670 compatible deployment
- Communication: Rack backplane bus; compatible with 3500/92 communication gateway
Proven Application Environments
- Gas turbine & steam turbine shaft vibration monitoring
- Centrifugal & reciprocating compressor protection systems
- Boiler feed pump and large motor bearing displacement measurement
- Offshore platform and FPSO rotating equipment health monitoring
- Refinery critical service machinery (API 670 compliant installations)
- Power generation — combined cycle plant turbine protection racks
- LNG liquefaction train machinery protection
Engineering Advantages
- Keyphasor® Integration: Provides precise once-per-revolution phase reference for vector analysis, balancing, and torsional measurements — essential for advanced diagnostics.
- Buffered Transducer Output: Allows simultaneous connection to DCS, data historians, and portable analyzers without signal loading.
- Hot-Swap Capable: Designed for in-service replacement within the 3500 rack without full system shutdown (verify with site safety procedures).
- API 670 Alignment: Supports compliance with the industry standard for machinery protection systems in hydrocarbon processing.
- Proven Field Reliability: Deployed across thousands of critical machinery trains globally; long MTBF with established spare-parts ecosystem.
System Architecture & Signal Flow
The 3500/20 module resides in the 3500 rack alongside monitor modules (e.g., 3500/40M, 3500/42M, 3500/45). Signal flow:
- Proximity Probe → Field wiring terminal block (TM or internal barrier)
- 3500/20 I/O Module → Conditions and routes raw transducer signal to backplane
- Monitor Module → Processes signal; applies alarm/danger setpoints
- 3500/92 Gateway → Transmits data to DCS / SCADA via Modbus, Ethernet/IP, or OPC
- Buffered Output → Available at I/O module terminal for portable analyzer or historian
Sourcing & Quality Verification
- All units sourced from authorized distribution channels or verified OEM surplus with full traceability.
- Pre-shipment inspection includes visual examination, label verification (part number, revision, date code), and connector integrity check.
- Serialization and firmware revision documented upon request.
- Certificate of Conformance (CoC) available for qualified orders.
- Packaging: ESD-safe anti-static bag + foam-lined carton; meets IEC 61340-5-1 handling requirements.
Procurement Process
- Confirm Part Number: Verify 125744-02 against your 3500 rack BOM or existing module label.
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port.
- Lead Time: Ex-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
- Payment: T/T, L/C, and major credit cards accepted. Net-30 available for qualified accounts.
- Shipping: DHL / FedEx Express worldwide; sea freight for bulk orders. Export documentation (commercial invoice, packing list, CO) included.
- After-Sales: 12-month warranty on verified units. Technical support via email and WhatsApp.
Technical FAQ
Q: Is 125744-02 compatible with all 3500 rack configurations?
A: Yes, the 3500/20 module is compatible with standard 3500 racks (3500/05, 3500/15). Confirm rack revision and I/O slot assignment with your system integrator.
Q: Can this module be used with third-party proximity probes?
A: The 3500/20 is optimized for Bently Nevada 3300 XL and 7200 series probes. Third-party probes with compatible sensitivity (–200 mV/mil, –7.87 V/mm) may function but are not factory-certified.
Q: What is the difference between 125744-01 and 125744-02?
A: The -02 revision typically reflects a hardware or firmware update. Always match the revision to your existing rack configuration or consult the 3500/20 product manual (GEH-6721).
Q: Do you provide functional testing before shipment?
A: Visual and connector inspection is standard. Powered functional testing is available upon request for qualified orders — please specify at time of inquiry.
Q: Can I get an export license for this product?
A: Bently Nevada 3500 series components may be subject to export controls (EAR/ECCN). Konmask will assist with documentation; end-user declaration may be required for certain destinations.
