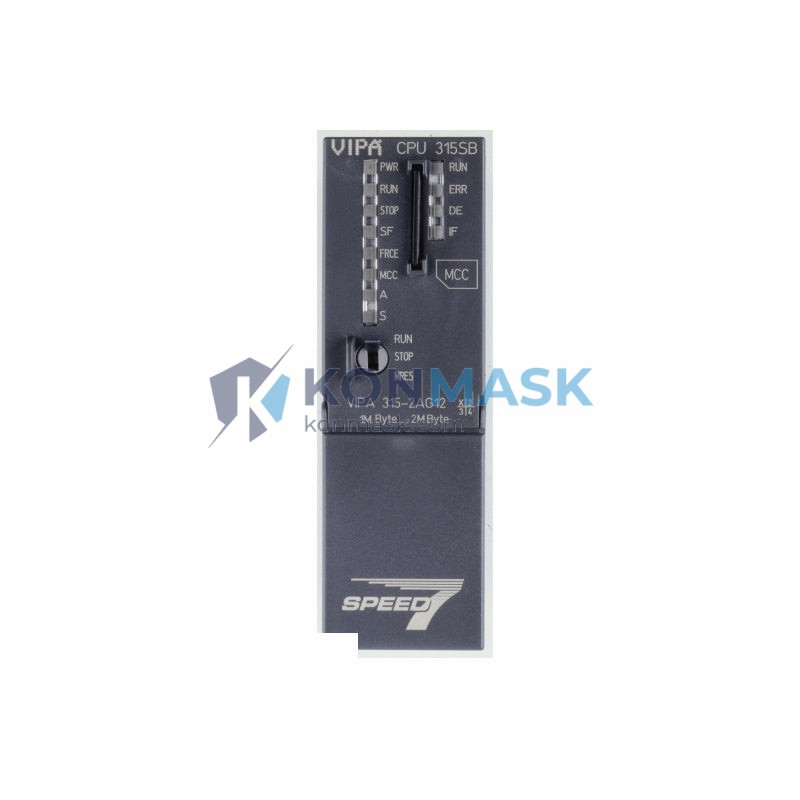

VIPA 3152AG12 CPU 315SB/DPM Processor Module | Replacement, Equivalent & Selection Guide
The VIPA 3152AG12 is a high-performance CPU 315SB/DPM Processor Module designed for demanding industrial automation environments. As an authorized sourcing partner, Konmask.com provides genuine, tested units along with expert selection guidance for direct replacements and compatible equivalents.
Technical Specifications
- Part Number: 3152AG12
- Brand: VIPA (Yaskawa VIPA)
- Series: SPEED7 / System 300S
- Module Type: CPU Processor Module
- Designation: CPU 315SB/DPM
- Communication: PROFIBUS-DP Master (DPM)
- Program Memory: Integrated SPEED7 technology with extended memory support
- I/O Interface: Compatible with S7-300 standard backplane
- Operating Voltage: DC 24V
- Weight: Approx. 300 g
- Mounting: DIN rail, S7-300 form factor
- Operating Temperature: 0°C to +60°C
- Protection Class: IP20
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the VIPA 3152AG12. Always verify firmware, memory, and I/O compatibility before substitution:
- Siemens 6ES7315-2AG10-0AB0 – S7-300 CPU 315-2 DP; direct form-factor equivalent, standard DP master
- Siemens 6ES7315-2EH14-0AB0 – CPU 315-2 PN/DP; adds PROFINET, suitable for upgraded networks
- VIPA 315-2AG12 – SPEED7 variant with enhanced processing speed; drop-in mechanical replacement
- VIPA 315-2AG23 – Extended memory version; recommended for large program applications
- Siemens 6ES7315-2FJ14-0AB0 – CPU 315F-2 PN/DP (Failsafe); for safety-rated applications
Note: Konmask.com recommends engineering validation for all cross-brand substitutions.
Why Choose the Original VIPA 3152AG12
- SPEED7 Technology: Executes instructions significantly faster than standard S7-300 CPUs at equivalent clock speeds
- Drop-in Compatibility: Mechanically and electrically compatible with Siemens S7-300 racks and I/O modules
- Integrated DP Master: Eliminates the need for a separate CP module in PROFIBUS-DP networks
- Extended Addressing: Supports larger I/O address spaces than standard 315 CPUs
- Cost Efficiency: Delivers higher performance at a competitive price point versus OEM Siemens equivalents
Typical Applications
- Automotive assembly line control and motion sequencing
- Chemical and pharmaceutical process automation
- Water treatment and utility SCADA systems
- Packaging machinery and conveyor control
- Building management and HVAC automation
- Energy management and power distribution control
System Compatibility
- Rack Compatibility: Siemens S7-300 UR1, UR2, ER1, ER2 racks
- Programming Software: Siemens STEP 7 v5.x, TIA Portal (via legacy mode), VIPA SPEED7 Studio
- Communication Protocols: PROFIBUS-DP (Master/Slave), MPI, Point-to-Point
- I/O Modules: Compatible with all standard S7-300 SM, FM, and CP modules
- HMI Integration: Siemens TP/OP panels, WinCC, VIPA Touch panels
Selection Guide
Use the criteria below to confirm the VIPA 3152AG12 is the right choice for your application:
- Need PROFIBUS-DP Master? → 3152AG12 is suitable (integrated DPM port)
- Need PROFINET? → Consider VIPA 315-2PN/DP or Siemens 6ES7315-2EH14-0AB0
- Need Failsafe/Safety? → Consider Siemens 6ES7315-2FJ14-0AB0 (CPU 315F)
- Need larger program memory? → Consider VIPA 315-2AG23 with extended RAM
- Replacing a Siemens 315-2AG10? → 3152AG12 is a proven SPEED7 upgrade path
- Budget-sensitive retrofit? → 3152AG12 offers best value in the 315-class segment
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional testing available on request
- Original manufacturer packaging preserved where possible
- Batch traceability and documentation provided
- 30-day return policy for unused, unopened units
- Export compliance screening for all international orders
How to Order
- Confirm part number: VIPA 3152AG12
- Specify required quantity and delivery timeline
- Contact us for volume pricing or urgent sourcing: support@konmask.com | +0086 19859288691
- Receive quotation within 1 business day
- Proceed to checkout or request a formal proforma invoice
Replacement & Compatibility FAQ
Q: Is the VIPA 3152AG12 a direct replacement for Siemens 6ES7315-2AG10-0AB0?
A: Mechanically yes. Both use the S7-300 form factor. However, VIPA uses SPEED7 firmware — verify your STEP 7 project is compatible before swapping.
Q: Can I program the 3152AG12 with TIA Portal?
A: TIA Portal has limited native support for VIPA CPUs. VIPA SPEED7 Studio or STEP 7 v5.x is recommended for full functionality.
Q: Does the 3152AG12 support PROFINET?
A: No. This model supports PROFIBUS-DP (Master) and MPI only. For PROFINET, select a PN/DP variant.
Q: What is the warranty on units from Konmask.com?
A: We offer a 12-month warranty on new units and 90-day warranty on tested surplus units. Contact us for details.
Q: Can you source the 3152AG12 urgently?
A: Yes. Contact us directly for expedited sourcing and air freight options.
