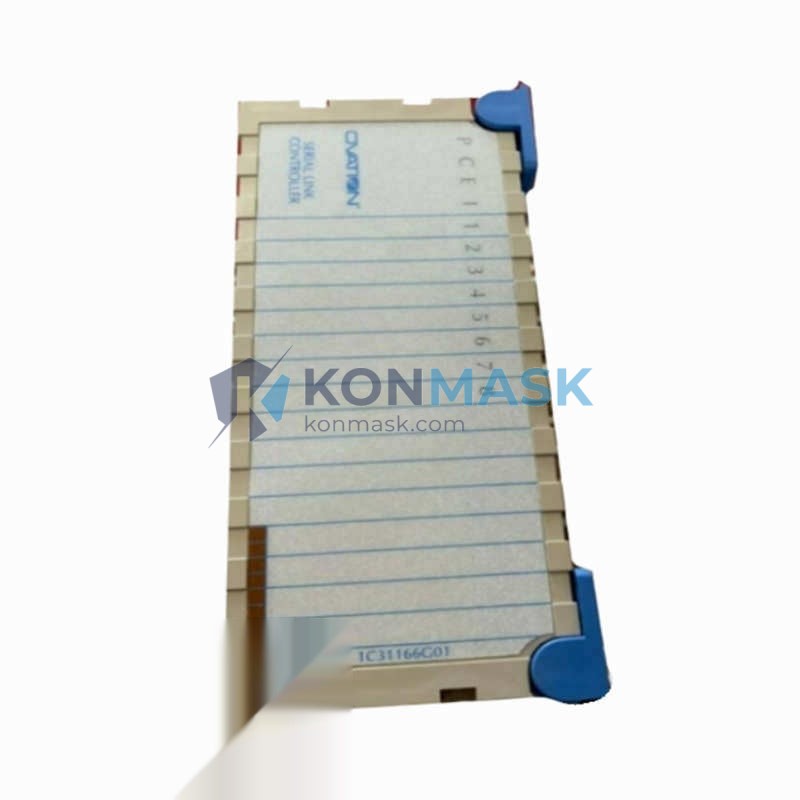

WESTINGHOUSE 1C31166G01 Input Module | Replacement, Equivalent & Selection Guide
The Westinghouse 1C31166G01 is an industrial-grade Input Module designed for use in Westinghouse WDPF (Distributed Processing Family) DCS control systems. It serves as a critical interface between field instrumentation and the control processor, converting analog or digital field signals into process data for the control loop. This page provides full technical specifications, verified compatible replacements, cross-reference equivalents, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 1C31166G01
- Manufacturer: Westinghouse Electric / Emerson (WDPF platform)
- Module Type: Input Module (Analog/Digital Signal Interface)
- Platform: Westinghouse WDPF Distributed Processing Family DCS
- Form Factor: Card/Board module, rack-mountable
- Weight: Approx. 600 g
- Signal Interface: Field-side signal conditioning and A/D conversion
- Power Supply: Supplied via backplane rack bus
- Operating Temperature: 0°C to 60°C (typical industrial DCS range)
- Compliance: Designed to IEC/ISA industrial automation standards
- SKU / Order Code: 1C31166G01
Note: Detailed electrical specifications (channel count, input range, resolution) should be confirmed against the Westinghouse WDPF hardware manual or by contacting Konmask technical support.
Compatible Replacement & Equivalent Models
The following modules are verified or commonly referenced as functional replacements or equivalents for the 1C31166G01 within WDPF system architectures. Always validate firmware revision and backplane slot compatibility before substitution.
- 1C31166G02 – Westinghouse, same series, revised hardware revision; direct form-fit-function replacement candidate
- 1C31166G03 – Westinghouse, later revision with enhanced diagnostics; backward-compatible in most WDPF racks
- 1C31227G01 – Westinghouse WDPF Input Module, alternative channel configuration; verify I/O mapping before swap
- 5X00106G01 – Emerson WDPF-series input card (post-acquisition part numbering); functionally equivalent in supported racks
- 1C31194G01 – Westinghouse analog input module; cross-reference for specific signal-type applications
Konmask engineers can assist with cross-reference validation. Contact us before ordering a replacement if you are unsure of compatibility.
Why Choose the Original Model
- Guaranteed OEM Compatibility: The 1C31166G01 is the factory-specified module for WDPF systems — no firmware patching or configuration changes required.
- Proven Field Reliability: Deployed in power generation, petrochemical, and heavy industrial plants globally for decades.
- Minimized Commissioning Risk: Drop-in replacement with no re-engineering of I/O mapping or control logic.
- Long-Term Spare Parts Strategy: Stocking original modules ensures continuity for aging WDPF installations without costly system migrations.
- Traceable Sourcing: Konmask supplies tested, serialized units with documentation to support maintenance records and audits.
Typical Applications
- Thermal and nuclear power plant DCS control loops
- Petrochemical and refinery process control systems
- Pulp and paper mill automation
- Water treatment and utility plant SCADA/DCS integration
- Steel and metals processing plant control infrastructure
- Legacy WDPF system maintenance, repair, and overhaul (MRO) programs
System Compatibility
- Primary Platform: Westinghouse WDPF (Distributed Processing Family) DCS
- Rack Compatibility: Standard WDPF I/O rack with appropriate backplane bus
- Controller Compatibility: WDPF WEStation, QSS, and associated processor modules
- Post-Acquisition Systems: Compatible with Emerson-managed WDPF installations (verify with site engineering)
- Not Compatible With: Emerson DeltaV, Ovation, or other non-WDPF platforms without hardware adaptation
Selection Guide
Use the following decision framework to select the correct module for your application:
- Step 1 – Confirm Platform: Verify your system is a Westinghouse WDPF DCS. Check rack model and backplane bus type.
- Step 2 – Identify Signal Type: Determine whether the failed or required module handles analog (4–20 mA, thermocouple, RTD) or digital (discrete) inputs.
- Step 3 – Check Revision Compatibility: Compare the G-suffix revision (G01, G02, G03) against your system’s firmware and hardware revision matrix.
- Step 4 – Validate Slot Assignment: Confirm the target rack slot accepts this module type per the WDPF hardware configuration document.
- Step 5 – Choose OEM or Equivalent: If the original 1C31166G01 is unavailable, select from the compatible equivalents listed above with Konmask’s cross-reference support.
- Step 6 – Request a Quote: Contact Konmask with your quantity, required delivery timeline, and any certification requirements.
Quality Assurance & Sourcing
- Inspection: All modules undergo visual inspection, functional power-on testing, and I/O channel verification prior to shipment.
- Condition: New, refurbished (tested), and surplus stock available — condition clearly stated on each order confirmation.
- Traceability: Serial numbers and test records provided upon request for MRO and audit compliance.
- Packaging: ESD-safe anti-static packaging with foam cushioning for international freight.
- Warranty: 12-month warranty on all tested units; terms available on request.
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days.
How to Order
- Online: Add to cart directly from this page at Konmask.com
- Email RFQ: Send part number, quantity, and delivery requirements to [email protected]
- Phone / WhatsApp: +0086 19859288691 (Monday–Friday, 09:00–18:00 CST)
- Bulk / Project Orders: Volume pricing available for MRO programs and EPC contractors — contact us for a formal quotation.
- Export & Customs: We handle export documentation, HS code classification, and commercial invoices for international shipments.
Replacement & Compatibility FAQ
Q: Can I use a 1C31166G02 to replace a 1C31166G01?
A: In most cases yes — the G02 is a hardware revision of the same module family. However, confirm with your WDPF system documentation or contact Konmask to validate before installation.
Q: Is the 1C31166G01 compatible with Emerson Ovation DCS?
A: No. The 1C31166G01 is specific to the Westinghouse WDPF platform. Ovation uses a different hardware architecture and is not compatible.
Q: Do you supply tested/refurbished units?
A: Yes. All refurbished units are fully tested and clearly labeled. Test reports are available upon request.
Q: What is the lead time for out-of-stock units?
A: Typically 5–15 business days depending on sourcing. Contact us for urgent requirements — we maintain a global supplier network for legacy WDPF parts.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes, CoC and inspection reports are available for all tested units. Please request at time of order.
