Process Signal Acquisition Solution — WESTINGHOUSE IC31227G01 | Ovation DCS Analog Input

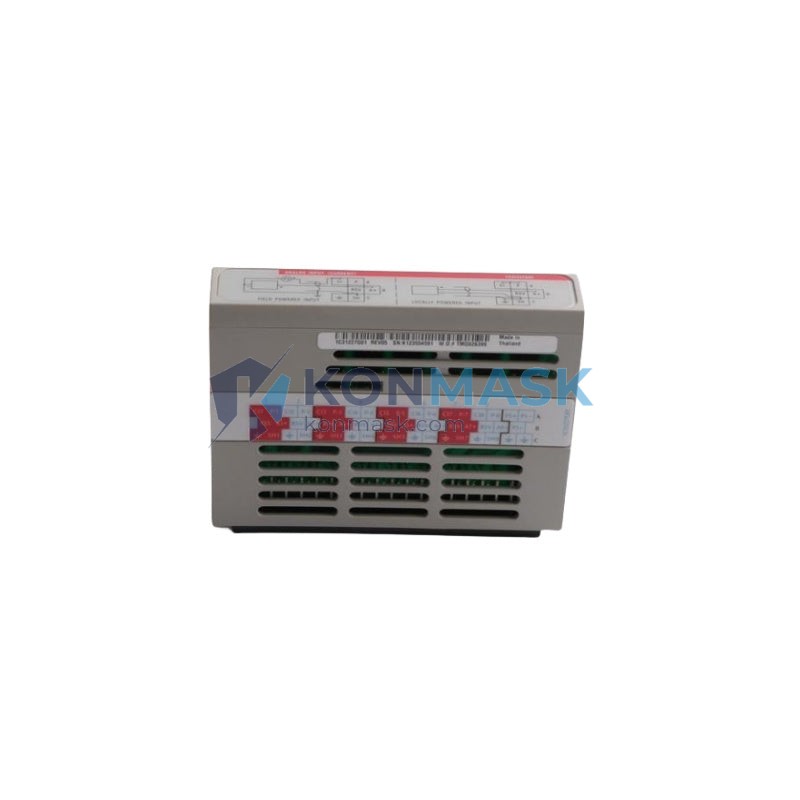

The Westinghouse IC31227G01 is an 8-channel analog input module engineered for the Ovation Distributed Control System (DCS). Designed for mission-critical industrial environments, this module delivers high-accuracy process variable acquisition across eight independent channels, enabling real-time monitoring and closed-loop control in demanding plant operations.
Where This Product Is Used
The IC31227G01 is specified by control engineers across industries where continuous, high-integrity analog signal acquisition is non-negotiable:
- Power Generation Plants — Steam turbine control, boiler drum level monitoring, feedwater flow measurement
- Nuclear Facilities — Safety-instrumented system (SIS) signal conditioning and redundant process monitoring
- Oil & Gas Refineries — Pressure, temperature, and flow loop acquisition in upstream and downstream processes
- Chemical & Petrochemical Plants — Reactor temperature profiling, distillation column control
- Pulp & Paper Mills — Digester pressure and consistency control loops
- Water Treatment Facilities — pH, turbidity, and flow signal integration into SCADA/DCS
Technical Specifications
- Part Number: IC31227G01
- Manufacturer: Westinghouse Electric / Emerson (Ovation)
- Module Type: 8-Channel Analog Input
- Platform: Ovation DCS
- Signal Types: 4–20 mA, 0–10 V (field-configurable per channel)
- Resolution: 16-bit A/D conversion
- Channel Isolation: Channel-to-channel and channel-to-backplane isolation
- Scan Rate: High-speed simultaneous sampling across all 8 channels
- Backplane Interface: Ovation I/O bus compatible
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Form Factor: Single-slot Ovation I/O module
- Diagnostics: On-board self-diagnostics with fault reporting to Ovation controller
Why Engineers Specify This Model
- Native Ovation Integration — Plug-and-play compatibility with Ovation controllers; no signal conditioning cards required
- High Channel Density — 8 independent channels in a single slot reduces cabinet footprint and wiring complexity
- 16-Bit Resolution — Delivers ±0.1% accuracy for tight process control tolerances
- Per-Channel Isolation — Eliminates ground loops and cross-channel interference in noisy plant environments
- Proven Reliability — Deployed in Westinghouse/Emerson Ovation installations globally for decades
- Hot-Swap Capable — Supports module replacement without system shutdown (with appropriate Ovation configuration)
- Comprehensive Diagnostics — Open-wire detection, over-range, and under-range alarms reported to the Ovation HMI
Complete System Bill of Materials
For a fully operational Ovation analog input loop using the IC31227G01, the following components are typically required:
- IC31227G01 — 8-Channel Analog Input Module (this item)
- Ovation I/O Chassis / Rack — Compatible Ovation I/O enclosure
- Ovation Controller Module — e.g., IC31234G01 or equivalent Ovation OCR400/OCR1100
- Field Terminal Assembly (FTA) — Marshalling terminal board for field wiring termination
- Ovation Network Interface Card — For controller-to-workstation communication
- Shielded Twisted-Pair Field Cables — For 4–20 mA transmitter wiring
- 24 VDC Loop Power Supply — For powering 2-wire transmitters
Compliance & Industry Standards
- CE Marking — Compliant with EU Machinery and EMC Directives
- UL/cUL Listed — Recognized for industrial control equipment
- IEC 61131-2 — Programmable controller hardware requirements
- IEEE 1686 — Cybersecurity standards for intelligent electronic devices (Ovation platform)
- NERC CIP — Ovation DCS platform supports NERC CIP compliance for power utility applications
- RoHS Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
At Konmask.com, every IC31227G01 unit is subject to a rigorous pre-shipment inspection protocol:
- Visual inspection for physical damage, corrosion, and connector integrity
- Functional power-on test to verify module initialization and self-diagnostic pass
- Firmware version verification against Westinghouse/Emerson compatibility matrices
- Anti-static packaging with humidity indicator cards for safe international transit
- Traceability documentation available upon request (batch records, test reports)
We source IC31227G01 modules from decommissioned plant upgrades, certified surplus distributors, and authorized channel partners — ensuring authentic Westinghouse hardware, not counterfeit substitutes.
How to Source This Part
- In Stock: Add to cart and proceed to checkout — same-day dispatch for orders placed before 15:00 CST
- Bulk / Project Quantity: Contact us for volume pricing and project BOM support
- Urgent Requirement: Call or WhatsApp +0086 19859288691 for expedited sourcing
- Exchange / Core Return: We accept defective units as core exchange — inquire for credit terms
- Global Shipping: DHL / FedEx Express to 180+ countries; export documentation included
Application-Specific FAQ
Q: Is the IC31227G01 compatible with both legacy and current Ovation DCS versions?
A: Yes. The IC31227G01 is compatible with Ovation versions 1.x through 3.x. For Ovation 3.5+ environments, confirm firmware revision with your Emerson service engineer.
Q: Can this module accept thermocouple or RTD inputs directly?
A: No. The IC31227G01 accepts standard 4–20 mA and 0–10 V signals. For thermocouple or RTD inputs, use the appropriate Ovation TC/RTD input module (e.g., IC31232G01).
Q: What is the lead time if the module is not in stock?
A: Typical sourcing lead time is 3–10 business days for surplus stock. Contact us for real-time availability across our supplier network.
Q: Do you provide a warranty?
A: Yes. All modules carry a 90-day functional warranty covering defects in operation under normal use conditions.
Q: Can I return a module if it does not fit my application?
A: We accept returns within 30 days of delivery for unused, uninstalled modules in original packaging. Contact support@konmask.com to initiate an RMA.
