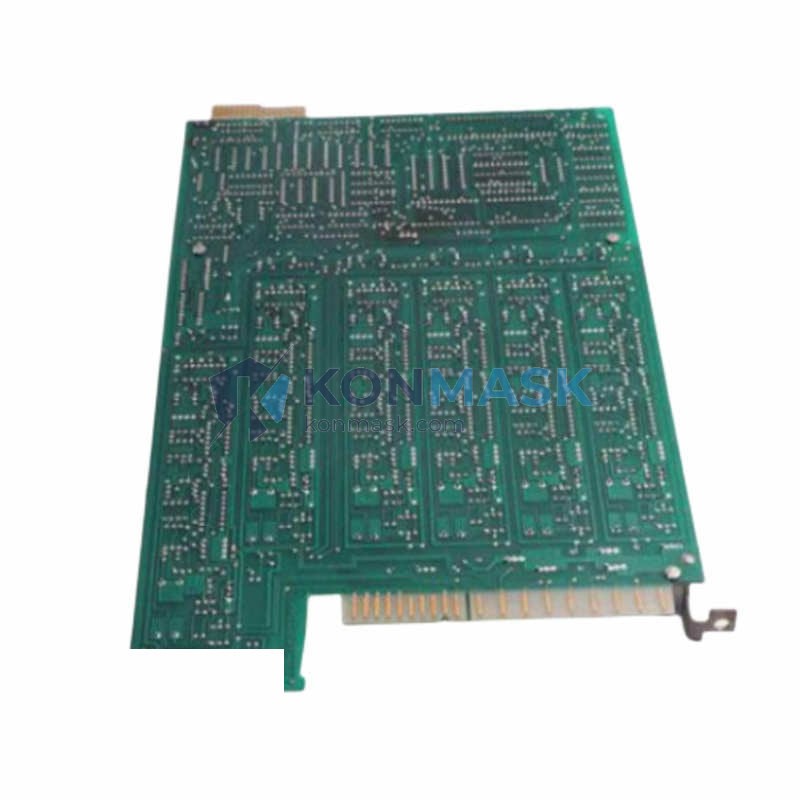

WESTINGHOUSE 5X00109G02 Electronics Module | Replacement, Equivalent & Selection Guide
The WESTINGHOUSE 5X00109G02 is an industrial electronics module designed for use in Westinghouse distributed control and automation systems. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 5X00109G02 |
| Manufacturer | Westinghouse / Emerson (OVATION / WDPF) |
| Module Type | Electronics Module |
| Series | WDPF / Ovation Compatible |
| Form Factor | Card / Board Module |
| Operating Temperature | 0°C to 60°C (typical industrial grade) |
| Power Supply | Per system backplane specification |
| Communication | Backplane bus interface |
| Condition Available | New, Refurbished, Tested |
| Weight | ~100 g |
Note: Specifications are reference values. Always verify against your system documentation before installation.
Compatible Replacement & Equivalent Models
The following models may serve as functional equivalents or drop-in replacements for the 5X00109G02, depending on your system revision and firmware version. Always confirm compatibility with your system integrator before substitution.
- 5X00109G01 – Earlier revision of the same module family; verify firmware compatibility
- 5X00109G03 – Later revision with potential enhanced diagnostics
- 5X00109G04 – Check backplane slot and connector pinout before substitution
- Emerson Ovation equivalent modules – Post-acquisition Ovation platform equivalents may apply in upgraded systems
- Third-party compatible boards – Available from certified industrial electronics suppliers; must meet OEM electrical and signal specifications
Contact support@konmask.com for a compatibility assessment specific to your system revision.
Why Choose the Original Model
- Guaranteed OEM compatibility – Designed and validated for Westinghouse WDPF/Ovation control architectures
- Proven field reliability – Deployed in power generation, petrochemical, and heavy industrial environments
- Firmware & diagnostics alignment – Native support for system-level diagnostics and fault reporting
- Reduced integration risk – No re-engineering or re-validation required when using the original part number
- Regulatory compliance – Meets applicable industrial safety and EMC standards as part of the certified system
Typical Applications
- Power plant distributed control systems (DCS)
- Petrochemical and refinery process automation
- Pulp and paper manufacturing control loops
- Water treatment and utility SCADA integration
- Steel and metals processing automation
- Legacy Westinghouse WDPF system maintenance and spare parts management
System Compatibility
- Westinghouse WDPF – Primary target platform; confirm cabinet and backplane revision
- Emerson Ovation – Compatible in systems migrated from WDPF to Ovation architecture (verify with Emerson documentation)
- Backplane Slot Type – Standard WDPF card cage; confirm slot assignment per system engineering drawing
- Firmware – Ensure system firmware version supports the G02 revision; consult release notes
Selection Guide
Use the following decision framework to select the correct module for your application:
- Step 1 – Identify your system: Confirm whether your installation is WDPF or Ovation, and note the cabinet/backplane model number.
- Step 2 – Verify revision: Check the existing module label for the G-suffix revision (G01, G02, G03, etc.). Match or confirm cross-compatibility.
- Step 3 – Check firmware: Retrieve the system firmware version from the operator console. Confirm the module revision is supported.
- Step 4 – Assess condition requirement: Determine whether new OEM, certified refurbished, or tested-used stock meets your maintenance policy and budget.
- Step 5 – Request a quote: Contact Konmask with your system details for a tailored recommendation and lead time.
Quality Assurance & Sourcing
- All modules sourced through Konmask.com undergo visual inspection and functional verification prior to shipment
- Refurbished units are tested to OEM electrical specifications
- Traceability documentation available upon request (test reports, photos, serial numbers)
- Packaging: anti-static ESD bag + foam-lined carton for safe international transit
- Export compliance: HTS classification and export documentation provided for cross-border orders
How to Order
- Add the module to your cart and proceed to checkout, or
- Email support@konmask.com with your part number, required quantity, and system details
- For bulk or project orders, request a formal quotation — we support NET payment terms for qualified B2B accounts
- Lead time: In-stock items ship within 1–3 business days; sourced items typically 5–15 business days
- Shipping: DHL / FedEx / UPS international express available; local freight for domestic CN orders
Replacement & Compatibility FAQ
Q: Can I replace 5X00109G02 with 5X00109G01?
A: Possibly, but G01 is an earlier revision. Confirm firmware compatibility and any hardware change notices (HCNs) from Westinghouse/Emerson before substitution.
Q: Is this module compatible with the Emerson Ovation system?
A: In systems migrated from WDPF to Ovation, some WDPF modules remain compatible. Verify with your Emerson system documentation or contact our technical team.
Q: Do you provide a warranty on refurbished units?
A: Yes. Refurbished modules carry a 90-day functional warranty. New OEM stock carries the manufacturer’s standard warranty where applicable.
Q: Can you source modules not listed on the website?
A: Yes. Konmask specializes in hard-to-find industrial automation parts. Submit your part number via email and we will respond within 24 hours.
Q: What documentation is available?
A: We can provide test reports, photos, and packing lists. OEM manuals are available through Emerson’s official documentation portal.
