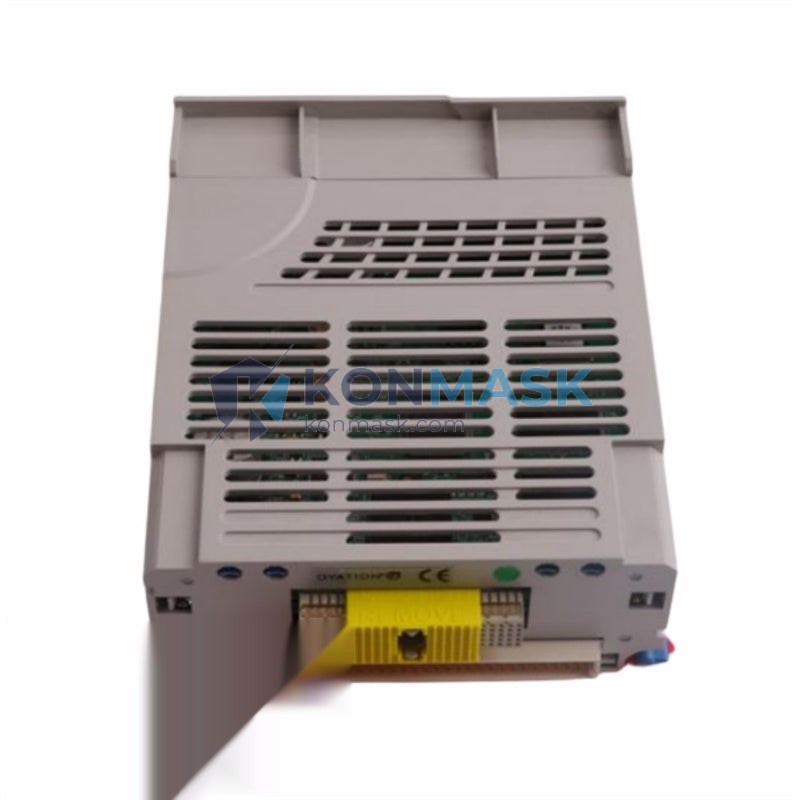

WESTINGHOUSE 1C31129G03 Diagnostic Analog Output Module

WESTINGHOUSE 1C31129G03 – Diagnostic Analog Output Module | Ovation DCS Platform

Engineering Background

The WESTINGHOUSE 1C31129G03 is a precision Diagnostic Analog Output Module engineered for the Ovation Distributed Control System (DCS) platform — Emerson’s (formerly Westinghouse Process Control) flagship architecture deployed across power generation, nuclear, and heavy industrial facilities worldwide. This module provides conditioned, diagnostics-enabled analog output channels that interface directly with field actuators, control valves, and positioners in safety-critical loops.

Product Positioning

Designed for engineers who demand zero-compromise signal integrity in continuous process control, the 1C31129G03 delivers hardware-level diagnostics that reduce unplanned downtime and simplify loop commissioning. Konmask.com stocks verified units sourced from decommissioned plant upgrades and authorized channel partners, providing procurement teams with a reliable, cost-effective alternative to OEM lead times.

Complete Technical Specifications

Proven Application Environments

• Power Generation: Coal, gas turbine, and combined-cycle plants using Ovation DCS for boiler and turbine control loops
• Nuclear Facilities: Balance-of-plant (BOP) control systems where diagnostics-capable I/O is mandated
• Petrochemical & Refining: Continuous process control requiring high-accuracy 4–20 mA output to field devices
Water & Wastewater Treatment: SCADA-integrated Ovation installations with valve and pump control
• Pulp & Paper / Mining: Heavy industrial DCS environments with extended temperature and vibration requirements

Engineering Advantages

• Hardware Diagnostics: Continuous loop-health monitoring detects open-circuit and short-circuit faults without additional field instrumentation
• Hot-Swap Compatible: Designed for live insertion/removal within the Ovation I/O chassis — minimizes maintenance windows
• High Signal Fidelity: 12-bit resolution with galvanic isolation ensures accurate, noise-immune output to field actuators
• Backplane Integration: Plug-and-play compatibility with Ovation I/O bus — no external power wiring required
• Proven Field Reliability: Deployed in thousands of Ovation DCS installations across 30+ countries
• Long Service Life: Robust industrial-grade components rated for continuous 24/7 operation

System Architecture & Signal Flow

The 1C31129G03 resides in the Ovation I/O chassis and communicates with the Ovation Controller via the proprietary I/O bus. The controller writes setpoint values to the module’s onboard D/A converter, which generates a precision 4–20 mA current signal on each output channel. The integrated diagnostic circuit continuously monitors the output loop impedance and reports fault status back to the controller — enabling the DCS to trigger alarms or initiate safe-state logic without operator intervention.

[Ovation Controller] ──I/O Bus──► [1C31129G03 Module]
                                        │
                              [D/A Converter (12-bit)]
                                        │
                              [Diagnostic Monitor]
                                        │
                              [4–20 mA Output Channels]
                                        │
                              [Field Actuators / Control Valves]

Sourcing & Quality Verification

• Source Traceability: Units sourced from plant decommissions, authorized distributors, and OEM surplus — each with documented chain of custody
• Incoming Inspection: Visual inspection, board-level examination, and functional bench test prior to listing
• Firmware / Revision Check: G03 revision confirmed and documented; no unauthorized modifications
• Packaging: ESD-safe anti-static bag + foam-lined carton for international transit
• Warranty: 12-month operational warranty against manufacturing defects

Procurement Process

1. Confirm Compatibility: Verify your Ovation DCS chassis and controller revision support the 1C31129G03 I/O module
2. Request Quote: Contact support@konmask.com with quantity, delivery timeline, and destination port
3. Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day
4. Quality Hold: Unit reserved and re-inspected against your PO specifications
5. Shipping: DHL / FedEx Express or sea freight; export documentation (CO, packing list, commercial invoice) included
6. After-Sales Support: Technical datasheet, wiring diagram, and installation guidance provided post-shipment

Technical FAQ

Q: Is the 1C31129G03 compatible with all Ovation DCS revisions?
A: The module is compatible with Ovation I/O chassis generations supporting the standard I/O bus. Please confirm your chassis revision with our technical team before ordering.

Q: What is the difference between G01, G02, and G03 revisions?
A: The G03 revision incorporates enhanced diagnostic circuitry and improved EMC shielding versus earlier revisions. It is backward-compatible in most Ovation installations.

Q: Can this module be used as a direct replacement for a failed unit?
A: Yes. The 1C31129G03 is a drop-in replacement within the same chassis slot. No controller reconfiguration is required when replacing like-for-like.

Q: Do you provide a test report or inspection certificate?
A: Yes. A functional test report is available upon request for orders of 2+ units. Single-unit orders include a visual inspection checklist.

Q: What are your lead times?
A: In-stock units ship within 2–3 business days. For bulk orders or units requiring additional testing, lead time is 5–10 business days.

---
