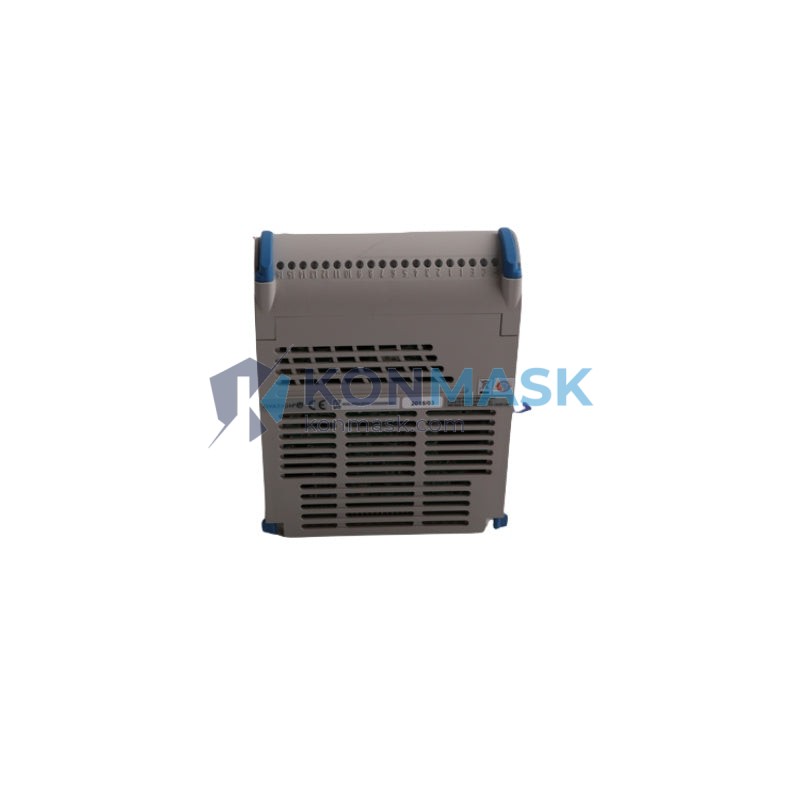

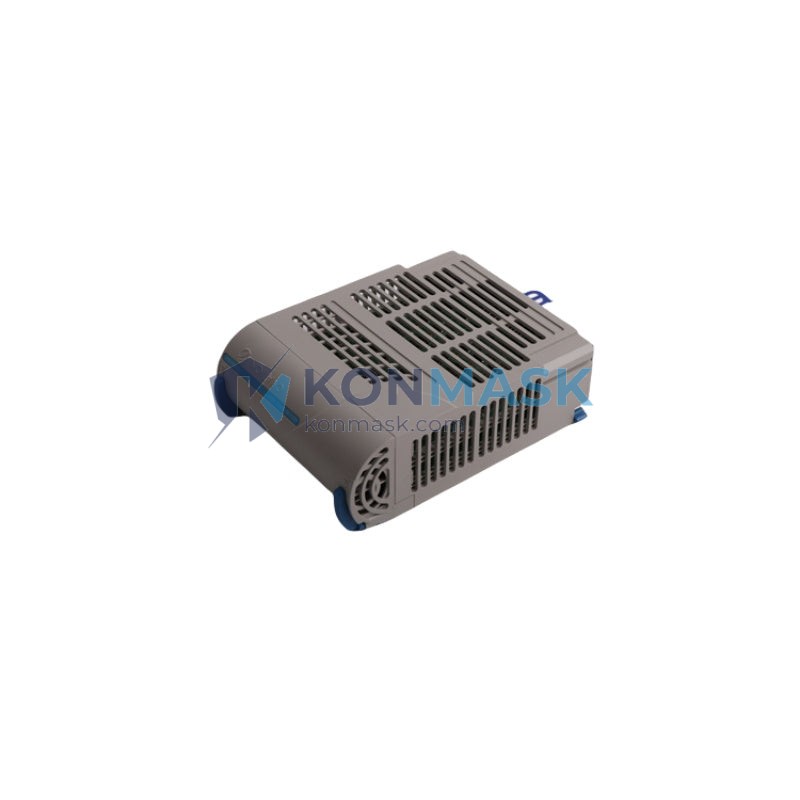

Westinghouse 5X00058G01 – Analog Input Module | WDPF Distributed Control System
Engineering Background
The Westinghouse WDPF (Westinghouse Distributed Processing Family) platform was engineered for mission-critical process control in power generation, petrochemical, and heavy industrial environments. The 5X00058G01 is a dedicated analog input module within this architecture, designed to acquire real-world process signals—voltage, current, and thermocouple/RTD inputs—and deliver them with high fidelity to the DCS controller for closed-loop regulation and supervisory monitoring.
Product Positioning
This module is the preferred replacement and spare component for facilities operating legacy WDPF systems that require long-term continuity without full platform migration. It is equally suited for system integrators performing brownfield upgrades where I/O compatibility with existing field wiring must be preserved. Konmask.com sources this module through verified industrial supply channels, ensuring authenticity and functional integrity for procurement engineers who cannot afford field failures.
Complete Technical Specifications
- Part Number: 5X00058G01
- Manufacturer: Westinghouse Electric Corporation (now Emerson / Ovation legacy)
- Module Type: Analog Input (HAR – High-Accuracy Redundant)
- Platform: WDPF (Westinghouse Distributed Processing Family)
- Input Signal Types: 4–20 mA current loop, 0–10 V DC, thermocouple (J, K, T, E, R, S, B), RTD (Pt100, Ni100)
- Resolution: 12-bit minimum (HAR variant: 16-bit effective)
- Input Channels: Multi-channel (refer to OEM datasheet for channel count per slot)
- Isolation: Channel-to-channel and channel-to-backplane galvanic isolation
- Accuracy: ±0.1% of full scale (HAR designation)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: –40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Power Supply: Supplied via WDPF backplane (5 VDC / 24 VDC bus)
- Backplane Interface: WDPF proprietary card-edge connector
- Weight: Approx. 300 g
- Compliance: Designed to UL, CE, and applicable IEC 61131-2 analog I/O standards
- SKU / Order Code: 5X00058G01
Proven Application Environments
- Power Generation: Coal, gas turbine, and nuclear auxiliary systems using WDPF for boiler control, turbine governor feedback, and excitation monitoring
- Petrochemical & Refining: Continuous process control loops requiring high-accuracy analog acquisition (flow, pressure, temperature, level)
- Pulp & Paper: Multi-zone temperature and pressure profiling in digester and dryer control systems
- Water & Wastewater: SCADA-integrated analog monitoring for pump stations and treatment plant instrumentation
- Steel & Metals: Furnace temperature control and rolling mill process feedback
Engineering Advantages
- HAR (High-Accuracy Redundant) Architecture: Dual-path signal conditioning with cross-validation, minimizing single-point measurement error in safety-critical loops
- Direct Backplane Compatibility: Hot-swap capable within WDPF chassis—no rewiring or reconfiguration required for like-for-like replacement
- Multi-Signal Flexibility: Accepts mA, voltage, thermocouple, and RTD inputs on the same module family, reducing spare-part SKU proliferation
- Galvanic Isolation: Protects controller backplane from field-side ground loops and transient surges common in industrial environments
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in harsh ambient conditions
- Proven Field History: Decades of deployment in regulated industries with documented MTBF performance
System Architecture & Signal Flow
The 5X00058G01 resides in the WDPF I/O subsystem chassis and communicates with the WDPF controller node via the proprietary WEStation data highway. Field transmitters connect to the module’s terminal block via shielded twisted-pair wiring. The module performs signal conditioning (filtering, linearization for thermocouple/RTD), A/D conversion, and transmits engineering-unit values to the controller scan table at the configured update rate. In HAR mode, redundant signal paths are continuously compared; discrepancies beyond threshold trigger diagnostic alarms to the operator console without interrupting process control.
Sourcing & Quality Verification
- Source: Procured from authorized industrial distributors, OEM surplus channels, and verified MRO suppliers
- Inspection: Each unit undergoes visual inspection for physical damage, label authenticity, and connector integrity prior to listing
- Functional Testing: Available on request for critical applications (contact us for test report options)
- Packaging: Anti-static ESD bag + foam-lined carton; humidity indicator card included for long-transit shipments
- Warranty: 12-month replacement warranty against manufacturing defects under normal operating conditions
- Counterfeit Risk Mitigation: Konmask does not source from unverified grey-market aggregators; provenance documentation available upon request
Procurement Process
- Confirm Compatibility: Verify your WDPF chassis slot type and existing module revision against the 5X00058G01 datasheet
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place Order: Purchase directly via Konmask.com or via PO for B2B accounts
- Shipping: DHL / FedEx international express available; export documentation (commercial invoice, packing list, COO) provided
- Incoming Inspection: We recommend incoming QC per your facility’s MRO acceptance procedure upon receipt
Technical FAQ
Q: Is the 5X00058G01 compatible with both WDPF I and WDPF II chassis?
A: Compatibility depends on chassis backplane revision. Please provide your chassis model number when inquiring to confirm fit.
Q: Can this module be used as a direct replacement for 5X00058G02 or other G-suffix variants?
A: G-suffix variants may differ in channel count, input range, or firmware. Cross-referencing with the OEM compatibility matrix is required before substitution.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes, a CoC is available upon request for orders requiring traceability documentation.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items are sourced within 2–4 weeks depending on market availability.
Q: Is repair or refurbishment available?
A: We can facilitate board-level repair through our partner service centers. Contact us with your failure description for a repair assessment.
