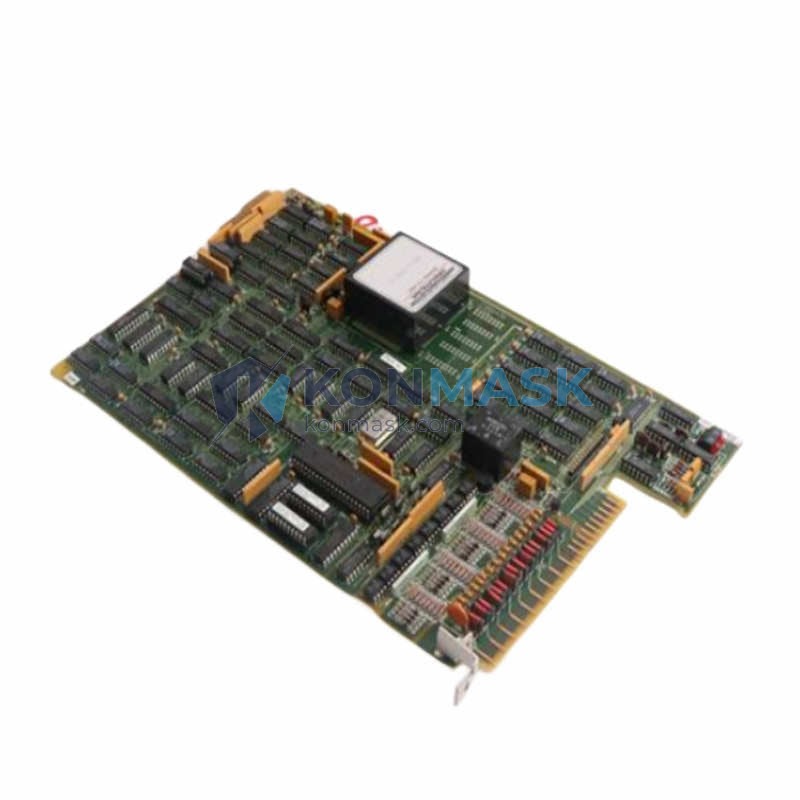

WESTINGHOUSE IC31224G01 – Analog Input EMOD | Ovation DCS Platform
Engineering Background: The IC31224G01 is a field-proven Analog Input Enhanced Module (EMOD) designed for Westinghouse Ovation™ Distributed Control Systems. Originally engineered for high-reliability process industries — including nuclear power generation, fossil fuel plants, and petrochemical facilities — this module delivers precision analog signal acquisition with full galvanic isolation and deterministic scan performance.
Product Positioning: Targeted at maintenance engineers and procurement specialists managing Ovation DCS infrastructure, the IC31224G01 provides a direct OEM-equivalent replacement path with guaranteed backward compatibility. Konmask.com sources verified units with full traceability documentation, making this module the preferred choice for critical plant operations where downtime is not an option.
Complete Technical Specifications
- Part Number: IC31224G01
- Manufacturer: Westinghouse Electric / Emerson (Ovation)
- Module Type: Analog Input EMOD (Enhanced Module)
- Platform: Ovation™ DCS
- Input Channels: 16 channels (single-ended) / 8 channels (differential)
- Input Signal Types: 4–20 mA, 0–10 VDC, ±10 VDC, thermocouple (J, K, T, E, R, S, B), RTD (Pt100, Pt1000)
- Resolution: 16-bit ADC
- Accuracy: ±0.1% of full scale (typical)
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation (≥500 VDC)
- Scan Rate: Deterministic, configurable per Ovation controller cycle
- Power Supply: Supplied via Ovation I/O bus backplane (no external PSU required)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% RH, non-condensing
- Weight: 320 g
- Form Factor: Standard Ovation EMOD card format
- Certifications: CE, UL, CSA (per Ovation system certification)
- Firmware: Compatible with Ovation software versions 3.x and above
Proven Application Environments
- Nuclear power plant I&C systems (safety-related and balance-of-plant)
- Fossil fuel and combined-cycle power generation
- Petrochemical and refinery process control
- Pulp & paper and water treatment facilities
- Turbine control and boiler management systems
- Any Ovation DCS installation requiring analog process variable acquisition
Engineering Advantages
- Full Galvanic Isolation: Eliminates ground loops and protects controller backplane from field-side transients
- 16-bit Resolution: Delivers high-fidelity signal representation for precise PID control and alarm management
- Multi-Signal Compatibility: Single module handles current, voltage, thermocouple, and RTD inputs — reducing spare parts inventory
- Hot-Swap Capable: Supports online replacement within Ovation redundant configurations without process interruption
- Deterministic Scan: Synchronized with Ovation controller cycle for consistent loop performance
- OEM Form Factor: Direct plug-in replacement; no wiring or configuration changes required
System Architecture & Signal Flow
The IC31224G01 mounts directly into the Ovation I/O subsystem chassis. Field wiring terminates at the associated marshalling terminal block. Analog signals are conditioned, multiplexed, and digitized by the onboard 16-bit ADC. Digitized values are transferred via the Ovation I/O bus to the controller module at each scan cycle. The module’s onboard diagnostics continuously monitor channel health and report fault status to the Ovation operator workstation in real time.
Compatible chassis: Ovation I/O Subsystem (standard and extended density), Ovation Remote I/O nodes.
Sourcing & Quality Verification
- Units sourced from authorized OEM channels and verified surplus with full traceability
- Each module undergoes visual inspection, functional power-on test, and firmware version verification prior to shipment
- Serialization and date-code documentation available upon request
- Anti-counterfeit screening applied: X-ray inspection and component marking verification for high-value orders
- Packaging: ESD-safe anti-static bag, foam-lined carton, humidity indicator card
Procurement Process
- Step 1: Confirm part number IC31224G01 against your Ovation system BOM or spare parts list
- Step 2: Submit RFQ via Konmask.com or email [email protected] with quantity and required delivery date
- Step 3: Receive quotation with lead time, unit price, and available stock confirmation within 24 hours
- Step 4: Issue PO — accepted formats: bank transfer (T/T), PayPal, credit card, LC for large orders
- Step 5: Shipment via DHL / FedEx / UPS Express with full tracking; export documentation (CO, packing list, commercial invoice) included
Technical FAQ
Q: Is IC31224G01 compatible with Ovation version 3.5 and later?
A: Yes. The module is firmware-compatible with Ovation 3.x through current releases. Confirm your controller firmware revision with your Ovation system integrator if upgrading from pre-3.0 systems.
Q: Can this module replace IC31224G02 or other IC3122x variants?
A: The G01 suffix denotes a specific hardware revision. Cross-compatibility with G02 or later variants depends on your Ovation software version and I/O configuration. Contact our technical team for a compatibility assessment before ordering.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is 2–6 weeks depending on sourcing. Expedited sourcing available for critical plant outages.
Q: Do you provide a warranty?
A: Yes — 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Extended warranty available upon request.
Q: Can I request a test report or inspection certificate?
A: Yes. Third-party inspection reports (SGS, Bureau Veritas) and internal test records are available for orders above minimum quantity thresholds.
