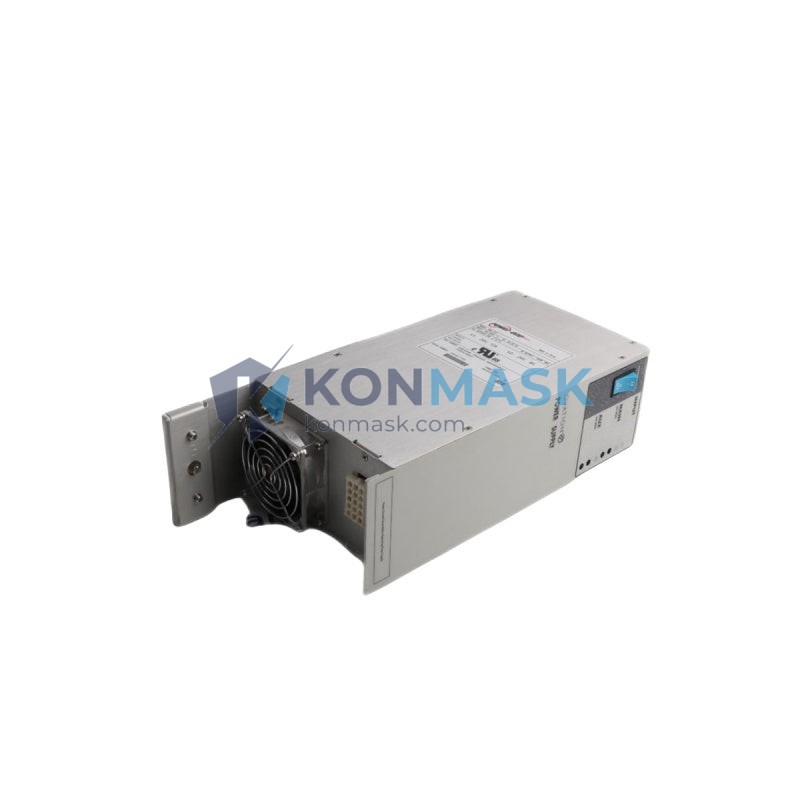

Westinghouse WH5-2FF 1X00416H01 Power Supply Module – WDPF Distributed Control System
When a power supply module fails in a live DCS environment, the consequences are immediate and severe: process shutdowns, unplanned downtime, and potential safety incidents that can cost tens of thousands of dollars per hour. In power generation, chemical processing, and refining plants running Westinghouse WDPF architecture, the WH5-2FF 1X00416H01 is not a commodity component — it is the regulated backbone that keeps every I/O card, controller, and communication bus alive. Without it, the entire control node goes dark.
The Westinghouse WH5-2FF 1X00416H01 is a dedicated power supply module engineered for the WDPF (Westinghouse Distributed Processing Family) control system platform — one of the most widely deployed legacy DCS architectures in heavy industry worldwide. Within the WH5 series, the 1X00416H01 variant delivers stable, conditioned DC power to WDPF node cabinets, supporting redundant configurations that are critical for continuous-process industries. Its proven field reliability and long service life have made it a trusted component in plants that have operated WDPF systems for decades and continue to do so.
Technical Specifications
- Part Number: WH5-2FF / 1X00416H01
- Manufacturer: Westinghouse Electric Corporation (now Emerson / Ovation legacy)
- Series: WDPF (Westinghouse Distributed Processing Family)
- Module Type: Power Supply Module
- Form Factor: Rack-mount, WDPF node cabinet compatible
- Weight: 3.12 kg
- Condition Available: Refurbished / Tested / New Old Stock (subject to availability)
Note: Detailed electrical specifications (input voltage range, output rails, current ratings) should be confirmed against the original Westinghouse WDPF engineering documentation or by contacting our technical team.
Key Features & Benefits
- Drop-in Replacement: Direct form-fit-function replacement for existing WDPF node installations — no rewiring or reconfiguration required.
- Redundancy Support: Compatible with WDPF redundant power supply configurations, eliminating single points of failure in critical control nodes.
- Regulated DC Output: Delivers clean, stable power to sensitive WDPF I/O and processor cards, protecting against voltage fluctuations.
- Long Service Life: Built to industrial-grade standards for continuous 24/7 operation in harsh plant environments.
- Immediate Availability: Stocked for fast dispatch to minimize your plant downtime window.
Industry & Equipment Applications
- Power Generation: Coal, gas, and nuclear power plants running legacy Westinghouse WDPF control systems.
- Oil & Gas Refining: Refinery DCS nodes requiring continuous, uninterrupted power supply.
- Chemical & Petrochemical Processing: Continuous-process plants where DCS uptime is non-negotiable.
- Pulp & Paper: Mill automation systems built on WDPF architecture.
- Water Treatment: Municipal and industrial water facilities using legacy Westinghouse control infrastructure.
System Integration & Compatible Parts
The WH5-2FF 1X00416H01 is designed to integrate within the Westinghouse WDPF node cabinet ecosystem. Compatible and commonly paired components include:
- WDPF Node Controllers (WD Series)
- WDPF I/O Modules (analog and digital input/output cards)
- WDPF Communication Interface Modules
- Redundant power supply companion modules (WH5 series)
Contact our engineering team to verify cross-compatibility with your specific WDPF node revision and cabinet configuration.
Our Quality Assurance Process
- Visual Inspection: All units are inspected for physical damage, corrosion, and component integrity upon receipt.
- Functional Testing: Power-on testing and output verification performed before shipment.
- Cleaning & Reconditioning: Refurbished units are cleaned and reconditioned to restore optimal performance.
- Secure Packaging: Anti-static, shock-protected packaging to prevent transit damage.
- Traceability: Each unit ships with inspection records and a unique tracking reference.
How to Order
- Submit an inquiry via the Contact Us form or email [email protected].
- Provide your plant’s WDPF system revision and cabinet configuration details for compatibility confirmation.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm the order and receive tracking information upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and industrial control system components — not general electronics.
- Global Sourcing Network: Access to hard-to-find legacy parts like the WH5-2FF 1X00416H01 that OEMs no longer stock.
- Technical Support: Our team includes engineers with hands-on WDPF system experience.
- Fast Response: Inquiry-to-quote turnaround within 24 hours for urgent plant requirements.
- Secure International Shipping: Experienced in export compliance and international logistics for industrial components.
Frequently Asked Questions
- Q: Is the WH5-2FF 1X00416H01 a new or refurbished unit?
- A: We stock both refurbished/tested and new old stock (NOS) units depending on availability. The condition will be clearly stated in your quotation.
- Q: Can this module be used in a redundant power supply configuration?
- A: Yes. The WH5-2FF is compatible with WDPF redundant power supply setups. Please confirm your cabinet revision with our team for exact pairing guidance.
- Q: What is the lead time for this part?
- A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. Contact us for current availability.
- Q: Do you provide a warranty?
- A: Yes. All tested and refurbished units come with a limited warranty. Terms are provided with your quotation.
- Q: Can you help identify compatible WDPF parts for my system?
- A: Absolutely. Share your system documentation or cabinet photos and our engineers will assist with parts identification and compatibility verification.
