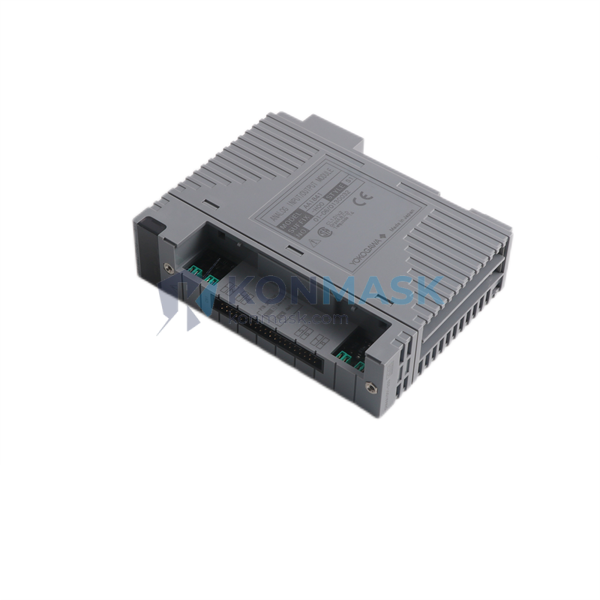

YOKOGAWA AAI841-H00 S1 16-Channel Analog Input Module – CENTUM VP / CS 3000 DCS Series
Imagine a petrochemical refinery running at full capacity — hundreds of field transmitters feeding real-time process data into the control room. Now picture a single failed analog input module silently dropping 16 channels of 4-20mA signals. Operators lose visibility on temperature, pressure, and flow simultaneously. The result: unplanned shutdown, production loss, and potential safety incidents. The YOKOGAWA AAI841-H00 S1 is the precision front-end that prevents exactly this scenario — a mission-critical bridge between your field instruments and the DCS brain.
Within the CENTUM VP and CS 3000 product family, the AAI841 occupies the role of high-density analog input acquisition. Its 16-channel architecture delivers exceptional I/O density per slot, reducing cabinet footprint while maintaining the signal integrity and isolation standards that YOKOGAWA’s process automation platforms are globally recognized for. Deployed across refineries, LNG terminals, power plants, and chemical complexes on every continent, the AAI841 series represents one of the most widely trusted analog front-end modules in the distributed control systems market.
Technical Specifications
- Model: AAI841-H00 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Compatible Systems: CENTUM VP, CENTUM CS 3000
- Module Type: Analog Input (AI)
- Number of Channels: 16 channels
- Input Signal Type: 4–20 mA DC (current input)
- Input Impedance: 250 Ω (internal load resistor)
- Resolution: 16-bit A/D conversion
- Channel Isolation: Channel-to-channel isolation supported
- Communication: Compatible with HART protocol field devices (via field wiring)
- Power Supply: Supplied via I/O bus from the field control station (FCS)
- Mounting: Node unit / I/O unit slot installation
- Operating Temperature: 0°C to 55°C
- Weight: Approx. 320 g
- Suffix Code -H00: Standard configuration, no intrinsic safety barrier
- Suffix Code S1: CE marking / international compliance variant
Note: Specifications are based on published YOKOGAWA documentation. Always verify against the official hardware manual (IM 33J01B30-01EN) for your specific system revision.
Key Features & Benefits
- High-Density I/O: 16 analog input channels per single module slot — maximizes cabinet space utilization in large-scale DCS installations.
- 16-Bit Resolution: Delivers precise signal digitization for tight process control loops in critical applications.
- Hot-Swap Capable: Supports online replacement within the CENTUM VP architecture, enabling maintenance without process interruption.
- Robust Channel Isolation: Protects the control system from ground loops and field-side electrical noise.
- HART Transparency: Field wiring supports HART communication pass-through for asset management and diagnostics.
- Proven Reliability: Built to YOKOGAWA’s stringent quality standards for continuous operation in harsh industrial environments.
- Seamless DCS Integration: Plug-and-play compatibility within CENTUM VP and CS 3000 node units — no additional configuration hardware required.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead monitoring, midstream pipeline SCADA integration, downstream refinery process control
- Petrochemicals & Chemicals: Reactor temperature/pressure acquisition, distillation column control loops
- Power Generation: Boiler control, turbine monitoring, combined-cycle plant DCS expansion
- LNG & Gas Processing: Cryogenic process measurement, compressor station automation
- Pulp & Paper: Continuous digester control, recovery boiler instrumentation
- Pharmaceuticals: Batch process monitoring under FDA 21 CFR Part 11 compliant DCS environments
- Water & Wastewater: Treatment plant process automation with CENTUM VP-based control systems
System Integration & Compatible Parts
The AAI841-H00 S1 is designed for direct installation into YOKOGAWA CENTUM VP and CS 3000 field control stations. Compatible and commonly paired components include:
- Node Units: ANB10D, ANR10D series (CENTUM VP)
- Field Control Stations: PFCS, SFCS, LFCS2 (CENTUM VP); FCS0147, FCS0148 (CS 3000)
- Power Supply Modules: PW481, PW482 series
- Communication Modules: ACM12 (Vnet/IP), ESB bus coupler modules
- Other I/O Modules: AAI835, AAI841, AAI843, AAT141, AAV141 series
- Marshalling Cabinets & Terminal Boards: TB series compatible with AAI841 wiring
Contact our technical team to verify compatibility with your specific FCS firmware version and node configuration.
Our Quality Assurance Process
- Source Verification: All modules are sourced from authorized distributors, certified system integrators, or decommissioned plant inventories with traceable history.
- Visual & Physical Inspection: Each unit is inspected for connector integrity, PCB condition, label legibility, and absence of physical damage.
- Functional Pre-Check: Where test equipment is available, modules undergo power-on verification prior to shipment.
- Secure Packaging: ESD-safe anti-static bags, foam cushioning, and double-wall carton packaging for international freight.
- Documentation: Shipment includes available original documentation, test records, and Konmask inspection checklist.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Our team will confirm stock availability and provide a formal quotation within 1 business day
- Upon PO confirmation, we arrange export documentation, packaging, and shipment via your preferred freight method
- Tracking information and commercial invoice provided upon dispatch
We support T/T bank transfer, and can accommodate standard B2B payment terms for verified buyers.
Why Choose Konmask.com?
- 🔧 Industrial Automation Specialists: We focus exclusively on DCS, PLC, and process control hardware — not a general electronics marketplace.
- 🌐 Global Export Experience: Serving buyers in Southeast Asia, the Middle East, Europe, and the Americas with compliant cross-border documentation.
- ⚡ Fast Response: Dedicated B2B inquiry team responds within 24 hours on business days.
- 📦 Reliable Sourcing: Established supplier network for YOKOGAWA, Siemens, ABB, Honeywell, and Emerson automation components.
- 🛡️ Transparent Quality: No hidden refurbishment — condition and provenance disclosed upfront in every quotation.
Frequently Asked Questions
Q: Is the AAI841-H00 S1 compatible with CENTUM VP R6.x?
A: The AAI841 hardware is compatible across multiple CENTUM VP revisions. However, firmware and FCS software version compatibility should be confirmed with your system engineer. Contact us and we can assist with cross-referencing.
Q: What is the difference between AAI841-H00 and AAI841-S00?
A: The -H00 suffix denotes the standard (non-IS) configuration. The -S00 and other suffix variants may indicate intrinsic safety or regional compliance differences. The S1 suffix indicates CE-marked international compliance. Always verify the exact suffix required for your installation.
Q: Do you supply new or used modules?
A: We supply both new surplus and tested used modules depending on availability. Condition is always clearly stated in the quotation. We do not misrepresent used modules as new.
Q: Can you provide an export certificate or country of origin documentation?
A: Yes. We provide standard export documentation including commercial invoice, packing list, and certificate of origin upon request.
Q: What is the lead time?
A: In-stock items typically ship within 3–5 business days after PO confirmation. Lead time for sourced items varies; we will advise at quotation stage.
