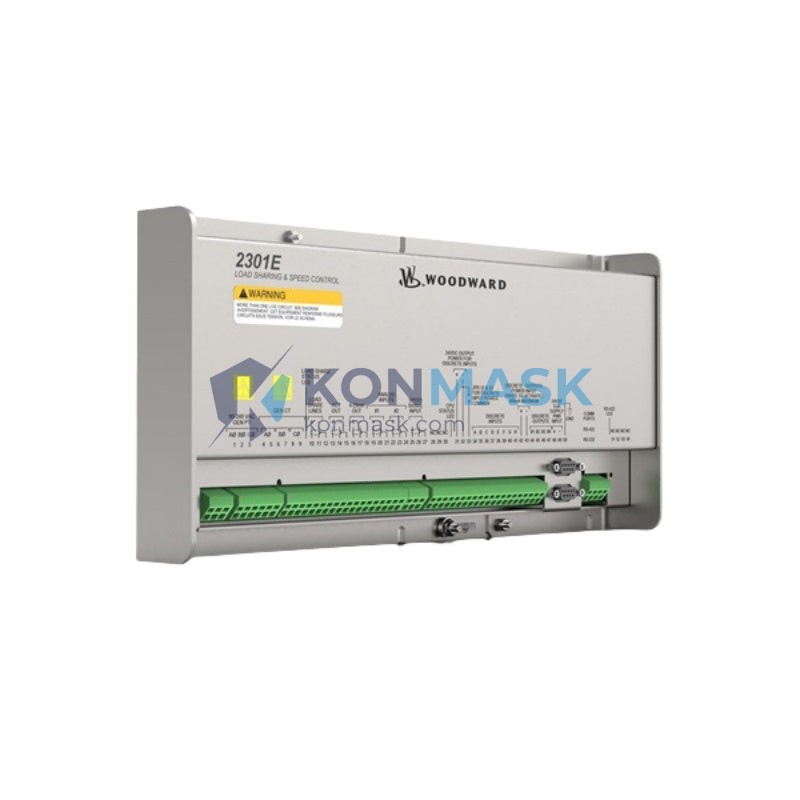

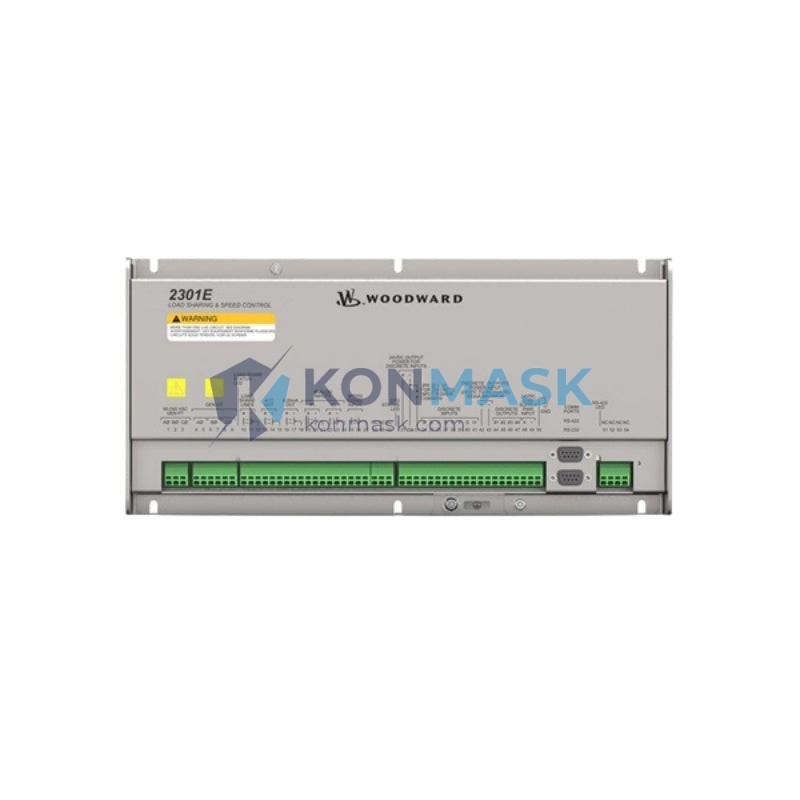

WOODWARD 2301E Speed Controller Load Share – 2301 Series Governor Control
When a turbine or generator set loses its speed governing controller, the consequences are immediate and severe: uncontrolled acceleration, load imbalance, potential equipment damage, and unplanned production shutdowns that cost thousands of dollars per hour. In parallel-generation and load-sharing applications, a single failed controller can destabilize an entire power island, triggering cascading trips across multiple gensets. The WOODWARD 2301E is the precision instrument that prevents this scenario — a purpose-built electronic speed controller and load-sharing module engineered for continuous, mission-critical duty.
Within the WOODWARD 2301 Series — one of the most widely deployed governor control platforms in global industrial power generation — the 2301E represents the load-share-capable variant, designed for applications where two or more prime movers must operate in isochronous parallel. Its architecture is trusted by OEMs, EPC contractors, and plant engineers across oil & gas, marine, utilities, and industrial power generation on every continent. Sourcing a genuine, verified 2301E is the first step to restoring or maintaining system stability.
Technical Specifications
- Model: 2301E
- Manufacturer: WOODWARD
- Series: 2301 Electronic Governor Control
- Function: Isochronous Speed Control + Load Sharing
- Control Mode: Isochronous / Droop (selectable)
- Load Sharing: Integrated load-share line for parallel genset operation
- Speed Input: Magnetic pickup (MPU) signal
- Actuator Output: Proportional current output to fuel actuator
- Power Supply: DC input (refer to OEM documentation for exact voltage range)
- Operating Temperature: Industrial-grade range (refer to WOODWARD datasheet)
- Enclosure: Panel-mount module
- SKU / Part Number: 2301E
Note: All specifications are sourced from WOODWARD published documentation. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Isochronous Load Sharing: Enables precise real-power sharing between parallel prime movers without frequency droop, critical for stable microgrid and island-mode operation.
- Droop / Isochronous Switchable: Flexible control mode selection accommodates both standalone and parallel configurations from a single unit.
- MPU Speed Sensing: Reliable magnetic pickup input provides accurate speed feedback even in high-vibration industrial environments.
- Proportional Actuator Drive: Smooth, responsive fuel actuator control minimizes speed transients during load steps.
- Proven 2301 Platform: Decades of field deployment across thousands of installations worldwide — extensive OEM support, documentation, and replacement parts availability.
- Drop-in Replacement Compatibility: Designed to replace legacy 2301 series controllers with minimal rewiring, reducing downtime during maintenance windows.
- Compact Panel-Mount Form Factor: Space-efficient design integrates into existing control panels without structural modification.
Industry & Equipment Applications
- Oil & Gas: Wellhead generators, gas compression station prime movers, offshore platform power systems
- Marine & Offshore: Diesel genset paralleling on vessels, dynamic positioning (DP) power management systems
- Industrial Power Generation: Cogeneration (CHP) plants, standby and emergency generator sets, peak-shaving installations
- Utilities & Microgrids: Island-mode microgrid controllers, rural electrification genset banks
- Mining & Heavy Industry: Remote site power systems requiring autonomous load sharing without grid reference
- OEM Integration: Turbine and engine OEMs specifying WOODWARD governor controls as standard equipment
System Integration & Compatible Parts
The WOODWARD 2301E is designed to operate within the broader WOODWARD governor and actuator ecosystem. Typical system integration includes:
- Actuators: WOODWARD EG series electric actuators (EG-3P, EG-6P, EG-10P) and compatible proportional fuel actuators
- Speed Sensors: Magnetic pickup units (MPU) — standard 2-wire passive type
- Load Sharing Bus: Interconnection with other 2301E or compatible WOODWARD load-share controllers via dedicated load-share line
- Power Supply: Regulated DC power supply appropriate to unit specifications
- Related WOODWARD Controllers: 2301A, 2301D, 505, 723 series for multi-governor plant architectures
Contact our technical team at support@konmask.com for system compatibility verification before ordering.
Our Quality Assurance Process
At Konmask.com, every WOODWARD 2301E unit passes through a structured verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors, certified surplus channels, or directly from OEM-documented supply chains.
- Visual & Physical Inspection: Each unit is inspected for physical integrity — connector condition, label authenticity, housing damage, and counterfeit indicators.
- Functional Pre-check: Where applicable, units undergo bench-level power-on verification prior to packaging.
- Traceability Documentation: We provide sourcing documentation and, where available, original manufacturer certificates of conformance.
- Secure Packaging: Anti-static packaging with shock-absorbing materials ensures safe transit for sensitive electronic control modules.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (2301E) and required quantity.
- Receive a Quote: Our team will confirm availability, lead time, and pricing within 1 business day.
- Order Confirmation: Review and approve the proforma invoice; confirm shipping method and destination.
- Payment & Dispatch: Upon payment confirmation, units are prepared, inspected, and dispatched with full tracking information.
- After-Sales Support: Our technical team remains available post-delivery for integration questions and documentation requests.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLC modules, DCS cards, governor controllers, and automation hardware from leading global brands.
- Global Sourcing Network: Access to genuine WOODWARD inventory through verified supply channels, including hard-to-find and discontinued models.
- Technical Expertise: Our team understands governor control systems — we speak your engineering language and can assist with cross-referencing and compatibility questions.
- Fast Response: Inquiry-to-quote turnaround within 24 hours for standard requests.
- Worldwide Export: Experienced in international shipping, export documentation, and customs compliance for industrial electronics.
- Trusted by Engineers: Serving procurement engineers, plant maintenance teams, and OEM service departments across Asia, the Middle East, Europe, and the Americas.
Frequently Asked Questions
- Q: Is the WOODWARD 2301E still in production?
- A: The 2301E is a mature product within the WOODWARD 2301 series. Availability depends on current stock levels. Contact us to confirm current inventory status.
- Q: Can the 2301E replace a 2301A or 2301D in an existing installation?
- A: The 2301 series shares a common platform architecture, but wiring configurations and feature sets differ between variants. We recommend consulting the WOODWARD installation manuals for both units and contacting our technical team before substitution.
- Q: Do you provide a warranty on the WOODWARD 2301E?
- A: Yes. All units sold through Konmask.com are covered by our standard warranty policy. Please contact us for specific terms applicable to your order.
- Q: Can you supply the 2301E with original WOODWARD documentation?
- A: We provide available sourcing documentation with each unit. WOODWARD’s official installation and operation manuals (e.g., Manual 82510) are publicly available on the WOODWARD website and can be referenced for technical integration.
- Q: What is the typical lead time for the WOODWARD 2301E?
- A: Lead time varies by current stock availability. In-stock units typically ship within 3–5 business days. Contact us for a real-time availability check.
- Q: Do you ship internationally?
- A: Yes. Konmask.com ships worldwide. We handle export documentation, commercial invoices, and packing lists for international customs clearance.
