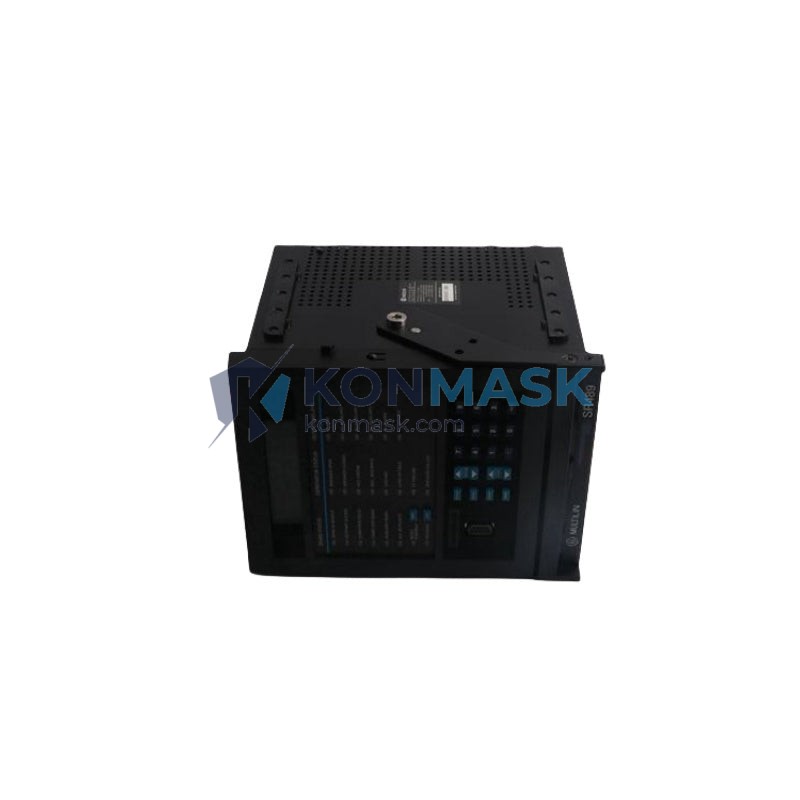

GE SR469-P5-HI-A20-E-H Motor Management Relay – Multilin SR469 Series

When a critical motor fails unexpectedly on the plant floor — a compressor drive, a pump motor, or a conveyor system — the consequences cascade instantly: unplanned downtime, production loss, and potential equipment damage that can cost tens of thousands of dollars per hour. Without intelligent motor protection, operators are left reacting to failures rather than preventing them. The GE Multilin SR469-P5-HI-A20-E-H Motor Management Relay changes that equation entirely, providing comprehensive real-time protection and monitoring that keeps motors running safely and reliably.

The SR469-P5-HI-A20-E-H is a fully featured variant within GE’s industry-leading Multilin SR469 Motor Management Relay series — one of the most widely deployed motor protection platforms in global industrial automation. Engineered for medium-voltage motor applications, this specific configuration (P5 power supply, HI current input, A20 CT ratio, E enhanced I/O, H HART communication) represents the premium tier of the SR469 family, trusted by engineers across power generation, oil & gas, mining, and heavy manufacturing worldwide.

Technical Specifications

Model: SR469-P5-HI-A20-E-H
Series: GE Multilin SR469 Motor Management Relay
Manufacturer: GE (General Electric) / GE Grid Solutions
Power Supply (P5): 85–265 V AC/DC universal power supply
Current Input (HI): High-current input module for large motor applications
CT Ratio (A20): 20 A ground fault CT input
I/O Option (E): Enhanced I/O — additional digital inputs and relay outputs
Communication (H): HART protocol communication port
Protection Functions: Thermal model, overload, undercurrent, phase unbalance, phase reversal, ground fault, differential, RTD-based thermal protection
RTD Inputs: Up to 12 RTD inputs (stator, bearing, ambient)
Metering: Current (3-phase + ground), voltage, power, energy, power factor
Data Logging: Event recorder, oscillography, motor start data
Display: Backlit LCD with keypad interface
Mounting: Standard 19-inch rack or panel mount
Weight: Approx. 900 g
Standards: IEC 60255, IEEE C37.96, UL, CE

Key Features & Benefits

Comprehensive Motor Protection: Over 30 protection elements covering thermal, electrical, and mechanical motor faults in a single relay.
Thermal Model with RTD Biasing: Accurate thermal replica model biased by up to 12 RTD inputs ensures motors are protected against overheating without unnecessary trips.
HART Communication: The H option enables HART protocol integration, allowing seamless connection to DCS and asset management systems without additional hardware.
Enhanced I/O (E Option): Additional digital inputs and output relays provide greater flexibility for complex control schemes and interlocking.
High-Current Input Module: The HI input module accommodates large motor applications with high CT secondary currents, reducing the need for auxiliary CTs.
Motor Start Data Capture: Records detailed data for every motor start, enabling predictive maintenance and root-cause analysis.
Universal Power Supply: P5 option accepts 85–265 V AC/DC, simplifying installation across diverse substation environments.
Oscillography: Captures waveform data during fault events for precise post-fault analysis.

Industry & Equipment Applications

Power Generation: Boiler feed pumps, cooling water pumps, forced draft fans, induced draft fans
Oil & Gas: Pipeline compressors, gas injection pumps, offshore platform motors
Mining & Minerals: Conveyor drives, crusher motors, mill drives, slurry pumps
Water & Wastewater: High-voltage pump stations, aeration blowers, lift station motors
Pulp & Paper: Refiner motors, chip conveyor drives, digester drives
Chemical & Petrochemical: Reactor agitators, process pump motors, compressor drives
Heavy Manufacturing: Rolling mill motors, press drives, large HVAC systems

System Integration & Compatible Parts

The SR469-P5-HI-A20-E-H integrates seamlessly within GE Multilin protection and control architectures. Compatible and commonly paired components include:

GE Multilin 469: Earlier generation motor management relay (upgrade path)
GE Multilin 339: Motor protection relay for smaller motors in the same switchgear lineup
GE Multilin 750/760: Feeder protection relays for upstream feeder coordination
GE EnerVista Software: Configuration, monitoring, and data extraction software suite
GE Multilin SR750/SR760: Line protection relays for integrated substation protection schemes
HART-compatible DCS systems: Emerson DeltaV, Honeywell Experion, ABB 800xA

Our Quality Assurance Process

At Konmask.com, every GE Multilin SR469-P5-HI-A20-E-H unit we supply undergoes a rigorous multi-stage verification process before shipment:

Source Verification: Units are sourced exclusively from authorized distributors, certified surplus channels, or directly from manufacturer-approved supply chains.
Visual & Physical Inspection: Each unit is inspected for physical integrity, label authenticity, connector condition, and absence of counterfeit indicators.
Functional Testing: Where applicable, units are powered up and basic communication/display functionality is verified.
Documentation: Original manuals, firmware version records, and calibration certificates are provided where available.
Secure Packaging: Anti-static packaging with shock-absorbing materials ensures safe international transit.

How to Order

Submit your inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
Our technical team will confirm availability, lead time, and provide a formal quotation within 24 hours.
Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
Post-delivery technical support is available for installation and commissioning queries.

Why Choose Konmask.com?

Industrial Automation Specialists: We focus exclusively on industrial control and protection equipment — no generalist catalog, just deep expertise.
Global Supply Network: Access to hard-to-find and obsolete GE Multilin parts through our verified international supplier network.
Fast Response: Quotations within 24 hours, with expedited shipping options for urgent plant requirements.
Technical Support: Our engineers can assist with relay configuration, settings coordination, and compatibility verification.
Trusted by Industry: Serving power utilities, EPC contractors, and plant maintenance teams across Asia, Europe, and the Americas.

Frequently Asked Questions

Q: What does the “P5” suffix mean in SR469-P5-HI-A20-E-H?
A: P5 designates the universal power supply module, accepting 85–265 V AC/DC input, making the relay suitable for installation in both AC and DC substation environments without requiring a separate power supply.

Q: What is the difference between SR469 HI and LO current input options?
A: The HI (high current) input module is designed for applications where the CT secondary current is higher than standard 5 A, accommodating large motor feeders. The LO option is for standard 5 A CT secondary applications.

Q: Does the SR469-P5-HI-A20-E-H support Modbus communication?
A: The standard SR469 supports RS-485 Modbus RTU. The H option in this model adds HART protocol capability. For Ethernet/IEC 61850 communication, the SR469 Plus variant should be considered.

Q: Can this relay replace an older GE Multilin 469?
A: Yes, the SR469 series is the direct successor to the 469 Motor Management Relay and is designed as a drop-in upgrade with enhanced functionality. Panel cutout dimensions and wiring are largely compatible.

Q: What is the warranty on units supplied by Konmask.com?
A: All units are supplied with our standard quality guarantee. Please contact support@konmask.com for specific warranty terms applicable to your order.

Q: Do you provide the EnerVista configuration software with the relay?
A: GE EnerVista software is freely available from GE Grid Solutions. We can assist with sourcing the correct version compatible with your SR469 firmware upon request.

{
