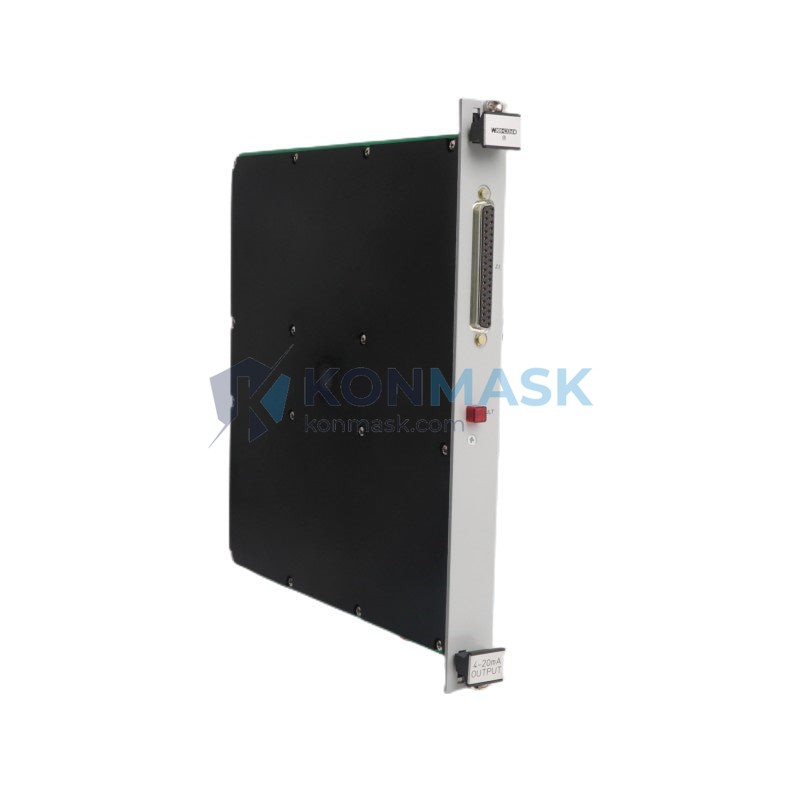

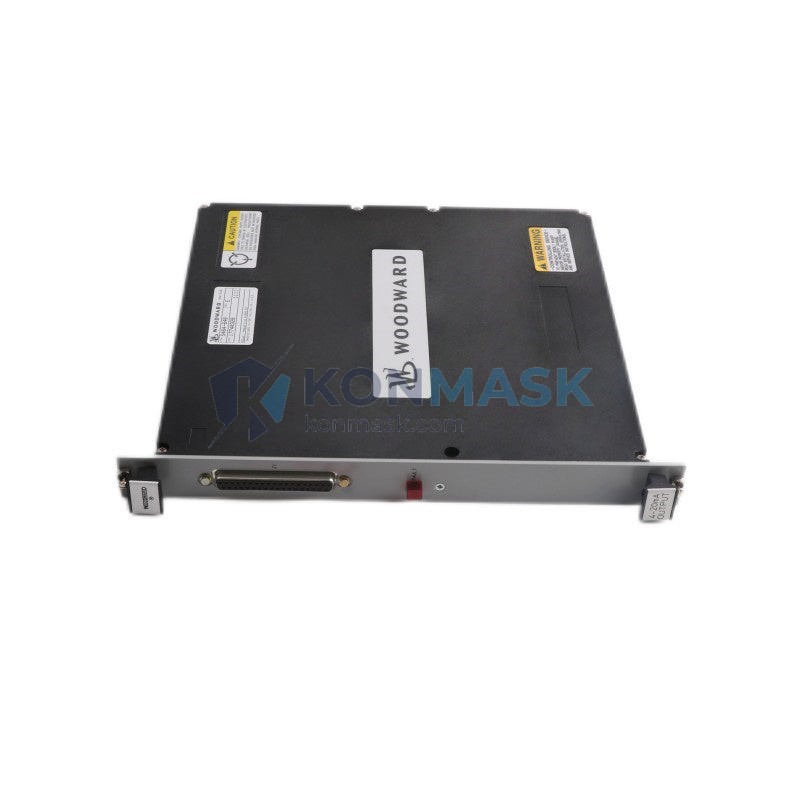

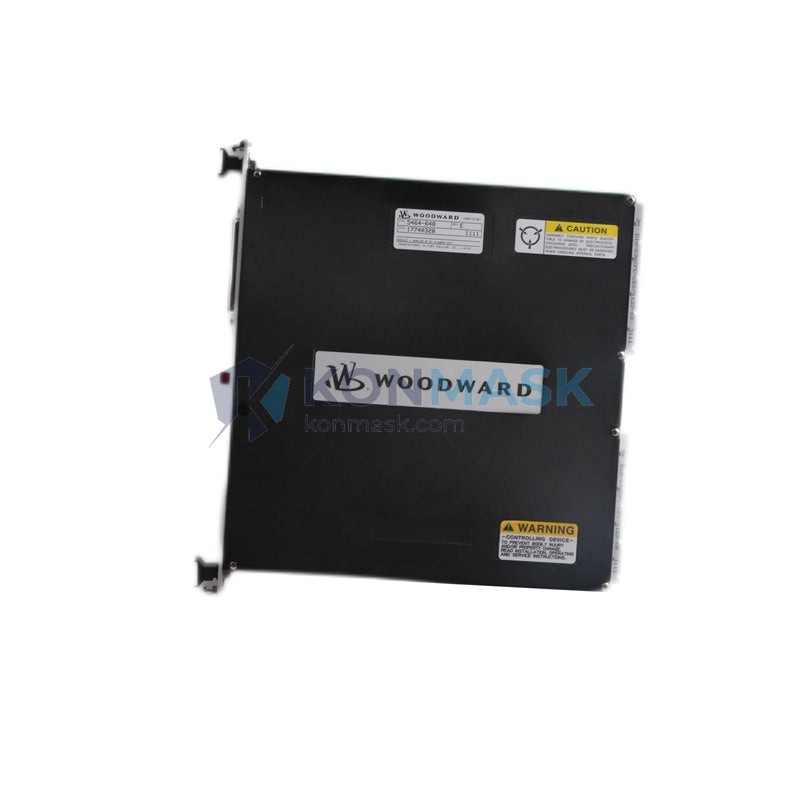

WOODWARD 5464-648 8-Channel 4-20mA Analog Output Module | Replacement, Equivalent & Selection Guide
The WOODWARD 5464-648 is an 8-channel analog output module delivering precision 4–20 mA current loop signals, designed for integration into WOODWARD control systems used in turbine, generator, and industrial process automation. This page provides full technical specifications, compatible replacement options, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: 5464-648
- Manufacturer: WOODWARD
- Module Type: Analog Output
- Number of Channels: 8
- Output Signal: 4–20 mA current loop
- Resolution: 12-bit (typical for WOODWARD analog output modules)
- Output Isolation: Channel-to-channel isolated
- Power Supply: Supplied via backplane (WOODWARD system bus)
- Operating Temperature: 0°C to +60°C
- Mounting: Rack/backplane mount, WOODWARD proprietary form factor
- Weight: 920 g
- Compliance: CE, UL (verify with current datasheet)
Note: Specifications are based on published WOODWARD documentation. Always verify against the official datasheet before final design-in.
Compatible Replacement & Equivalent Models
When the original WOODWARD 5464-648 is unavailable, end-of-life, or cost-prohibitive, the following alternatives may be evaluated. Compatibility must be verified against your specific system revision and firmware version.
| Manufacturer | Part Number | Channels | Output Type | Compatibility Notes |
|---|---|---|---|---|
| WOODWARD | 5464-649 | 8 | 4–20 mA | Revised hardware revision; confirm firmware compatibility |
| WOODWARD | 5464-650 | 8 | 4–20 mA / 0–10 V | Dual-mode output; may require parameter reconfiguration |
| Bachmann Electronic | AO204 | 4 | 4–20 mA | Partial replacement; two modules required for 8-ch coverage |
| Emerson (Ovation) | 1X00073H01 | 8 | 4–20 mA | Cross-platform; requires signal conditioning and wiring adaptation |
| Siemens | 6ES7332-5HF00-0AB0 | 8 | 4–20 mA | S7-300 platform; requires PLC migration or gateway adapter |
⚠ Disclaimer: Third-party replacements require engineering validation. Konmask.com recommends consulting your OEM documentation or a qualified control systems engineer before substitution.
Why Choose the Original WOODWARD 5464-648
- Guaranteed System Compatibility: Designed and validated for WOODWARD NetCon, MicroNet, and 505 control platforms — no firmware or wiring adaptation required.
- Proven Field Reliability: Deployed in turbine governor and generator excitation systems globally with documented MTBF performance.
- Regulatory Compliance: Meets industrial safety and EMC standards required for power generation and oil & gas environments.
- Reduced Commissioning Risk: Drop-in replacement with no re-engineering of control logic or I/O mapping.
- OEM Support Continuity: Eligible for WOODWARD factory repair, calibration, and extended warranty programs.
Typical Applications
- Gas turbine and steam turbine governor control systems
- Generator excitation and AVR (Automatic Voltage Regulator) systems
- Industrial process control loops (flow, pressure, temperature setpoint output)
- Compressor anti-surge control
- Power plant distributed control system (DCS) I/O expansion
- Oil & gas upstream and midstream automation panels
System Compatibility
The WOODWARD 5464-648 is compatible with the following WOODWARD control platforms (verify with your system revision):
- WOODWARD NetCon 5000 Series
- WOODWARD MicroNet TMR / MicroNet Plus
- WOODWARD 505 Digital Governor
- WOODWARD 723 Digital Speed Control
- WOODWARD Peak150 / Peak200 Controllers
For cross-platform integration (e.g., Emerson DeltaV, ABB 800xA, Siemens PCS 7), signal conditioning modules or protocol gateways are required.
Selection Guide
Use the following decision framework to select the correct analog output module for your application:
- Step 1 — Confirm Platform: Identify your WOODWARD controller model and firmware version. The 5464-648 is validated for specific backplane revisions.
- Step 2 — Verify Channel Count: 8 channels of 4–20 mA output. If fewer channels are needed, consider the 4-channel variant to reduce cost.
- Step 3 — Check Output Range: Confirm whether your field devices require 4–20 mA only, or if 0–10 V / 0–20 mA variants are acceptable.
- Step 4 — Assess Isolation Requirements: For high-noise environments (turbine halls, switchgear rooms), confirm channel-to-channel isolation rating.
- Step 5 — Evaluate Lead Time vs. Cost: OEM new stock offers full warranty; certified refurbished units from Konmask.com offer faster delivery and cost savings of 30–60%.
- Step 6 — Request Datasheet: Contact support@konmask.com for the official WOODWARD 5464-648 datasheet and wiring diagram.
Quality Assurance & Sourcing
- Source: Authorized distributor stock, OEM surplus, and certified refurbished units
- Inspection: Each unit undergoes visual inspection, functional power-on test, and output signal verification (4–20 mA calibration check)
- Traceability: Serial number and revision level documented; COC (Certificate of Conformance) available on request
- Packaging: Anti-static ESD packaging with foam cushioning; suitable for international air freight
- Warranty: 12-month warranty on all units shipped from Konmask.com
How to Order
- Add the WOODWARD 5464-648 to your cart and proceed to checkout, or
- Email your purchase order or RFQ to support@konmask.com
- Include: quantity required, required delivery date, destination country, and any certification requirements (COC, RoHS, etc.)
- Our team will confirm availability, lead time, and shipping options within 1 business day
- Payment: T/T (bank transfer), PayPal, or credit card via Shopify secure checkout
📦 Shipping: DHL / FedEx / UPS express worldwide. Export documentation (commercial invoice, packing list, HS code 8537.10) provided for customs clearance.
Replacement & Compatibility FAQ
Q: Is the WOODWARD 5464-648 still in production?
A: WOODWARD periodically revises or discontinues legacy modules. Contact us to confirm current production status and available stock.
Q: Can I use a third-party 8-channel 4-20mA module as a direct replacement?
A: Electrically possible in some cases, but backplane pinout, firmware handshake, and diagnostic behavior differ. Engineering validation is mandatory.
Q: Do you supply certified refurbished units?
A: Yes. All refurbished units are tested, cleaned, and shipped with a 12-month warranty and COC documentation.
Q: What is the lead time for new OEM stock?
A: Typically 2–8 weeks for new OEM units. Refurbished and surplus stock ships within 3–5 business days.
Q: Can you help identify the correct replacement if my system uses a different WOODWARD platform?
A: Yes. Send your system model, existing module part number, and application description to support@konmask.com and our engineers will recommend the correct solution.
Q: Do you provide installation support?
A: We provide wiring diagrams, datasheet links, and remote technical guidance. On-site commissioning support can be arranged via our partner network.
