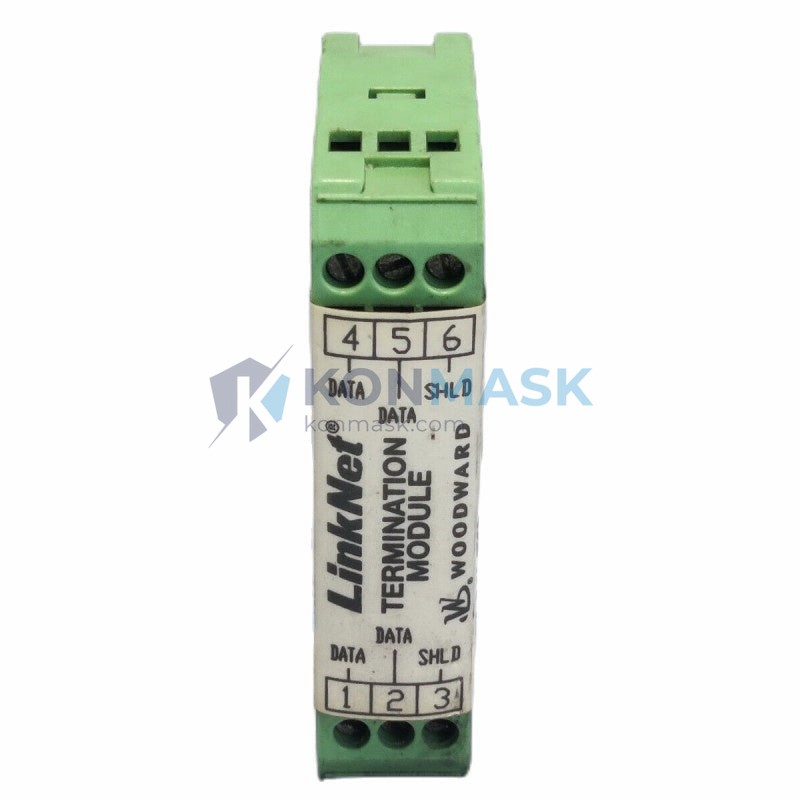

WOODWARD 9905-760 Termination Resistor Module – 9905 Series Control System
In a high-speed industrial communication network, a missing or failed termination resistor is not a minor inconvenience — it is a silent saboteur. Without proper bus termination, signal reflections corrupt data frames, PLCs lose synchronization, and entire production lines can halt without a clear fault code. Maintenance engineers spend hours chasing phantom communication errors, only to discover the root cause is a single missing termination component. The WOODWARD 9905-760 Termination Resistor Module eliminates this risk by providing precision impedance matching at the physical layer of the control network, ensuring clean, reflection-free signal transmission across the entire bus topology.
Within the WOODWARD 9905 Series — a proven platform deployed in turbine control, generator management, and critical power generation applications worldwide — the 9905-760 occupies a foundational role. It is not a processing module, yet without it, every intelligent module on the rack is compromised. WOODWARD’s 9905 Series has earned a reputation for reliability in demanding environments including oil & gas, marine propulsion, and utility-scale power plants. The 9905-760 is the silent guardian of that reliability, and sourcing a genuine replacement is non-negotiable for system integrity.
Technical Specifications
- Part Number: 9905-760
- Manufacturer: WOODWARD
- Series: WOODWARD 9905 Control System Series
- Module Type: Termination Resistor Module
- Function: Bus signal termination / impedance matching
- Weight: 1,750 g (as shipped)
- Compatibility: WOODWARD 9905 Series control racks
- Note: Additional electrical specifications (resistance value, voltage rating, operating temperature) are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- Signal Integrity Protection: Eliminates bus reflections that cause intermittent communication faults in high-speed industrial networks.
- Drop-in Replacement: Designed as a direct OEM-equivalent replacement for the WOODWARD 9905 Series rack — no rewiring or configuration required.
- Genuine OEM Sourcing: Konmask.com sources from verified supply chains, ensuring authentic WOODWARD components, not counterfeit substitutes.
- Minimizes Unplanned Downtime: Keeping a spare 9905-760 on the shelf is standard practice for any facility running WOODWARD turbine or generator control systems.
- Long Service Life: Passive resistor design with no active components means exceptional longevity in continuous-duty industrial environments.
- Fast Global Dispatch: In-stock units ship within 1–3 business days with full export documentation support.
Industry & Equipment Applications
- Power Generation: Gas turbine control panels, steam turbine governor systems, generator excitation control racks.
- Oil & Gas: Compressor control systems, wellhead automation, offshore platform control rooms.
- Marine & Offshore: Ship propulsion control, dynamic positioning systems, marine generator management.
- Industrial Manufacturing: Any facility using WOODWARD 9905 Series controllers for process automation or machine control.
- Utilities & Energy: Grid-connected power plant control systems requiring high-reliability communication infrastructure.
System Integration & Compatible Parts
The WOODWARD 9905-760 is designed for use within the WOODWARD 9905 Series control system ecosystem. Compatible and commonly co-ordered parts include other 9905 Series I/O modules, power supply modules, and communication interface cards. When planning a system repair or spare parts inventory, consider maintaining a complete set of critical passive components alongside your active processing modules. Contact our technical team for a compatibility review and bill-of-materials support.
Our Quality Assurance Process
- Source Verification: All WOODWARD parts are sourced from traceable supply channels. We do not mix OEM and aftermarket stock.
- Visual & Physical Inspection: Each unit is inspected for label authenticity, connector condition, and physical integrity before dispatch.
- Secure Packaging: Anti-static packaging with foam cushioning protects sensitive electronic components during international transit.
- Documentation: Certificate of conformance and packing list provided with every shipment. Additional test reports available on request.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, shipping options, and payment terms within 24 business hours.
- Confirm the order — we handle export documentation, customs declarations, and freight coordination.
For urgent requirements, call or WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and industrial control components — not a general electronics distributor.
- B2B Export Experience: Serving procurement teams, MRO buyers, and engineering firms across Asia, Europe, the Middle East, and the Americas.
- Transparent Sourcing: We tell you where the part comes from. No mystery stock, no bait-and-switch.
- Technical Pre-Sales Support: Our team can assist with cross-referencing, compatibility checks, and system-level spare parts planning.
- Competitive Lead Times: Most in-stock items ship within 1–3 business days. Expedited freight available for critical shutdowns.
Frequently Asked Questions
- Q: Is the WOODWARD 9905-760 an OEM genuine part or an aftermarket equivalent?
- A: Konmask.com supplies genuine WOODWARD OEM parts sourced from verified channels. We do not sell aftermarket or counterfeit substitutes.
- Q: What happens if I operate a WOODWARD 9905 Series system without a termination resistor module?
- A: Without proper bus termination, signal reflections will degrade communication quality on the control network. This typically manifests as intermittent communication faults, module dropouts, or unexplained system alarms. In severe cases, it can cause controller faults and unplanned shutdowns.
- Q: Can you provide a datasheet or technical drawing for the 9905-760?
- A: Yes. Contact us at support@konmask.com with your inquiry and we will provide available technical documentation.
- Q: Do you support international shipping and export documentation?
- A: Yes. We ship globally and provide full export documentation including commercial invoice, packing list, and certificate of conformance. We can also assist with customs classification guidance.
- Q: What is the minimum order quantity (MOQ)?
- A: MOQ is 1 unit. We accommodate both single-unit emergency replacements and bulk procurement orders.
