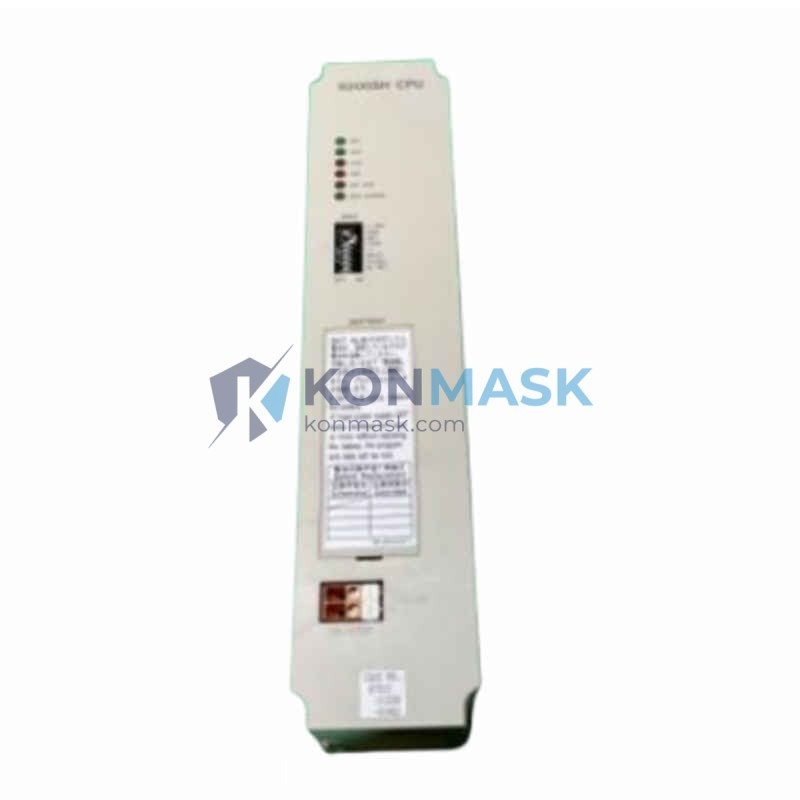

Motion Control & Multi-Axis Automation Solution — YASKAWA CP-9200SH | CP-9200SH Series
Where This Product Is Used
The YASKAWA CP-9200SH/CPU Integrated Controller is deployed in demanding industrial environments where precise, high-speed motion coordination is non-negotiable. Typical application sites include:
- Automotive body & paint lines — synchronised multi-axis servo control for welding robots and transfer systems
- Semiconductor & flat-panel display manufacturing — sub-micron positioning on gantry and wafer-handling stages
- Packaging & palletising machinery — high-throughput pick-and-place with coordinated conveyor tracking
- CNC machining centres — interpolated axis control integrated with spindle drives
- Crane & hoist systems — load-sway suppression and anti-collision logic in steel mills and ports
- Textile & printing equipment — tension and registration control across multiple web-fed axes
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CP-9200SH/CPU |
| Series | CP-9200SH (MEMOCON-SC) |
| Manufacturer | YASKAWA Electric Corporation |
| Controller Type | Integrated PLC + Motion Controller (CPU Module) |
| Max. Controlled Axes | Up to 32 axes (system-dependent) |
| Programming Language | Ladder, Function Block, MEMOSOFT |
| Communication Ports | MECHATROLINK-II, RS-232C, optional Ethernet |
| Scan Time | High-speed cyclic processing (application-dependent) |
| Power Supply | DC 24 V (via backplane / base unit) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | −20 °C to 85 °C |
| Humidity | 10 % to 90 % RH (non-condensing) |
| Protection Rating | IP20 (panel-mount) |
| Weight | Approx. 500 g |
| Certifications | CE, UL (refer to nameplate) |
Note: Specifications are based on published YASKAWA documentation. Confirm exact revision with your project datasheet before final BOM submission.
Why Engineers Specify This Model
- Unified PLC + Motion in one CPU — eliminates the latency and wiring overhead of separate motion cards, reducing cabinet footprint by up to 30 %.
- MECHATROLINK-II native support — deterministic, noise-immune serial bus to YASKAWA Σ-series and Σ-7 servo drives; no third-party fieldbus gateway required.
- Proven long-lifecycle platform — the CP-9200SH series has been in production for over two decades, making spare-part availability and engineer familiarity a key advantage for brownfield retrofits.
- Scalable axis count — a single CPU module can coordinate complex multi-robot cells without additional motion co-processors.
- MEMOSOFT programming environment — familiar toolchain for YASKAWA-centric engineering teams, reducing commissioning time.
Complete System Bill of Materials
A typical CP-9200SH control system requires the following components (sold separately unless noted):
- CP-9200SH/CPU — this module
- CP-9200SH Base Unit / Rack (e.g. JEPMC-BU2300)
- DC 24 V Power Supply Module
- MECHATROLINK-II Communication Module (if not integrated)
- Digital I/O Modules (DI/DO) — 16/32-point options
- Analogue I/O Modules (as required)
- YASKAWA Σ-series or Σ-7 Servo Drives + Motors
- MEMOSOFT Programming Software (PC-based)
- RS-232C or USB Programming Cable
- Panel-mount enclosure with DIN rail and cable management
Contact support@konmask.com for a complete matched BOM quotation.
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL Listed — Industrial Control Equipment (refer to product nameplate for exact file number)
- RoHS Compliant — Directive 2011/65/EU (confirm revision with YASKAWA declaration of conformity)
- IEC 61131-3 — PLC programming language standard compliance
- ISO 13849 / IEC 62061 — Safety function integration guidance available on request
Quality Assurance & Sourcing
Konmask.com specialises in genuine industrial automation components sourced through verified supply channels. Every CP-9200SH/CPU unit we ship undergoes the following process:
- Visual and label inspection against YASKAWA OEM packaging standards
- Firmware version and date-code verification
- Functional power-on check prior to dispatch (where applicable)
- Anti-static packaging with humidity indicator card
- Full traceability documentation available on request
We do not knowingly source counterfeit or refurbished-as-new parts. If a unit does not pass our inspection, it is not listed for sale.
How to Source This Part
- Add to cart — click the purchase button above to place an order directly.
- Request a quote — for volume orders (>3 units) or project BOM requirements, email support@konmask.com with your quantity and delivery timeline.
- Lead time — in-stock units ship within 1–3 business days; ex-stock sourcing typically 7–21 business days depending on origin.
- Export & customs — we handle CN export documentation; buyers are responsible for import duties in their jurisdiction.
- Payment — T/T bank transfer, PayPal, and major credit cards accepted.
Application-Specific FAQ
Q: Is the CP-9200SH/CPU compatible with YASKAWA Σ-7 series servo drives?
A: Yes, via MECHATROLINK-II. Confirm the drive firmware version supports the CP-9200SH command set — YASKAWA application note TOEP-C710606-51 provides compatibility tables.
Q: Can this controller run safety functions (STO, SS1)?
A: The CP-9200SH/CPU itself is not a safety-rated controller. Safety functions must be implemented via dedicated safety relays or a separate safety PLC in the system architecture.
Q: What programming software is required?
A: MEMOSOFT for Windows (YASKAWA part number JEPMC-W2100). Contact us if you need assistance sourcing the software licence.
Q: Is this a new, used, or refurbished unit?
A: All units listed on Konmask.com are sourced as genuine OEM parts. Condition (new / surplus-new / tested-used) is stated on the individual listing. If not specified, contact us before ordering.
Q: Do you provide a warranty?
A: We offer a 90-day functional warranty on all units. Extended warranty and on-site support can be arranged — contact us for terms.
