YASKAWA JANCD-NTU01-1 Network Communication PC Board | Replacement, Equivalent & Selection Guide
The YASKAWA JANCD-NTU01-1 is a network communication PC board designed for use in YASKAWA NX100 and DX100 robot controller systems. It serves as the primary network interface unit enabling real-time data exchange between the robot controller and external automation networks. This page provides a comprehensive selection guide, compatible replacement models, and sourcing information for industrial buyers and maintenance engineers.
Technical Specifications
- Part Number: JANCD-NTU01-1
- Manufacturer: YASKAWA Electric Corporation

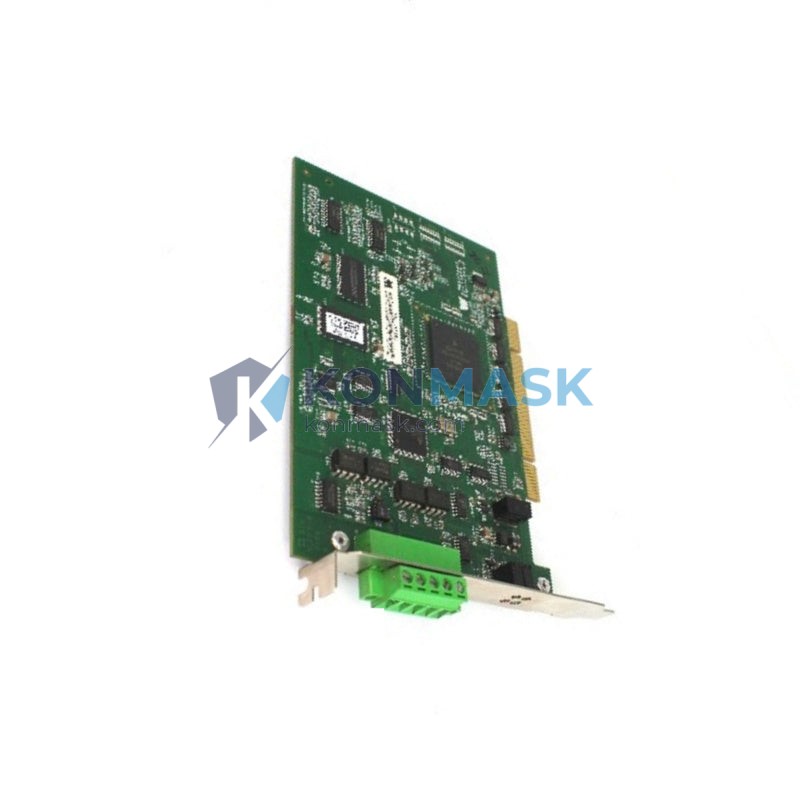

- Product Type: Network Communication PC Board
- Compatible Controllers: NX100, DX100
- Related Assembly: SGDR-SDA710A01BY32, DX100SRDA-C0A30A01A-E
- Function: Network interface / communication board for robot controller
- Form Factor: PCB module (plug-in board)
- Weight: Approx. 600 g
- Condition Available: New, Refurbished, Tested Used
- Origin: Japan
Compatible Replacement & Equivalent Models
The following models are known to be functionally compatible or serve as direct/near-direct replacements for the JANCD-NTU01-1 in NX100/DX100 controller environments. Always verify firmware version and slot compatibility before substitution.
- JANCD-NTU01B-1 — Revised revision of NTU01-1; pin-compatible in most NX100 configurations
- JANCD-NTU01-E — European market variant; functionally equivalent for standard Ethernet/IP networks
- JANCD-NTU01B — Earlier suffix variant; confirm controller firmware ≥ V1.30 before use
- SGDR-SDA710A01BY32 — Associated servo drive board; often replaced in conjunction with NTU01-1
- DX100SRDA-C0A30A01A-E — DX100 servo drive assembly; cross-reference when full drive replacement is required
Note: Konmask.com recommends consulting the YASKAWA NX100/DX100 maintenance manual or contacting our technical team before substituting any network board variant.
Why Choose the Original JANCD-NTU01-1
- Guaranteed Compatibility: Factory-matched to NX100 and DX100 controller backplanes — no firmware patching required
- Stable Network Performance: Engineered for deterministic real-time communication in high-cycle robotic applications
- Reduced Downtime Risk: OEM part eliminates integration uncertainty during critical maintenance windows
- Long Service Life: YASKAWA industrial-grade PCB construction rated for harsh factory environments
- Full Traceability: Sourced with documentation; supports ISO/TS 16949 and IEC 62443 compliance audits
Typical Applications
- Automotive body welding and assembly lines using YASKAWA NX100 robot controllers
- Material handling and palletizing systems with DX100-based robot cells
- Spot welding and arc welding robot stations requiring high-speed network synchronization
- Preventive maintenance replacement in aging NX100/DX100 controller cabinets
- Spare parts inventory for robot system integrators and OEM machine builders
System Compatibility
| Controller | Compatible | Notes |
|---|---|---|
| YASKAWA NX100 | ✅ Yes | Primary target platform |
| YASKAWA DX100 | ✅ Yes | Verify slot assignment in DX100 cabinet |
| YASKAWA XRC | ⚠️ Check | Older platform; confirm board revision |
| YASKAWA YRC1000 | ❌ No | Different architecture; use JANCD-YCP21-E |
| YASKAWA FS100 | ❌ No | Compact controller; incompatible form factor |
Selection Guide
Use the following decision flow to select the correct network board for your YASKAWA robot controller:
- Identify your controller model — Check the cabinet door label: NX100 or DX100?
- Check the existing board label — Note the full part number including suffix (e.g., -1, -E, B-1)
- Confirm firmware version — Navigate to Main Menu → System → Version on the teach pendant
- Match network protocol — JANCD-NTU01-1 supports standard YASKAWA proprietary network; confirm if DeviceNet or Ethernet/IP option board is also required
- Contact Konmask — Provide controller S/N and current board P/N for final verification before ordering
Quality Assurance & Sourcing
- Source: Authorized surplus, OEM-certified refurbished, and new-old-stock (NOS) channels
- Testing: All refurbished units undergo power-on functional test and network communication verification
- Packaging: Anti-static ESD bag + foam-padded carton; compliant with IEC 61340-5-1
- Warranty: 90-day replacement warranty on tested units; 12-month on new stock
- Documentation: Certificate of conformance available on request
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
How to Order
- Click Add to Cart or Contact Us for bulk/project pricing
- Provide your controller model, serial number, and required quantity
- Our technical team will confirm compatibility and issue a proforma invoice
- Payment via T/T bank transfer, PayPal, or trade assurance
- Shipping via DHL / FedEx / UPS with full tracking; export documentation included
Replacement & Compatibility FAQ
Q: Can JANCD-NTU01B-1 replace JANCD-NTU01-1 directly?
A: In most NX100 systems, yes. The -B suffix denotes a board revision with minor component updates. Verify your controller firmware is V1.30 or later.
Q: Is this board compatible with the DX100 controller?
A: Yes. The JANCD-NTU01-1 is used in both NX100 and DX100 controller cabinets. Confirm the network slot designation in your DX100 wiring diagram.
Q: What is the difference between JANCD-NTU01-1 and JANCD-NTU01-E?
A: The -E suffix is the European market variant. Functionally equivalent for standard network communication; regional compliance markings may differ.
Q: Do you supply new or refurbished units?
A: Both. Specify your preference when ordering. All units are tested and include a warranty certificate.
Q: Can I get a datasheet or wiring diagram?
A: Yes. Contact support@konmask.com with your controller model and we will provide available documentation.
