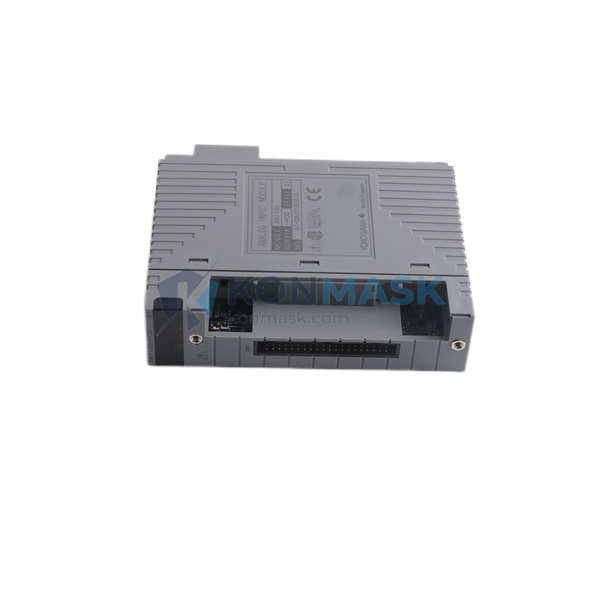

YOKOGAWA AAI135-H00 S1 Analog Input Module | Replacement, Equivalent & Selection Guide
The YOKOGAWA AAI135-H00 S1 is a high-precision analog input module designed for use in YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems (DCS). It provides reliable multi-channel analog signal acquisition for process industries including oil & gas, petrochemical, power generation, and water treatment. This page serves as a comprehensive selection and replacement reference for engineers and procurement specialists.
Technical Specifications
- Model: AAI135-H00 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Module Type: Analog Input Module
- Input Channels: 16 channels (single-ended) / 8 channels (differential)
- Input Signal Range: 4–20 mA DC (standard); 1–5 V DC (optional)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale
- Isolation: Channel-to-channel and channel-to-bus isolation
- Communication Bus: YOKOGAWA ESB (Enhanced Signal Bus)
- Compatible System: CENTUM VP, CENTUM CS 3000
- Power Supply: Supplied via backplane (no external power required)
- Operating Temperature: 0°C to 55°C
- Weight: Approx. 320 g
- Certifications: CE, UL, FM (Intrinsically Safe variants available)
- Suffix Meaning: H00 = Standard housing; S1 = Software revision 1
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the AAI135-H00 S1 in YOKOGAWA DCS environments:
- AAI141-H00 S1 — Upgraded 16-ch AI module with enhanced diagnostics; drop-in replacement in most CENTUM VP applications
- AAI143-H00 S1 — Supports HART communication on each channel; recommended for smart transmitter integration
- AAI135-H00 S2 — Later software revision; functionally identical, firmware-compatible
- AAI135-S00 S1 — Slim-form variant for space-constrained cabinets
- AAB841-S00 S1 — Multi-function analog I/O module; suitable when combined AI/AO is required
- Emerson DeltaV AI Card (MD Plus) — Cross-platform alternative for DeltaV migration projects (requires signal conditioning)
- Honeywell HC900 AI Module — Third-party equivalent for hybrid control architectures
Note: Cross-brand replacements require engineering validation of signal ranges, bus protocols, and configuration software compatibility.
Why Choose the Original Model
- Guaranteed Compatibility: Native plug-and-play integration with CENTUM VP and CS 3000 — no additional configuration adapters required
- Proven Reliability: Deployed in thousands of process plants globally with documented MTBF exceeding 200,000 hours
- OEM Diagnostics: Full access to YOKOGAWA’s built-in self-diagnostics, alarm management, and predictive maintenance features
- Regulatory Compliance: Meets IEC 61511 SIL 2 requirements for safety-instrumented systems when properly configured
- Vendor Support: Eligible for YOKOGAWA’s global lifecycle support, firmware updates, and spare-parts programs
- Reduced Engineering Risk: Eliminates re-validation effort required when substituting third-party modules
Typical Applications
- Process variable monitoring (temperature, pressure, flow, level) via 4–20 mA transmitters
- Continuous emissions monitoring systems (CEMS)
- Refinery and petrochemical plant DCS I/O expansion
- Power plant boiler control and turbine monitoring
- Water and wastewater treatment process control
- Pharmaceutical batch process automation
- Pulp and paper mill process instrumentation
System Compatibility
- Primary Platform: YOKOGAWA CENTUM VP (all versions)
- Legacy Platform: YOKOGAWA CENTUM CS 3000 (R3.x and above)
- I/O Nest: Compatible with ANB10D, ANB11D, and ANB40D I/O nests
- Engineering Tool: CENTUM VP Engineering Environment (ENG); CS 3000 Builder
- Not Compatible With: CENTUM XL, CENTUM μXL, ProSafe-RS (standalone), or third-party DCS platforms without signal conversion
Selection Guide
Use the following criteria to determine whether the AAI135-H00 S1 is the right module for your application:
- Channel count needed ≤ 16: AAI135 is sufficient; for >16 channels, add additional modules or consider AAI841 multi-function cards
- HART communication required: Upgrade to AAI143-H00 S1 for HART-enabled smart transmitter diagnostics
- Intrinsic safety (IS) required: Specify the IS-rated suffix variant; confirm with YOKOGAWA’s IS certification documentation
- Redundancy required: Pair with a second AAI135 module and configure dual-redundant I/O in CENTUM VP
- Budget-constrained replacement: Refurbished/tested AAI135-H00 S1 units from certified distributors (such as Konmask) offer significant cost savings vs. new OEM pricing
- Migration project: If migrating from CS 3000 to CENTUM VP, the AAI135-H00 S1 is directly reusable — no hardware change required
Quality Assurance & Sourcing
- All units sourced from authorized distributors or directly from YOKOGAWA-certified supply chains
- Each module undergoes incoming inspection: visual check, firmware version verification, and functional power-on test
- Refurbished units are fully tested to OEM specifications and include a 12-month warranty
- Traceability documentation (COO, test reports) available upon request
- Anti-counterfeit verification: serial number cross-referenced with YOKOGAWA’s global database where applicable
- Secure packaging with ESD protection and humidity indicators for international shipping
How to Order
- Step 1: Confirm your CENTUM VP or CS 3000 system version and I/O nest model
- Step 2: Verify the required suffix (H00 housing, S1 software revision) matches your existing configuration
- Step 3: Add to cart or contact us for bulk pricing, lead time, and availability
- Step 4: Provide your PO number, shipping address, and any special documentation requirements at checkout
- Lead Time: In-stock units ship within 1–3 business days; out-of-stock orders typically 2–6 weeks
- MOQ: 1 unit (no minimum order quantity)
- Payment: T/T (wire transfer), PayPal, credit card, and LC accepted
Replacement & Compatibility FAQ
Q: Can the AAI141 replace the AAI135 directly?
A: Yes, in most CENTUM VP applications the AAI141-H00 S1 is a drop-in replacement. Verify I/O nest slot compatibility and re-download the module configuration in the Engineering Environment.
Q: Is the AAI135-H00 S1 compatible with CENTUM CS 3000?
A: Yes. The AAI135 series is natively supported in CS 3000 R3.x and above, as well as all CENTUM VP versions.
Q: Can I use a third-party analog input module in my YOKOGAWA DCS?
A: Technically possible with signal conditioning, but not recommended for production systems. Third-party modules bypass YOKOGAWA’s native diagnostics and may void system certifications.
Q: What is the difference between AAI135-H00 S1 and AAI135-H00 S2?
A: S2 is a later software revision with minor firmware improvements. Both are functionally equivalent and interchangeable in the field.
Q: Do you supply refurbished units?
A: Yes. Konmask supplies both new and refurbished AAI135-H00 S1 modules. All refurbished units are tested to OEM specifications and carry a 12-month warranty.
Q: How do I verify authenticity?
A: Each unit includes a YOKOGAWA serial number label. We provide traceability documentation and can assist with OEM serial number verification upon request.
