YOKOGAWA AAI141-H03 S1 Analog Input Module | Replacement, Equivalent & Selection Guide

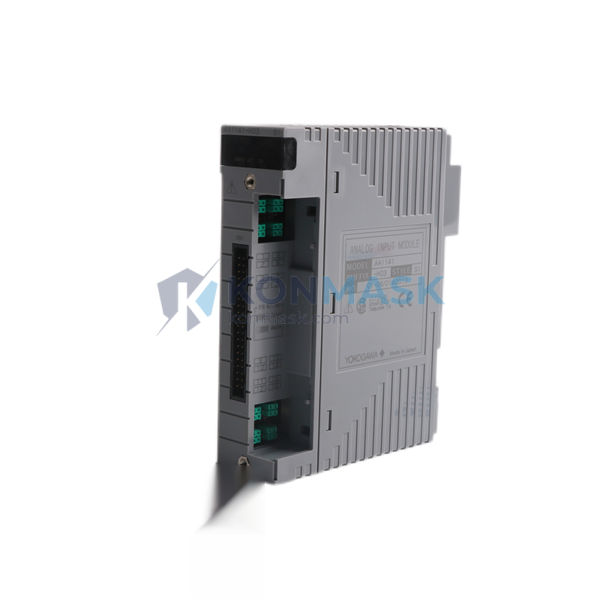

The YOKOGAWA AAI141-H03 S1 is a high-precision analog input module designed for use in YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems (DCS). It provides reliable multi-channel 4–20 mA signal acquisition for process industries including oil & gas, petrochemical, power generation, and water treatment. This page covers full technical specifications, compatible replacement options, equivalent models, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
- Manufacturer: YOKOGAWA Electric Corporation
- Model: AAI141-H03 S1
- Module Type: Analog Input (AI)
- Input Channels: 16 channels (single-ended)
- Input Signal: 4–20 mA DC (HART-compatible)
- Input Impedance: 250 Ω (internal)
- Resolution: 16-bit A/D conversion
- Accuracy: ±0.1% of full scale
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Consumption: Approx. 4.5 W
- Operating Temperature: 0°C to 55°C
- Storage Temperature: −20°C to 60°C
- Humidity: 5% to 95% RH (non-condensing)
- Compatible System: CENTUM VP, CENTUM CS 3000
- Mounting: Field Control Unit (FCU) I/O slot
- Weight: Approx. 340 g
- Certifications: CE, ATEX (zone 2 with appropriate barrier), IECEx
- Part Number / SKU: AAI141-H03 S1
Compatible Replacement & Equivalent Models
When the AAI141-H03 S1 is unavailable or end-of-life, the following models may serve as direct or functional replacements. Always verify firmware compatibility and I/O slot assignment before substitution.
- YOKOGAWA AAI141-S50 / AAI141-S53 – Same channel count and signal type; suffix differences indicate terminal block and cable options. Direct drop-in replacement in most CENTUM VP configurations.
- YOKOGAWA AAI143-S50 – 16-channel AI with HART pass-through; suitable upgrade if HART device management is required.
- YOKOGAWA AAI135-S03 – 8-channel variant; use when only partial channel density is needed and slot space is limited.
- YOKOGAWA AAB841-S00 – Analog I/O combination module; consider when mixed AI/AO on a single slot is acceptable.
- Third-party equivalents (with gateway/adapter): Emerson DeltaV AI Card (MD Plus), Honeywell HC900 AI Module – functional equivalents in cross-platform migration projects requiring engineering re-mapping.
Note: Cross-brand replacements require system re-engineering. Consult your DCS integrator before substitution.
Why Choose the Original Model
- Native CENTUM VP/CS 3000 compatibility – Zero re-configuration required; plug-and-play within existing FCU chassis.
- Proven field reliability – Deployed in thousands of process plants globally with documented MTBF exceeding 200,000 hours.
- HART transparency – Supports HART pass-through for device diagnostics without additional hardware.
- Redundancy support – Compatible with YOKOGAWA’s dual-redundant I/O architecture for high-availability applications.
- OEM warranty & lifecycle support – Backed by YOKOGAWA’s global service network and long-term spare parts program.
- Regulatory compliance – Meets IEC 61511 (SIL) and IEC 61508 requirements for safety-instrumented systems.
Typical Applications
- Oil & gas upstream/downstream process monitoring (flow, pressure, temperature, level)
- Petrochemical plant DCS I/O expansion and modernization
- Power plant boiler and turbine control loops
- Water & wastewater treatment SCADA integration
- Pharmaceutical batch process control (FDA 21 CFR Part 11 environments)
- Pulp & paper mill process automation
- LNG terminal instrumentation and safety systems
System Compatibility
- YOKOGAWA CENTUM VP (R4.01 and above) – Full native support
- YOKOGAWA CENTUM CS 3000 (R3.08 and above) – Full native support
- YOKOGAWA ProSafe-RS – Not directly compatible; use dedicated SIL-rated AI modules
- YOKOGAWA STARDOM FCN/FCJ – Not compatible; different I/O bus architecture
- Third-party DCS via Modbus/OPC gateway – Possible with appropriate I/O marshalling hardware
Confirm FCU firmware version and I/O slot type (RIO vs. ESB) before ordering. Contact us if you need compatibility verification for your specific system revision.
Selection Guide
Use the following criteria to determine whether the AAI141-H03 S1 is the right module for your application:
- Channel count needed: 1–16 channels → AAI141-H03 S1 ✓ | 17–32 channels → consider dual modules or AAI841
- Signal type: 4–20 mA only → AAI141-H03 S1 ✓ | Thermocouple/RTD → use AAT141 or AAT145 series
- HART requirement: HART pass-through needed → AAI143 series preferred | HART not required → AAI141 ✓
- Safety integrity: SIL 2/3 loop → use YOKOGAWA ProSafe-RS dedicated AI | SIL 1 or non-SIL → AAI141 ✓
- Redundancy: Dual-redundant I/O required → confirm FCU supports redundant I/O pairing with AAI141
- Environment: Hazardous area Zone 1 → requires certified IS barriers | Zone 2 / safe area → AAI141-H03 S1 ✓
- Budget vs. OEM: Cost-sensitive retrofit → evaluate AAI141-S50 refurbished | New project → specify OEM new stock
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified surplus inventory
- Inspection: Each unit undergoes visual inspection, functional power-on test, and firmware version verification before shipment
- Packaging: Anti-static ESD bag + foam-lined carton; original YOKOGAWA packaging preserved where available
- Traceability: Serial number and manufacturing date recorded for every unit shipped
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days
- Counterfeit prevention: All units sourced from traceable supply chains; certificates of conformity available on request
How to Order
- Step 1: Confirm your system model (CENTUM VP / CS 3000) and FCU firmware revision
- Step 2: Verify I/O slot type (RIO bus or ESB bus) in your FCU chassis
- Step 3: Add the AAI141-H03 S1 to cart or contact us for bulk/project pricing
- Step 4: Provide your PO number, delivery address, and any special packing/documentation requirements
- Step 5: Receive order confirmation with lead time and tracking information within 1 business day
For urgent requirements, expedited shipping and same-day dispatch (subject to stock availability) can be arranged. Contact us directly for project quantities of 5+ units.
Replacement & Compatibility FAQ
- Q: Can I replace AAI141-H03 S1 with AAI141-S50 without reconfiguration?
- A: In most cases, yes. Both share the same I/O bus interface and channel mapping. However, verify the terminal block connector type (H03 vs. S50 suffix) as wiring adapters may be required.
- Q: Is the AAI141-H03 S1 compatible with CENTUM VP R6.x?
- A: Yes. YOKOGAWA maintains backward compatibility for AAI141 series modules across CENTUM VP R4 through R6. No firmware upgrade to the module is required.
- Q: Can this module be used in a SIL 2 safety loop?
- A: No. For SIL 2 applications, use YOKOGAWA ProSafe-RS dedicated safety I/O modules which carry the required IEC 61508 SIL 2 certification.
- Q: What is the lead time for new OEM stock?
- A: In-stock units ship within 1–3 business days. For new OEM orders through YOKOGAWA’s supply chain, lead times are typically 8–16 weeks. Contact us for current availability.
- Q: Do you provide installation support or commissioning services?
- A: We supply hardware and technical documentation. For on-site commissioning, we can refer you to certified YOKOGAWA system integrators in your region.
- Q: Can I use this module with a third-party DCS?
- A: The AAI141-H03 S1 is designed exclusively for YOKOGAWA CENTUM VP/CS 3000 I/O buses. Integration with third-party DCS platforms requires dedicated marshalling hardware and is not a standard configuration.
