YOKOGAWA AAI543-S00 S1 Analog Output Module | Replacement, Equivalent & Selection Guide

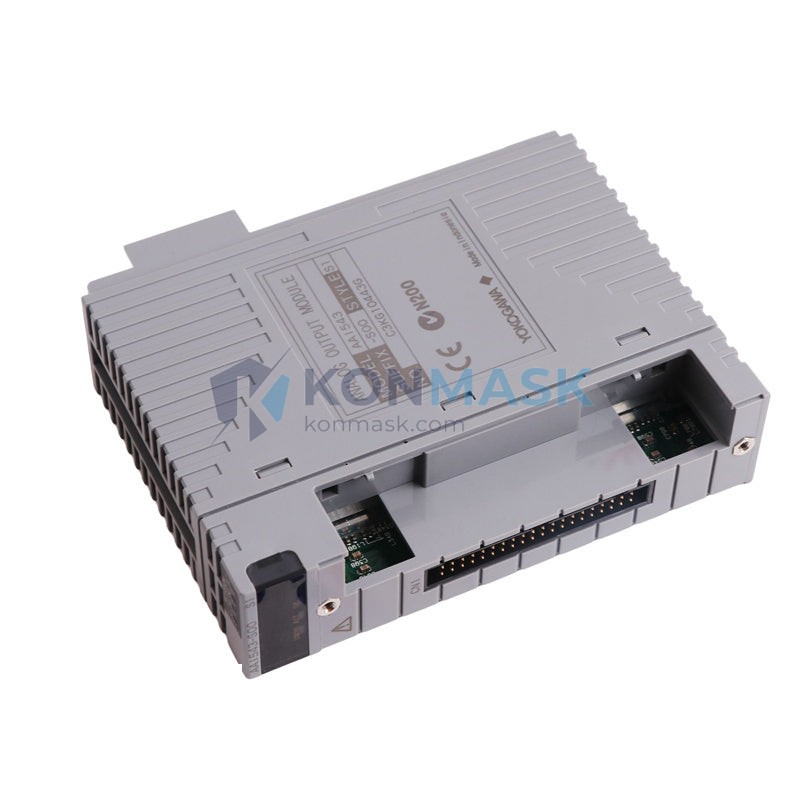

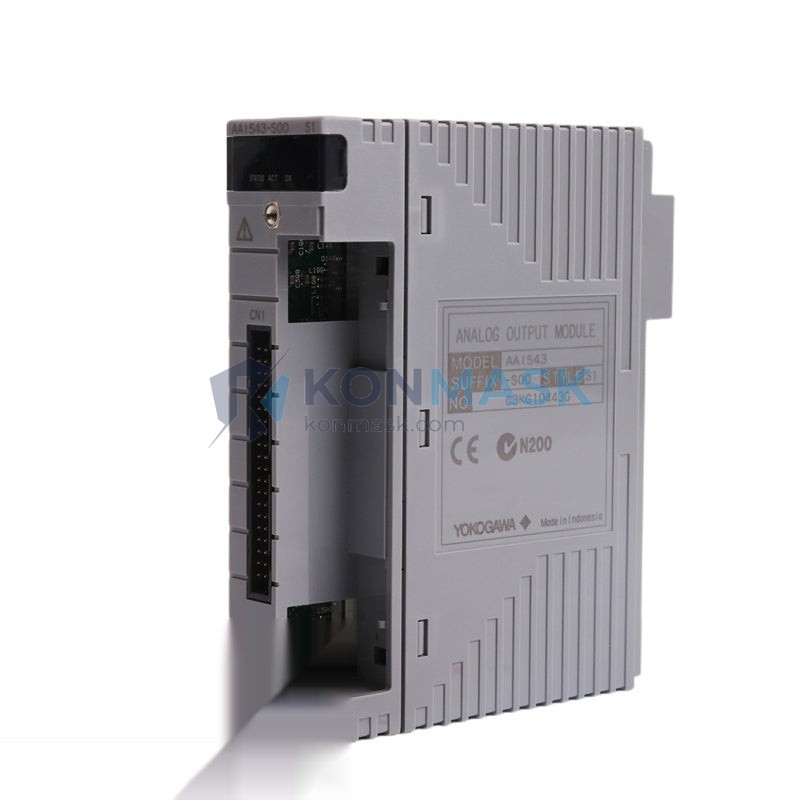

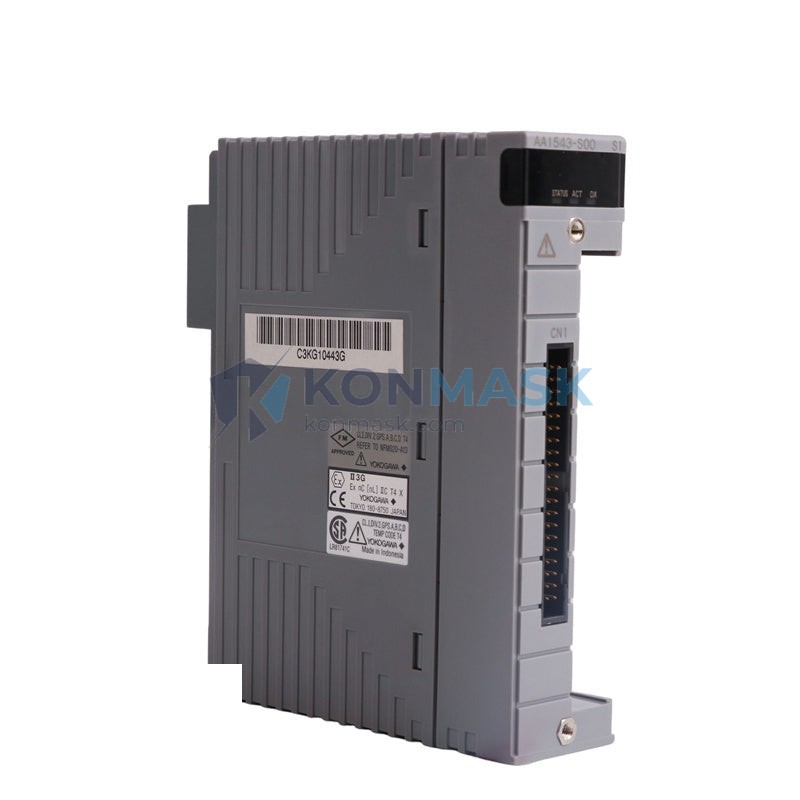

The YOKOGAWA AAI543-S00 S1 is a high-precision analog output module designed for use within YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). It delivers reliable 4–20 mA current output signals for process control applications in oil & gas, chemical, power generation, and other industrial sectors. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-S00 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Output Module |
| Output Channels | 16 channels (isolated) |
| Output Signal | 4–20 mA DC |
| Output Range | 0–21.6 mA |
| Load Resistance | Max. 750 Ω |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-bus isolated |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 320 g |
| Compatible System | YOKOGAWA CENTUM VP / CS 3000 |
| Suffix -S00 | Standard version, no special options |
| Suffix S1 | CE marking compliant |
Compatible Replacement & Equivalent Models
When the AAI543-S00 S1 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents. Always verify compatibility with your system revision and firmware version before substitution.
| Model | Manufacturer | Channels | Output | Notes |
|---|---|---|---|---|
| AAI543-S00 S2 | YOKOGAWA | 16 | 4–20 mA | UL/CSA certified variant; direct drop-in replacement |
| AAI543-S10 S1 | YOKOGAWA | 16 | 4–20 mA | HART-enabled version; backward compatible |
| AAI141-S00 S1 | YOKOGAWA | 4 | 4–20 mA | Lower channel count; suitable for smaller loops |
| AAI841-S00 S1 | YOKOGAWA | 8 | 4–20 mA | Mid-range channel count alternative |
| DO401-H | YOKOGAWA | — | Digital | Digital output alternative for non-analog loops |
Note: Cross-model substitution requires confirmation against your CENTUM VP/CS 3000 system configuration. Contact Konmask technical support for pre-purchase compatibility verification.
Why Choose the Original Model
- Guaranteed system compatibility — factory-validated for CENTUM VP and CS 3000 I/O bus architecture
- 16-channel isolated output — reduces wiring complexity and cabinet footprint
- 16-bit resolution — superior signal fidelity for precision process control
- CE marking (S1 suffix) — compliant with EU EMC and Low Voltage Directives
- Proven field reliability — widely deployed in refinery, chemical, and power plant environments
- Hot-swap capable — supports online replacement without system shutdown (CENTUM VP)
Typical Applications
- Oil & gas refinery process control (flow, pressure, temperature loops)
- Chemical plant distributed control systems
- Power generation turbine and boiler control
- Pharmaceutical batch process automation
- Water treatment and utilities management
- Pulp & paper mill process lines
System Compatibility
| System Platform | Compatible | Notes |
|---|---|---|
| YOKOGAWA CENTUM VP | ✅ Yes | Full support, hot-swap enabled |
| YOKOGAWA CS 3000 | ✅ Yes | Verified compatible |
| YOKOGAWA CENTUM CS | ⚠️ Verify | Confirm with system revision |
| Third-party DCS | ❌ Not recommended | Bus protocol mismatch |
| Standalone PLC | ❌ Not applicable | Designed for YOKOGAWA I/O bus only |
Selection Guide
Use the following decision framework to confirm the AAI543-S00 S1 is the right module for your application:
- Confirm your DCS platform — Must be CENTUM VP or CS 3000. Check your system’s I/O module slot specification.
- Count required output channels — AAI543 provides 16 channels. If fewer are needed, consider AAI841 (8ch) or AAI141 (4ch) to reduce cost.
- Determine HART requirement — If HART communication is needed for smart field devices, select AAI543-S10 instead.
- Check certification requirement — S1 suffix = CE marking (EU). S2 suffix = UL/CSA (North America). Select based on installation region.
- Verify load resistance — Ensure field device loop resistance does not exceed 750 Ω per channel.
- Confirm firmware revision — For CENTUM VP R6.x and above, verify module firmware compatibility with your system integrator.
Quality Assurance & Sourcing
- All modules sourced from authorized distributors or verified surplus channels
- Each unit undergoes visual inspection and functional verification prior to shipment
- Original manufacturer packaging preserved where available
- Traceability documentation (COC, test reports) available upon request
- Warranty: 90-day replacement guarantee against DOA or functional defects
- Export compliance: ECCN classification and export documentation available for international orders
How to Order
- Confirm your part number: AAI543-S00 S1 (include suffix for correct variant)
- Specify quantity and required delivery timeline
- Submit your RFQ via the product page or email support@konmask.com
- Receive quotation with lead time, pricing, and availability within 24 business hours
- Confirm order — payment via T/T, PayPal, or credit card accepted
- Shipment via DHL / FedEx / UPS with full tracking provided
Replacement & Compatibility FAQ
Q: Can AAI543-S00 S1 replace AAI543-S00 S2 directly?
A: Yes. The S1 (CE) and S2 (UL/CSA) variants are functionally identical. The suffix only indicates regional certification. Confirm your installation region’s compliance requirement before substituting.
Q: Is AAI543-S10 a drop-in replacement for AAI543-S00?
A: Functionally compatible in most cases, but the S10 adds HART communication capability. If your system is not configured for HART, the S10 will still operate as a standard AO module. Verify with your system integrator.
Q: Can this module be used with a Siemens or ABB DCS?
A: No. The AAI543 is designed exclusively for YOKOGAWA’s proprietary I/O bus (CENTUM VP / CS 3000). It is not compatible with third-party DCS platforms.
Q: What is the lead time for AAI543-S00 S1?
A: In-stock units ship within 3–5 business days. For out-of-stock items, lead time is typically 4–8 weeks depending on sourcing channel. Contact us for current availability.
Q: Do you provide a test report or certificate of conformance?
A: Yes. COC and functional test reports are available upon request for all orders.
