YOKOGAWA AAI143-S00 S1 16-Point HART Analog Input Module | Replacement, Equivalent & Selection Guide

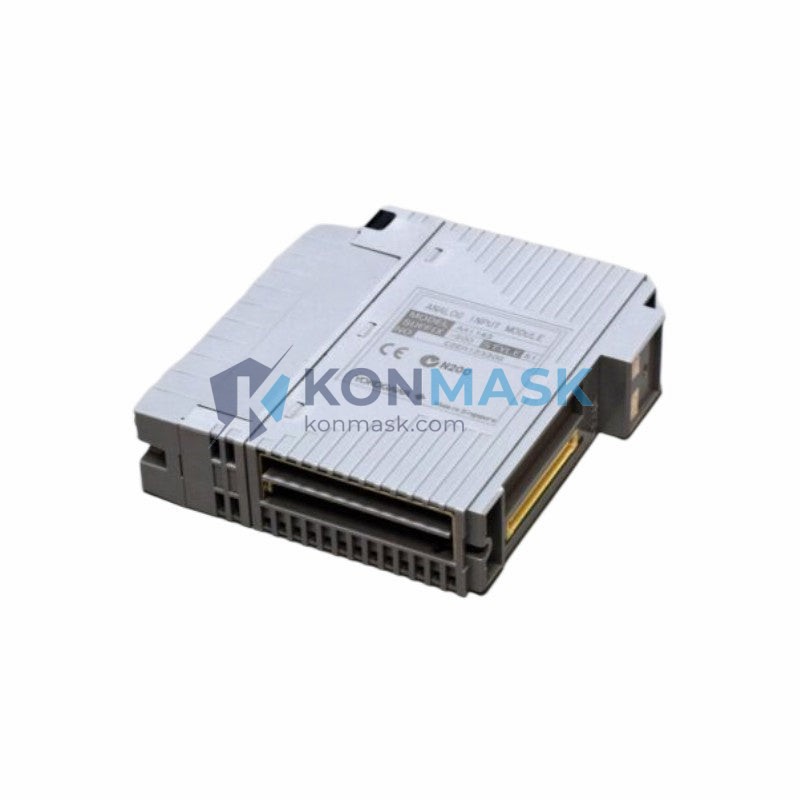

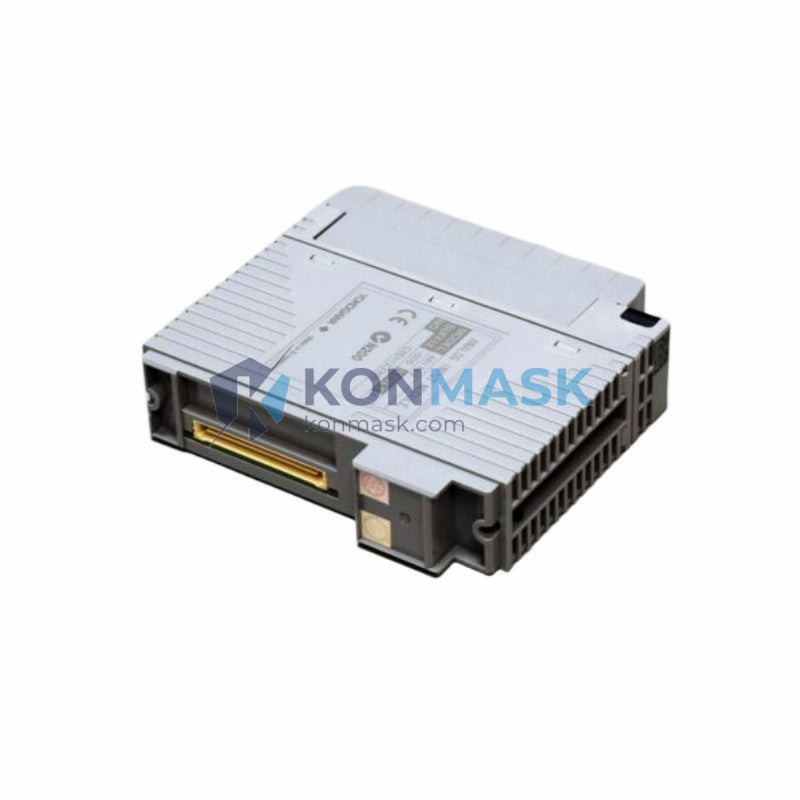

The YOKOGAWA AAI143-S00 S1 is a 16-channel analog input module with HART communication support, designed for use in YOKOGAWA CENTUM VP and CS 3000 Distributed Control Systems (DCS). This page provides full technical specifications, compatible replacement options, equivalent models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Model: AAI143-S00 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Module Type: Analog Input (AI)
- Number of Channels: 16 points
- Signal Type: 4–20 mA DC (with HART protocol support)
- HART Version: HART 5 / HART 7 compatible
- Input Range: 4–20 mA (configurable per channel)
- Resolution: 16-bit A/D conversion
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Consumption: Refer to YOKOGAWA system documentation
- Compatible System: CENTUM VP, CENTUM CS 3000
- Suffix S00: Standard configuration, no special options
- Suffix S1: CE marking / safety compliance variant
- Weight: Approx. 200 g
- Operating Temperature: 0°C to 55°C
- Certifications: CE, UL (refer to datasheet for full listing)
Compatible Replacement & Equivalent Models
When the AAI143-S00 S1 is discontinued, out of stock, or requires a cost-effective alternative, the following models may serve as functional replacements. Always verify compatibility with your specific DCS revision and I/O bus before substitution.
- YOKOGAWA AAI143-S00 S2 — Same base module, different suffix variant; verify suffix compatibility with your system revision.
- YOKOGAWA AAI141-S00 S1 — 8-channel HART AI module; suitable when fewer channels are required.
- YOKOGAWA AAI135-S00 S1 — Non-HART 16-channel analog input; use only when HART communication is not required.
- YOKOGAWA AAP149-S00 — Advanced analog I/O module; check system compatibility for CENTUM VP R6 and above.
- Third-party DCS AI modules — Modules from ABB, Emerson, or Honeywell may offer functional equivalence in multi-vendor migration projects; full engineering review required.
Note: Konmask.com recommends using original YOKOGAWA modules for safety-critical loops. Contact our team for cross-reference validation.
Why Choose the Original Model
- Native DCS Integration: Plug-and-play compatibility with CENTUM VP and CS 3000 without additional configuration or firmware patches.
- HART Pass-Through: Full HART 5/7 support enables asset management and diagnostics via YOKOGAWA’s PRM (Plant Resource Manager).
- Proven Reliability: Deployed in refineries, chemical plants, and power generation facilities globally.
- Manufacturer Support: Eligible for YOKOGAWA lifecycle support, firmware updates, and spare parts programs.
- Regulatory Compliance: CE and UL certified; meets IEC 61511 functional safety requirements when used in certified configurations.
Typical Applications
- Oil & gas upstream/downstream process control
- Petrochemical and refinery DCS loops
- Power plant boiler and turbine monitoring
- Pharmaceutical batch process control
- Water treatment and utilities automation
- Pulp & paper process instrumentation
System Compatibility
- YOKOGAWA CENTUM VP (R4.xx, R5.xx, R6.xx) — Confirm I/O module slot assignment in system builder.
- YOKOGAWA CENTUM CS 3000 — Compatible with standard FCS (Field Control Station) I/O nest.
- Node Bus / ESB Bus: Verify bus type (ESB or ER) matches your FCS configuration.
- HART Multiplexer: Not required; HART communication is handled natively by the module.
Selection Guide
Use the following criteria to determine whether the AAI143-S00 S1 is the right module for your application:
- Channel Count: Requires 16 analog input channels → AAI143 series is appropriate. Need 8 channels → consider AAI141.
- HART Requirement: HART communication needed for smart transmitter diagnostics → AAI143 (HART-enabled). No HART needed → AAI135 (non-HART) may reduce cost.
- Suffix Selection: S00 = standard; S1 = CE-marked variant. Select S1 for EU installations or CE-required projects.
- System Revision: Confirm CENTUM VP or CS 3000 revision supports AAI143 in your I/O nest generation.
- Signal Range: Standard 4–20 mA field instruments → AAI143 is compatible. Non-standard signals (e.g., thermocouple, RTD) → select appropriate module type (e.g., AAT145).
- Redundancy: For redundant I/O configurations, verify if dual-module redundancy is supported in your FCS slot layout.
Quality Assurance & Sourcing
- All modules sourced by Konmask.com are inspected for physical integrity, label authenticity, and firmware version prior to shipment.
- We supply new, refurbished, and surplus YOKOGAWA modules — each clearly labeled with condition grade.
- Traceability documentation available upon request (batch records, test reports).
- Modules are stored in ESD-safe, climate-controlled warehousing.
- Export compliance: We handle CN export documentation and international shipping coordination.
How to Order
- Step 1: Confirm your system type (CENTUM VP or CS 3000) and revision number.
- Step 2: Verify the required suffix (S00 S1 or alternative).
- Step 3: Contact Konmask.com via email or phone with your PO or RFQ.
- Step 4: Receive quotation with lead time, condition grade, and shipping options.
- Step 5: Confirm order — we handle export documentation and international logistics.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use AAI143-S00 S1 in a CENTUM VP R6 system?
A: Yes, the AAI143 series is generally compatible with CENTUM VP R4–R6. Confirm slot assignment and I/O nest generation in your system builder configuration.
Q: Is the S1 suffix required for CE compliance?
A: Yes. The S1 suffix denotes the CE-marked variant. For installations in the EU or projects requiring CE certification, specify S1.
Q: Can AAI143-S00 S1 replace a non-HART AAI135?
A: Yes, in most cases. The AAI143 is backward-compatible for standard 4–20 mA signals. HART functionality will be available but can remain unused.
Q: Do you supply refurbished modules?
A: Yes. Refurbished modules are tested, cleaned, and clearly labeled. Contact us for condition grade details and pricing.
Q: What is the lead time for new modules?
A: Lead time varies by stock availability. In-stock items typically ship within 3–5 business days. Contact us for current availability.
Q: Can Konmask.com assist with cross-referencing to a third-party equivalent?
A: Yes. Our technical team can provide cross-reference analysis for migration projects. Contact support@konmask.com with your system details.
