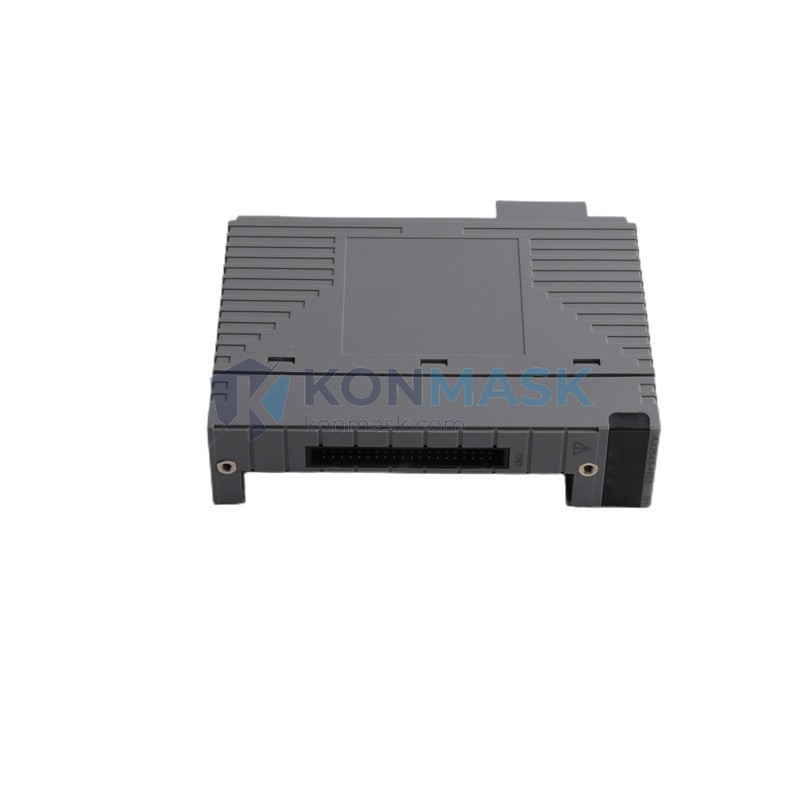

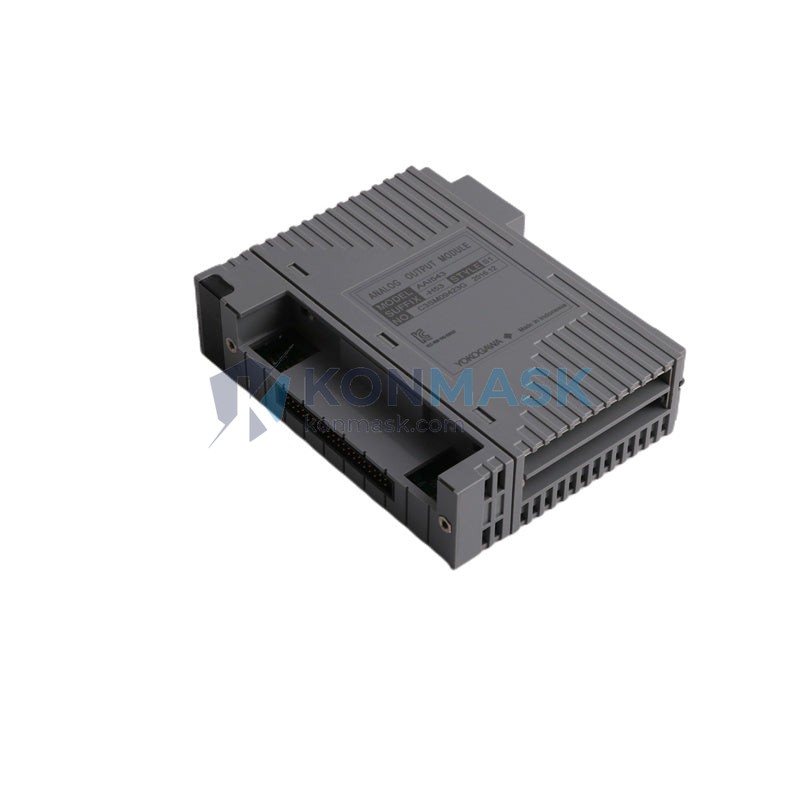

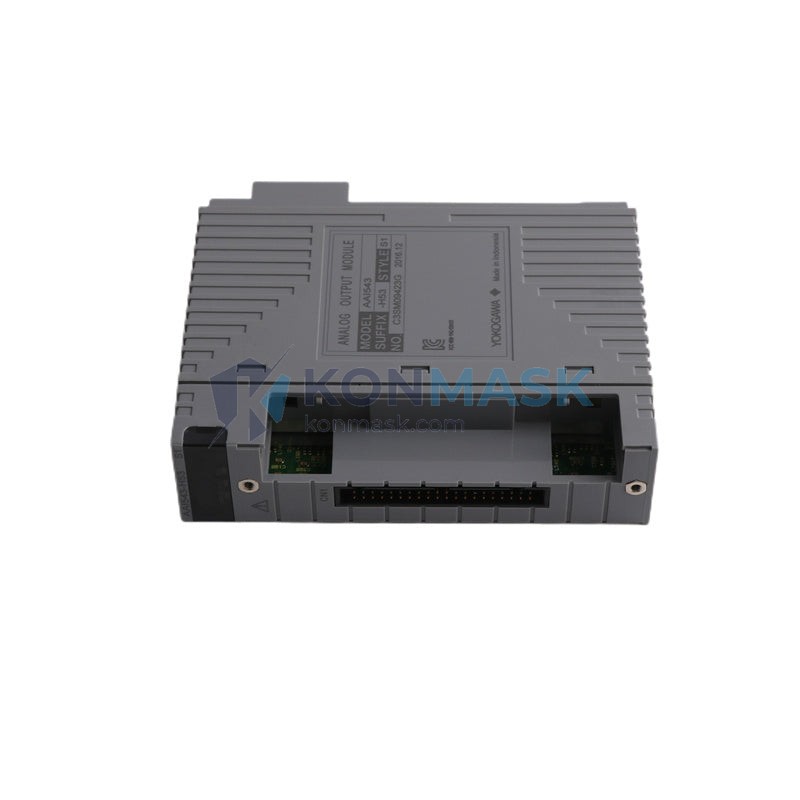

Process Control Solution – YOKOGAWA AAI543-H53 S1 | CENTUM VP / CS 3000 Analog Output Module
Where This Product Is Used
The YOKOGAWA AAI543-H53 S1 is a high-density analog output module deployed across demanding continuous-process industries where precise 4–20 mA signal delivery is mission-critical. Typical installation environments include:
- Oil & Gas Refineries — control valve positioner commands, flow control loops, and pressure regulation in upstream/downstream units
- Chemical & Petrochemical Plants — reactor temperature setpoint transmission, feed-rate control, and distillation column management
- Power Generation — turbine governor control, boiler feedwater regulation, and load-dispatch signal output
- Pulp & Paper Mills — basis-weight control, steam pressure loops, and stock consistency management
- Pharmaceutical Manufacturing — bioreactor parameter control, clean-steam pressure output, and validated batch process loops
- Water & Wastewater Treatment — pump speed commands via VFD, chemical dosing control, and aeration blower modulation
- LNG & Terminal Operations — cryogenic valve control and compressor anti-surge loop output
This module slots directly into YOKOGAWA CENTUM VP and CS 3000 field control stations (FCS), providing deterministic, isolated analog output channels with hardware-enforced HART pass-through capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-H53 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Output (AO) |
| Output Signal | 4–20 mA DC (current output) |
| Number of Channels | 16 channels (isolated) |
| Output Range | 0–21.6 mA (extended range) |
| Resolution | 16-bit D/A conversion |
| Accuracy | ±0.1% of full scale |
| Load Resistance | 0–750 Ω per channel |
| HART Communication | Supported (H53 suffix) |
| Channel Isolation | Channel-to-channel isolated |
| Power Consumption | Refer to YOKOGAWA datasheet TI 34P02Q10-01E |
| Compatible Systems | CENTUM VP, CENTUM CS 3000 |
| Mounting | Node unit / field control station (FCS) backplane |
| Operating Temperature | 0°C to 55°C |
| Weight | Approx. 300 g |
| Suffix Code S1 | Standard build with CE marking |
Note: Always cross-reference with the official YOKOGAWA datasheet and your system’s I/O module compatibility matrix before ordering.
Why Engineers Specify This Model
- HART-Enabled (H53 Suffix) — The H53 designation confirms built-in HART communication support, enabling remote device configuration, diagnostics, and asset management without additional hardware. Engineers specify this variant when integrating HART-capable field devices such as smart valve positioners and HART transmitters.
- 16-Channel High Density — Maximises I/O density per FCS slot, reducing cabinet footprint and wiring costs in large-scale DCS expansions or greenfield projects.
- Channel-to-Channel Isolation — Eliminates ground-loop interference between field devices on shared power rails — a critical requirement in mixed-signal environments and long cable runs.
- 16-Bit Resolution — Delivers fine-grained control resolution (±0.1% FS accuracy) required for tight PID loops in refinery and chemical applications.
- Proven CENTUM Platform Compatibility — Direct plug-in replacement within existing CENTUM VP and CS 3000 FCS node units, with no firmware reconfiguration required when replacing like-for-like.
- Extended Output Range to 21.6 mA — Supports burnout detection and NAMUR NE43-compliant fault signalling above the 20 mA live range.
Complete System Bill of Materials
A typical CENTUM VP field control station incorporating the AAI543-H53 S1 may include the following components. Konmask.com stocks or can source all items below:
| Item | Description | Typical Part Number |
|---|---|---|
| FCS Node Unit | Field Control Station node housing | AFV10D / AFV30D |
| CPU Module | FCS processor card | CP451-10 / CP461-50 |
| Power Supply Module | Redundant DC power supply | PW481 / PW482 |
| Analog Input Module | 16-ch AI, HART-enabled | AAI141-H03 / AAI143-H03 |
| Analog Output Module | 16-ch AO, HART — this item | AAI543-H53 S1 |
| Digital Input Module | 32-ch DI module | ADV151-P50 |
| Digital Output Module | 32-ch DO module | ADV551-P50 |
| Communication Module | Vnet/IP or ESB-Bus interface | ACM12 / ACM22 |
| Terminal Board | Field wiring termination | TB820V / TB830 |
| I/O Cable | Node-to-terminal board cable | KS1 series |
Contact support@konmask.com for a full BOM quotation or system expansion assessment.
Compliance & Industry Standards
- CE Marking — Confirmed by S1 suffix; compliant with EU EMC Directive and Low Voltage Directive
- HART Protocol — HART Communication Foundation certified (H53 suffix)
- NAMUR NE43 — Output range supports standardised signal levels for fault indication
- IEC 61511 / IEC 61508 — CENTUM VP platform is certified for use in Safety Instrumented Systems (SIS) applications; consult YOKOGAWA SIL documentation for loop-level SIL assessment
- RoHS Compliant — Restriction of Hazardous Substances per EU Directive 2011/65/EU
- ISO 9001 — Manufactured under YOKOGAWA’s ISO 9001-certified quality management system
Quality Assurance & Sourcing
Konmask.com specialises in the procurement of genuine, traceable industrial automation components for MRO, capital project, and emergency replacement requirements.
- Authenticity — All YOKOGAWA modules are sourced from authorised distribution channels or verified surplus with full traceability documentation available on request
- Inspection — Each unit undergoes visual inspection, label verification, and functional pre-check prior to dispatch
- Packaging — Shipped in anti-static ESD packaging with original or equivalent protective foam inserts
- Lead Time — Ex-stock units ship within 1–3 business days; non-stock items sourced within 5–15 business days depending on availability
- Warranty — 90-day replacement warranty against DOA (Dead on Arrival) defects; extended warranty available on request
- Documentation — Certificate of conformance, packing list, and commercial invoice provided with every shipment
How to Source This Part
-
Confirm your part number — Verify the full model string:
AAI543-H53 S1. Check your existing module label or CENTUM VP engineering database for the exact suffix codes required. - Check stock availability — Contact us at support@konmask.com or call +0086 19859288691 for real-time stock confirmation and lead time.
- Request a quotation — Provide your required quantity, delivery address, and any documentation requirements (CoC, test report, etc.).
- Place your order — Orders can be placed via this product page, by email, or via purchase order (PO) for approved B2B accounts.
- Receive & verify — Inspect the module upon receipt. Our team is available to support installation queries and compatibility checks.
For urgent plant shutdowns or emergency MRO requirements, please mark your enquiry URGENT in the subject line for priority handling.
Application-Specific FAQ
Q: Is the AAI543-H53 S1 compatible with CENTUM CS 3000 as well as CENTUM VP?
A: Yes. The AAI543 series is compatible with both CENTUM CS 3000 and CENTUM VP field control stations. Always verify the node unit type and backplane revision with your system documentation before installation.
Q: What does the H53 suffix indicate?
A: The H53 suffix designates HART communication capability on all 16 output channels. This allows HART-enabled field devices (e.g., smart valve positioners) to be configured and diagnosed over the same 4–20 mA wiring without additional multiplexers.
Q: Can this module be used in a redundant I/O configuration?
A: CENTUM VP supports I/O redundancy at the node level. Consult your CENTUM VP system engineering guide (TI 33Q01B10-01E) for redundant AO module wiring and configuration procedures.
Q: What is the maximum cable length for the 4–20 mA output?
A: Maximum cable length depends on cable resistance and the load resistance of the field device. With a 750 Ω maximum load and standard 0.5 mm² cable, runs of up to 1,000 m are typically achievable. Consult YOKOGAWA’s installation guidelines for site-specific calculations.
Q: Do you supply the matching terminal board (TB) for this module?
A: Yes. Konmask.com can supply compatible terminal boards (TB820V, TB830, and others) and I/O cables. Contact us for a complete accessory quotation.
Q: Is this module available new, refurbished, or surplus?
A: We stock a mix of new and certified surplus units. All units are inspected and tested. Condition is clearly stated in the quotation. New units carry full YOKOGAWA warranty; surplus units carry Konmask’s 90-day replacement warranty.
