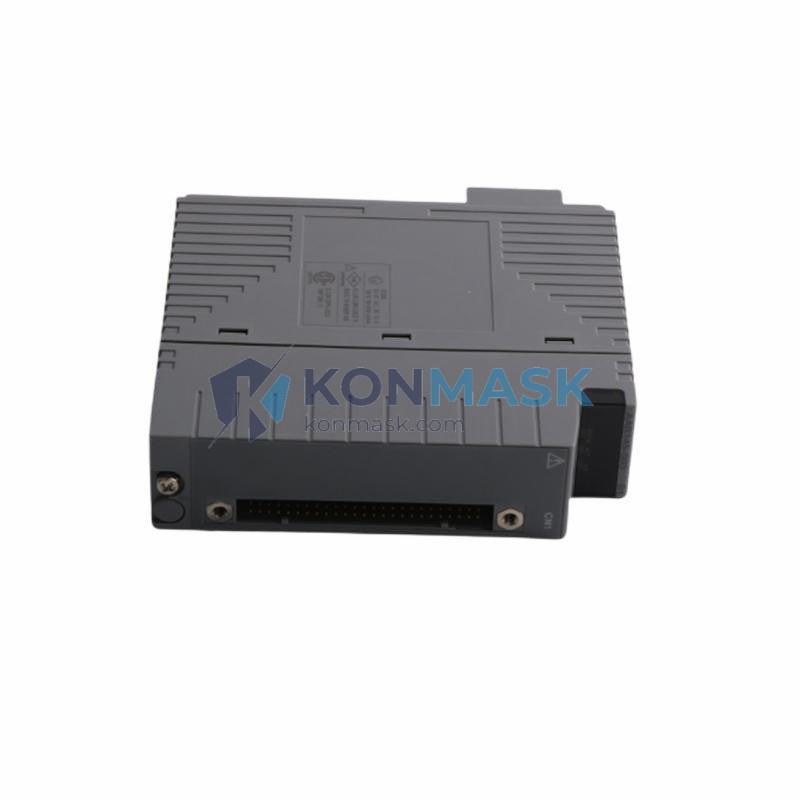

YOKOGAWA AAR145-S53 S1 RTD/POT Input Module | Replacement, Equivalent & Selection Guide
The YOKOGAWA AAR145-S53 S1 is a high-precision RTD (Resistance Temperature Detector) and Potentiometer (POT) input module designed for use within YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). It provides reliable multi-channel analog input acquisition for temperature and position measurement in demanding industrial environments.
Technical Specifications
- Model: AAR145-S53 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Function: RTD / Potentiometer (POT) Analog Input Module
- Input Channels: 4 channels (RTD or POT, configurable per channel)
- RTD Types Supported: Pt100, Pt200, Pt500, Pt1000, JPt100, Cu10, Ni100, Ni120
- POT Input Range: 0–100% (resistance ratio)
- Measurement Accuracy: ±0.1% of span (RTD); ±0.2% of span (POT)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Supply: Supplied via DCS backplane (5 VDC internal bus)
- Communication: Internal DCS bus (CENTUM VP / CS 3000 compatible)
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 70°C
- Humidity: 5% to 95% RH (non-condensing)
- Dimensions: Standard YOKOGAWA I/O module form factor
- Suffix -S53: Indicates specific hardware/firmware configuration for CENTUM VP compatibility
- Suffix S1: Denotes standard build specification
- Certifications: CE, UL, cUL (subject to revision; verify with datasheet)
Compatible Replacement & Equivalent Models
When the AAR145-S53 S1 is unavailable or end-of-life, the following models may serve as direct or functional replacements. Always verify firmware compatibility and I/O bus slot requirements before substitution.
- YOKOGAWA AAR145-S53 S2 – Revised suffix variant; functionally equivalent with updated firmware. Drop-in replacement in most CENTUM VP installations.
- YOKOGAWA AAR145-S00 – Base model without suffix options; compatible in standard RTD input applications where suffix-specific features are not required.
- YOKOGAWA AAR141-S53 – 8-channel RTD input module; suitable when channel expansion is needed. Requires slot reconfiguration.
- YOKOGAWA AAR181-S53 – Universal analog input module supporting RTD, TC, and mV inputs; broader input flexibility as an upgrade path.
- YOKOGAWA ADV151-P00 – Analog input module for CENTUM VP; cross-reference for mixed-signal environments.
- Honeywell MC-TAIH02 – Functional equivalent for Honeywell TDC/Experion systems; not a direct plug-in replacement but equivalent in RTD input function.
- ABB AI810 – RTD input module for ABB 800xA; equivalent function in ABB DCS environments.
Note: Cross-brand replacements require engineering review. Contact Konmask for compatibility assessment.
Why Choose the Original Model
- Guaranteed DCS Compatibility: The AAR145-S53 S1 is factory-validated for CENTUM VP and CS 3000 — no firmware patching or reconfiguration required.
- Precision RTD Measurement: Dedicated RTD/POT circuitry delivers superior accuracy versus universal input modules.
- Proven Field Reliability: Widely deployed in petrochemical, power generation, and pharmaceutical plants globally.
- OEM Support & Documentation: Full YOKOGAWA engineering documentation, calibration records, and lifecycle support available.
- Reduced Commissioning Risk: Original modules eliminate integration risk associated with third-party substitutes.
Typical Applications
- Temperature monitoring in reactors, heat exchangers, and distillation columns
- Valve position feedback via potentiometer input
- Boiler and turbine control systems
- Pharmaceutical batch process temperature acquisition
- Oil & gas upstream and downstream process control
- Power plant auxiliary systems monitoring
- Water treatment and chemical dosing systems
System Compatibility
- Primary Platform: YOKOGAWA CENTUM VP (all generations)
- Legacy Platform: YOKOGAWA CS 3000 (with appropriate I/O nest)
- I/O Nest: Compatible with ANB10D, ANB11D, and equivalent YOKOGAWA I/O nests
- Engineering Tool: CENTUM VP Builder / System View
- Not Compatible With: YOKOGAWA STARDOM, ProSafe-RS (safety systems), or third-party DCS backplanes
Selection Guide
Use the following criteria to determine whether the AAR145-S53 S1 is the right module for your application:
- RTD-only input required (4 channels)? → AAR145-S53 S1 is the optimal choice.
- Need 8 RTD channels in one slot? → Consider AAR141-S53 for higher channel density.
- Mixed input types (RTD + TC + mV)? → Upgrade to AAR181-S53 for universal input flexibility.
- POT (potentiometer) position feedback needed? → AAR145-S53 S1 natively supports POT input — no additional module required.
- Replacing a CS 3000 module in a CENTUM VP migration? → Verify I/O nest compatibility; AAR145-S53 S2 may be preferred for newer firmware.
- Budget-constrained refurbishment? → Konmask offers tested used and refurbished AAR145-S53 S1 units with warranty.
Quality Assurance & Sourcing
- Source: Authorized distributor stock, OEM surplus, and certified refurbished inventory
- Testing: All units undergo functional power-on testing and visual inspection prior to shipment
- Warranty: 12-month warranty on new units; 90-day warranty on refurbished units
- Traceability: Serial number and firmware version documented for each unit
- Packaging: Anti-static ESD packaging with foam insert; double-boxed for international shipment
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
How to Order
- Step 1: Confirm your DCS platform (CENTUM VP version or CS 3000 generation)
- Step 2: Verify I/O nest model and available slot type
- Step 3: Specify quantity and preferred condition (new / refurbished / tested used)
- Step 4: Add to cart or contact us for bulk pricing and lead time confirmation
- Step 5: Provide shipping address — we support DDP, DAP, and EXW Incoterms for international orders
📧 Email: [email protected]
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
- Q: Can AAR145-S53 S2 replace AAR145-S53 S1 directly?
- A: In most CENTUM VP installations, yes. The S2 suffix reflects a firmware/hardware revision. Verify with YOKOGAWA engineering documentation for your specific system version.
- Q: Is the AAR145-S53 S1 compatible with CENTUM VP R6?
- A: Compatibility depends on the I/O nest and firmware version. Contact Konmask with your system details for a definitive answer.
- Q: Can I use a third-party RTD module as a replacement?
- A: Functionally possible in some cases, but not recommended without engineering validation. The DCS bus protocol and module addressing are proprietary to YOKOGAWA.
- Q: Do you supply calibration certificates?
- A: Calibration certificates are available upon request for new units. Refurbished units include functional test reports.
- Q: What is the typical lead time for out-of-stock units?
- A: Sourcing lead time is typically 5–15 business days depending on global inventory availability. Contact us for real-time stock status.
- Q: Can you assist with CENTUM VP system migration planning?
- A: Yes. Konmask provides module-level migration consulting for CS 3000 to CENTUM VP upgrades. Contact our technical team.
