YOKOGAWA ADR541-P10 S1 Relay Output Module | Replacement, Equivalent & Selection Guide

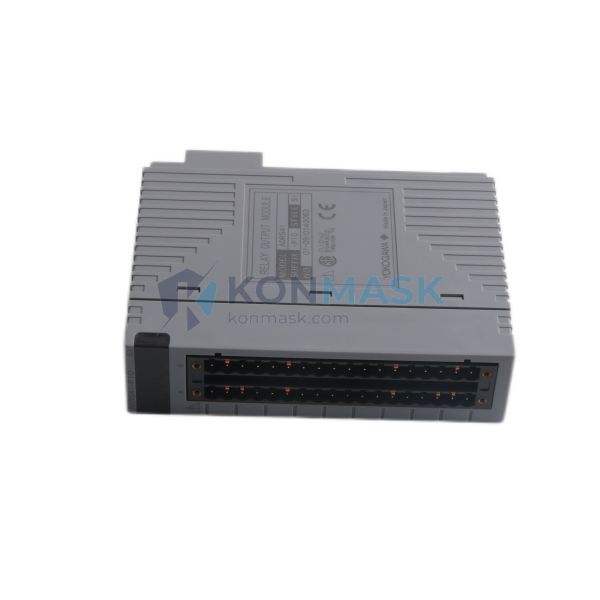

The YOKOGAWA ADR541-P10 S1 is a relay output module designed for use within YOKOGAWA’s CENTUM and STARDOM distributed control system (DCS) platforms. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Manufacturer: YOKOGAWA Electric Corporation
- Part Number: ADR541-P10 S1
- Module Type: Relay Output Module
- Output Type: Relay contact output
- Number of Output Channels: 10 channels (P10)
- Contact Rating: 250 VAC / 30 VDC, 2A (resistive load)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Compatible Platform: YOKOGAWA CENTUM VP / CS 3000 / STARDOM
- Suffix S1: Standard configuration / CE-marked variant
- Weight: 260 g
- Communication Bus: Internal I/O bus (backplane)
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 70°C
- Power Supply: Supplied via backplane (no external power required)
- Compliance: CE, RoHS
Compatible Replacement & Equivalent Models
When the ADR541-P10 S1 is unavailable or discontinued, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration. Always verify compatibility with your system integrator before substitution.
- YOKOGAWA ADR541-P10 S2 — Updated suffix variant; functionally equivalent with minor firmware revision differences
- YOKOGAWA ADR541-P16 S1 — 16-channel relay output variant; suitable if additional I/O points are needed
- YOKOGAWA ADR531-P10 S1 — Digital output module (transistor type); use when relay contact is not required
- YOKOGAWA AMR41V — Relay output module for older CENTUM CS 1000 systems; verify backplane compatibility
- Third-party equivalents: Modules with 10-channel relay output, 250 VAC/2A rating, and compatible backplane pinout may be considered — consult your DCS vendor for approved substitutes
Note: Konmask.com recommends using genuine YOKOGAWA modules for safety-critical and SIL-rated applications.
Why Choose the Original Model
- Guaranteed compatibility: Factory-tested for seamless integration with YOKOGAWA CENTUM VP and CS 3000 platforms
- Long service life: Industrial-grade relay contacts rated for high-cycle operation in continuous process environments
- Firmware alignment: Suffix S1 ensures compatibility with specific firmware versions — avoids configuration drift
- Regulatory compliance: CE and RoHS certified for global deployment
- OEM traceability: Full manufacturer documentation, calibration records, and warranty support available
- Reduced integration risk: No re-engineering or re-validation required when using the original part number
Typical Applications
- On/off control of pumps, valves, motors, and actuators in process plants
- Alarm annunciation and interlock output in DCS-based safety systems
- Discrete output control in oil & gas, petrochemical, and refinery operations
- Utility control in power generation and water treatment facilities
- Batch process control in pharmaceutical and food & beverage manufacturing
- Field device switching in pulp & paper and chemical processing plants
System Compatibility
- YOKOGAWA CENTUM VP (R4.xx and above) — Primary supported platform
- YOKOGAWA CENTUM CS 3000 — Compatible with appropriate I/O nest and bus coupler
- YOKOGAWA STARDOM FCN/FCJ — Verify I/O expansion compatibility with STARDOM engineering tool
- Backplane / Nest: Must be installed in a compatible I/O nest (e.g., ANB10D or equivalent)
- Engineering Tool: CENTUM VP Engineering Environment (ENG) or CS 3000 Builder required for tag assignment
Always cross-reference the YOKOGAWA General Specifications (GS) document for your specific system revision before installation.
Selection Guide
Use the following criteria to confirm the ADR541-P10 S1 is the right module for your application:
- Output type needed: Relay contact (dry contact) → ADR541 series ✓ | Transistor (sourcing/sinking) → ADR531 series
- Channel count: 10 channels → P10 ✓ | 16 channels → P16
- Load voltage: Up to 250 VAC or 30 VDC → ADR541-P10 ✓
- Load current: Up to 2A resistive → ADR541-P10 ✓ | Higher current → external relay/contactor required
- Platform: CENTUM VP / CS 3000 → ADR541-P10 S1 ✓ | STARDOM → verify nest compatibility
- Suffix: S1 = standard/CE | S2 = updated revision — confirm with your YOKOGAWA system documentation
- Hazardous area: Standard ADR541 is non-Ex rated — use YOKOGAWA Ex-certified I/O for Zone 1/2 applications
Quality Assurance & Sourcing
- Source: Konmask.com sources YOKOGAWA modules from authorized distributors and verified surplus channels
- Inspection: All units undergo visual inspection, label verification, and functional pre-check before shipment
- Condition options: New (factory sealed), Refurbished (tested & certified), and Used (inspected) — clearly labeled on each listing
- Documentation: Certificate of conformance, test reports, and original packaging available upon request
- Warranty: 12-month warranty on new units; 90-day warranty on refurbished units
- Anti-counterfeit: We do not source from unverified grey-market channels — all parts are traceable
How to Order
- Online: Add to cart directly from this page — stock availability shown in real time
- Bulk / Project inquiry: Email support@konmask.com with your BOM or part list for a project quote
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 9:00–18:00 CST)
- Lead time: In-stock orders ship within 1–3 business days; sourced orders typically 7–21 business days
- Export: We support international shipping with full export documentation (commercial invoice, packing list, COO)
- Payment: T/T bank transfer, PayPal, and major credit cards accepted
Replacement & Compatibility FAQ
Q: Can I replace ADR541-P10 S1 with ADR541-P10 S2?
A: In most cases yes — S2 is a revised suffix with minor updates. However, confirm with your YOKOGAWA system engineer that the firmware version in your CENTUM VP supports the S2 variant before swapping.
Q: Is ADR541-P10 S1 compatible with CENTUM CS 1000?
A: The ADR541 series is primarily designed for CENTUM CS 3000 and CENTUM VP. For CS 1000, consult YOKOGAWA’s compatibility matrix or contact Konmask for alternative part recommendations.
Q: What is the difference between ADR541 and ADR531?
A: ADR541 provides relay contact (dry contact) output; ADR531 provides transistor (solid-state) output. Choose based on your field device requirements and load characteristics.
Q: Can I use a third-party relay output module as a replacement?
A: Third-party modules may be used in non-safety-critical applications if they match the backplane pinout and electrical specifications. For SIL-rated or safety-instrumented systems, only use YOKOGAWA-approved modules.
Q: Do you provide a warranty on used or refurbished ADR541-P10 S1 units?
A: Yes — refurbished units carry a 90-day warranty. All units are tested and inspected prior to shipment. Contact us for detailed test reports.
Q: How do I confirm the correct suffix for my system?
A: Check your existing module label, CENTUM VP I/O builder configuration, or the original project BOM. You can also send us your system details and we will advise the correct part number.
