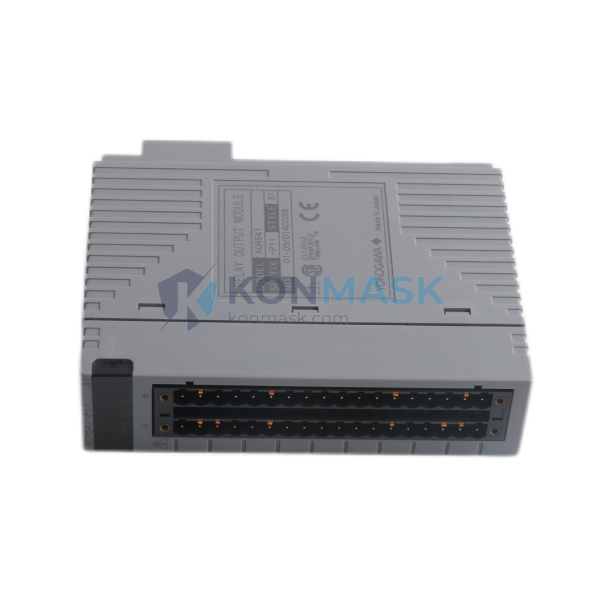

YOKOGAWA ADR541-P11 S1 – 16-Channel Relay Output Module | STARDOM FCN/FCJ Platform
Engineering Background
The ADR541-P11 S1 is a relay digital output module designed for YOKOGAWA’s STARDOM FCN/FCJ autonomous controller platform — a field-proven distributed control architecture widely deployed in oil & gas, chemical processing, water treatment, and power generation facilities. The STARDOM platform bridges traditional DCS reliability with open-standard IEC 61131-3 programming flexibility, and the ADR541 series provides the hardened I/O interface layer between controller logic and field actuators.
Product Positioning
Engineered for applications requiring galvanically isolated, high-current relay switching — including motor starters, solenoid valves, alarm annunciators, and discrete actuator control — the ADR541-P11 S1 delivers deterministic output response with the contact reliability demanded by SIL-rated and safety-instrumented environments. It is a direct OEM replacement module for existing STARDOM installations and is fully backward-compatible with FCN/FCJ base units.
Complete Technical Specifications
- Model: ADR541-P11 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Module Type: Digital Output (DO) — Relay Contact
- Platform Compatibility: STARDOM FCN / FCJ Autonomous Controller
- Number of Output Channels: 16 channels
- Output Type: Relay contact (Form A — SPST-NO)
- Rated Load Voltage: 250 VAC / 30 VDC
- Rated Load Current: 2 A per channel (resistive load)
- Minimum Switchable Load: 10 mA @ 5 VDC
- Electrical Isolation: Channel-to-bus optocoupler isolation; group isolation between field and logic side
- Response Time: ≤ 10 ms (ON/OFF)
- Relay Mechanical Life: ≥ 10,000,000 operations
- Relay Electrical Life: ≥ 100,000 operations at rated load
- Operating Temperature: 0°C to +55°C
- Storage Temperature: −25°C to +70°C
- Relative Humidity: 5% to 95% RH (non-condensing)
- Power Consumption: Refer to FCN/FCJ base unit power budget
- Module Weight: Approx. 260 g
- Mounting: Plug-in to FCN/FCJ I/O slot (hot-swap capable with base unit support)
- Certifications: CE, UL/cUL (verify with current YOKOGAWA datasheet)
- Suffix Codes: P11 = standard relay output; S1 = standard conformal coating
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station automation, ESD (Emergency Shutdown) output actuation
- Chemical & Petrochemical: Reactor interlock outputs, pump/valve discrete control, batch sequencing
- Water & Wastewater: Pump station motor control, dosing system actuation, alarm relay outputs
- Power Generation: Turbine auxiliary control, switchgear interface, protection relay outputs
- Pharmaceutical: CIP/SIP sequence control, cleanroom HVAC discrete outputs
- Food & Beverage: Conveyor control, filling line actuator interface, safety interlock outputs
Engineering Advantages
- True Galvanic Isolation: Relay contacts provide complete electrical separation between field wiring and controller bus — essential for mixed-voltage field environments and noise immunity
- High Inrush Tolerance: Relay contact design handles motor and solenoid inrush currents without contact welding under normal operating conditions
- IEC 61131-3 Native Integration: Outputs map directly to STARDOM FCN/FCJ function block variables — no custom driver required
- Hot-Swap Capable: Supports online module replacement (with FCN/FCJ base unit hot-swap feature enabled) — minimizes planned maintenance downtime
- Conformal Coating (S1): Factory-applied conformal coating on PCB provides enhanced protection against humidity, condensation, and airborne contaminants in harsh industrial environments
- Compact Form Factor: High channel density (16 DO) in a single I/O slot reduces panel footprint and wiring complexity
System Architecture & Signal Flow
The ADR541-P11 S1 occupies a standard I/O slot in the STARDOM FCN/FCJ base unit. Controller logic (IEC 61131-3 LD/FBD/ST programs) writes Boolean output values to the module’s process image via the internal I/O bus. Each channel drives an optocoupler that energizes the corresponding relay coil, closing the Form A contact and completing the field circuit. The relay contact is wired to the field terminal block, connecting to the actuator load (motor starter coil, solenoid, indicator lamp, etc.). Status feedback (contact state) is readable by the controller for diagnostic and interlock logic.
Wiring topology: Each channel has independent COM and NO terminals. Channels may share a common power rail or be individually fused depending on the field panel design. Refer to YOKOGAWA FCN/FCJ I/O wiring guidelines (IM 34M06H11-01E) for terminal assignment and cable specifications.
Sourcing & Quality Verification
- Origin: Genuine YOKOGAWA OEM module — not aftermarket or third-party compatible
- Condition: New surplus / refurbished stock available — condition specified at time of inquiry
- Traceability: Serial number and date code verification available upon request
- Inspection: All modules undergo functional continuity check and visual inspection prior to dispatch
- Packaging: Anti-static ESD bag + foam-lined carton; original YOKOGAWA packaging where available
- Lead Time: In-stock units ship within 1–3 business days; contact us for current availability
Procurement Process
- Confirm Compatibility: Verify your FCN/FCJ base unit model and firmware version support the ADR541-P11 S1 (refer to YOKOGAWA system compatibility matrix)
- Request Quotation: Contact [email protected] with your required quantity, delivery address, and any condition/certification requirements
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 24 hours
- Inspection & Dispatch: Module tested, packed, and shipped with tracking; ESD-safe packaging standard
- After-Sales Support: Technical assistance available for installation, configuration, and STARDOM system integration queries
Technical FAQ
Q: Is the ADR541-P11 S1 compatible with both FCN and FCJ controllers?
A: Yes. The ADR541 series is designed for the STARDOM FCN/FCJ I/O bus and is compatible with both controller variants. Confirm slot availability and power budget with your specific base unit configuration.
Q: Can relay outputs be used for AC and DC loads simultaneously?
A: Yes. Each relay contact is electrically independent. Individual channels can switch AC or DC loads up to the rated voltage/current limits. Ensure field wiring segregation between AC and DC circuits per IEC 60364 or applicable local electrical code.
Q: What is the difference between P11 and other ADR541 suffix variants?
A: The P11 suffix designates the standard relay output configuration. Other suffixes may indicate different contact arrangements, terminal types, or approval markings. Always specify the full model number (ADR541-P11 S1) when ordering to ensure exact replacement.
Q: Does the S1 conformal coating affect repairability?
A: The S1 coating is applied at the PCB level and does not affect module plug-in/removal or field terminal wiring. It does not void YOKOGAWA warranty for normal use. Rework of coated PCBs requires specialized equipment and is not recommended in the field.
Q: What documentation is available?
A: YOKOGAWA publishes the FCN/FCJ I/O module hardware manual (IM 34M06H11-01E) and the STARDOM system configuration guide. Contact Konmask for assistance locating current revision documentation.
