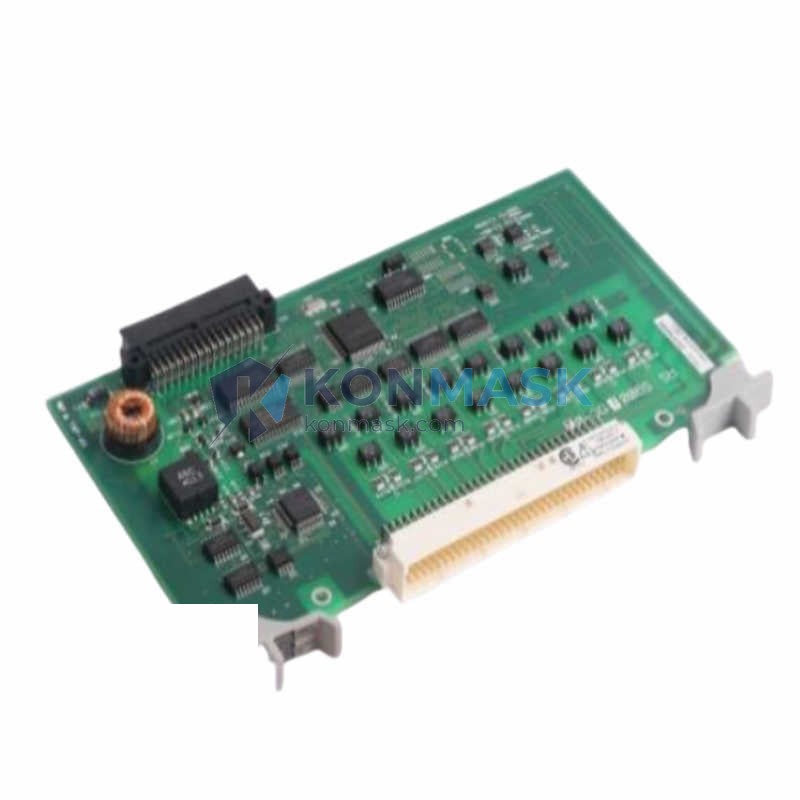

YOKOGAWA AMM12 S3 – Voltage Input Multiplexer Module | CENTUM VP / CS 3000 Platform
Engineering Background
The AMM12 S3 is a high-density analog input multiplexer module designed for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems. It addresses the need for cost-effective, high-channel-count voltage signal acquisition in large-scale process plants where I/O density and signal integrity are critical engineering constraints. The multiplexed architecture allows multiple field signals to share a single A/D conversion path, reducing hardware footprint without compromising measurement accuracy.
Product Positioning
Targeted at instrumentation and control engineers responsible for DCS I/O expansion, the AMM12 S3 is the preferred choice when upgrading legacy CS 3000 installations or scaling CENTUM VP systems in refinery, chemical, power generation, and water treatment applications. It delivers OEM-grade reliability with full compatibility across the YOKOGAWA field control station (FCS) ecosystem.
Complete Technical Specifications
| Part Number | AMM12 S3 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Input Multiplexer (Voltage) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Input Signal Type | DC Voltage (multiplexed) |
| Number of Input Channels | 12 channels (multiplexed) |
| Input Voltage Range | ±10 V DC (typical; refer to YOKOGAWA GS for exact range) |
| Conversion Method | Multiplexed A/D conversion |
| Isolation | Channel-to-bus isolation per YOKOGAWA FCS standard |
| Power Consumption | Per FCS node bus specification |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 120 g |
| Mounting | FCS I/O nest (node bus backplane) |
| Certifications | CE, cULus (per YOKOGAWA product documentation) |
| RoHS Compliance | S3 suffix denotes RoHS-compliant revision |
Proven Application Environments
- Oil & Gas Refining: Multi-point temperature and pressure transmitter voltage outputs aggregated via AMM12 S3 into CENTUM VP FCS nodes, reducing I/O cabinet count by up to 40%.
- Chemical Processing: Continuous monitoring of reactor vessel analog signals with deterministic scan rates ensured by the multiplexer architecture.
- Power Generation: Turbine control auxiliary I/O expansion using AMM12 S3 modules in CS 3000 legacy systems still under long-term service agreements.
- Water & Wastewater Treatment: SCADA-integrated DCS nodes leveraging AMM12 S3 for flow meter and level sensor voltage signal acquisition.
- Pulp & Paper: High-channel-density process monitoring where minimizing I/O nest slots is a capital cost driver.
Engineering Advantages
- High I/O Density: 12 voltage input channels per single I/O slot — maximizes FCS nest utilization and reduces overall hardware BOM cost.
- RoHS S3 Revision: Fully compliant with EU RoHS Directive, supporting green procurement policies and export compliance requirements.
- Seamless CENTUM VP Integration: Plug-and-play replacement within existing FCS node configurations; no firmware changes required for like-for-like substitution.
- Long Service Life: YOKOGAWA’s industrial-grade component selection ensures >10-year operational lifespan under standard process plant conditions.
- Backward Compatibility: Supports CS 3000 to CENTUM VP migration projects, protecting existing I/O wiring infrastructure investments.
System Architecture & Signal Flow
The AMM12 S3 resides in the FCS I/O nest and communicates via the YOKOGAWA node bus backplane. Field voltage signals enter through the terminal unit (TU) connected to the module’s front connector. The internal multiplexer sequentially routes each of the 12 input channels to a shared A/D converter, which digitizes the signal and transmits the engineering-unit value to the FCS CPU via the node bus. The scan cycle is managed by the FCS controller, ensuring deterministic data acquisition aligned with the process control loop execution period. Signal conditioning (filtering, range checking, and fault detection) is performed in firmware within the FCS CPU, with the AMM12 S3 acting as a transparent, high-density front-end acquisition layer.
Sourcing & Quality Verification
- Origin: Genuine YOKOGAWA OEM hardware sourced through authorized distribution and verified secondary market channels.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision suffix, serial number), and functional continuity check prior to dispatch.
- Packaging: Anti-static ESD bag + foam-lined carton; conforms to IEC 61340-5-1 electrostatic protection standards for sensitive electronics.
- Documentation: YOKOGAWA General Specifications (GS) sheet and, where available, original test records provided on request.
- Warranty: 90-day functional warranty against defects in materials and workmanship under normal operating conditions.
Procurement Process
- Confirm Compatibility: Verify your FCS node type and nest slot availability against YOKOGAWA system documentation (GS 33J60B10-01EN or equivalent).
- Request Quote: Contact [email protected] with your required quantity, delivery timeline, and any documentation requirements.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 1 business day.
- Lead Time: In-stock units ship within 3–5 business days; EXW Xiamen, China. DDP/DAP available on request.
- Export Compliance: HS Code 8537.10 applicable; export documentation (commercial invoice, packing list, COO) provided as standard.
Technical FAQ
Q: Is the AMM12 S3 compatible with CENTUM VP R6.x?
A: Yes. The AMM12 S3 is supported across CENTUM VP R4.x through R6.x. Confirm the specific FCS firmware revision with your YOKOGAWA system integrator for the latest compatibility matrix.
Q: Can the AMM12 S3 replace an AMM12 (without S3 suffix) directly?
A: In most cases yes — the S3 suffix denotes the RoHS-compliant revision with no functional change to the I/O interface. Verify with YOKOGAWA technical support if your site has specific revision-lock requirements.
Q: What terminal unit (TU) is required?
A: The AMM12 S3 pairs with YOKOGAWA terminal units in the AMT/AMM series. Consult the FCS I/O module pairing table in the CENTUM VP engineering guide for the exact TU part number for your wiring configuration.
Q: Is calibration required after installation?
A: No field calibration is required for standard replacement. The FCS performs automatic range and offset verification during the node initialization sequence.
Q: Do you provide YOKOGAWA factory test certificates?
A: Factory test certificates are available for select inventory. Contact us at the time of inquiry to confirm availability for your specific serial number range.
