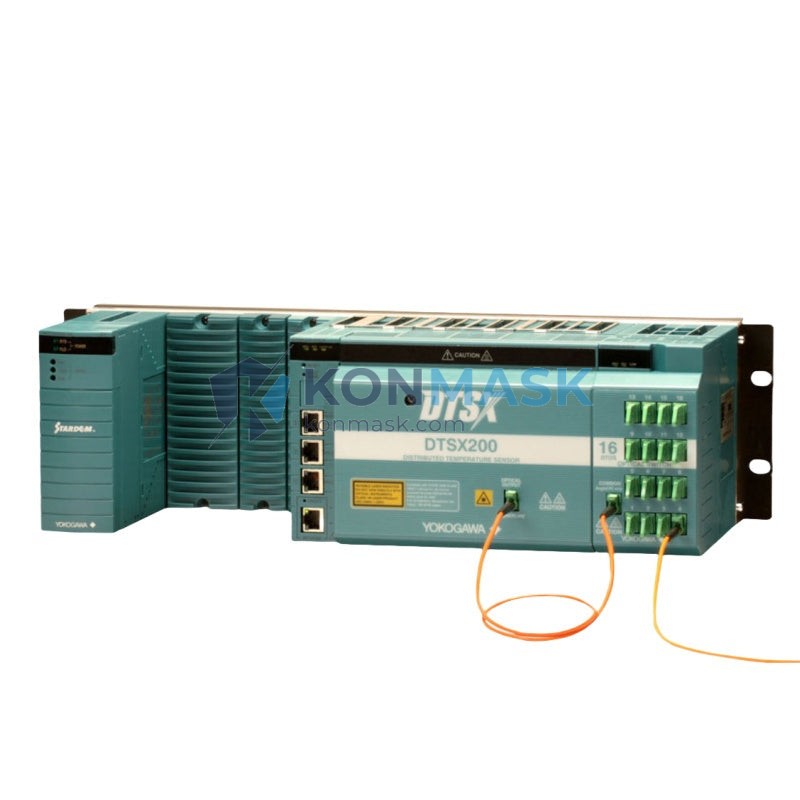

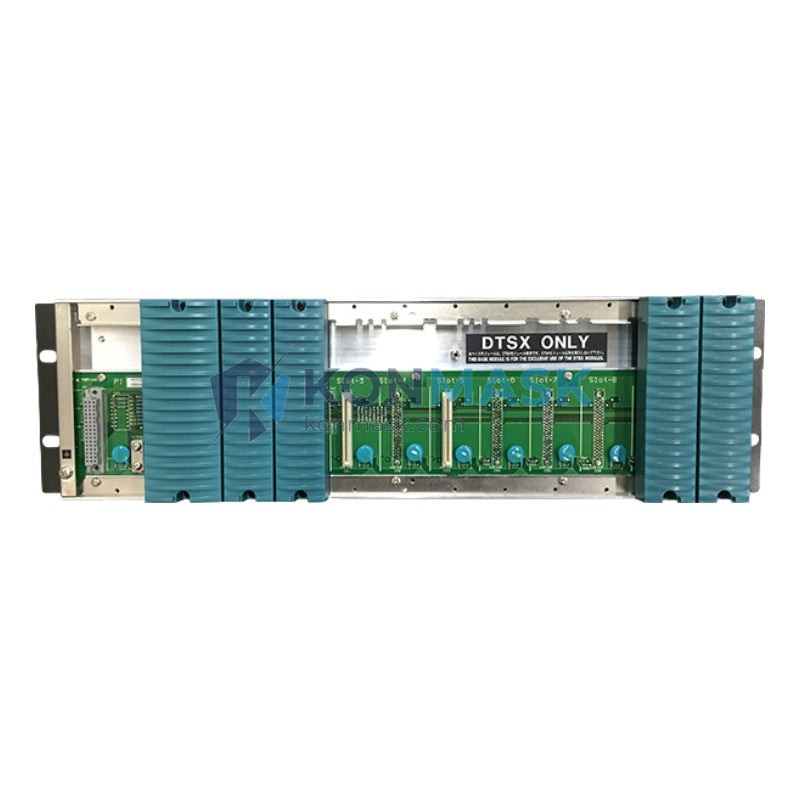

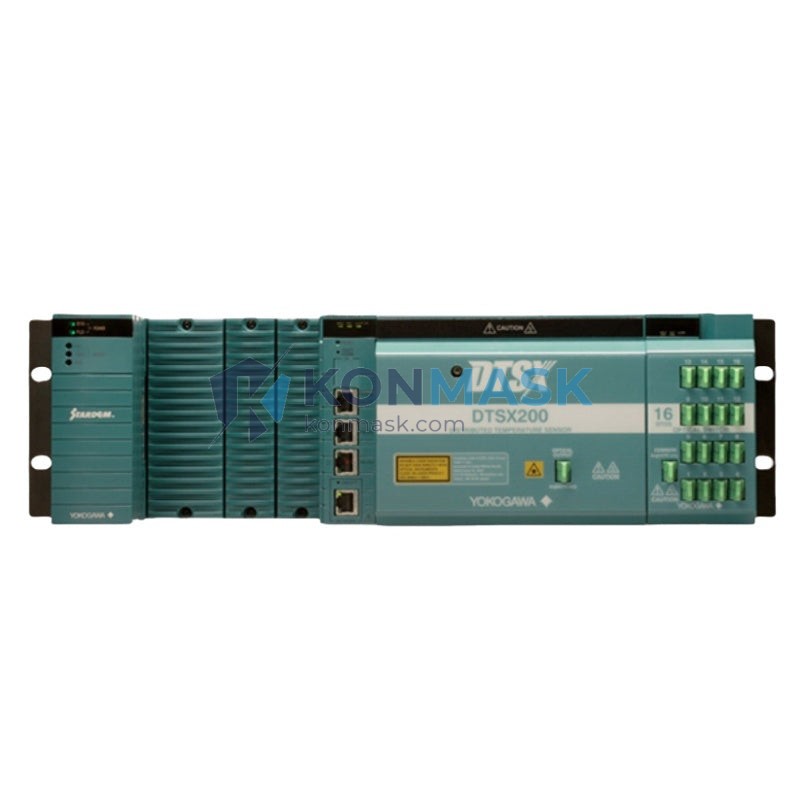

Yokogawa DTSX200-N0EN – Distributed Fiber Optic Temperature Sensing System | DTSX200 Platform
Engineering Background
The DTSX200-N0EN is Yokogawa’s second-generation distributed temperature sensing (DTS) platform, engineered for continuous, real-time temperature profiling along the full length of a fiber optic cable. Leveraging Raman backscattering OTDR technology, it delivers spatial temperature maps across distances up to 30 km with sub-meter resolution — without any field-side electronics or power at the sensing point.
Product Positioning
Designed for procurement engineers and system integrators in power utilities, oil & gas pipelines, subsea infrastructure, tunnel safety, and data center hot-spot monitoring. The DTSX200-N0EN is the standard single-channel variant of the DTSX200 family, offering a balance of measurement range, accuracy, and cost-efficiency for demanding industrial environments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | DTSX200-N0EN |
| Manufacturer | Yokogawa Electric Corporation |
| Series / Platform | DTSX200 |
| Measurement Principle | Raman Backscattering OTDR (Optical Time Domain Reflectometry) |
| Sensing Fiber Type | Single-mode or Multi-mode optical fiber (SMF / MMF) |
| Number of Channels | 1 (expandable with DTSX200 multi-channel options) |
| Measurement Range | Up to 30 km per channel |
| Spatial Resolution | 1 m (typical) |
| Temperature Accuracy | ±1 °C (at 1 km, 10-minute averaging) |
| Temperature Resolution | 0.1 °C |
| Measurement Temperature Range | −40 °C to +85 °C (ambient); fiber-dependent sensing range |
| Sampling Interval | Configurable (1 m minimum) |
| Measurement Cycle | Configurable; minimum ~1 minute for full-range scan |
| Communication Interface | Ethernet (Modbus TCP, OPC-DA/UA, HART optional) |
| Analog Output | 4–20 mA (optional) |
| Digital I/O | Alarm relay outputs (configurable) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Power Consumption | ≤ 50 W (typical) |
| Enclosure Rating | IP20 (rack-mount unit) |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | −20 °C to +60 °C |
| Dimensions (W × H × D) | Approx. 430 × 88 × 350 mm (2U rack) |
| Weight | Approx. 8 kg |
| Certifications | CE, UL, CSA (region-dependent) |
| Software | DTSX Viewer / DTSX Manager (Windows-based) |
| Part Number Suffix | N0EN = Standard, No Hazardous Area, English |
Proven Application Environments
- Power Cable Monitoring: Continuous ampacity management and hot-spot detection on HV/EHV underground cables and submarine cables.
- Oil & Gas Pipelines: Leak detection, flow assurance, and thermal profiling on subsea flowlines and onshore pipelines.
- Tunnel & Rail Safety: Fire detection and ventilation control in road tunnels, metro systems, and railway infrastructure.
- Data Centers: Rack-level thermal mapping and cooling optimization across large server halls.
- Industrial Process Plants: Reactor temperature profiling, tank farm monitoring, and heat exchanger performance tracking.
- Geothermal & Mining: Borehole temperature logging and underground thermal mapping.
Engineering Advantages
- Passive Sensing Element: Standard telecom-grade optical fiber — no electronics, no power, no EMI susceptibility in the field.
- Long-Range Coverage: Single instrument monitors up to 30 km of fiber, replacing thousands of discrete point sensors.
- High Spatial Resolution: 1 m sampling interval enables precise hot-spot localization for rapid fault response.
- Yokogawa DTSX Platform Ecosystem: Seamless integration with Yokogawa CENTUM VP DCS, ProSafe-RS SIS, and third-party SCADA via Modbus TCP / OPC-UA.
- Proven Industrial Reliability: Designed to IEC 61508 functional safety principles; field-proven in over 1,000 installations worldwide.
- Flexible Fiber Compatibility: Supports both SMF and MMF, allowing reuse of existing installed fiber infrastructure.
System Architecture & Signal Flow
The DTSX200-N0EN injects a pulsed laser signal into the sensing fiber. Raman backscatter photons — whose intensity ratio (Stokes / Anti-Stokes) is temperature-dependent — are captured by the internal OTDR receiver. The DSP engine converts time-of-flight data into a spatially resolved temperature profile, which is stored internally and transmitted via Ethernet to the DTSX Manager software or directly to a DCS/SCADA host. Alarm zones are configurable per segment, with relay outputs for hardwired interlock integration.
Sourcing & Quality Verification
- All DTSX200-N0EN units sourced by Konmask.com are verified against Yokogawa’s official serial number database prior to shipment.
- Units are supplied with original Yokogawa factory documentation, calibration certificate, and firmware version record.
- Inspection includes: optical connector condition, laser output power verification, and functional self-test via DTSX Viewer.
- Packaging: original Yokogawa anti-static foam insert with humidity indicator card.
Procurement Process
- Inquiry: Submit your project specifications (fiber type, sensing length, integration protocol) via support@konmask.com or WhatsApp +0086 19859288691.
- Quotation: Receive a formal quotation with lead time, warranty terms, and optional accessories (fiber patch cords, rack mounting kits) within 24 hours.
- Order Confirmation: Purchase order accepted via email; payment terms: T/T, L/C, or PayPal for qualified accounts.
- Shipment: DHL / FedEx Express worldwide; EXW Xiamen or CIF destination port available. Typical lead time: 3–7 business days for in-stock units.
- After-Sales: 12-month warranty; remote commissioning support available via TeamViewer.
Technical FAQ
Q: What fiber type does the DTSX200-N0EN require?
A: It supports both single-mode (G.652D) and multi-mode (OM1/OM2) fiber. Multi-mode fiber provides shorter range but lower cost; single-mode is recommended for distances beyond 10 km.
Q: Can the DTSX200-N0EN integrate with a Yokogawa CENTUM VP DCS?
A: Yes. Native integration is available via OPC-DA/UA server. Modbus TCP is also supported for third-party DCS/SCADA systems.
Q: What is the minimum measurement cycle time?
A: Approximately 1 minute for a full 30 km scan. Shorter fiber lengths yield proportionally faster cycle times.
Q: Is the DTSX200-N0EN suitable for hazardous area installation?
A: The N0EN suffix denotes a standard (non-Ex) unit. For Zone 1/Zone 2 or Class I Div 1/2 installations, consult Konmask for the appropriate DTSX200 Ex-rated variant.
Q: Does Konmask provide calibration certificates?
A: Yes. All units are supplied with the original Yokogawa factory calibration certificate. Third-party re-calibration can be arranged on request.
