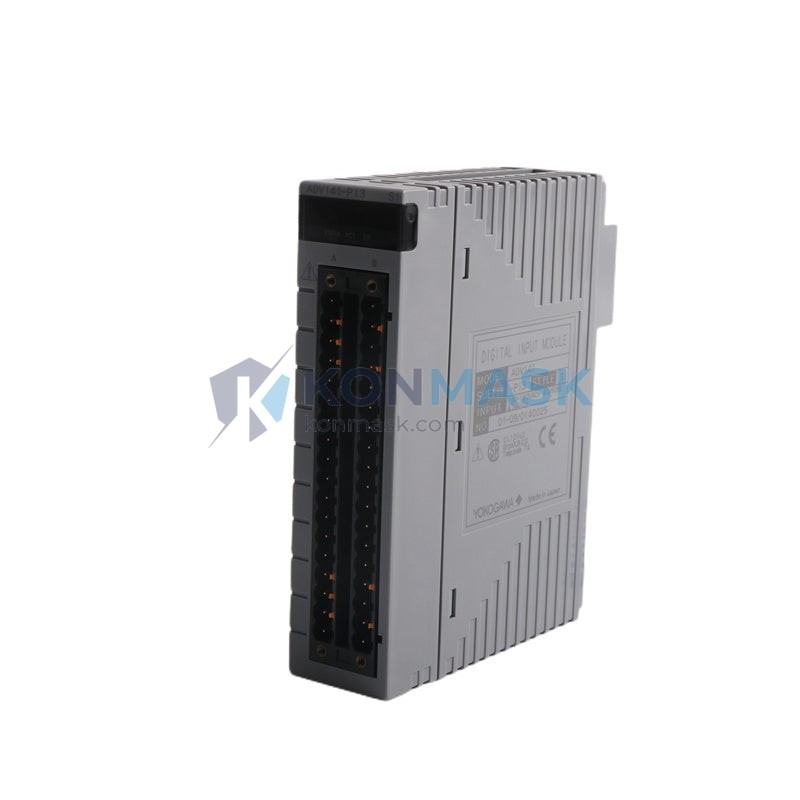

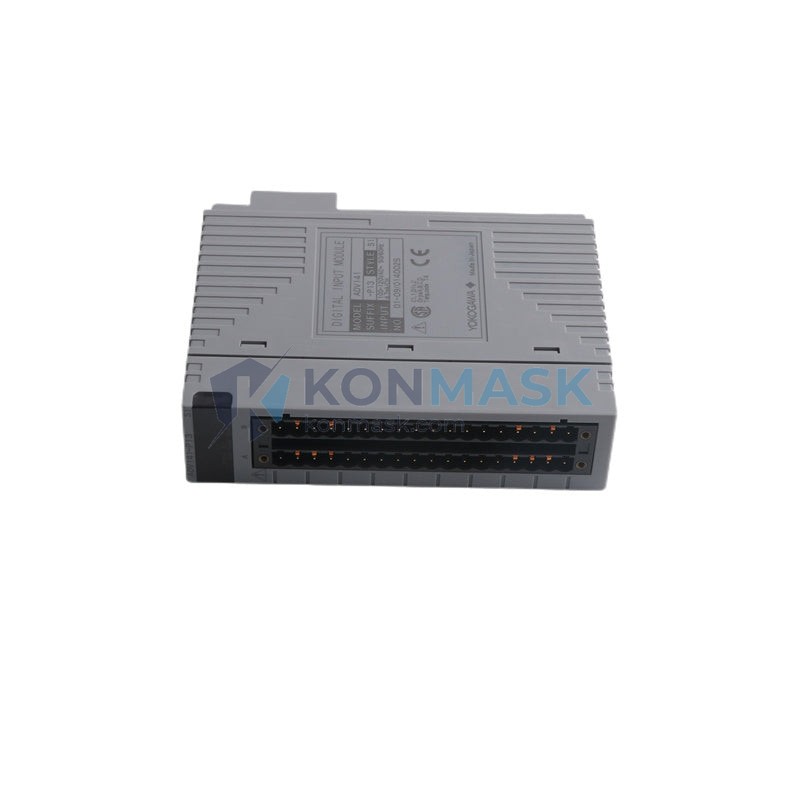

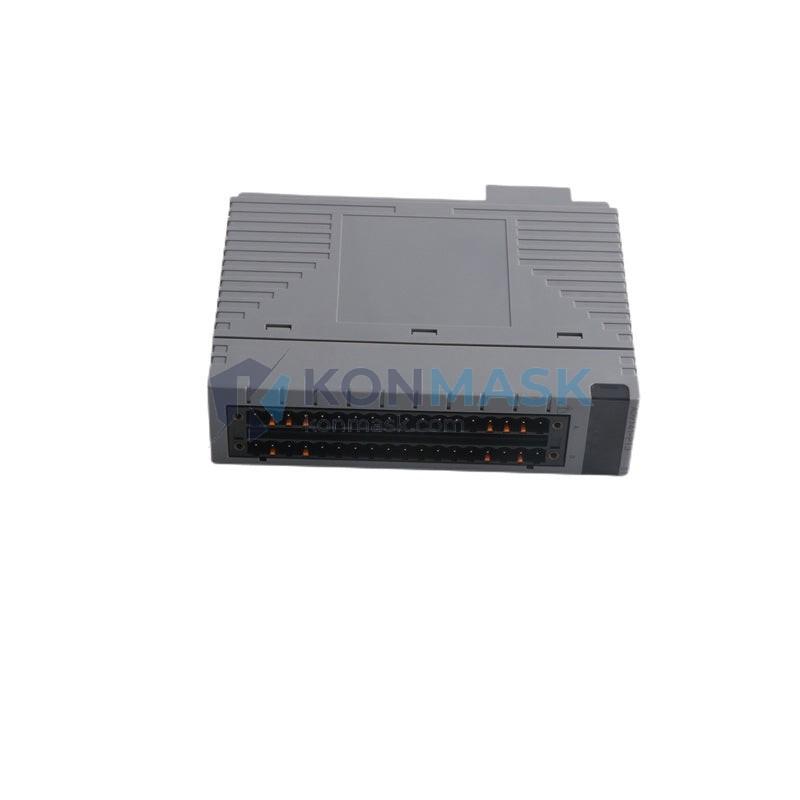

YOKOGAWA ADV141-P13 S1 – 32-Channel Digital Input Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The ADV141-P13 S1 is a field-proven digital input (DI) module designed for Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems — the industry benchmark for continuous process automation in refining, petrochemical, power generation, and specialty chemical plants. As a core I/O component within the Field Control Station (FCS), this module bridges field-level discrete signals to the DCS controller with high-density channel capacity and robust noise immunity.
Product Positioning
Targeted at maintenance engineers, instrument engineers, and procurement specialists managing CENTUM VP or CS 3000 installations, the ADV141-P13 S1 delivers a direct OEM-equivalent replacement path — eliminating costly system re-engineering while restoring full platform integrity. Konmask.com stocks verified units with full traceability documentation to support planned maintenance, emergency spares, and capital project builds.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ADV141-P13 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Digital Input (DI) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Channels | 32 channels |
| Input Signal Type | Dry contact / Wet contact (voltage-free or voltage input) |
| Input Voltage Range | 24 VDC nominal (field side) |
| Isolation | Optical isolation between field and system bus |
| Scan Cycle | Synchronized with FCS control cycle |
| Connector Type | Terminal block via field terminal assembly (FTA) |
| Module Form Factor | Single-slot I/O module for CENTUM VP/CS 3000 nest |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 280 g |
| Compliance | CE, UL/cUL (per Yokogawa platform certification) |
| RoHS Status | Compliant (S1 suffix designation) |
Proven Application Environments
- Oil & Gas Refining: Pump status, valve open/close feedback, ESD interlock monitoring
- Petrochemical Plants: Motor run/stop status, high-level switch inputs, pressure switch monitoring
- Power Generation: Breaker status, turbine trip signals, auxiliary equipment state monitoring
- Specialty Chemicals: Batch sequence step confirmation, agitator status, safety interlock inputs
- Pulp & Paper / Water Treatment: Conveyor status, pump feedback, flow switch inputs
Engineering Advantages
- High Channel Density: 32 DI channels per single module slot — maximizes nest utilization and reduces hardware footprint
- Optical Isolation: Full galvanic isolation protects the DCS backplane from field-side transients, ground loops, and surge events
- Hot-Swap Capable: Supports online module replacement within CENTUM VP architecture without process interruption (subject to FCS configuration)
- Direct OEM Replacement: Plug-and-play compatibility with existing CENTUM VP and CS 3000 nests — no firmware changes or re-engineering required
- S1 RoHS Suffix: Confirms compliance with EU RoHS Directive — suitable for export to regulated markets
- Diagnostic LED Indicators: Per-channel status LEDs enable rapid field-level fault isolation without test equipment
System Architecture & Signal Flow
The ADV141-P13 S1 installs into a standard CENTUM VP or CS 3000 I/O nest and interfaces with the Field Control Station (FCS) via the internal V-net/IP or ESB bus. Field wiring connects through a dedicated Field Terminal Assembly (FTA), which provides terminal blocks, fusing, and marshalling. Digital input signals from field devices (switches, relays, proximity sensors) are optically isolated and converted to logic-level signals read by the FCS at each control scan cycle. Status data is transmitted to the Human Interface Station (HIS) and Exaopc OPC server for SCADA integration.
Sourcing & Quality Verification
- Origin: Genuine YOKOGAWA OEM production units — not aftermarket or remanufactured
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment check
- Traceability: Lot code and date code documentation available upon request for regulated industries
- Packaging: Anti-static ESD packaging with moisture barrier — compliant with IPC/JEDEC J-STD-033 handling standards
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Step 1 — Inquiry: Submit your part number, required quantity, and delivery timeline via the order form or email support@konmask.com
- Step 2 — Quote: Receive a formal quotation with unit price, lead time, and shipping options within 1 business day
- Step 3 — Order Confirmation: Issue PO or complete checkout; payment via T/T bank transfer, credit card, or trade terms for approved accounts
- Step 4 — Shipment: Units dispatched via DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included
- Step 5 — After-Sales: Technical support available for installation verification and compatibility confirmation
Technical FAQ
Q: Is the ADV141-P13 S1 compatible with both CENTUM VP and CS 3000?
A: Yes. The ADV141 series is designed for cross-compatibility across CENTUM VP R4/R5/R6 and CS 3000 R3 platforms, subject to nest and FCS hardware revision. Confirm your FCS model before ordering if uncertain.
Q: What is the difference between ADV141-P13 and ADV141-P13 S1?
A: The “S1” suffix denotes RoHS-compliant material composition. Functionally and electrically, the modules are equivalent. S1 units are required for CE-marked system deliveries into the EU.
Q: Can this module be replaced online without shutting down the FCS?
A: Hot-swap is supported in CENTUM VP when the I/O module is configured for online replacement in the FCS builder. Verify your FCS configuration and follow Yokogawa’s online replacement procedure (TI 33Q01B10-01EN).
Q: What FTA (Field Terminal Assembly) is required?
A: The ADV141-P13 S1 pairs with Yokogawa FTA models in the ADT series. Consult your CENTUM VP hardware manual (IM 33Q01B10-01EN) for the correct FTA part number based on your wiring configuration.
Q: Do you provide export documentation for customs clearance?
A: Yes. All international shipments include a commercial invoice, packing list, and Certificate of Origin. HS Code 8537.10 applies. ECCN classification available on request.
