YOKOGAWA EC0*A AS E9740GA-02 Signal Conditioner | Replacement, Equivalent & Selection Guide

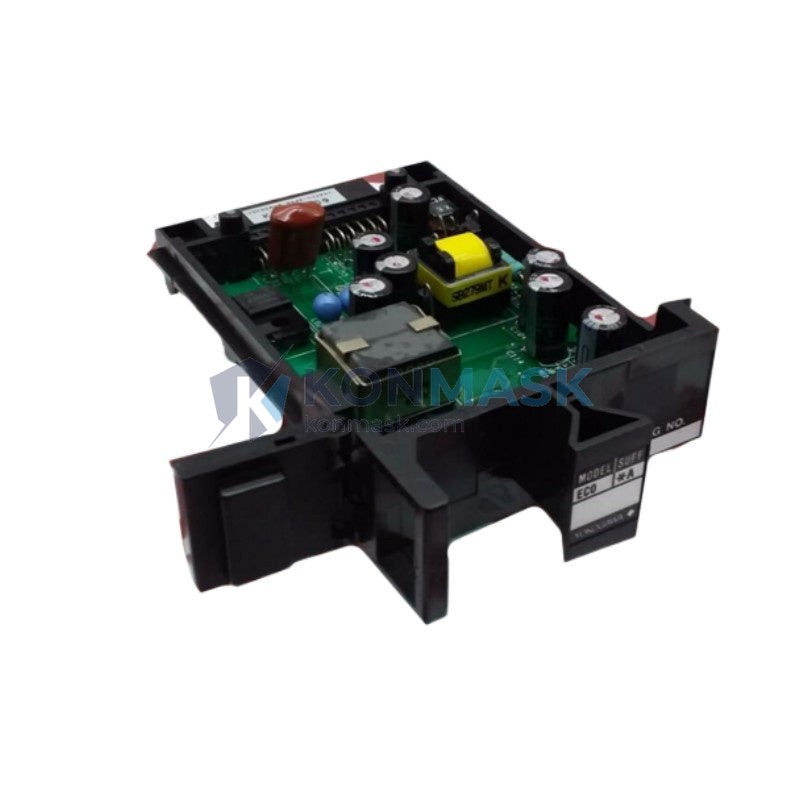

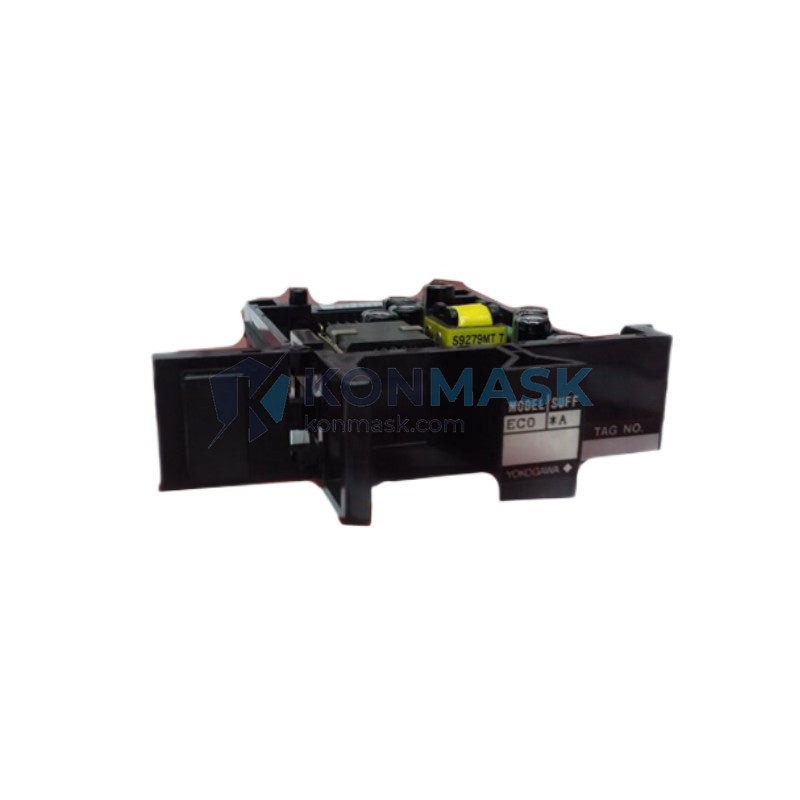

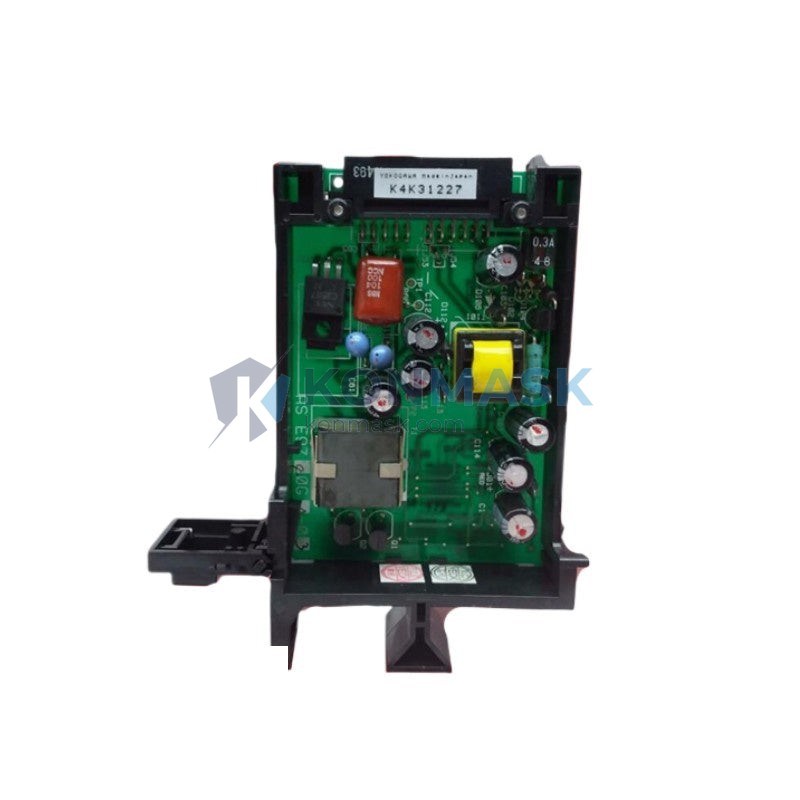

The YOKOGAWA EC0*A AS E9740GA-02 is a precision signal conditioner designed for industrial process control and automation systems. This page provides full technical specifications, compatible replacement models, equivalent alternatives, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Manufacturer: YOKOGAWA Electric Corporation
- Model / Part Number: EC0*A AS E9740GA-02
- SKU: EC0*A AS E9740GA-02
- Function: Signal Conditioner
- Signal Type: Analog input/output signal conditioning (4–20 mA / 0–10 V typical)
- Power Supply: Refer to YOKOGAWA datasheet for rated voltage
- Mounting: DIN rail / panel mount (confirm with product datasheet)
- Operating Temperature: 0°C to 55°C (standard industrial range)
- Protection Class: IP20 (typical for this series)
- Compliance: CE, RoHS (verify with current YOKOGAWA documentation)
- Weight: Approx. 100 g
Note: Always verify specifications against the official YOKOGAWA datasheet before final selection.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the YOKOGAWA EC0*A AS E9740GA-02. Compatibility depends on your specific application, signal range, and system architecture.
- YOKOGAWA EC0*A Series variants – Same platform, different suffix configurations (verify I/O range and power specs)
- YOKOGAWA EC1*A / EC2*A Series – Next-generation signal conditioners with expanded I/O options
- YOKOGAWA E9740GA Series – Direct platform equivalents; confirm suffix code for exact match
- Phoenix Contact MCR Series – Industry-standard DIN rail signal conditioners; cross-reference by signal type and range
- Pepperl+Fuchs KFD / KCD Series – Widely used in YOKOGAWA-compatible DCS environments
- Weidmüller ACT Series – Compatible signal isolators for 4–20 mA loops
- Moore Industries SPA / SPT Series – Drop-in signal conditioner replacements for process loops
Important: Always perform a full I/O specification cross-check before substituting any signal conditioner in a live control system.
Why Choose the Original Model
- OEM Guaranteed Compatibility: Designed and validated for YOKOGAWA DCS/SCADA architectures (CENTUM VP, ProSafe-RS, etc.)
- Proven Field Reliability: Deployed in petrochemical, power generation, and pharmaceutical plants globally
- Minimal Integration Risk: No re-engineering or re-calibration required when replacing like-for-like
- Long-Term Support: YOKOGAWA provides extended lifecycle support and spare parts availability
- Regulatory Compliance: Pre-certified for use in safety-instrumented systems where applicable
Typical Applications
- Process signal isolation and conversion in DCS/PLC control loops
- 4–20 mA signal transmission over long cable runs
- Field instrument interface in oil & gas, chemical, and power industries
- Signal conditioning for temperature, pressure, and flow transmitters
- Noise rejection and ground loop elimination in industrial environments
- Marshalling cabinet signal distribution in large-scale automation projects
System Compatibility
- YOKOGAWA CENTUM VP – Native compatibility; recommended for I/O card interface
- YOKOGAWA ProSafe-RS – Compatible for safety loop signal conditioning
- YOKOGAWA STARDOM / FAST/TOOLS – Applicable in remote I/O and SCADA configurations
- Third-Party DCS/PLC Systems – Compatible with Siemens, ABB, Emerson, Honeywell systems via standard 4–20 mA / HART interface (verify signal specs)
- Fieldbus Protocols: Confirm HART / FOUNDATION Fieldbus / PROFIBUS compatibility with specific suffix code
Selection Guide
Use the following criteria to confirm the EC0*A AS E9740GA-02 is the right choice — or to identify the best alternative:
- Step 1 – Define Signal Type: Confirm input/output signal range (mA, V, thermocouple, RTD, frequency)
- Step 2 – Check Power Supply: Match rated supply voltage (24 VDC, 110/220 VAC)
- Step 3 – Verify Mounting Format: DIN rail vs. panel mount; available slot dimensions
- Step 4 – Confirm Isolation Requirement: 2-wire, 3-wire, or galvanic isolation needed?
- Step 5 – Review Accuracy Class: Match required measurement accuracy (±0.1%, ±0.5%, etc.)
- Step 6 – Check Certifications: ATEX / IECEx for hazardous areas; SIL rating for safety loops
- Step 7 – Confirm Availability: Contact Konmask.com for stock status and lead time
Quality Assurance & Sourcing
- Source: Authorized distributor and surplus industrial automation specialist
- Condition: New, refurbished, or tested-used stock available (specify on inquiry)
- Inspection: All units undergo functional verification before shipment
- Traceability: Original manufacturer packaging and documentation provided where available
- Warranty: 90-day replacement warranty on all shipped units
- Export Compliance: ECCN classification and export documentation available on request
How to Order
- Online: Add to cart directly on this page
- Email: [email protected] with your part number, quantity, and required delivery date
- Phone / WhatsApp: +0086 19859288691
- RFQ: For bulk orders or project-based procurement, request a formal quotation via email
- Lead Time: In-stock items ship within 1–3 business days; out-of-stock items subject to sourcing lead time
- Payment: T/T bank transfer, PayPal, credit card (via Shopify checkout)
Replacement & Compatibility FAQ
Q: Can I use a third-party signal conditioner to replace the YOKOGAWA EC0*A AS E9740GA-02?
A: Yes, in many cases. However, you must verify that the replacement matches the exact signal range, power supply, isolation class, and any applicable safety certifications. Contact us for a compatibility review.
Q: Is the EC0*A AS E9740GA-02 still in production?
A: YOKOGAWA periodically updates its product lineup. Contact Konmask.com to confirm current production status and available stock of new or equivalent units.
Q: What is the difference between EC0*A and EC1*A / EC2*A models?
A: The suffix codes indicate different I/O configurations, signal ranges, and power options within the same product family. Refer to the YOKOGAWA EC series selection guide or contact us for a detailed comparison.
Q: Do you provide a certificate of conformance (CoC) or test report?
A: Yes. CoC and functional test reports are available upon request for all units shipped from Konmask.com.
Q: Can you source discontinued or obsolete YOKOGAWA signal conditioners?
A: Yes. Konmask.com specializes in sourcing hard-to-find and obsolete industrial automation components. Submit your part number via email for a sourcing inquiry.
