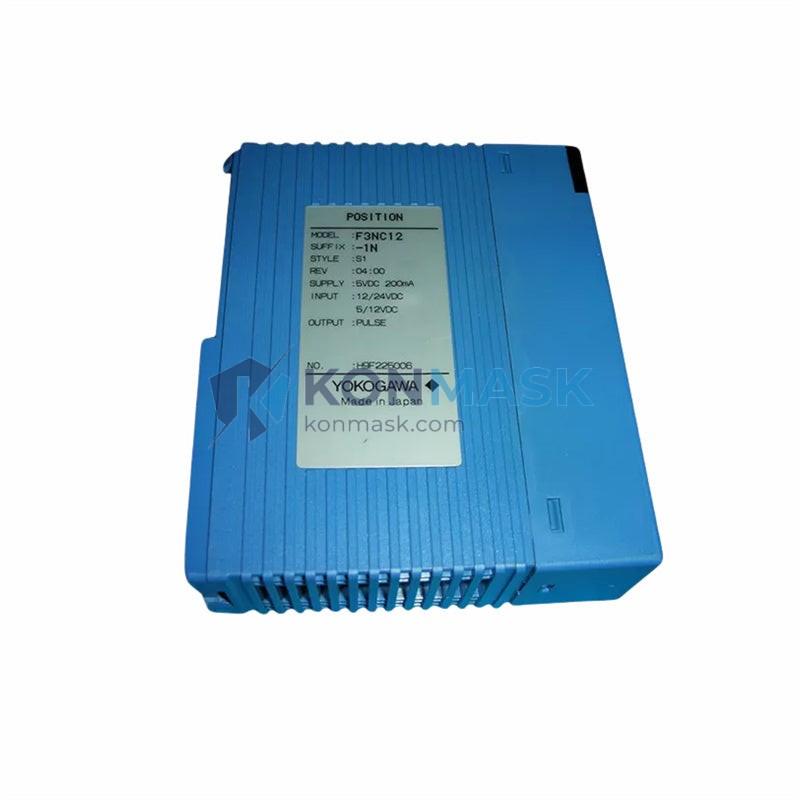

Industrial Positioning Solution – YOKOGAWA F3NC12-1N | FA-M3 Series PLC
Where This Product Is Used
The YOKOGAWA F3NC12-1N is a single-axis position control module engineered for precision motion applications across demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers – Coordinating servo axis positioning for milling, turning, and drilling operations requiring sub-millimeter repeatability.
- Robotic Assembly Lines – Providing deterministic pulse-train output to servo drives in pick-and-place and welding robot cells.
- Semiconductor & Electronics Manufacturing – Controlling wafer handling stages and PCB drilling machines where micron-level accuracy is mandatory.
- Packaging & Labeling Machinery – Synchronizing film feed, cutting, and labeling axes at high throughput speeds.
- Conveyor & Material Handling Systems – Managing indexing tables, shuttle conveyors, and automated storage/retrieval (AS/RS) systems.
- Printing & Converting Equipment – Regulating web tension and register control in flexographic and gravure printing lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F3NC12-1N |
| Series | FA-M3 (YOKOGAWA Sequence CPU) |
| Control Axes | 1 axis |
| Output Type | Pulse train (open collector) |
| Max Output Frequency | 500 kpps |
| Positioning Method | Absolute / Incremental |
| Control Mode | Position, Speed, Home Return |
| Interface | FA-M3 backplane bus |
| Power Consumption | 5 VDC (from backplane) |
| Weight | 360 g |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10 % to 90 % RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Seamless FA-M3 Integration – Slots directly into any FA-M3 base unit without additional interface hardware, reducing panel space and wiring complexity.
- High-Speed Pulse Output – 500 kpps maximum frequency supports fast servo drives without sacrificing positioning resolution.
- Flexible Homing Routines – Built-in home return function with configurable search speed and creep speed eliminates custom ladder logic for machine startup.
- Interrupt-Driven Position Latch – Hardware latch input captures encoder position on external trigger, enabling flying-shear and registration mark detection without CPU scan-time jitter.
- Compact Single-Slot Footprint – Occupies only one FA-M3 slot, preserving rack space for I/O expansion in multi-axis machines.
- Proven YOKOGAWA Reliability – MTBF exceeding 200,000 hours, backed by YOKOGAWA’s global service network.
Complete System Bill of Materials
For a fully operational single-axis servo system based on the F3NC12-1N, engineers typically specify:
- YOKOGAWA F3NC12-1N – Position Control Module (this item)
- FA-M3 CPU Module (e.g., F3SP71-4S or F3SP76-7S)
- FA-M3 Base Unit (e.g., F3BU04-0N / F3BU09-0N)
- FA-M3 Power Supply Module (e.g., F3PU20-0S)
- Compatible Servo Drive (e.g., YASKAWA Σ-7 or Mitsubishi MR-J4 with pulse input)
- Servo Motor matched to drive
- Encoder feedback cable (shielded, twisted-pair)
- 24 VDC I/O power supply for limit switches and home sensor
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL / cUL Listed – UL 508 Industrial Control Equipment
- IEC 61131-2 – Programmable Controllers: Equipment Requirements and Tests
- IEC 60068-2-6 – Vibration (Sinusoidal) Test
- RoHS Compliant – Directive 2011/65/EU
Quality Assurance & Sourcing
Every F3NC12-1N unit offered through Konmask.com undergoes a structured verification process:
- Authenticity Check – Serial number and date code verified against YOKOGAWA manufacturer records.
- Visual Inspection – PCB, connector pins, and housing examined for damage, corrosion, or counterfeit indicators.
- Functional Burn-In – Module powered and communication tested on FA-M3 rack prior to shipment.
- Anti-Static Packaging – Shipped in ESD-safe bags with moisture barrier and desiccant.
- Traceable Documentation – Certificate of conformance and inspection report available on request.
How to Source This Part
Ready to order or need a formal quotation? Contact our industrial automation team:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders confirmed within 24 hours.
- Payment: T/T, PayPal, credit card, and LC accepted.
- Export: Worldwide shipping with DHL, FedEx, and UPS. Export documentation (commercial invoice, packing list, CO) provided.
Application-Specific FAQ
Q: Can the F3NC12-1N control a servo drive that requires differential pulse output?
A: The F3NC12-1N provides open-collector pulse output. For differential (line-driver) output, a signal converter or a differential output module such as the F3NC34-0N should be considered. Contact us to confirm compatibility with your specific drive.
Q: Is the F3NC12-1N compatible with all FA-M3 base units?
A: Yes. It is compatible with all standard FA-M3 base units (F3BU04-0N, F3BU09-0N, F3BU13-0N, etc.) and does not require a dedicated slot position.
Q: Can I use multiple F3NC12-1N modules in one rack for multi-axis control?
A: Yes. Multiple modules can be installed in the same rack. Each module controls one independent axis, and all axes are coordinated through the FA-M3 CPU ladder program.
Q: What programming software is required?
A: YOKOGAWA ToolBox (WideField3) is used for ladder programming and module parameter configuration. The F3NC12-1N is configured via dedicated function blocks within WideField3.
Q: Do you provide the YOKOGAWA F3NC12-1N user manual?
A: Yes. The technical manual (IM 34M06H55-01E) is available upon request. Contact support@konmask.com.
