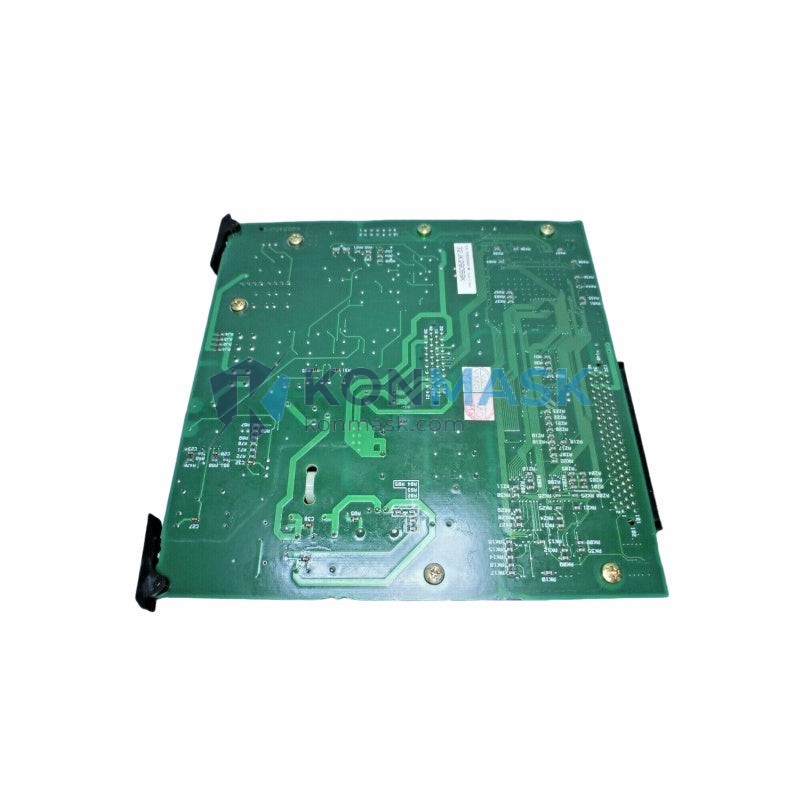

Yokogawa K9634DB-01 TCD Card – Multi-Channel Thermocouple Input Module for CENTUM VP / CS 3000 DCS
When a thermocouple input card fails inside a CENTUM VP or CS 3000 distributed control system, the consequences cascade instantly: temperature loops go blind, safety interlocks lose their reference signals, and operators are forced into manual override on critical process units. In refinery distillation columns, pharmaceutical bioreactors, or chemical reactor trains, even a brief loss of temperature measurement can trigger unplanned shutdowns costing tens of thousands of dollars per hour. The Yokogawa K9634DB-01 TCD Card is the precision component that keeps those loops alive — and finding a verified replacement quickly is not optional.
The K9634DB-01 occupies a specialized position within Yokogawa’s CENTUM VP and CS 3000 I/O subsystem. As a dedicated thermocouple input card, it delivers high-accuracy analog signal conditioning directly within the field control station (FCS), eliminating the need for external signal converters and reducing wiring complexity. CENTUM VP remains one of the world’s most widely deployed DCS platforms across oil & gas, power generation, pulp & paper, and specialty chemicals — making the K9634DB-01 one of the most strategically important spare parts in any plant’s MRO inventory.
Technical Specifications
- Part Number: K9634DB-01
- Manufacturer: Yokogawa Electric Corporation
- Series: CENTUM VP / CS 3000 I/O Module Series
- Module Type: TCD Card – Thermocouple Input Module
- Signal Type: Thermocouple (TC) analog input
- Form Factor: Plug-in card for CENTUM VP / CS 3000 field control station (FCS) nest
- Weight: 3,700 g (module with packaging)
- Compatibility: CENTUM VP, CENTUM CS 3000
- Condition Available: New surplus, refurbished, and tested-used
Note: Detailed electrical specifications (channel count, input ranges, accuracy class, isolation voltage) should be confirmed against the official Yokogawa K9634DB-01 datasheet or your system engineering documentation. Konmask does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Direct TC Signal Conditioning: Processes thermocouple millivolt signals natively within the FCS nest, preserving signal integrity without external transmitters.
- Seamless Hot-Swap Compatibility: Designed for the CENTUM VP / CS 3000 modular architecture, enabling card replacement with minimal process disruption when system procedures are followed.
- High Measurement Accuracy: Engineered to Yokogawa’s industrial-grade accuracy standards, critical for temperature-sensitive process control loops.
- Proven Platform Reliability: Part of the CENTUM series — a platform with decades of continuous deployment in tier-1 global process industries.
- Reduced Spare Parts Complexity: A single K9634DB-01 card covers multiple thermocouple input channels, consolidating your MRO inventory footprint.
- OEM-Equivalent Quality: All units sourced by Konmask are inspected and verified against OEM form, fit, and function requirements before dispatch.
Industry & Equipment Applications
- Oil & Gas: Distillation column temperature profiling, fired heater tube skin monitoring, compressor bearing temperature loops
- Power Generation: Boiler steam temperature control, turbine exhaust gas monitoring, heat recovery steam generator (HRSG) loops
- Chemical & Petrochemical: Reactor temperature control, exothermic process safety interlocks, heat exchanger performance monitoring
- Pharmaceutical & Biotech: Bioreactor temperature regulation, sterilization cycle validation, clean-in-place (CIP) temperature logging
- Pulp & Paper: Digester temperature control, dryer section profiling, recovery boiler monitoring
- Food & Beverage: Pasteurization temperature loops, evaporator control, spray dryer outlet monitoring
System Integration & Compatible Parts
The K9634DB-01 TCD Card is designed to integrate within the following Yokogawa system architecture:
- Compatible DCS Platforms: Yokogawa CENTUM VP, CENTUM CS 3000
- Installation Location: Field Control Station (FCS) I/O nest / node unit
- Related I/O Cards: Yokogawa AAI141, AAI143, AAI543 (analog input), AAT141 (RTD input), ADV151 (digital input) — confirm compatibility with your FCS model and software revision
- Engineering Tools: Compatible with Yokogawa CENTUM VP Engineering Environment (ENG) for tag assignment and loop configuration
- Termination: Connects via Yokogawa-standard terminal board or marshalling cabinet wiring per plant engineering drawings
Always verify card slot compatibility, software revision requirements, and I/O builder configuration with your Yokogawa system documentation or local Yokogawa service representative before installation.
Our Quality Assurance Process
At Konmask.com, every industrial automation component goes through a structured verification process before it reaches your facility:
- Source Verification: Units are sourced from authorized channels, decommissioned plant upgrades, or certified surplus distributors — never from unverified grey-market sources.
- Visual & Physical Inspection: Each card is inspected for physical damage, connector integrity, PCB condition, and label authenticity.
- Functional Testing: Where applicable, cards undergo bench-level power-on and signal verification testing.
- Secure Packaging: Anti-static packaging with shock-absorbing materials ensures safe transit to your site.
- Documentation: Test reports and condition certificates available upon request for critical spare applications.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
- Provide your required quantity, preferred condition (new / refurbished / tested-used), and any urgency timeline.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice and arrange secure international shipping with full tracking.
- Export documentation (commercial invoice, packing list, certificate of origin) provided as standard.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and process control components — not a generalist electronics marketplace.
- Global Sourcing Network: Access to verified stock across Asia, Europe, and North America for hard-to-find Yokogawa parts.
- Technical Expertise: Our team understands CENTUM VP architecture — we speak your engineering language.
- Fast Response: Inquiry-to-quote in under 24 hours. Emergency same-day response available for critical shutdowns.
- Trusted by Industry: Serving procurement engineers and maintenance teams at refineries, power plants, and chemical facilities worldwide.
- Transparent Transactions: Clear documentation, traceable sourcing, and no hidden fees.
Frequently Asked Questions
Q: Is the Yokogawa K9634DB-01 compatible with both CENTUM VP and CS 3000?
A: The K9634DB-01 is designed for the CENTUM VP / CS 3000 I/O platform. However, compatibility depends on your specific FCS model, nest configuration, and software revision. Please share your system details when submitting an inquiry so our team can confirm fit.
Q: What thermocouple types does the K9634DB-01 support?
A: Supported thermocouple types (e.g., J, K, T, E, R, S, B) are defined in the official Yokogawa K9634DB-01 datasheet. We recommend consulting your system documentation or contacting us for the technical datasheet.
Q: Can I replace the K9634DB-01 while the system is running (hot-swap)?
A: CENTUM VP supports online card replacement under specific conditions. Always follow Yokogawa’s official hot-swap procedures and consult your system safety plan before performing live card swaps.
Q: Do you provide a warranty on the K9634DB-01?
A: Yes. Warranty terms vary by unit condition (new, refurbished, or tested-used). Details are provided in your quotation. Contact us for specifics.
Q: How quickly can you ship the K9634DB-01?
A: In-stock units typically ship within 1–3 business days. International express delivery (DHL, FedEx, UPS) is available. Lead times for sourced units are confirmed at the time of quotation.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin as standard. Additional documentation (e.g., MSDS, test reports) is available upon request.
