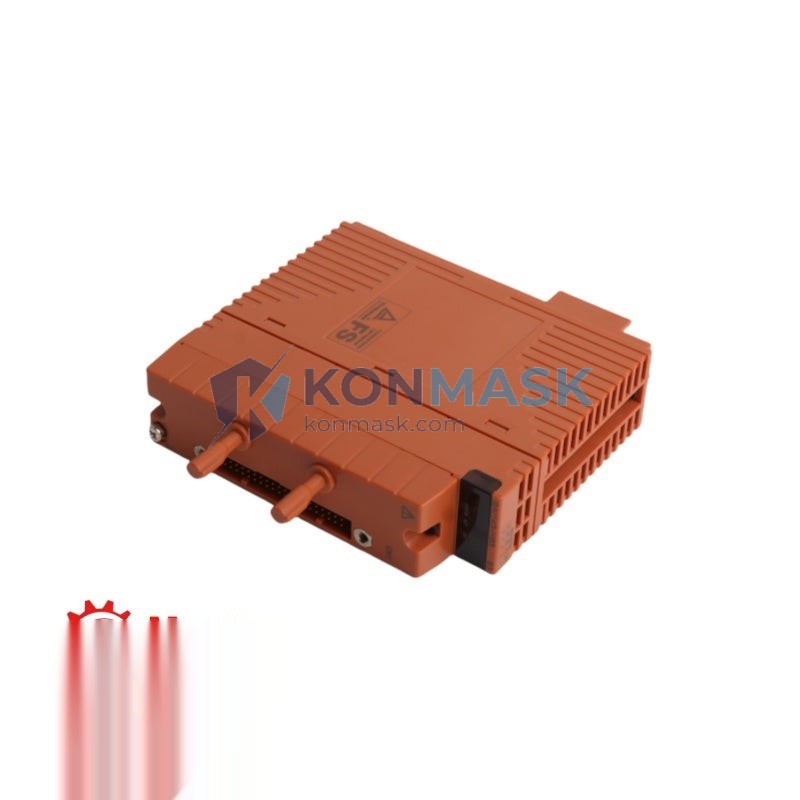

Yokogawa SAI143-H63 S3 – Signal Isolator | CENTUM VP DCS Platform
Engineering Background: The Yokogawa SAI143-H63 S3 is a precision signal isolator module designed for integration within Yokogawa’s CENTUM VP Distributed Control System (DCS) architecture. It provides galvanic isolation of analog input signals, protecting sensitive control electronics from ground loops, voltage spikes, and electrical noise common in heavy industrial environments such as oil & gas, petrochemical, and power generation facilities.
Product Positioning: As a field-proven component of the CENTUM VP platform, the SAI143-H63 S3 is the preferred choice for procurement engineers requiring reliable, spec-accurate signal conditioning with full OEM traceability. Konmask.com supplies this module directly from verified distribution channels, ensuring authenticity and long-term availability for both new installations and MRO (Maintenance, Repair & Operations) requirements.
Complete Technical Specifications
- Part Number / SKU: SAI143-H63 S3
- Manufacturer: Yokogawa Electric Corporation
- Series / Platform: CENTUM VP DCS
- Module Type: Signal Isolator / Analog Signal Conditioner
- Signal Type: 4–20 mA analog input (current loop)
- Isolation: Galvanic isolation between input, output, and power supply
- Input Channels: Multi-channel analog input conditioning
- Output Signal: Isolated 4–20 mA / voltage output (per channel configuration)
- Power Supply: 24 VDC (loop-powered or externally powered per variant)
- Operating Temperature: 0°C to +60°C (standard industrial range)
- Storage Temperature: -20°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Enclosure / Mounting: DIN rail / rack-mount compatible with CENTUM VP I/O nest
- Compliance: CE, RoHS; designed to IEC 61508 SIL standards
- Weight: Approx. 2,000 g (module with packaging)
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, midstream pipeline SCADA, downstream refinery DCS loops
- Petrochemical & Chemical Processing: Reactor temperature/pressure signal isolation, hazardous area signal conditioning
- Power Generation: Turbine control systems, boiler instrumentation loops, grid-tie protection circuits
- Pulp & Paper / Water Treatment: Process variable isolation in high-noise electrical environments
- Pharmaceutical Manufacturing: GMP-compliant process signal integrity for batch control systems
- Marine & Offshore: Vibration-resistant signal conditioning for vessel automation systems
Engineering Advantages
- True Galvanic Isolation: Eliminates ground loops and common-mode interference — critical for long cable runs in industrial plants
- CENTUM VP Native Compatibility: Plug-and-play integration with Yokogawa I/O nests; no additional signal conditioning hardware required
- High Signal Fidelity: Minimal signal distortion across the full 4–20 mA range ensures accurate process variable representation at the controller
- Compact Form Factor: Space-efficient module design reduces panel footprint without sacrificing channel density
- Long Service Life: Yokogawa’s industrial-grade components rated for continuous 24/7 operation in demanding environments
- Simplified Maintenance: Hot-swap capable within CENTUM VP architecture minimizes process downtime during module replacement
System Architecture & Signal Flow
The SAI143-H63 S3 operates within the CENTUM VP I/O subsystem as follows:
- Field Device → 4–20 mA signal enters the SAI143 input terminals
- Isolation Stage → Galvanic barrier eliminates electrical coupling between field and control sides
- Signal Conditioning → Filtered, linearized output signal transmitted to CENTUM VP controller bus
- Controller → Clean, noise-free process variable delivered to DCS logic for PID control, alarming, and historian logging
This architecture ensures that field-side faults (ground faults, cable shorts, transient surges) do not propagate into the control system, protecting both the DCS hardware and process integrity.
Sourcing & Quality Verification
- Verified Supply Chain: All Yokogawa modules at Konmask.com are sourced through traceable distribution channels with full documentation
- Pre-Shipment Inspection: Each unit undergoes visual inspection, label verification, and packaging integrity check before dispatch
- Authenticity Documentation: Original manufacturer labels, date codes, and serial numbers preserved and verifiable upon receipt
- Condition: New (factory-sealed) or tested surplus — clearly stated per listing; no refurbished units sold as new
- Warranty: 12-month operational warranty against manufacturing defects; DOA replacement policy within 7 days of receipt
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN as applicable)
Procurement Process
- Confirm Part Number: Verify SAI143-H63 S3 matches your BOM or existing CENTUM VP configuration
- Request Quote: Contact support@konmask.com with quantity, delivery timeline, and destination country
- Review Proforma Invoice: Receive itemized PI with unit price, shipping cost, lead time, and payment terms
- Place Order: Confirm order via email or online checkout; T/T bank transfer or secure online payment accepted
- Shipment & Tracking: Module dispatched within 1–3 business days; full tracking number provided via email
- Incoming Inspection: Verify serial number, label integrity, and packaging condition upon receipt; report any discrepancies within 48 hours
Technical FAQ
Q: Is the SAI143-H63 S3 compatible with CENTUM CS 3000?
A: The SAI143 series is optimized for CENTUM VP. Compatibility with CS 3000 depends on I/O nest configuration — consult your Yokogawa system integrator or contact us for cross-reference verification.
Q: Can this module be used in SIL 2 safety loops?
A: The SAI143-H63 S3 is designed to IEC 61508 standards. SIL suitability depends on the complete safety loop design and SIL assessment — refer to the Yokogawa functional safety manual for this series.
Q: What is the lead time for this module?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on global availability. Contact us for real-time stock status.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and available traceability documentation can be provided upon request for quality-critical procurement.
Q: Can you supply multiple units for a plant-wide upgrade project?
A: Yes. Konmask.com supports bulk procurement for MRO, plant upgrades, and new installations. Volume pricing available — contact us for a project quote.
