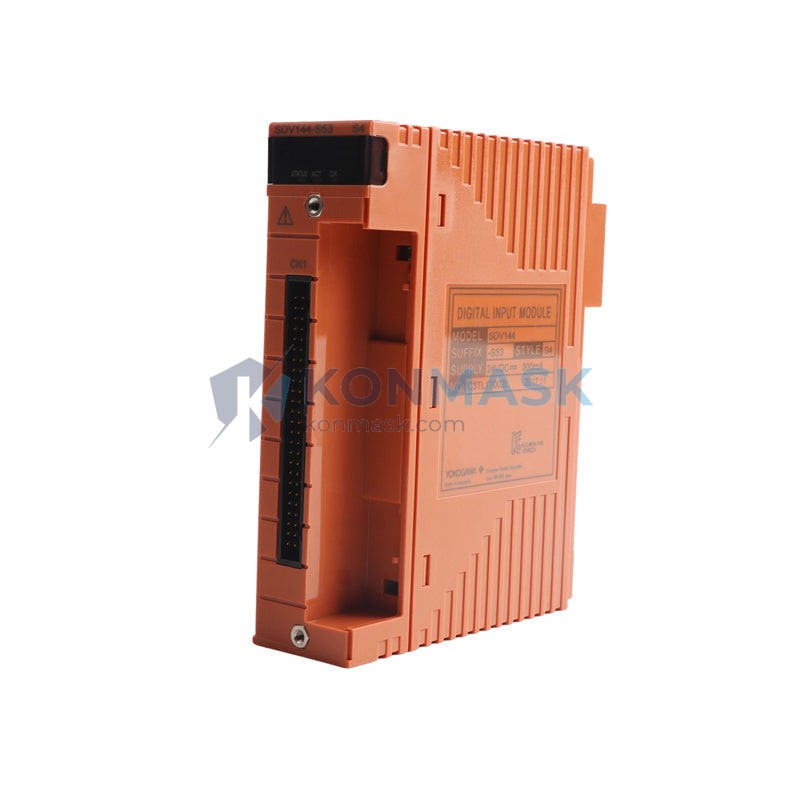

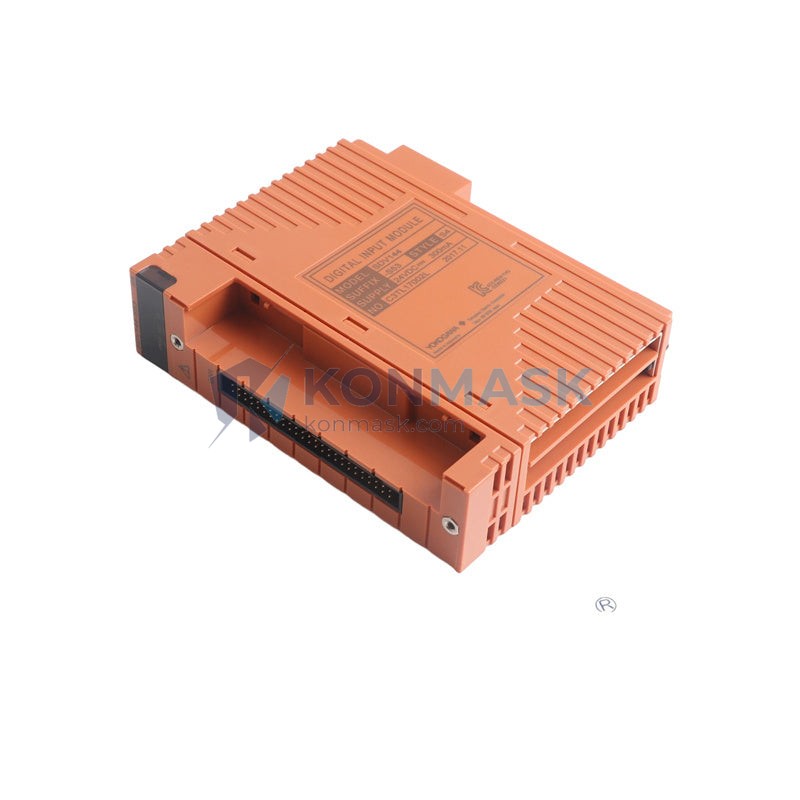

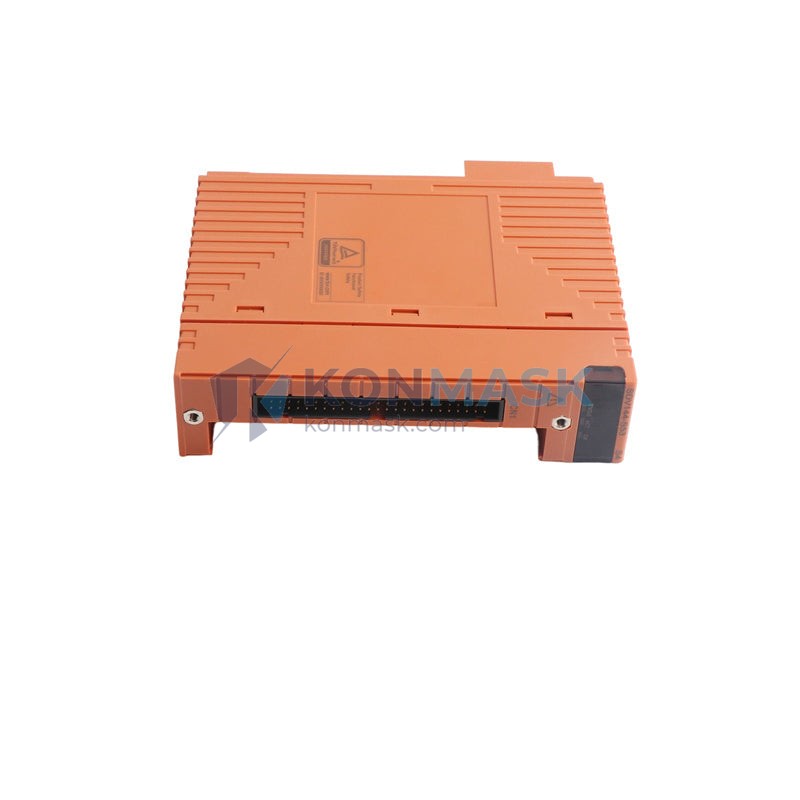

YOKOGAWA SDV144-S53 – 32-Channel Digital Input Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The SDV144-S53 is a high-density digital input (DI) module designed for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems — two of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process industries. As a field-proven I/O component, it serves as the primary interface between field-level discrete signals and the process control network, enabling reliable status monitoring, interlock logic, and safety-critical feedback loops.
Product Positioning
Procurement engineers sourcing replacement or expansion I/O for CENTUM VP / CS 3000 installations will find the SDV144-S53 to be a direct, specification-matched solution. Konmask.com maintains verified stock of this module to support both planned MRO procurement and urgent unplanned outage recovery scenarios.
Complete Technical Specifications
| Part Number | SDV144-S53 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Digital Input (DI) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Channels | 32 channels (DI) |
| Input Signal Type | Dry contact / Voltage-free contact |
| Input Voltage Range | 24 VDC (nominal) |
| Isolation | Optical isolation between field and system bus |
| Scan Cycle | Synchronized with FCS controller scan period |
| Communication Bus | Internal ESB / ER Bus (CENTUM backplane) |
| Module Form Factor | Single-slot plug-in card for CENTUM I/O nest |
| Weight | 340 g |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Compliance | CE, UL (per YOKOGAWA platform certification) |
| RoHS Status | Compliant (S53 suffix designation) |
Proven Application Environments
- Oil & Gas Refining – Valve position feedback, pump run/stop status, ESD interlock inputs
- Petrochemical Plants – Reactor status monitoring, motor control center (MCC) feedback
- Power Generation – Turbine auxiliary status, breaker position monitoring
- Pulp & Paper / Chemical – Conveyor status, agitator run feedback, level switch inputs
- LNG / Offshore Platforms – Safety instrumented system (SIS) auxiliary DI expansion
- Water & Wastewater Treatment – Pump station status, valve limit switch monitoring
Engineering Advantages
- High Channel Density – 32 DI channels per slot minimizes cabinet footprint and reduces wiring complexity in large-scale DCS architectures
- Optical Isolation – Galvanic separation between field wiring and system bus protects controller integrity from field-side transients and ground loops
- Hot-Swap Compatible – Supports online module replacement within CENTUM VP redundant I/O configurations, enabling zero-downtime maintenance
- Deterministic Scan Synchronization – Input states are latched and transferred in synchronization with the FCS scan cycle, ensuring consistent process data integrity
- RoHS S53 Suffix – Confirms compliance with EU RoHS Directive, supporting export and installation in regulated markets
- Long Service Life – YOKOGAWA’s industrial-grade component selection ensures reliable operation across 10+ year plant lifecycles
System Architecture & Signal Flow
The SDV144-S53 installs into a standard CENTUM VP or CS 3000 I/O nest (Node Unit). Field discrete signals — typically dry contacts from limit switches, relay outputs, or pushbuttons — are wired to the module’s terminal block. The module conditions and optically isolates each input, then transfers the 32-channel digital state word to the Field Control Station (FCS) via the internal ESB bus on each scan cycle. The FCS processes the DI data within its control application (function blocks), making it available for alarm management, interlock logic, HMI display, and historian logging via the CENTUM VP engineering environment (FAST/TOOLS, Exaopc OPC server).
Sourcing & Quality Verification
- Source Traceability – All SDV144-S53 units offered by Konmask.com are sourced from verified industrial channels including decommissioned plant MRO stock and authorized regional distributors
- Pre-shipment Inspection – Each module undergoes visual inspection for physical integrity: connector condition, PCB cleanliness, label legibility, and absence of corrosion or mechanical damage
- Firmware / Revision Verification – Hardware revision markings are documented and disclosed prior to shipment to ensure compatibility with the customer’s installed FCS firmware version
- Packaging – Shipped in anti-static ESD bags with foam cushioning inside double-wall corrugated cartons; humidity indicator cards included for international shipments
- Documentation – YOKOGAWA part number label, revision sticker, and available test records provided with each unit
Procurement Process
- Submit Inquiry – Contact Konmask.com via email or phone with your required quantity, target delivery date, and destination country
- Quotation & Lead Time Confirmation – We respond within 1 business day with pricing (HKD/USD), available stock quantity, and estimated ship date
- Purchase Order – Issue PO against our proforma invoice; T/T bank transfer and major trade payment terms accepted
- Quality Check & Packing – Pre-shipment inspection completed; packing list and inspection report issued
- Shipment & Tracking – Dispatched via DHL Express, FedEx, or freight forwarder per customer preference; AWB/tracking number provided same day
- After-Sales Support – 30-day return window for DOA (Dead on Arrival) units; technical consultation available for installation and compatibility questions
Technical FAQ
Q: Is the SDV144-S53 compatible with both CENTUM VP and CS 3000?
A: Yes. The SDV144-S53 is designed for use across both CENTUM CS 3000 and CENTUM VP platforms, sharing the same I/O nest and ESB bus architecture. Confirm your FCS firmware version with YOKOGAWA documentation for full compatibility assurance.
Q: What does the “S53” suffix indicate?
A: The S53 suffix designates RoHS compliance per YOKOGAWA’s internal part numbering convention, confirming the module meets EU Restriction of Hazardous Substances requirements.
Q: Can this module be used in a redundant I/O configuration?
A: The SDV144-S53 supports CENTUM VP’s standard I/O redundancy architecture when paired with the appropriate nest and FCS configuration. Consult your CENTUM VP system engineering documentation (IM 33J01B30-01EN) for redundant I/O setup procedures.
Q: What is the typical lead time for delivery?
A: In-stock units ship within 2–3 business days. International delivery via DHL Express typically takes 3–7 business days depending on destination and customs clearance.
Q: Do you provide a warranty?
A: Konmask.com offers a 30-day DOA replacement guarantee. For extended warranty requirements, please discuss at time of quotation.
Q: Can you supply multiple units for a plant-wide I/O expansion project?
A: Yes. We support bulk procurement inquiries. Contact us with your full BOM for a consolidated quotation.
