DCS Digital Output Solution – YOKOGAWA SDV541-S53 S3 | CENTUM VP / CS 3000 Series
Where This Product Is Used

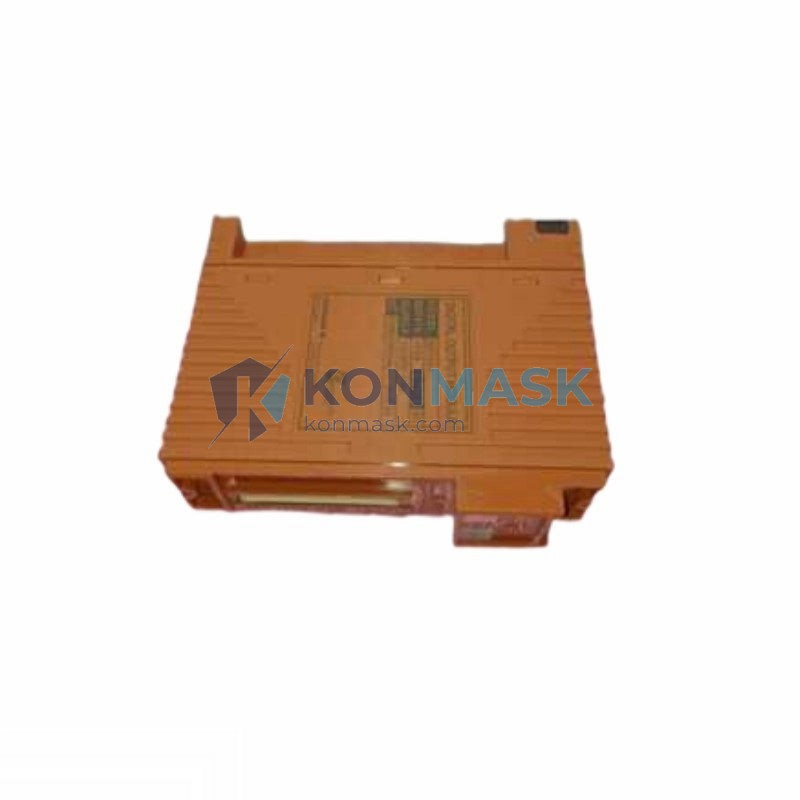

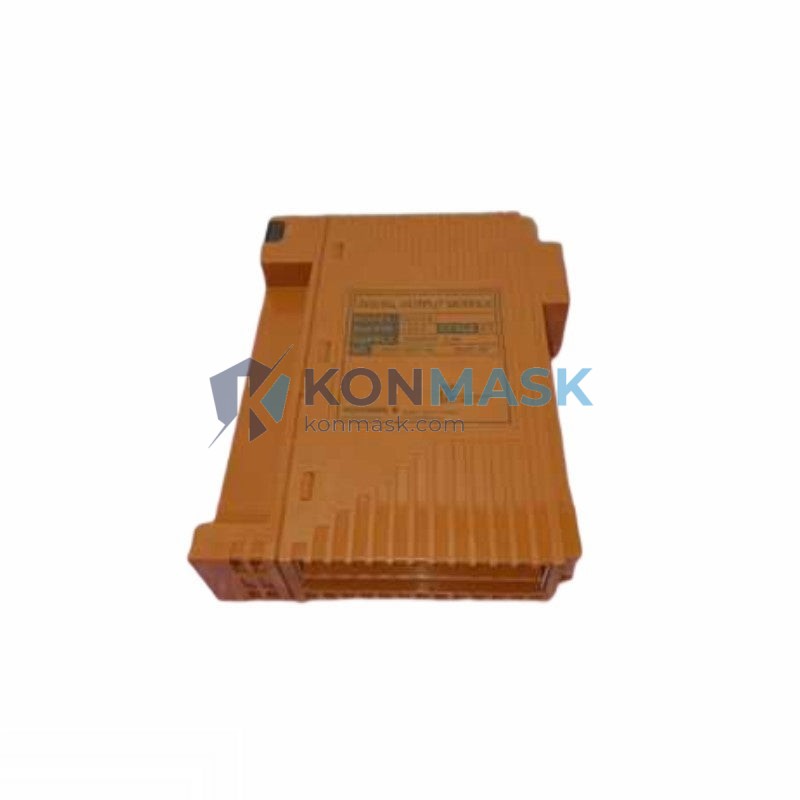

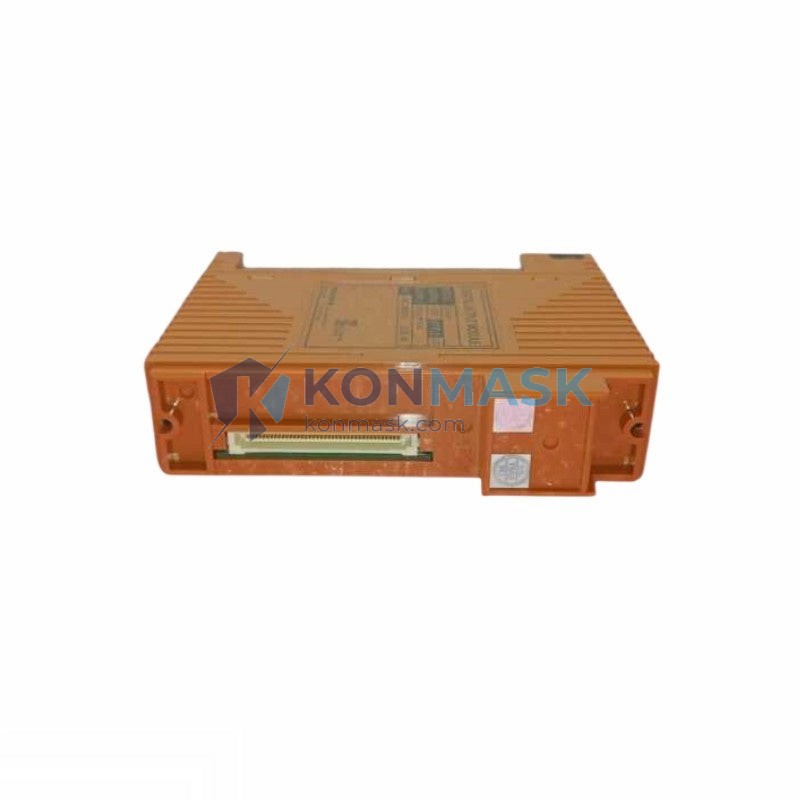

The YOKOGAWA SDV541-S53 S3 Digital Output Module is deployed in mission-critical process control environments where reliable, high-density discrete output signaling is essential. Typical installation sites include:
- Oil & Gas Refineries — Control of solenoid valves, motor starters, and shutdown actuators in upstream/downstream processing units
- Chemical & Petrochemical Plants — Driving on/off field devices in reactor control loops and batch processing sequences
- Power Generation Facilities — Turbine auxiliary control, breaker command outputs, and BOP (Balance of Plant) automation
- Pulp & Paper Mills — Coordinating conveyor drives, valve actuators, and process interlocks
- Pharmaceutical Manufacturing — GMP-compliant discrete output control for CIP/SIP systems and cleanroom HVAC
- Water & Wastewater Treatment — Pump start/stop commands and valve sequencing in SCADA-integrated DCS architectures
- LNG Terminals & Offshore Platforms — SIL-rated output control in safety-instrumented system (SIS) adjacent loops
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | YOKOGAWA Electric Corporation |
| Part Number | SDV541-S53 S3 |
| Module Type | Digital Output (DO) Module |
| Compatible Platform | CENTUM VP / CENTUM CS 3000 DCS |
| Output Type | Transistor (Sink/Source) or Relay — per S53 suffix configuration |
| Number of Output Channels | 16 channels (typical for SDV541 series) |
| Output Voltage Range | 24 VDC nominal field supply |
| Isolation | Channel-to-channel and channel-to-bus optical isolation |
| Communication Bus | YOKOGAWA ESB (Enhanced Signal Bus) / V-net |
| Redundancy Support | Dual-redundant module configuration supported |
| Mounting | Node Unit (NU) / Field Control Station (FCS) card slot |
| Weight | 340 g |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| SKU / Part Code | SDV541-S53 S3 |
Note: Specifications are based on YOKOGAWA published datasheets. Confirm exact channel count and I/O characteristics with the module nameplate and project engineering documentation.
Why Engineers Specify This Model
- Platform Continuity — Direct drop-in replacement for aging CENTUM CS 3000 installations, preserving existing FCS architecture and I/O mapping without re-engineering
- High Channel Density — Maximizes cabinet real estate in brownfield expansions where rack space is constrained
- Optical Isolation — Eliminates ground loops and protects the DCS backplane from field-side transients common in heavy industrial environments
- Redundancy-Ready — Supports 1:1 module redundancy for continuous availability in processes where unplanned downtime carries significant cost
- Proven Field Record — SDV541 series modules have accumulated decades of runtime in tier-1 process industries globally, with well-documented maintenance procedures
- Simplified Diagnostics — Integrated LED channel status indicators accelerate fault isolation during commissioning and maintenance windows
Complete System Bill of Materials
For a fully operational CENTUM VP / CS 3000 digital output node, the following components are typically required alongside the SDV541-S53 S3:
- Field Control Station (FCS) chassis — e.g., YOKOGAWA AFV10D / AFV30D
- Node Unit (NU) card cage — compatible with SDV5xx series modules
- ESB Bus Coupler / V-net Interface Card
- Power Supply Module — e.g., YOKOGAWA PW481 / PW482 (redundant pair recommended)
- Terminal Board — YOKOGAWA TB series matched to SDV541 connector type
- Field Wiring Marshalling Cabinet with surge protection (SPD) on DO lines
- Engineering Workstation (EWS) with CENTUM VP Builder software for I/O tag configuration
- Fiber-optic or copper V-net / ESB cabling per site topology
Contact Konmask for sourcing assistance on any of the above complementary components.
Compliance & Industry Standards
- CE Marking — Compliant with EU EMC and Low Voltage Directives
- UL / cUL Listed — Recognized for use in North American industrial control panels
- IEC 61131-2 — Programmable controller I/O module standard compliance
- IEC 61508 / IEC 61511 — CENTUM VP platform certified for use in SIL 1/2 safety loops (verify SIL rating with YOKOGAWA Safety Manual for specific module revision)
- RoHS Compliant — Restriction of Hazardous Substances per EU Directive 2011/65/EU
- ATEX / IECEx — Field devices driven by this module may require zone-rated barriers; module itself is installed in safe-area FCS cabinet
Quality Assurance & Sourcing
Konmask.com specializes in the procurement of genuine, traceable automation components for industrial control systems. Our sourcing process for the SDV541-S53 S3 includes:
- Authenticity Verification — Each module is inspected against YOKOGAWA OEM markings, date codes, and firmware revision labels prior to dispatch
- Functional Pre-shipment Check — Modules are bench-tested for power-on self-test (POST) pass and LED indicator functionality where test fixtures are available
- Traceability Documentation — Certificate of conformance (CoC) and, where available, original YOKOGAWA factory test records provided on request
- Secure Packaging — ESD-safe anti-static bags, foam-lined cartons, and climate-controlled storage to preserve module integrity during transit
- Warranty — 90-day operational warranty against defects in materials and workmanship; extended warranty available upon request
How to Source This Part
- Confirm Compatibility — Cross-reference your FCS model number and existing I/O module list (IOM) against the SDV541-S53 S3 datasheet. Provide your CENTUM system generation (CS 3000 vs. VP) if unsure.
- Request a Quote — Email [email protected] with your required quantity, delivery timeline, and destination port/Incoterm preference.
- Lead Time & Stock — In-stock units typically ship within 3–5 business days (EXW Xiamen). Out-of-stock orders are sourced within 2–4 weeks depending on supply chain availability.
- Payment & Export — We support T/T bank transfer, PayPal, and trade finance arrangements. Full export documentation (commercial invoice, packing list, CO) provided for customs clearance.
- After-Sales Support — Our technical team can assist with module installation guidance, I/O tag mapping, and CENTUM VP Builder configuration questions.
Application-Specific FAQ
Q: Is the SDV541-S53 S3 compatible with both CENTUM CS 3000 and CENTUM VP systems?
A: Yes. The SDV541 series is designed for cross-generation compatibility within the YOKOGAWA CENTUM platform. Always verify the specific FCS hardware revision and software version with your YOKOGAWA system documentation before installation.
Q: Can this module be used in a redundant configuration?
A: Yes. CENTUM VP supports 1:1 module redundancy for DO modules. Two SDV541-S53 S3 units are required per redundant pair, along with the appropriate redundancy cable and FCS configuration in CENTUM VP Builder.
Q: What is the difference between the S53 and other suffix variants?
A: The suffix designates the output type and terminal board compatibility. S53 indicates a specific output configuration (transistor sink/source or relay) and connector pinout. Do not substitute suffix variants without confirming terminal board and field wiring compatibility.
Q: Do you supply the matching terminal board (TB)?
A: Yes. Contact us with your SDV541-S53 S3 order and we will identify and quote the correct YOKOGAWA terminal board for your installation.
Q: What documentation can you provide with the module?
A: We provide a certificate of conformance as standard. YOKOGAWA original datasheets, installation manuals (IM), and factory test records are available on request subject to availability.
Q: Can Konmask assist with urgent/emergency replacement orders?
A: Yes. Contact us directly at +0086 19859288691 for expedited sourcing. We maintain relationships with multiple supply channels to support unplanned maintenance scenarios.
