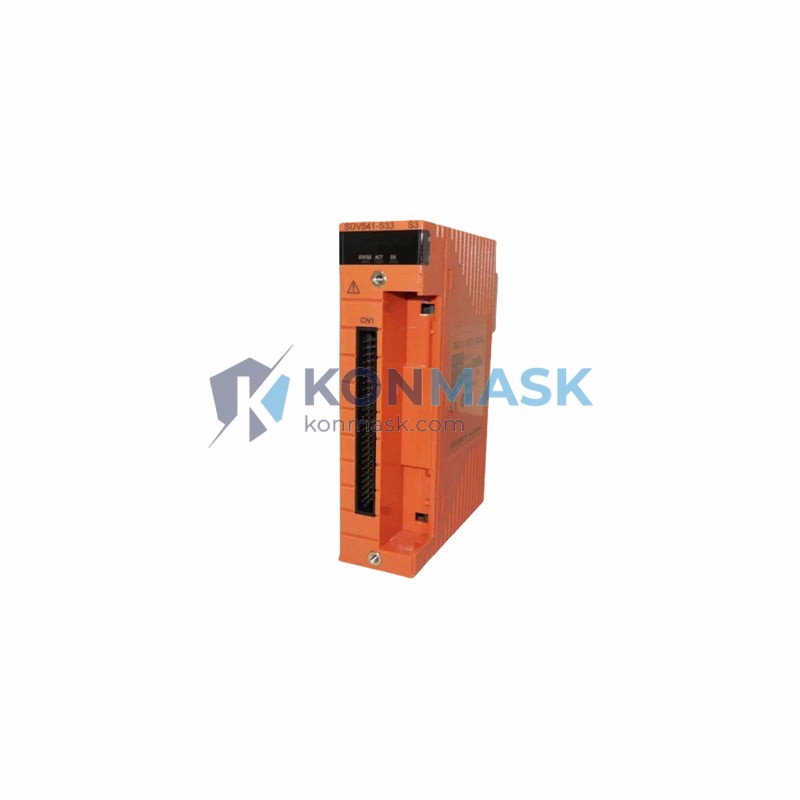

Yokogawa SDV541-S63/PRP S3 – 32-Channel Digital Output Module | CENTUM CS 3000 DCS Platform
Engineering Background
The Yokogawa CENTUM CS 3000 is a field-proven Distributed Control System (DCS) platform widely deployed across refining, petrochemical, power generation, and pharmaceutical industries. The SDV541-S63/PRP S3 is a dedicated 32-channel digital output (DO) module engineered for the CS 3000 S3 node architecture, providing deterministic, high-density discrete control output capability within safety-critical process environments.
Product Positioning
Designed for procurement engineers and automation integrators who require a direct OEM-equivalent replacement or expansion module for existing CS 3000 installations. The SDV541-S63/PRP S3 maintains full backward compatibility with CS 3000 S3 Field Control Stations (FCS), ensuring zero-compromise integration without system reconfiguration.
Complete Technical Specifications
- Part Number / SKU: SDV541-S63/PRP S3
- Manufacturer: Yokogawa Electric Corporation
- Platform: CENTUM CS 3000 DCS – S3 Node
- Module Type: Digital Output (DO) Module
- Output Channels: 32 channels
- Output Signal: Discrete (ON/OFF) digital output
- Suffix /PRP: Specific I/O card configuration / terminal board pairing
- Suffix S3: CS 3000 S3 node compatibility designation
- Power Supply: Supplied via CS 3000 node backplane
- Mounting: CS 3000 S3 I/O nest / node chassis
- Weight: 1,380 g (approx.)
- Country of Origin: Japan
- Compliance: CE, UL (per CS 3000 system certification)
- HS Code: 8537.10 (Programmable controllers / industrial control boards)
Proven Application Environments
- Oil & Gas – Upstream / Downstream process control
- Petrochemical & Refining – Reactor and distillation column DO control
- Power Generation – Turbine and boiler auxiliary control
- Pharmaceutical – Batch process discrete output management
- Pulp & Paper – Line speed and valve actuation control
- Water Treatment – Pump and valve switching automation
Engineering Advantages
- High Channel Density: 32 DO channels per module minimizes rack space and reduces total installed cost
- OEM Compatibility: Direct plug-in replacement for CS 3000 S3 nodes — no firmware or configuration changes required
- Deterministic Output: Synchronized with CS 3000 FCS scan cycle for precise process timing
- Robust Construction: Designed for continuous 24/7 operation in industrial environments
- Reduced Downtime: Hot-swap capable within CS 3000 architecture (subject to system configuration)
- Long Service Life: Yokogawa OEM-grade components with extended MTBF
System Architecture & Signal Flow
The SDV541-S63/PRP S3 installs into the CS 3000 S3 I/O nest and communicates via the internal V-net/IP or ESB bus to the Field Control Station (FCS). The FCS executes control logic and issues discrete output commands to the SDV541 module, which drives field devices (solenoid valves, motor starters, relays, indicator lamps) through the /PRP terminal board. Signal isolation is maintained at the module level to protect the control network from field-side transients.
Sourcing & Quality Verification
- All units sourced from verified industrial surplus, OEM channels, or authorized distributors
- Pre-shipment inspection: visual, functional continuity, and firmware version check
- Original Yokogawa labeling and part markings verified
- Packaging: anti-static ESD bag + foam-lined carton
- Warranty: 90-day operational warranty against DOA / functional defects
- Counterfeit-free guarantee — traceable supply chain documentation available on request
Procurement Process
- Submit RFQ via konmask.com/pages/contact or email [email protected]
- Receive quotation with lead time and stock confirmation within 24 hours
- Purchase order accepted — HKD / USD / CNY payment supported
- Export documentation (commercial invoice, packing list, COO) provided for customs clearance
- DHL / FedEx / SF Express international shipping available
Technical FAQ
Q: Is the SDV541-S63/PRP S3 compatible with CENTUM VP?
A: No. This module is specifically designed for the CS 3000 S3 node architecture. CENTUM VP uses a different I/O bus and module form factor. Please contact us for VP-compatible alternatives.
Q: What is the difference between SDV541 and SDV542?
A: SDV541 is a standard digital output module; SDV542 typically denotes a variant with different channel count or output drive capability. Confirm your node BOM before ordering.
Q: Can this module be used in a redundant FCS configuration?
A: Yes, subject to the CS 3000 system configuration. Redundant I/O pairing requires matching module pairs and appropriate terminal board wiring.
Q: Do you provide a test report or inspection certificate?
A: Yes. Functional test reports are available upon request for orders of 2+ units.
Q: What is the lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items: 2–6 weeks depending on sourcing channel.
