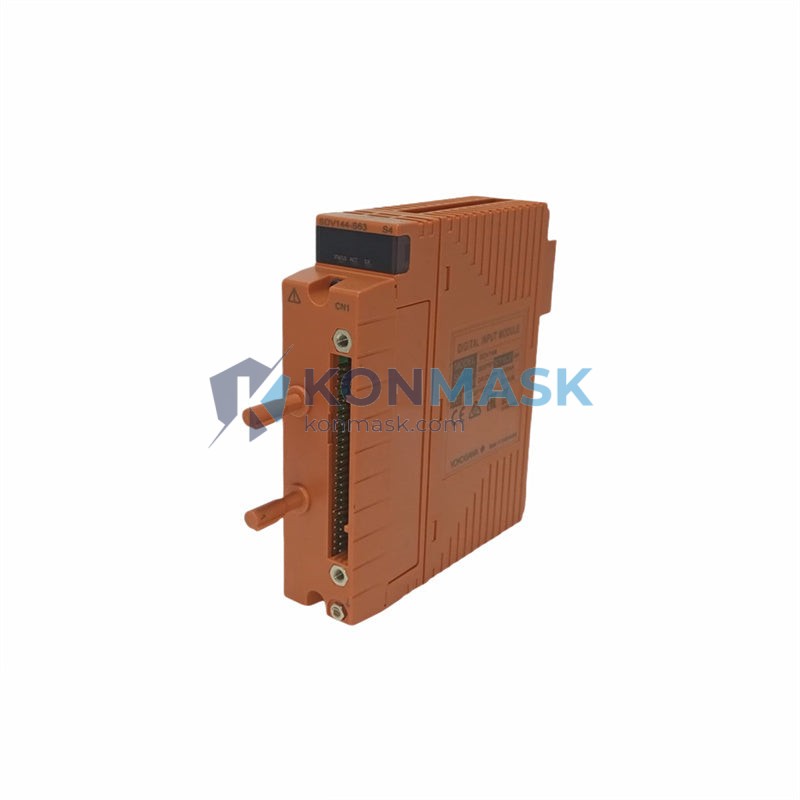

Yokogawa SAV144-S53 – 4-Channel Analog Input/Output Module | STARDOM FCN/FCJ Platform
Engineering Background: The SAV144-S53 is a combined analog input/output module designed for Yokogawa’s STARDOM FCN and FCJ autonomous controllers — a distributed control architecture widely deployed in oil & gas, chemical processing, water treatment, and power generation facilities. The module integrates four analog input channels and four analog output channels into a single compact slot, reducing panel footprint while maintaining industrial-grade signal integrity.
Product Positioning: Targeted at procurement engineers and system integrators sourcing replacement or expansion I/O for existing STARDOM FCN/FCJ installations. The SAV144-S53 is a factory-tested, OEM-sourced module supplied with full traceability documentation, making it suitable for both MRO (Maintenance, Repair & Operations) procurement and greenfield project builds.
Complete Technical Specifications
- Part Number: SAV144-S53
- Manufacturer: Yokogawa Electric Corporation
- Platform: STARDOM FCN / FCJ Autonomous Controller
- Module Type: Combined Analog Input / Analog Output (AI+AO)
- Analog Input Channels: 4 channels
- Analog Output Channels: 4 channels
- Input Signal Range: 4–20 mA DC / 1–5 V DC (selectable per channel)
- Output Signal Range: 4–20 mA DC
- Resolution: 16-bit A/D and D/A conversion
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Consumption: Supplied via FCN/FCJ backplane bus
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Certifications: CE Marking, UL/cUL Listed
- Weight: Approx. 1,380 g (module with housing)
- Mounting: STARDOM FCN/FCJ I/O slot (hot-swap capable)
- Communication: Internal FCN/FCJ backplane bus
Proven Application Environments
- Oil & Gas: Flow, pressure, and temperature loop control in upstream/midstream facilities
- Chemical Processing: Reactor feed control, distillation column monitoring
- Water & Wastewater: Pump speed control, level and flow measurement
- Power Generation: Turbine auxiliary control, boiler feed water regulation
- Pharmaceutical: Batch process analog signal acquisition and valve positioner output
- Food & Beverage: Temperature and pressure PID loop integration
Engineering Advantages
- Dual-function density: Combines 4 AI + 4 AO in one module slot, halving the I/O slot count versus discrete modules
- High-resolution conversion: 16-bit ADC/DAC ensures precise process variable representation and fine actuator control
- Hot-swap support: Module can be replaced under power without shutting down the FCN/FCJ controller, minimizing process downtime
- Galvanic isolation: Channel isolation prevents ground loops and protects the controller backplane from field-side faults
- Broad signal compatibility: Accepts both current (4–20 mA) and voltage (1–5 V) inputs, accommodating legacy and modern field instruments
- Seamless STARDOM integration: Plug-and-play recognition within FCN/FCJ chassis; no additional configuration hardware required
System Architecture & Signal Flow
The SAV144-S53 occupies a standard I/O slot in the STARDOM FCN or FCJ chassis. Field wiring connects to the module’s terminal block via the I/O node wiring base. Analog input signals are conditioned, multiplexed, and digitized by the onboard 16-bit ADC before being transferred to the FCN/FCJ CPU over the internal backplane bus. Analog output values written by the CPU application program are converted by the 16-bit DAC and driven to field actuators (control valves, variable-speed drives, positioners) as 4–20 mA current signals. The module’s internal watchdog ensures output channels revert to a configurable fail-safe state upon loss of CPU communication.
Sourcing & Quality Verification
- Origin: OEM-sourced from authorized Yokogawa distribution channels
- Inspection: Each unit undergoes incoming inspection including visual check, label verification, and functional power-on test
- Traceability: Serial number and date code recorded; documentation available upon request
- Packaging: Anti-static bag + foam-lined carton; original Yokogawa packaging where available
- Warranty: 12-month warranty against manufacturing defects from date of shipment
- Counterfeit Prevention: All modules verified against Yokogawa part number databases; no gray-market or refurbished units supplied without explicit disclosure
Procurement Process
- Submit RFQ: Contact support@konmask.com with your required quantity, delivery timeline, and project details
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Issue PO or place order directly via konmask.com checkout
- Inspection & Dispatch: Module inspected, packed, and dispatched with commercial invoice and packing list
- Delivery: DHL / FedEx / UPS express worldwide; EXW Xiamen available for freight forwarder arrangements
- After-Sales: Technical support and warranty claims handled by our engineering team
Technical FAQ
Q: Is the SAV144-S53 compatible with both FCN and FCJ controllers?
A: Yes. The module is designed for the STARDOM FCN/FCJ I/O chassis and is compatible with both controller variants.
Q: Can input channels be individually configured for current or voltage?
A: Yes. Each analog input channel can be independently configured for 4–20 mA or 1–5 V input via the FCN/FCJ engineering tool (STARDOM Engineering Tool).
Q: What happens to the analog outputs if the CPU fails?
A: The module’s watchdog circuit detects CPU communication loss and drives outputs to a pre-configured fail-safe value (hold last value or go to a defined setpoint), preventing uncontrolled actuator movement.
Q: Is hot-swap replacement possible without process shutdown?
A: Yes, the FCN/FCJ chassis supports hot-swap I/O replacement. Follow Yokogawa’s documented hot-swap procedure to ensure safe module exchange during live operation.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC and inspection report are available upon request for all orders.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For out-of-stock items, lead time is typically 4–8 weeks depending on Yokogawa’s supply chain status.
