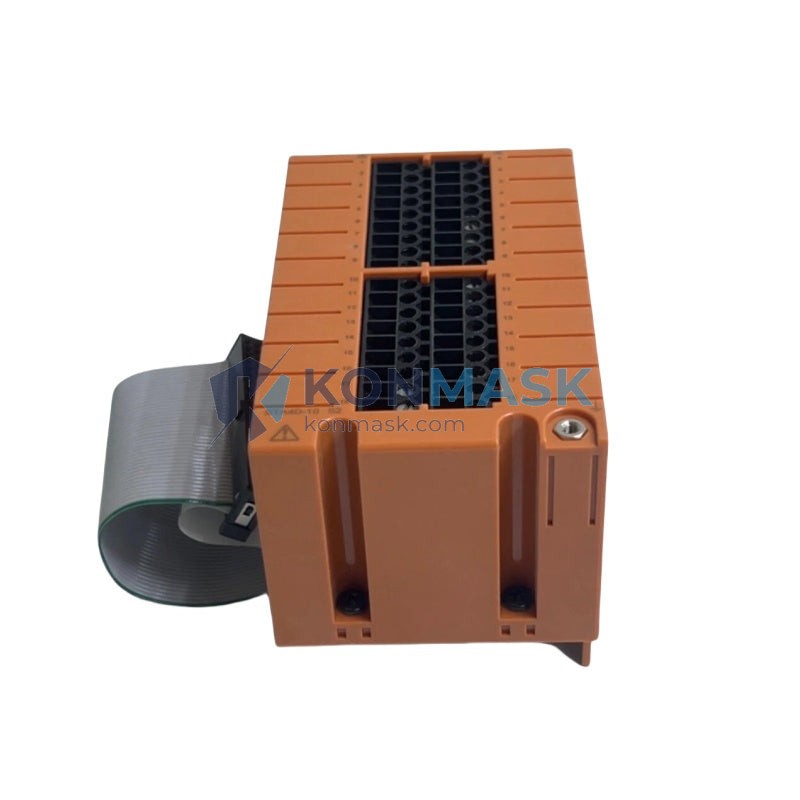

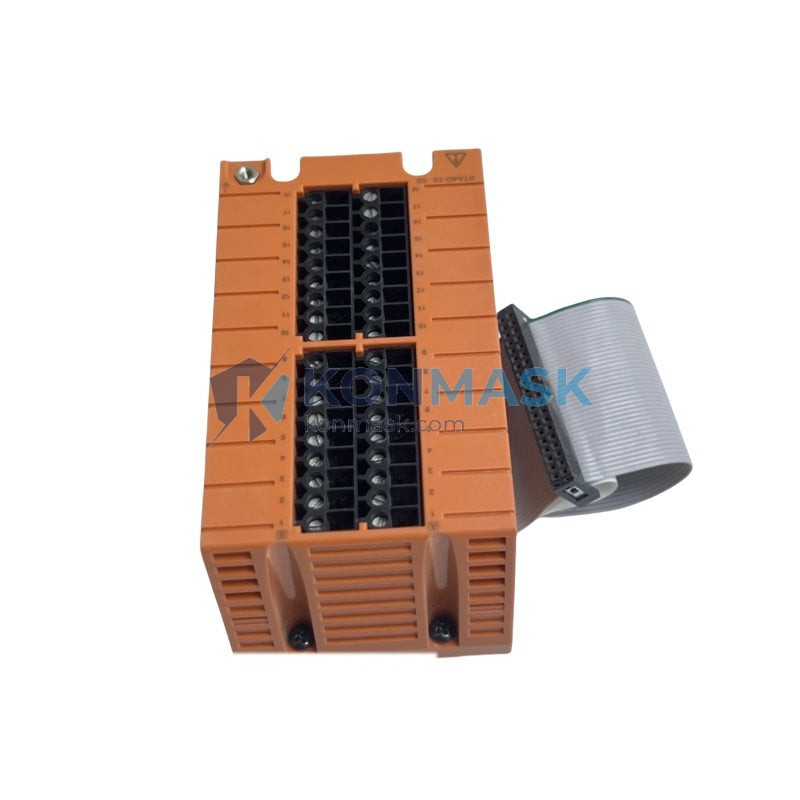

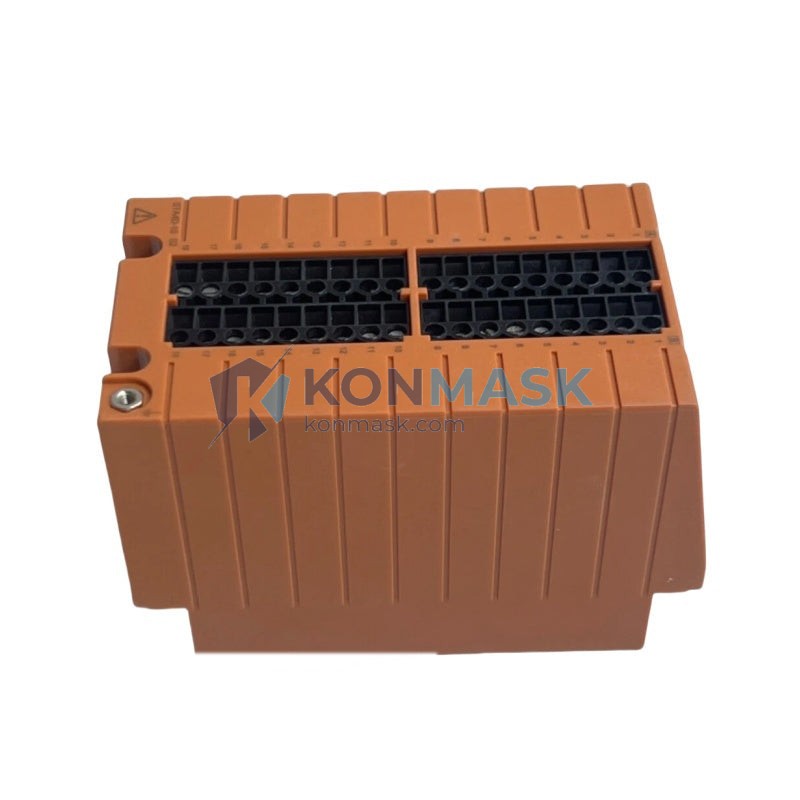

Yokogawa STA4D-10 S2 Pressure Clamp Terminal Block – STA Series Spring-Clamp Wiring Solution
When a terminal block fails or goes missing inside a live DCS or PLC marshalling cabinet, the consequences are immediate and costly: signal loops drop out, field instruments go blind, and process control is lost. Unplanned downtime in a refinery, chemical plant, or power generation facility can cost tens of thousands of dollars per hour. The Yokogawa STA4D-10 S2 Pressure Clamp Terminal Block is the precision-engineered component that keeps those connections secure, vibration-resistant, and maintenance-free — because in industrial automation, the wiring infrastructure is only as reliable as its weakest terminal.
The STA4D-10 S2 belongs to Yokogawa’s STA Series of spring-clamp (pressure clamp) terminal blocks, purpose-built for integration with Yokogawa’s CENTUM VP, ProSafe-RS, and STARDOM distributed control systems, as well as third-party PLC marshalling cabinets. Within the STA Series lineup, the STA4D-10 S2 is positioned as a dual-level, 10-position terminal assembly — offering higher wiring density without sacrificing accessibility. Yokogawa terminal blocks are trusted in thousands of process automation installations worldwide, from LNG terminals in the Middle East to semiconductor fabs in Asia.
Technical Specifications
- Part Number / SKU: STA4D-10 S2
- Manufacturer: Yokogawa Electric Corporation
- Series: STA Series
- Type: Pressure Clamp (Spring-Clamp) Terminal Block
- Configuration: Dual-level, 10-position
- Connection Method: Screwless spring-clamp (tool-free or flat-blade insertion)
- Compatible Systems: Yokogawa CENTUM VP, ProSafe-RS, STARDOM, third-party PLC I/O marshalling
- Mounting: 35 mm DIN rail (TS35)
- Weight: 300 g (assembled unit)
- Origin: Japan
Note: Electrical ratings (voltage, current, wire gauge) are per Yokogawa’s official STA Series datasheet. Contact us for the full technical datasheet.
Key Features & Benefits
- Screwless Spring-Clamp Design: Eliminates screw-loosening from vibration — connections remain secure over years of operation in harsh plant environments.
- Dual-Level Configuration: Doubles wiring density per DIN rail slot, reducing cabinet footprint and material costs.
- 10-Position Assembly: Pre-assembled 10-circuit block speeds up panel wiring and reduces installation errors.
- Tool-Free Termination: Flat-blade actuator allows fast, repeatable wire insertion and removal — critical for maintenance turnarounds.
- Yokogawa OEM Compatibility: Designed to exact Yokogawa mechanical and electrical tolerances for seamless integration with STA Series accessories (end brackets, jumpers, markers).
- High Vibration Resistance: Meets IEC 60947-7-1 requirements for industrial terminal blocks in dynamic environments.
- Long Service Life: Spring-clamp contacts maintain consistent clamping force across thousands of insertion cycles.
Industry & Equipment Applications
- Oil & Gas: DCS marshalling cabinets in upstream/downstream process control (CENTUM VP field junction boxes)
- Chemical & Petrochemical: Safety instrumented system (SIS) wiring in ProSafe-RS panels
- Power Generation: Turbine control and BOP (Balance of Plant) I/O termination
- Semiconductor Manufacturing: Cleanroom-compatible control panel wiring
- Water & Wastewater: SCADA remote I/O marshalling
- Pulp & Paper / Food & Beverage: Hygienic process control panel wiring with high-cycle maintenance
System Integration & Compatible Parts
The STA4D-10 S2 is designed to work within the complete Yokogawa STA Series ecosystem. Compatible accessories and related parts include:
- STA Series end brackets and partition plates
- STA Series jumper bars and cross-connection bridges
- STA Series marker strips and label holders
- Yokogawa CENTUM VP I/O modules (ADV, AAV, AAI series)
- ProSafe-RS safety I/O modules
- DIN rail mounting hardware (35 mm TS35)
Need a complete BOM for your panel? Contact our technical team at [email protected] — we can cross-reference your existing Yokogawa system drawings.
Our Quality Assurance Process
Every Yokogawa STA4D-10 S2 unit shipped from Konmask.com undergoes a rigorous verification process:
- Authenticity Verification: Parts are sourced from authorized Yokogawa distributors and verified against Yokogawa’s official part numbering system.
- Visual & Mechanical Inspection: Each unit is inspected for physical integrity — spring mechanism, housing, and labeling.
- Traceability: Batch and lot documentation available upon request for regulated industries (SIL, FDA, etc.).
- Secure Packaging: Anti-static, moisture-resistant packaging to protect precision contacts during international transit.
How to Order
- Submit an inquiry via this page or email [email protected] with your required quantity and delivery timeline.
- Our team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange export documentation and international shipping (DHL, FedEx, sea freight).
- Track your shipment with our dedicated logistics support until delivery.
Minimum Order Quantity: 1 unit | Lead Time: Subject to stock — contact us for real-time availability.
Why Choose Konmask.com?
- 🏭 Industrial Automation Specialists: We focus exclusively on DCS, PLC, and process control components — not a general electronics distributor.
- 🌍 Global B2B Export Experience: Serving engineering firms, EPC contractors, and MRO buyers in 50+ countries.
- 📋 Technical Support: Our team includes experienced automation engineers who can assist with part selection, cross-referencing, and system compatibility.
- ⚡ Fast Quotation: Inquiry-to-quote in under 24 hours for standard parts.
- 🔒 Secure Transactions: Formal commercial invoices, packing lists, and COO documentation for customs clearance.
Frequently Asked Questions
Q: Is the STA4D-10 S2 an original Yokogawa part?
A: Yes. All parts listed on Konmask.com are sourced from authorized channels. We do not sell counterfeit or reverse-engineered components.
Q: Can the STA4D-10 S2 be used with non-Yokogawa systems?
A: Yes. While optimized for Yokogawa DCS/SIS panels, the STA Series spring-clamp terminal blocks are compatible with standard 35 mm DIN rail installations and can be used in any marshalling cabinet requiring high-density, screwless termination.
Q: What wire sizes are compatible?
A: Please refer to the official Yokogawa STA Series datasheet for wire gauge specifications. Contact us and we will provide the full technical document.
Q: Do you offer volume discounts for large orders?
A: Yes. Volume pricing is available for orders of 10+ units. Please include your required quantity in your inquiry for a tailored quotation.
Q: What is the typical lead time?
A: Lead time depends on current stock levels. In-stock items typically ship within 3–5 business days. For out-of-stock items, lead time is 4–8 weeks from Yokogawa’s supply chain. Contact us for real-time availability.
Q: Can you provide export documentation?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and can arrange third-party inspection reports upon request.
