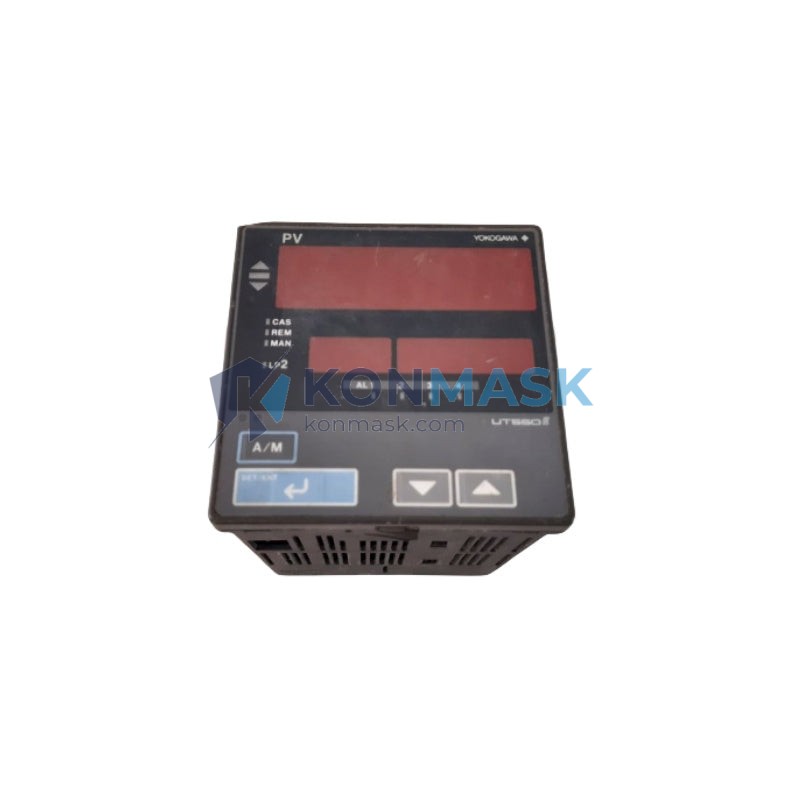

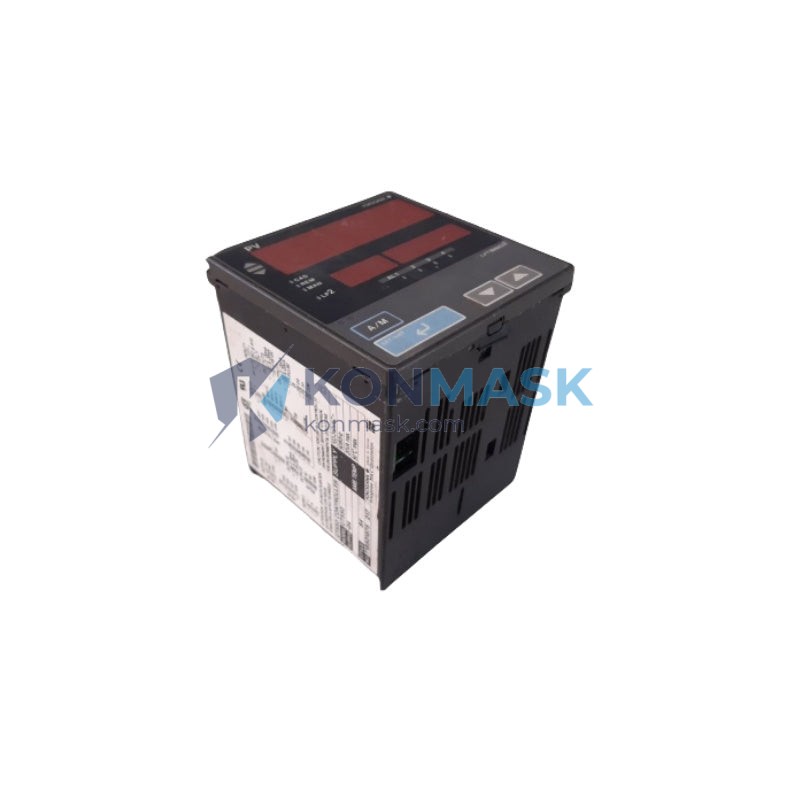

YOKOGAWA UT550-04 S4 – Advanced PID Temperature Controller | UT550 Series
Engineering Background
The YOKOGAWA UT550 Series represents Yokogawa Electric Corporation’s flagship single-loop digital temperature controller platform, engineered for demanding process industries where thermal stability, loop accuracy, and communication reliability are non-negotiable. Yokogawa’s decades of instrumentation expertise are embedded in every firmware revision of the UT550, making it a benchmark reference in petrochemical, pharmaceutical, and precision manufacturing environments worldwide.
Product Positioning
The UT550-04 S4 variant is configured for 4-20 mA analog output with RS-485 serial communication, positioning it as the preferred choice for distributed control architectures where the controller must both drive final control elements and report process data upstream to a DCS or SCADA host. Its compact 96×96 mm DIN panel footprint allows dense panel layouts without sacrificing display legibility or operator accessibility.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UT550-04 S4 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Series | UT550 Digital Indicating Controller |
| Control Action | PID / ON-OFF / Manual |
| Input Types | Thermocouple (B, E, J, K, N, R, S, T, W), RTD (Pt100, JPt100), DC Voltage (0–5 V, 1–5 V, 0–10 V), DC Current (0–20 mA, 4–20 mA) |
| Output – Control (Option 04) | 4–20 mA DC analog output, load ≤ 600 Ω |
| Communication (Option S4) | RS-485, MODBUS RTU / Yokogawa proprietary protocol, up to 31 nodes, 1200–38400 bps |
| Display | Dual 4-digit LED: PV (red) / SP (green), 7-segment |
| Sampling Period | 100 ms |
| Control Period | Configurable: 1–120 s (PID); 0.1–1.0 s (time-proportional) |
| Alarm Outputs | 2 relay outputs (SPDT, 250 VAC / 3 A) |
| Setpoint Range | Within input range; up to 4 programmable SPs |
| Auto-Tuning | Yes – limit-cycle method |
| Power Supply | 100–240 VAC ±10%, 50/60 Hz; or 24 VDC/VAC (specify at order) |
| Power Consumption | ≤ 15 VA |
| Panel Cutout | 92 × 92 mm (DIN 96) |
| Mounting Depth | ≤ 100 mm behind panel |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | −25 to 70 °C |
| Humidity | 20–90% RH (non-condensing) |
| Protection | IP54 (front panel) |
| EMC Compliance | CE Marking; IEC 61326-1 |
| Weight | Approx. 400 g |
| Approvals | CE, UL/cUL (optional) |
Proven Application Environments
- Petrochemical & Refining – Reactor temperature stabilization, heat-exchanger outlet control
- Pharmaceutical & Biotech – Autoclave, lyophilizer, and clean-room HVAC loops requiring FDA-traceable setpoint records via RS-485 data logging
- Food & Beverage Processing – Pasteurization, retort, and oven temperature management with alarm relay interlocks
- Plastics & Rubber – Extruder barrel zone control with 4–20 mA valve positioner interface
- Semiconductor Fabrication – Diffusion furnace and CVD chamber thermal profiling
- Power Generation – Boiler drum and steam-line temperature monitoring with SCADA integration
- Laboratory & R&D – Precision thermal cycling, environmental chamber control
Engineering Advantages
- High-Speed Sampling (100 ms) – Captures fast thermal transients that slower controllers miss, reducing overshoot in tight-tolerance processes.
- Universal Input Flexibility – Single hardware SKU accepts TC, RTD, voltage, and current signals; eliminates the need for separate input-card variants.
- Integrated RS-485 (S4) – Native MODBUS RTU support enables direct integration with Siemens, Allen-Bradley, Mitsubishi, and Omron PLCs without external converters.
- Auto-Tuning PID – Limit-cycle auto-tune reduces commissioning time from hours to minutes, even on non-linear thermal loads.
- IP54 Front Panel – Splash and dust resistance suitable for wash-down environments without additional enclosure upgrades.
- Dual SP / Ramp-Soak Programs – Supports multi-segment thermal profiles for batch processes without an external programmer.
- Low Power Footprint (≤ 15 VA) – Minimizes panel heat load in high-density installations.
System Architecture & Signal Flow
The UT550-04 S4 operates as a closed-loop PID node within a layered control hierarchy:
- Field Sensor Layer – TC/RTD/transmitter feeds the universal analog input (terminal 11/12).
- Controller Layer – UT550 executes PID algorithm at 100 ms scan; computes 4–20 mA output to drive control valve, SCR power controller, or variable-speed drive.
- Supervision Layer – RS-485 bus (terminal 21/22/23) connects up to 31 UT550 nodes to a DCS, SCADA, or data historian via MODBUS RTU. Setpoint changes, PV reads, and alarm status are all accessible over the bus.
- Safety Interlock Layer – Two SPDT relay outputs provide independent high/low alarm contacts wired to safety PLCs or audible annunciators.
This four-layer architecture ensures that a communication fault at the supervision layer does not interrupt local PID control — the UT550 continues autonomous operation using its last valid setpoint.
Sourcing & Quality Verification
- Origin: Sourced from authorized YOKOGAWA distribution channels and verified surplus inventory with full traceability.
- Inspection: Each unit undergoes visual inspection, label verification (model code, date code, firmware revision sticker), and functional power-on check prior to shipment.
- Packaging: Ships in original or equivalent anti-static protective packaging with terminal cover and mounting hardware.
- Documentation: Certificate of conformance available on request; YOKOGAWA IM 05D01B02-01E user manual reference provided.
- Warranty: 90-day Konmask operational warranty against DOA/latent defects.
Procurement Process
- Confirm Compatibility – Verify input type, output option (04 = 4–20 mA), and communication option (S4 = RS-485) match your loop design. Contact our engineers if unsure.
- Request Quote / Stock Check – Email support@konmask.com or call +0086 19859288691 for lead time and volume pricing.
- Place Order – Secure checkout via Konmask.com. Accepts T/T bank transfer, PayPal, and major credit cards.
- Shipping – DHL / FedEx express worldwide; EXW Xiamen or CIF destination available for bulk orders. Typical dispatch: 1–3 business days.
- After-Sales Support – Technical commissioning assistance, parameter configuration guidance, and warranty claims handled by our engineering team.
Technical FAQ
Q: Can the UT550-04 S4 accept a 4–20 mA input from a pressure transmitter?
A: Yes. Select the DC current input range (4–20 mA) in the input configuration menu. The controller will scale the PV display to your engineering units.
Q: What MODBUS function codes are supported?
A: FC03 (Read Holding Registers), FC06 (Write Single Register), FC16 (Write Multiple Registers). Full register map is in YOKOGAWA IM 05D01B02-41E.
Q: Is the RS-485 port isolated?
A: Yes, the S4 communication option provides 500 V DC optical isolation between the RS-485 bus and the controller’s internal circuitry.
Q: Can I run the controller on 24 VDC panel power?
A: The standard UT550-04 S4 is rated for 100–240 VAC. A 24 VDC/VAC power supply option must be specified at the time of order (suffix “/U” or “/A” depending on revision). Confirm with Konmask before ordering if 24 V operation is required.
Q: How do I back up controller parameters?
A: Via RS-485 MODBUS read of the parameter register block, or using YOKOGAWA’s LL100 Loader software. Konmask can provide parameter backup service on request.
Q: What is the difference between UT550-04 and UT550-04 S4?
A: The base UT550-04 has 4–20 mA control output only. The S4 suffix adds the RS-485 communication module, enabling remote monitoring and setpoint adjustment from a host system.
