Process Control & DCS Analog Output Solution — YOKOGAWA AAI543-H03 S1 | CENTUM VP / CS 3000
Where This Product Is Used

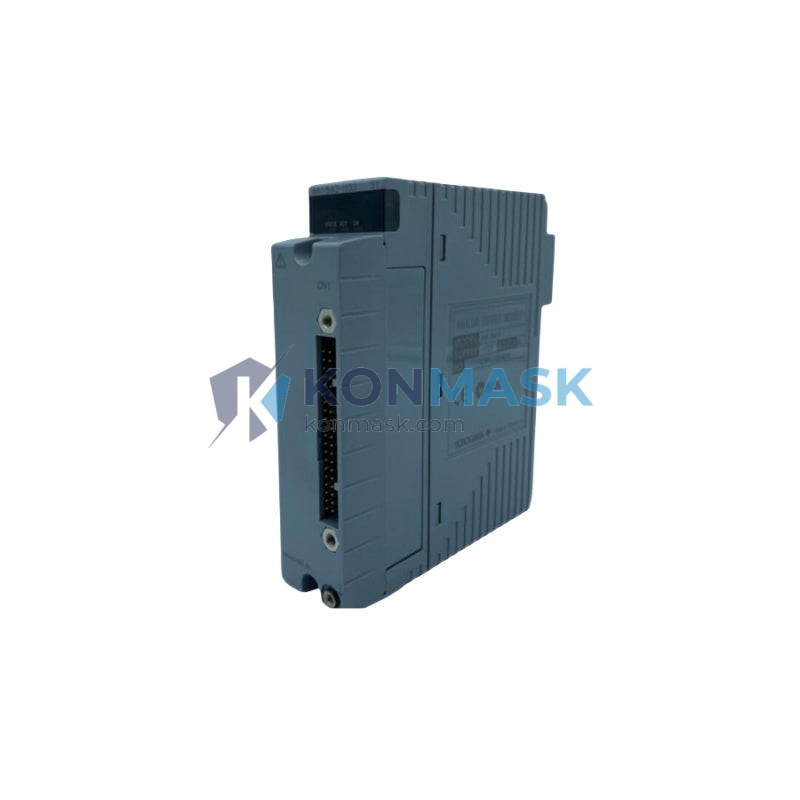

The YOKOGAWA AAI543-H03 S1 is a 16-channel analog current output module engineered for mission-critical process automation environments. It is widely deployed in:
- Oil & Gas — upstream wellhead control, midstream pipeline regulation, downstream refinery DCS loops
- Petrochemical & Chemical Plants — reactor temperature/pressure setpoint transmission, feed-ratio control
- Power Generation — boiler combustion control, turbine governor signal output
- Pulp & Paper / Water Treatment — multi-loop PID output to control valves and variable-speed drives
- Pharmaceutical & Food & Beverage — validated batch process control requiring HART-compatible 4–20 mA loops
This module slots directly into YOKOGAWA CENTUM VP and CENTUM CS 3000 field control stations (FCS), providing deterministic, high-resolution analog output to final control elements such as control valves, positioners, and variable-frequency drives.
Technical Specifications
| Part Number | AAI543-H03 S1 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Module Type | Analog Current Output (AO) |
| Number of Channels | 16 channels |
| Output Signal Range | 4–20 mA DC (HART-compatible) |
| Output Resolution | 16-bit D/A conversion |
| Load Resistance | ≤ 750 Ω per channel |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 FCS |
| Suffix -H03 | CE marking / ATEX-ready variant |
| Suffix S1 | Standard conformal coating / tropical specification |
| Power Consumption | Refer to YOKOGAWA GS 33J50B20-01EN |
| Operating Temperature | 0 °C to +55 °C |
| Weight | Approx. 300 g |
| Form Factor | Single-slot I/O module for CENTUM FCS nest |
Specifications are provided for reference. Always verify against the official YOKOGAWA datasheet for your revision level.
Why Engineers Specify This Model
- High channel density — 16 AO channels per slot minimises cabinet footprint and wiring cost in large DCS installations.
- 16-bit resolution — delivers fine setpoint granularity essential for tight PID loops in refinery and chemical applications.
- HART pass-through — enables remote device configuration and diagnostics without breaking the 4–20 mA loop.
- Conformal-coated (S1) — resists humidity, condensation, and airborne contaminants in tropical or coastal plant environments.
- CE / ATEX-ready (-H03) — simplifies compliance documentation for European and hazardous-area installations.
- Hot-swap capable — supports online replacement within CENTUM VP redundant FCS configurations, minimising planned downtime.
- Proven field record — part of YOKOGAWA’s CENTUM I/O family with decades of installed base across global process industries.
Complete System Bill of Materials
A typical CENTUM VP analog output sub-system using the AAI543-H03 S1 includes:
- AAI543-H03 S1 — Analog Current Output Module (this item)
- ANB10D / ANB11D — I/O nest / base unit for FCS
- AIP588 — I/O power supply module
- ALF111 — Field terminal unit (marshalling) for AO loops
- KS1-T / KS2-T — Signal cable between module and field terminal
- HART-compatible control valve positioner (e.g., YOKOGAWA YVP110)
- CENTUM VP Engineering License (for I/O builder configuration)
Contact support@konmask.com for a complete BOM quotation tailored to your FCS nest configuration.
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- ATEX / IECEx — Suitable for use in associated apparatus configurations (verify zone classification with YOKOGAWA)
- IEC 61511 — Functional safety (SIL) assessment available via YOKOGAWA SIL documentation
- RoHS Compliant — Directive 2011/65/EU
- HART Protocol — HART Communication Foundation compatible
- ISO 9001 — Manufactured under YOKOGAWA’s certified quality management system
Quality Assurance & Sourcing
At Konmask.com, every AAI543-H03 S1 unit is subject to our standard incoming inspection protocol:
- Visual inspection for physical damage, label integrity, and firmware revision marking
- Verification of part number, suffix, and serial number against supplier documentation
- Functional power-on check where test equipment is available
- Anti-static packaging with humidity indicator card for transit protection
We source from authorised distributors, certified secondary-market channels, and direct plant decommissioning projects. Provenance documentation is available on request.
How to Source This Part
- Add to cart and proceed to checkout — we accept T/T bank transfer, PayPal, and major credit cards.
- Request a quote — email support@konmask.com with your required quantity, delivery timeline, and destination port for a formal proforma invoice.
- Urgent requirement? — Call or WhatsApp +0086 19859288691 for same-day stock confirmation and expedited shipping options (DHL Express, FedEx IP, air freight).
- OEM / system integrator orders — volume pricing and blanket PO arrangements available. Contact us for a framework agreement.
Application-Specific FAQ
Q: Is the AAI543-H03 S1 compatible with CENTUM CS 3000 as well as CENTUM VP?
A: Yes. The AAI543 series is cross-compatible with both CENTUM CS 3000 and CENTUM VP field control stations. Confirm nest and power supply compatibility with your FCS revision.
Q: What does the S1 suffix indicate?
A: S1 denotes the tropical/conformal-coating specification, providing enhanced protection against humidity and corrosive atmospheres — recommended for plants in Southeast Asia, the Middle East, and coastal regions.
Q: Can I use this module in a Safety Instrumented System (SIS)?
A: The AAI543 is a standard DCS I/O module, not a certified SIL safety module. For SIS applications, YOKOGAWA’s ProSafe-RS platform with dedicated safety I/O should be specified.
Q: Do you provide a warranty?
A: Konmask offers a 90-day functional warranty on all verified modules. Extended warranty and on-site support can be arranged — contact us for terms.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items are typically sourced within 2–4 weeks depending on global availability.
Q: Can you supply the full CENTUM VP I/O nest assembly?
A: Yes. We can supply complete nest assemblies including power supplies, communication modules, and field terminal units. Send your BOM to support@konmask.com.
