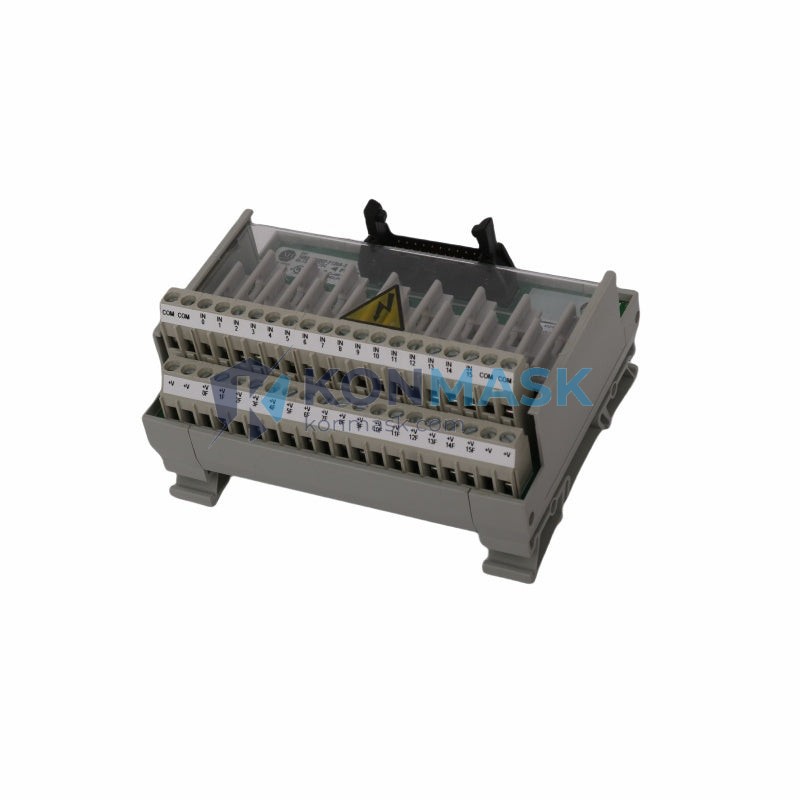

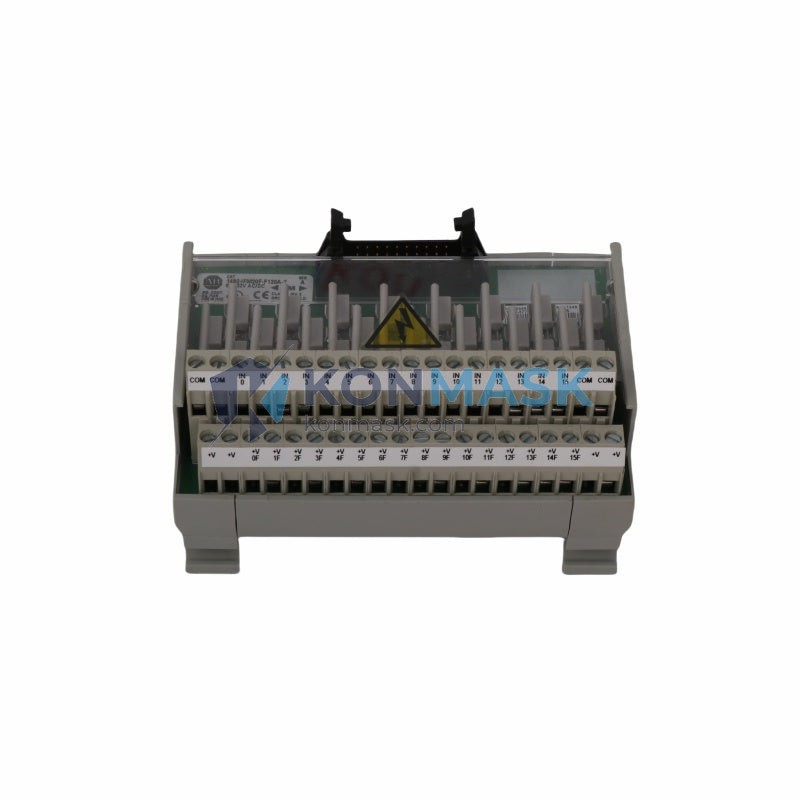

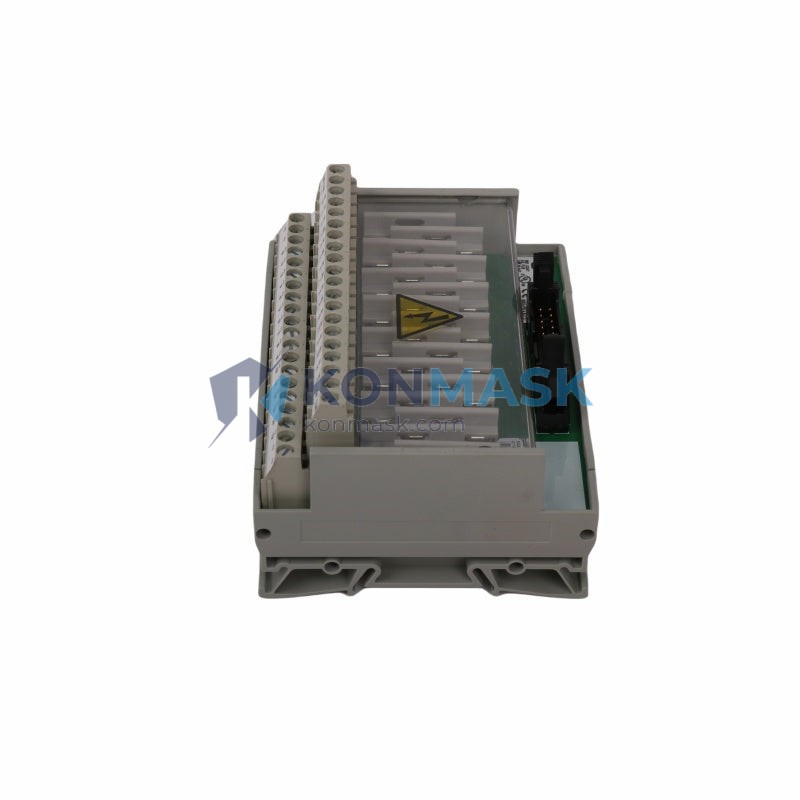

Allen-Bradley 1492-IFM20F-F120A-2 – 20-Circuit Fusible Interface Module | 1492 IFM Series
Engineering Background: The 1492 Interface Module (IFM) series is Rockwell Automation’s purpose-engineered solution for bridging PLC I/O terminals to field wiring in industrial control panels. Designed to eliminate point-to-point wiring errors and reduce panel build time, these modules mount directly onto standard DIN rail and connect via pre-wired cables to Allen-Bradley SLC 500, ControlLogix, CompactLogix, and MicroLogix I/O assemblies.
Product Positioning: The 1492-IFM20F-F120A-2 is a 20-circuit fusible IFM rated for 120V AC field devices. Each circuit is individually fused, providing overcurrent protection at the field wiring level — a critical requirement in motor control, solenoid valve, and indicator lamp applications where a single blown fuse must not interrupt adjacent circuits. This module is the preferred choice for procurement engineers specifying protected I/O termination in safety-sensitive or high-availability automation systems.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1492-IFM20F-F120A-2 |
| Series / Platform | Allen-Bradley 1492 IFM Series |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Module Type | Fusible Interface Module (IFM) |
| Number of Circuits | 20 |
| Rated Voltage | 120V AC |
| Fuse Type | Individual per-circuit fusing (F-type) |
| Fuse Rating | 2A (per circuit, replaceable) |
| Terminal Type | Screw-clamp field wiring terminals |
| Connector Interface | 40-pin IDC ribbon cable (to I/O module) |
| Compatible I/O Platforms | SLC 500 (1746), ControlLogix (1756), CompactLogix (1769), MicroLogix |
| Mounting | 35mm DIN rail (EN 50022) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Approvals / Certifications | UL Listed, CE Marked, CSA Certified |
| Enclosure Rating | Open type (panel mount) |
| Weight (approx.) | 200 g |
| Country of Origin | United States |
Proven Application Environments
- Motor Control Centers (MCC): Individually fused outputs protect motor starter coils and prevent cascade failures across adjacent circuits.
- Solenoid Valve Manifolds: 120V AC solenoids in pneumatic and hydraulic systems benefit from per-circuit fuse isolation, enabling rapid fault diagnosis without system shutdown.
- Indicator Lamp Panels: Panel lamps and annunciators wired through fused IFMs are protected from short-circuit damage without affecting neighboring indicators.
- Conveyor & Material Handling Systems: High-cycle discrete output applications where field device faults must be isolated quickly to maintain throughput.
- Food & Beverage Processing: Washdown-adjacent control panels where individual circuit protection reduces maintenance downtime.
- Automotive Assembly Lines: Multi-zone control architectures using ControlLogix with structured IFM termination for rapid zone isolation.
Engineering Advantages
- Per-Circuit Fuse Protection: Each of the 20 circuits has an independent fuse — a blown fuse on one output does not affect any other circuit, maximizing system availability.
- Reduced Panel Wiring Time: Pre-wired ribbon cable connection to the I/O module eliminates individual wire runs from the I/O rack to terminal blocks, cutting panel build time by up to 50%.
- Visual Fuse Status Indication: Blown fuse indicators (where equipped) allow maintenance technicians to identify faulted circuits at a glance without test equipment.
- DIN Rail Standardization: Snap-on 35mm DIN rail mounting integrates seamlessly with standard panel layouts and adjacent terminal block assemblies.
- Rockwell Ecosystem Compatibility: Designed and tested by Rockwell Automation for use with Allen-Bradley I/O modules — no compatibility guesswork, no field modification required.
- Replaceable Fuses: Standard fuse cartridges are field-replaceable without special tools, minimizing MTTR (Mean Time To Repair).
System Architecture & Signal Flow
The 1492-IFM20F-F120A-2 sits between the Allen-Bradley I/O module and the field device wiring harness. Signal flow is as follows:
- PLC I/O Module (e.g., 1756-OA16 ControlLogix Output Module) → outputs discrete 120V AC signals via 40-pin IDC ribbon cable.
- 1492-IFM20F-F120A-2 receives signals at the IDC connector, routes each circuit through an individual 2A fuse, and presents protected terminals on the field wiring side.
- Field Devices (solenoids, contactors, lamps) connect to the screw-clamp terminals on the IFM, completing the circuit to the 120V AC common return.
This architecture ensures that overcurrent events at the field device level are contained at the IFM fuse, protecting the I/O module output driver from damage and preserving PLC system integrity.
Sourcing & Quality Verification
All Allen-Bradley 1492-IFM20F-F120A-2 modules offered by Konmask.com are sourced through verified industrial automation supply channels. Each unit undergoes the following verification process before shipment:
- Visual inspection of housing, terminal blocks, and IDC connector for physical damage or counterfeit indicators.
- Label and date code verification against Rockwell Automation authentic product markings.
- Functional continuity check across all 20 circuits and fuse holders.
- Packaging inspection to confirm OEM or equivalent protective packaging.
We supply to OEM integrators, MRO procurement teams, and end-user maintenance departments. Traceability documentation is available upon request for regulated industries.
Procurement Process
- Confirm Compatibility: Verify your I/O module catalog number and cable assembly part number (e.g., 1492-CABLE020X series) before ordering.
- Request a Quote: Contact [email protected] for volume pricing, lead time confirmation, and availability on specific date codes.
- Place Order: Orders can be placed directly through this product page or via purchase order (PO) for approved accounts.
- Shipping: Standard orders ship within 1–3 business days. Expedited shipping available. International export documentation provided for cross-border shipments.
- After-Sales Support: Technical support available via email or phone for installation, wiring, and compatibility questions.
Technical FAQ
Q: What cable assembly is required to connect the 1492-IFM20F-F120A-2 to my I/O module?
A: You need a 1492-CABLE020X series pre-wired cable (20-conductor, length varies). Confirm the cable length and I/O module connector type before ordering.
Q: Can this IFM be used with 240V AC field devices?
A: No. The 1492-IFM20F-F120A-2 is rated for 120V AC only. For 240V AC applications, use the appropriate 240V-rated IFM variant.
Q: What fuse specification should I use for replacement?
A: The module uses standard 5×20mm or equivalent cartridge fuses rated 2A. Consult the Rockwell Automation 1492 IFM User Manual (Publication 1492-UM001) for exact fuse specifications.
Q: Is this module compatible with CompactLogix 1769 I/O?
A: Yes, with the appropriate 1492-CABLE020X cable assembly and a compatible 1769 discrete output module. Verify the I/O module’s IDC connector pinout against the IFM wiring diagram.
Q: Do you provide certificates of conformance or country of origin documentation?
A: Yes. Documentation is available upon request. Contact [email protected] with your order number and documentation requirements.
