Applied Materials 15000400 5069-001-PV 200 0150-21692 PCB ASM Ion Implant Servo Amplifier Board
When a servo amplifier PCB fails inside an ion implantation system, the entire production line halts. Wafer throughput drops to zero, cleanroom downtime accumulates at thousands of dollars per hour, and engineering teams scramble for a replacement that matches exact OEM specifications. Without the correct board — part number 15000400 / 5069-001-PV 200 / 0150-21692 — the ion beam cannot be precisely steered, rendering the implanter inoperable and jeopardizing critical semiconductor fabrication schedules.

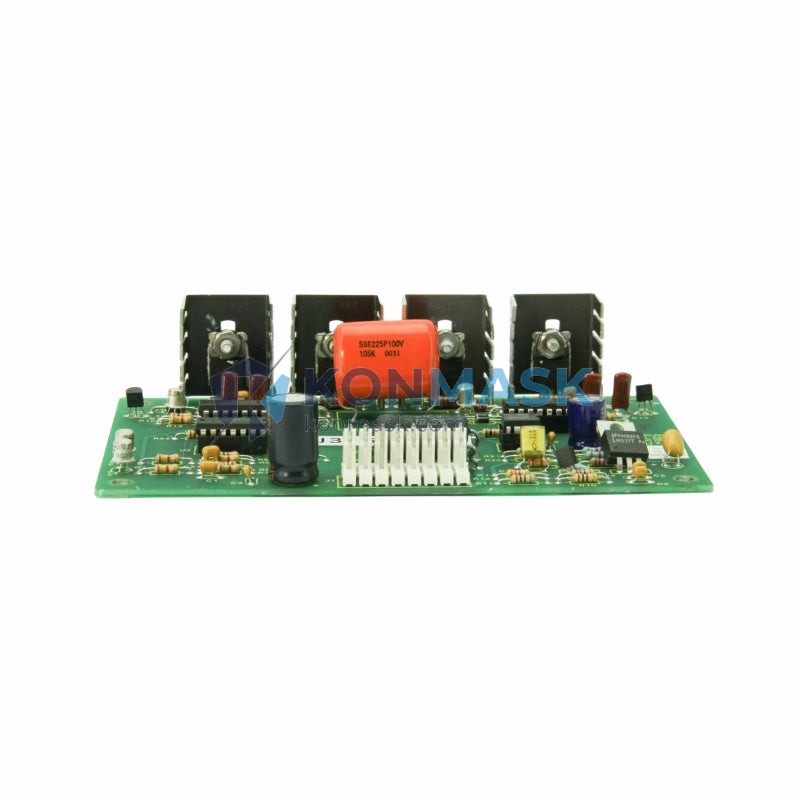

The Applied Materials 15000400 PCB ASM Ion Implant Servo Amplifier is a precision servo-drive assembly engineered for the demanding motion-control requirements of ion implantation equipment. Within the Applied Materials implanter platform, this board occupies a mission-critical position in the beam-line servo loop, delivering the high-bandwidth current amplification needed to maintain sub-micron positional accuracy of beam-steering and wafer-handling actuators. Its global installed base across leading semiconductor fabs makes it one of the most sought-after spare parts in the ion implant aftermarket.
Technical Specifications
- Part Number: 15000400
- Alternate P/N: 5069-001-PV 200 / 0150-21692
- Assembly Type: PCB Assembly (PCB ASM)
- Function: Ion Implant Servo Amplifier
- OEM Manufacturer: Applied Materials (AMAT)
- Form Factor: Plug-in PCB module
- Weight: 2,600 g (approx.)
- Condition Available: New / Refurbished / Tested Used
- Lead Time: Subject to stock — contact us for availability
Key Features & Benefits
- OEM-Equivalent Performance: Designed to meet Applied Materials original design specifications for servo loop stability and bandwidth.
- High-Reliability Components: Built with industrial-grade components rated for continuous operation in cleanroom environments.
- Drop-In Replacement: Direct plug-in replacement for the original board — no firmware modification required.
- Tested Before Shipment: Every unit undergoes functional verification prior to dispatch.
- Reduced Downtime: Fast global shipping from bonded warehouse stock minimizes fab downtime.
- Cross-Reference Support: Verified against P/N 5069-001-PV 200 and 0150-21692 for procurement accuracy.
Industry & Equipment Applications
- Semiconductor Fabrication: Ion implantation process steps (dopant implant, threshold voltage adjustment, source/drain formation).
- Flat Panel Display (FPD) Manufacturing: Low-energy implant tools used in TFT-LCD and OLED backplane production.
- Solar Cell Production: High-current implanters for photovoltaic cell doping.
- Research & Development: University and national lab implanters requiring legacy spare parts.
- Equipment Refurbishment: OEM-grade boards for refurbished implanter resale and upgrade programs.
System Integration & Compatible Parts
This servo amplifier PCB is designed for integration within Applied Materials ion implantation platforms. When sourcing this board, consider also verifying the condition of related assemblies in the servo drive chain, including power supply boards, feedback encoder interfaces, and motion controller cards. Konmask.com can assist in identifying compatible spare parts across the same equipment platform — contact our technical team with your full BOM for a comprehensive quote.
Our Quality Assurance Process
- Visual Inspection: All boards are inspected for physical damage, burnt components, and corrosion.
- Functional Test: Boards are powered up and tested under simulated load conditions where applicable.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons.
- Traceability: Each unit is logged with inspection records available upon request.
- Warranty: 90-day warranty against defects in materials and workmanship (terms apply).
How to Order
- Submit an inquiry via the Contact / RFQ form on this page.
- Provide your full part number, required quantity, and destination country.
- Our team will confirm availability, lead time, and pricing within 1 business day.
- Upon agreement, we issue a proforma invoice and arrange secure payment.
- Parts are shipped with full documentation (test report, packing list, commercial invoice).
Why Choose Konmask.com?
- ✅ Specialized in industrial automation and semiconductor equipment spare parts
- ✅ Global sourcing network with access to hard-to-find legacy components
- ✅ Technical team with hands-on experience in ion implant and process equipment
- ✅ Competitive pricing with transparent quotation process
- ✅ Reliable international logistics with DHL, FedEx, and UPS options
- ✅ Serving customers in 50+ countries across Asia, Europe, and the Americas
Frequently Asked Questions
Q: Is this board compatible with my specific Applied Materials implanter model?
A: Please contact us with your equipment model number and we will verify compatibility before shipment.
Q: Do you offer refurbished units in addition to new stock?
A: Yes. We offer new, refurbished, and tested-used units depending on availability. All conditions are clearly stated in the quotation.
Q: What is the lead time for this part?
A: Lead time depends on current stock levels. In-stock units typically ship within 3–5 business days. Contact us for real-time availability.
Q: Can you provide a test report or certificate of conformance?
A: Yes. Functional test reports and inspection records are available upon request for all units.
Q: Do you accept returns if the part does not work?
A: We offer a 90-day warranty. If a unit is found defective upon installation, please contact us immediately for a replacement or refund per our warranty terms.
Q: What payment methods do you accept?
A: We accept T/T (bank wire transfer), PayPal, and other methods for international B2B transactions. Details are provided in the proforma invoice.
