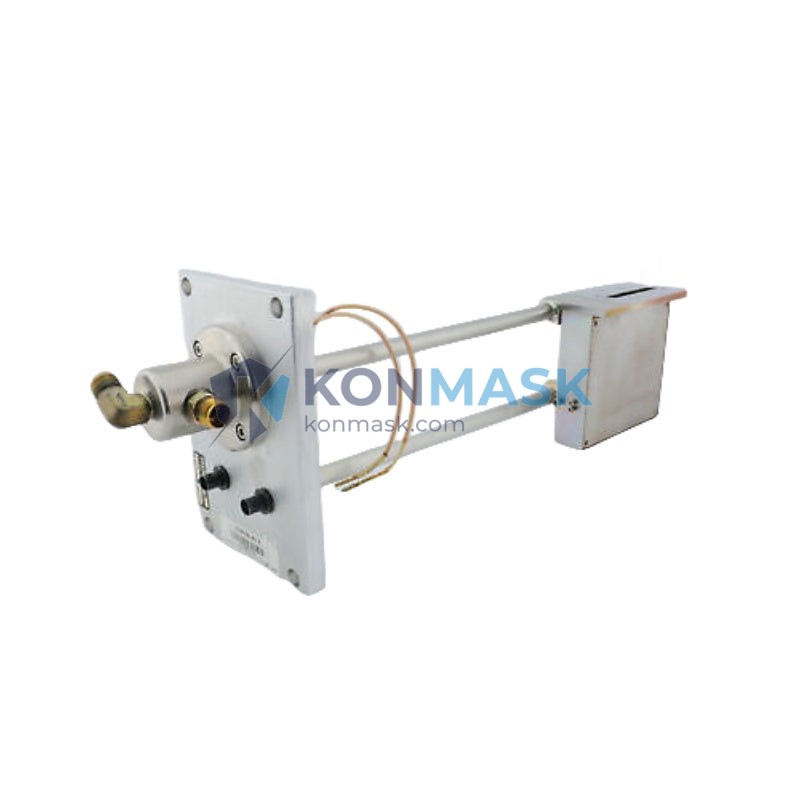

VARIAN E17031380 – Faraday Assembly for Ion Beam Current Measurement | R100U-15 Platform
Engineering Background
The Faraday assembly is a mission-critical beam diagnostics component in VARIAN ion implantation systems. Positioned within the beam line, it intercepts and measures ion beam current with high precision, providing real-time feedback to the implanter’s dose control system. Accurate Faraday measurement is essential for achieving repeatable, specification-compliant implant doses across wafer batches.
Product Positioning
Part number E17031380 is the primary OEM reference for this Faraday assembly, used across VARIAN’s R100U-15 and related ion implanter platforms. It is cross-referenced under multiple internal and service part numbers — E17010650, E17010570, E11001320, R100U-15, 0010-18042, and 414501 — ensuring compatibility across different service documentation revisions. This unit is sourced from verified OEM and certified aftermarket supply chains and is suitable for direct drop-in replacement in qualified maintenance windows.
Complete Technical Specifications
| Primary Part Number | E17031380 |
| Cross-Reference Part Numbers | E17010650 / E17010570 / E11001320 / R100U-15 / 0010-18042 / 414501 |
| OEM / Manufacturer | VARIAN (Applied Materials Ion Beam Products) |
| Component Type | Faraday Assembly (Beam Current Measurement) |
| Platform Compatibility | VARIAN R100U-15 Ion Implanter Series |
| Function | Ion beam current interception and dose measurement |
| Material | High-purity graphite / metal alloy (OEM specification) |
| HS Code | 8543.70.99 |
| Country of Origin | United States |
| Condition | New OEM / Certified Refurbished (specify at inquiry) |
| Lead Time | Subject to stock availability — contact for confirmation |
Proven Application Environments
- VARIAN R100U-15 ion implantation systems in high-volume semiconductor fabs
- 200 mm and 300 mm wafer process lines requiring precise dose control
- Scheduled preventive maintenance (PM) cycles for beam line components
- Emergency replacement during unplanned downtime events
- Refurbishment and rebuild programs for VARIAN implanter fleets
Engineering Advantages
- Multi-PN Compatibility: Single unit covers six cross-reference part numbers, simplifying procurement and reducing spare parts inventory complexity.
- Dose Accuracy: Maintains beam current measurement integrity critical for implant uniformity and wafer yield.
- Drop-In Replacement: Dimensionally and functionally equivalent to OEM specification — no system modification required.
- Verified Supply Chain: Sourced through traceable channels with documentation available upon request.
- Reduced Downtime Risk: In-stock availability supports rapid dispatch to minimize fab downtime impact.
System Architecture & Signal Flow
Within the VARIAN R100U-15 beam line, the Faraday assembly is positioned downstream of the analyzing magnet. Ions passing through the beam aperture are collected by the Faraday cup electrode, generating a measurable current signal. This signal is routed to the dose control electronics, which modulate scan parameters and beam exposure time to achieve the target implant dose. Degradation or contamination of the Faraday assembly directly impacts dose repeatability and can trigger dose alarms or process excursions.
Sourcing & Quality Verification
- All units are inspected prior to shipment for dimensional conformance and surface condition.
- OEM-sourced units carry original VARIAN part documentation where available.
- Certified refurbished units are cleaned, inspected, and tested to OEM functional standards.
- Certificate of Conformance (CoC) and material traceability documentation available on request.
- Export compliance reviewed for applicable regulations (EAR/ECCN).
Procurement Process
- Submit your inquiry with required quantity, target delivery date, and destination country.
- Receive stock confirmation, lead time, and formal quotation within 1 business day.
- Review and approve quotation; submit purchase order.
- Unit prepared, inspected, and dispatched with shipping documentation.
- Post-delivery technical support available from Konmask engineering team.
Technical FAQ
Q: Are all six part numbers fully interchangeable?
A: Yes. E17031380, E17010650, E17010570, E11001320, R100U-15, 0010-18042, and 414501 are cross-references for the same assembly used across different VARIAN documentation revisions. Confirm your system serial number at inquiry for final verification.
Q: What is the typical replacement interval for this Faraday assembly?
A: Replacement frequency depends on beam current levels and process chemistry. Most fabs replace or inspect the Faraday assembly during scheduled quarterly or semi-annual PM cycles, or when dose alarms indicate measurement drift.
Q: Can you provide a Certificate of Conformance?
A: Yes. CoC documentation is available for all units. Please request at time of order placement.
Q: Do you support urgent / emergency orders?
A: Yes. Contact us directly via phone or email for expedited processing. We prioritize unplanned downtime situations.
Q: What are the export restrictions for this part?
A: This component may be subject to U.S. Export Administration Regulations (EAR). Konmask conducts export compliance review on all international orders. End-user documentation may be required.
