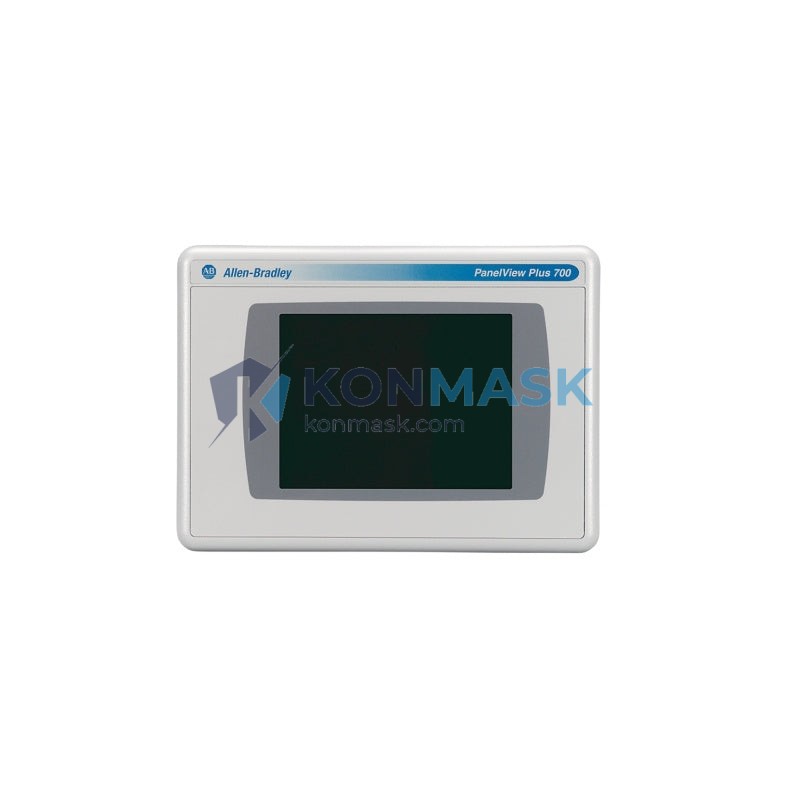

Allen-Bradley 2711P-RDT7C – 7″ Color Touch Display Module | PanelView Plus 700 Platform
Engineering Background: The PanelView Plus 700 series represents Rockwell Automation’s mid-range HMI platform, engineered for demanding industrial environments where operator interface reliability is mission-critical. The 2711P-RDT7C is the dedicated color touch display module for this platform, providing a high-resolution visual interface that integrates seamlessly with Allen-Bradley control architectures via EtherNet/IP and DF1 protocols.
Product Positioning: Designed for procurement engineers and system integrators sourcing replacement or expansion display modules for existing PanelView Plus 700 installations. The 2711P-RDT7C delivers OEM-grade performance in retrofit, MRO, and new-build panel applications across discrete manufacturing, process control, and infrastructure sectors.
Complete Technical Specifications
- Part Number: 2711P-RDT7C
- Series: PanelView Plus 700
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Size: 7.0″ (177.8 mm) diagonal
- Display Type: Color TFT LCD with resistive touch screen
- Resolution: 800 × 480 pixels (WVGA)
- Touch Technology: Resistive analog touch panel
- Backlight: LED backlight
- Module Type: Display module only (requires logic module 2711P-RP series)
- Mounting: Panel-mount, NEMA 4/4X/12, IP65 front face
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 1.1 kg
- Certifications: UL, CE, cUL
- Country of Origin: United States
Proven Application Environments
- Discrete manufacturing lines — machine tool control, assembly automation, conveyor systems
- Process industries — water/wastewater treatment, chemical dosing, HVAC control panels
- Food & beverage — washdown-rated panel installations (NEMA 4X compliance)
- Oil & gas — upstream and midstream skid-mounted control stations
- Infrastructure — power distribution, building automation, utility substations
- MRO replacement — direct drop-in for existing PanelView Plus 700 installations
Engineering Advantages
- Modular Architecture: Display module separates from logic module, enabling independent replacement without full terminal swap — reducing downtime and MRO cost.
- Wide Protocol Support: Compatible logic modules support EtherNet/IP, DF1, DH-485, DH+, and ControlNet — covering the full Allen-Bradley PLC ecosystem.
- FactoryTalk View ME Integration: Native compatibility with Rockwell’s FactoryTalk View Machine Edition software for rapid application development and deployment.
- NEMA 4/4X/12 Rated: Front-face sealing meets IP65 requirements, suitable for washdown and dusty environments.
- LED Backlight Longevity: Extended backlight life versus legacy CCFL displays, reducing scheduled maintenance intervals.
- Backward Compatibility: Supports migration from PanelView Plus 6 and legacy PanelView 550/600/900/1000 application files with FactoryTalk View conversion tools.
System Architecture & Signal Flow
The 2711P-RDT7C operates as the display front-end in a two-module PanelView Plus 700 terminal assembly:
- Display Module (2711P-RDT7C): Handles all visual output (TFT LCD), touch input acquisition, and front-panel LED indicators. Connects to the logic module via internal ribbon interface.
- Logic Module (2711P-RP series): Executes FactoryTalk View ME application, manages communication to PLC/controller via EtherNet/IP or serial protocols, and provides USB/CF card interfaces for project storage.
- Controller Integration: Logic module communicates upstream to Allen-Bradley PLCs (ControlLogix, CompactLogix, MicroLogix, SLC 500, PLC-5) via configured communication adapter.
- Power Supply: 24 VDC nominal input to logic module; display module powered internally via module interconnect.
Sourcing & Quality Verification
- Source: Konmask.com sources 2711P-RDT7C units from authorized distribution channels and verified industrial surplus with full traceability documentation.
- Inspection Protocol: Each unit undergoes visual inspection, label verification (Rockwell Automation holographic authenticity label check), and functional power-on test prior to shipment.
- Packaging: Shipped in anti-static ESD packaging with foam cushioning; original Rockwell Automation packaging retained where available.
- Documentation: Certificate of conformance and test report available upon request for critical MRO and OEM procurement.
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 business days.
Procurement Process
- Verify Compatibility: Confirm your existing logic module part number (2711P-RP series) is compatible with the 2711P-RDT7C display module. Contact our engineering team if uncertain.
- Request Quote: Submit your RFQ via support@konmask.com with quantity, required delivery date, and destination port/Incoterms.
- Order Confirmation: Purchase order accepted; lead time and shipping method confirmed within 1 business day.
- Quality Hold: Unit reserved, inspected, and documented prior to dispatch.
- Shipment: DHL Express / FedEx International Priority standard; sea freight available for bulk orders. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support: Technical support available via email and phone for installation, commissioning, and FactoryTalk View ME configuration queries.
Technical FAQ
Q: Can the 2711P-RDT7C be used as a standalone HMI?
A: No. The 2711P-RDT7C is a display module only and requires a compatible 2711P-RP series logic module to function as a complete PanelView Plus 700 terminal.
Q: Which logic modules are compatible?
A: The 2711P-RDT7C is compatible with all 2711P-RP series logic modules (e.g., 2711P-RP8D, 2711P-RP8A). Verify the specific revision compatibility in Rockwell Automation publication 2711P-TD001.
Q: Is this module compatible with FactoryTalk View ME v8.x and later?
A: Yes, when paired with a compatible logic module running current firmware. Firmware updates are available via Rockwell Automation’s Product Compatibility and Download Center (PCDC).
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. Contact us for real-time stock confirmation before placing your order.
Q: Do you provide export documentation for customs clearance?
A: Yes. Full export documentation including commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) is provided with every international shipment.
