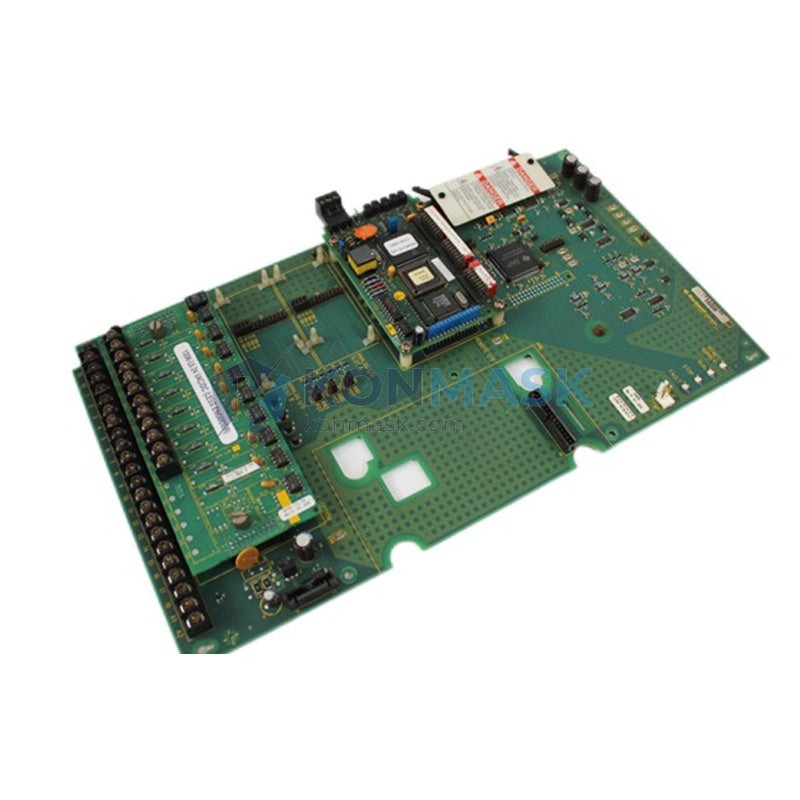

Allen-Bradley 1336F-MCB-SP1C – Main Control Board | 1336 FORCE AC Drive Platform
Engineering Background
The Allen-Bradley 1336 FORCE series represents Rockwell Automation’s high-performance vector AC drive platform, widely deployed across heavy industrial sectors including oil & gas, mining, metals, and large-scale manufacturing. The 1336F-MCB-SP1C is the main control board (MCB) spare part for this drive family — the central processing and signal coordination assembly that governs all closed-loop vector control, I/O interfacing, and communication functions within the drive chassis.
Product Positioning
Sourced for maintenance engineers and procurement teams managing legacy 1336 FORCE installations, this board provides a direct OEM-equivalent replacement path without requiring full drive replacement. Konmask.com stocks this component to support unplanned downtime recovery and scheduled preventive maintenance programs across global industrial facilities.
Complete Technical Specifications
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1336F-MCB-SP1C |
| Component Type | Main Control Board (PC Board Assembly) |
| Compatible Drive Series | 1336 FORCE (1336F) |
| Control Architecture | Closed-loop flux vector control |
| Processor | Dedicated DSP-based motor control processor |
| I/O Interface | Analog & digital I/O via drive backplane connector |
| Communication Support | Compatible with DPI / SCANport peripheral modules |
| Firmware | Factory-programmed; revision-matched to drive series |
| Operating Temperature | 0°C to +50°C (ambient, drive enclosure) |
| Humidity | 5% to 95% non-condensing |
| Weight (approx.) | 400 g |
| Condition | New / Surplus New / Refurbished (specify at inquiry) |
| Compliance | CE, UL listed (per original drive certification) |
Proven Application Environments
- Oil & Gas: Pump and compressor drive control in upstream and midstream facilities
- Mining & Minerals: Conveyor, crusher, and hoist drive systems requiring high-torque vector control
- Metals & Steel: Rolling mill and coiler drives with precise speed regulation
- Water & Wastewater: Large pump station VFD maintenance programs
- Pulp & Paper: Section drive replacement in continuous process lines
- Marine & Offshore: Thruster and auxiliary drive control systems
- Power Generation: Auxiliary motor control in thermal and hydro plants
Engineering Advantages
- Direct OEM Replacement: Plug-in compatible with existing 1336F drive chassis — no firmware re-flashing required for matched revisions
- Preserves Drive Investment: Extends operational life of installed 1336 FORCE drives without full drive capital expenditure
- Rapid Downtime Recovery: Board-level swap reduces MTTR versus full drive replacement; critical for continuous process industries
- Closed-Loop Vector Integrity: Maintains full flux vector control performance post-replacement, preserving motor tuning parameters stored in drive memory
- SCANport Ecosystem Compatibility: Retains compatibility with existing HIM panels, DeviceNet adapters, and remote I/O modules
- Documented Traceability: Each unit supplied with part number verification and condition documentation
System Architecture & Signal Flow
Within the 1336 FORCE drive architecture, the MCB (Main Control Board) sits at the center of the control hierarchy:
- Inputs: Speed reference (analog/digital), encoder feedback (optional), I/O command signals from PLC/DCS via SCANport or hardwired terminals
- Processing: DSP executes real-time flux vector algorithm — computing slip frequency, torque current, and flux current vectors at high update rates
- Outputs: PWM gate firing signals to the power structure (IGBT/transistor base drive board); fault relay outputs; analog output signals for process monitoring
- Communication: DPI/SCANport interface to peripheral devices (HIM, communication adapters, I/O expanders)
- Diagnostics: Onboard fault logging accessible via HIM or DriveExplorer/DriveExecutive software
Sourcing & Quality Verification
- Source Channels: Authorized surplus distributors, decommissioned OEM equipment, and certified repair facilities
- Incoming Inspection: Visual inspection for physical damage, component integrity check, and part number/revision verification against Rockwell Automation documentation
- Functional Testing: Available on request — bench-tested units verified against known-good drive chassis prior to shipment
- Packaging: ESD-safe anti-static bag, foam-padded carton; suitable for international air freight
- Documentation: Certificate of conformance, packing list, and condition report included
- Warranty: 90-day replacement warranty against DOA or latent defects (terms apply)
Procurement Process
- Confirm Compatibility: Verify your 1336 FORCE drive nameplate part number and MCB revision level before ordering — contact our technical team if unsure
- Request Quote: Submit inquiry via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required condition (new/surplus/refurbished)
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–10 business days
- Payment: T/T bank transfer, PayPal, or trade credit (approved accounts); proforma invoice issued upon order confirmation
- Shipping: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders; export documentation provided
- After-Sales: Installation guidance and commissioning support available from our engineering team
Technical FAQ
Q: Is the 1336F-MCB-SP1C compatible with all horsepower ratings of the 1336 FORCE drive?
A: The MCB-SP1C variant is designed for specific frame sizes within the 1336F family. Please confirm your drive’s full catalog number (including voltage and HP suffix) to ensure revision compatibility. Contact us for cross-reference assistance.
Q: Will replacing the MCB erase my drive parameters?
A: Parameters are stored in the drive’s memory module or HIM, not on the MCB itself in most 1336F configurations. However, we recommend backing up parameters via DriveExplorer software before any board replacement as a best practice.
Q: Can I use a refurbished MCB in a safety-critical application?
A: Refurbished units are bench-tested and functionally verified. For SIL-rated or safety-critical applications, consult your site safety engineer and review Rockwell Automation’s guidelines for spare part qualification.
Q: Do you provide installation support?
A: Yes. Our technical team can provide step-by-step board replacement guidance and commissioning checklists. Remote support via email or video call is available.
Q: What is the difference between SP1C and other MCB variants (SP1A, SP1B)?
A: Suffix letters denote hardware revision levels. Each revision may include component updates or firmware changes. Always match the replacement board revision to your existing drive’s MCB revision for guaranteed compatibility.
