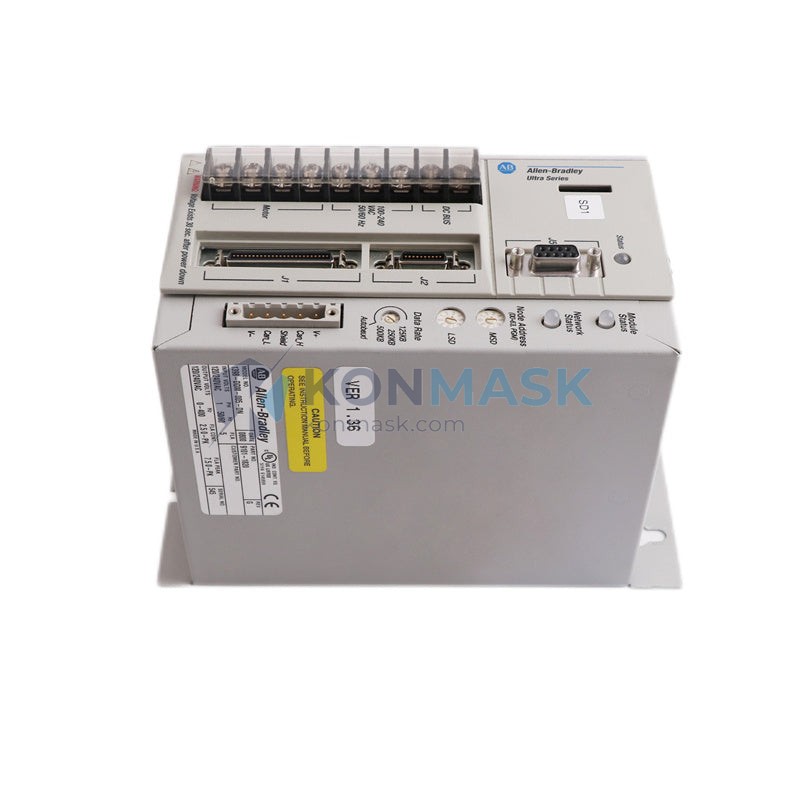

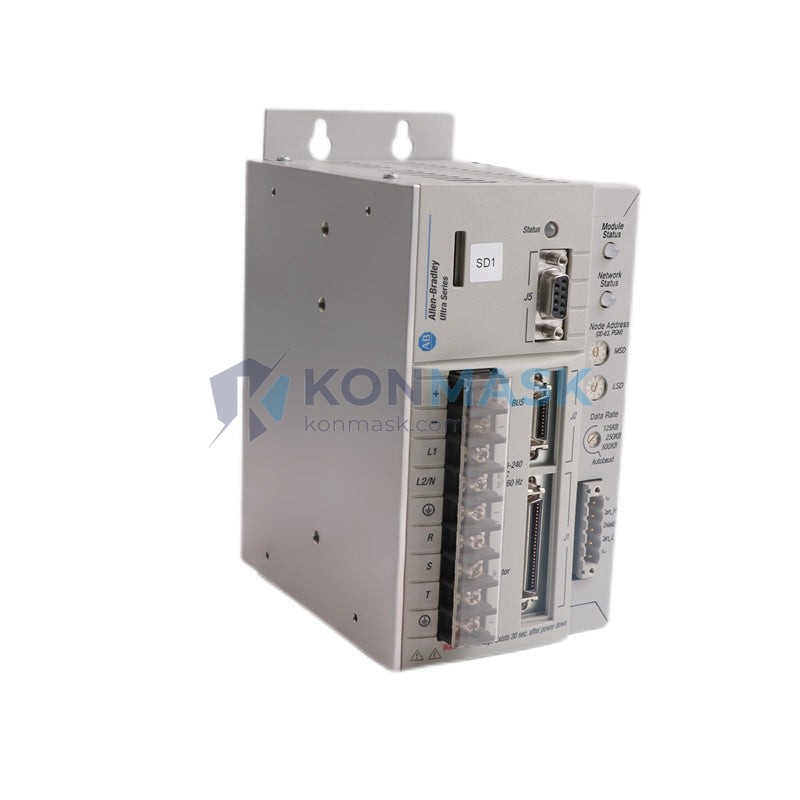

Allen-Bradley 1398-DDM-005-DN Universal Drive | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1398-DDM-005-DN is a compact, high-performance Universal Drive from Rockwell Automation’s 1398 ULTRA Series, designed for precise motion control in industrial automation systems. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | 1398-DDM-005-DN |
| Series | 1398 ULTRA Series |
| Drive Type | Universal Drive (AC/DC Servo) |
| Continuous Output Current | 5 A |
| Communication Interface | DeviceNet (DN) |
| Input Voltage | 120/240 VAC, Single or Three Phase |
| Feedback Support | Encoder, Resolver |
| Control Mode | Position, Velocity, Torque |
| Protection Rating | IP20 |
| Weight | 1.88 kg |
| Compliance | CE, UL Listed |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 1398-DDM-005-DN. Always verify electrical and mechanical compatibility before substitution:
- 1398-DDM-005 — Same series, without DeviceNet interface; suitable if DeviceNet communication is not required.
- 1398-DDM-010-DN — Higher current (10 A) variant; use when load demands exceed 5 A continuous.
- 2098-DSD-005-DN — Ultra 3000 Series successor; direct DeviceNet replacement with enhanced diagnostics.
- 2098-DSD-005X — Ultra 3000 with SERCOS interface; requires interface card change.
- Kinetix 300 (2097-Vxx) — Modern compact servo drive; requires re-engineering of control wiring and software.
- Third-party equivalents — Drives from Yaskawa (SGDV series), Mitsubishi (MR-J4), or Siemens (SINAMICS S120) may be evaluated for cross-brand replacement with appropriate engineering review.
Note: Cross-brand replacements require full compatibility verification including firmware, feedback type, and bus protocol.
Why Choose the Original Model
- Proven reliability — Field-tested in thousands of installations across automotive, packaging, and material handling industries.
- Native DeviceNet integration — Seamless communication with Allen-Bradley PLCs and ControlLogix/CompactLogix systems without additional gateways.
- Multi-mode control — Supports position, velocity, and torque control modes in a single unit, reducing spare parts complexity.
- Rockwell ecosystem compatibility — Fully supported by RSLogix, Studio 5000, and DriveExplorer configuration tools.
- Compact footprint — Optimized for panel space in retrofit and OEM machine builds.
Typical Applications
- CNC machine tool axis control
- Packaging line servo positioning
- Conveyor and material handling systems
- Robotic arm joint drives
- Printing and labeling machine web tension control
- Semiconductor wafer handling equipment
- Assembly line pick-and-place automation
System Compatibility
- PLC Platforms: ControlLogix (1756), CompactLogix (1769), SLC 500, PLC-5 (via DeviceNet scanner)
- HMI: PanelView series via DeviceNet network
- Motors: Compatible with Allen-Bradley MPL, MPM, and TL series servo motors with encoder or resolver feedback
- Network: DeviceNet (CAN-based), supports explicit and I/O messaging
- Software: RSLogix 5000 / Studio 5000, DriveExplorer, RSNetWorx for DeviceNet
Selection Guide
Use the following criteria to confirm the 1398-DDM-005-DN is the right drive for your application:
- Current requirement: Continuous motor current ≤ 5 A RMS — if higher, select 1398-DDM-010-DN or 2098-DSD-010-DN.
- Communication bus: DeviceNet required — if SERCOS or EtherNet/IP is needed, select 2098-DSD-005X or Kinetix 5500.
- Feedback type: Encoder or resolver — confirm motor feedback matches drive input specification.
- Control mode: Position/velocity/torque — all supported natively; no additional option cards required.
- Power supply: 120/240 VAC single or three phase — verify site power availability.
- Replacement scenario: If replacing a failed 1398-DDM-005-DN in an existing system, the 2098-DSD-005-DN is the recommended modern equivalent with minimal re-wiring.
Quality Assurance & Sourcing
- All units sourced through Konmask.com are inspected for authenticity and functionality prior to shipment.
- We supply both new original and refurbished/tested units — condition is clearly stated on each listing.
- Traceability documentation available upon request for MRO and OEM procurement teams.
- Units ship with standard 90-day warranty; extended warranty options available — contact us for details.
- Export compliance: ECCN classification and export documentation provided for international orders.
How to Order
- Online: Add to cart directly from this page — stock availability shown in real time.
- Email: Send your BOM or part number list to support@konmask.com for a bulk quote.
- Phone/WhatsApp: +0086 19859288691 — available for urgent procurement inquiries.
- Lead time: In-stock items ship within 1–3 business days; out-of-stock items subject to sourcing lead time (typically 5–15 business days).
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted.
Replacement & Compatibility FAQ
Q: Can I replace the 1398-DDM-005-DN with a 2098-DSD-005-DN directly?
A: In most cases yes — the 2098-DSD-005-DN is the recommended modern successor with DeviceNet support. Minor wiring and parameter reconfiguration is typically required.
Q: Is the 1398-DDM-005-DN still in production?
A: This model has been discontinued by Rockwell Automation. Konmask.com supplies new-old-stock and refurbished units. For new installations, we recommend the 2098-DSD-005-DN.
Q: What motors are compatible with this drive?
A: Allen-Bradley MPL, MPM, and TL series servo motors with encoder or resolver feedback are natively compatible. Third-party motors may be used with appropriate feedback wiring adaptation.
Q: Can this drive be used with a ControlLogix PLC?
A: Yes — via a DeviceNet scanner module (e.g., 1756-DNB) installed in the ControlLogix chassis.
Q: Do you provide configuration support?
A: Basic parameter guidance is available via email. For full commissioning support, we recommend engaging a certified Rockwell Automation integrator.
